Qualcast

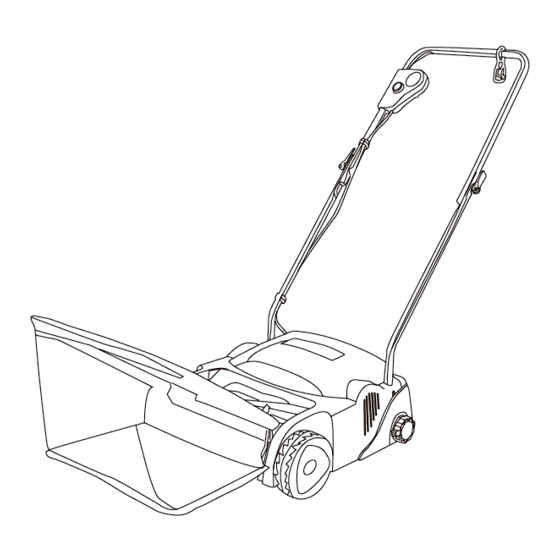

400W Electric Cylinder Mower
Assembly Manual
SCM32
Important
- Please read these instructions fully before starting assembly
These instructions contain important information that will help you get the best from your electric
cylinder mower, ensuring it is assembled correctly and safely.
If you need help or have damaged or missing parts, call the Customer Helpline on 0845 034 2279
prior to returning product to store.
Sep 2012 Rev A
Advertisement
Table of Contents
Related Manuals for Qualcast SCM32
Summary of Contents for Qualcast SCM32
- Page 1 Qualcast 400W Electric Cylinder Mower Assembly Manual SCM32 Important - Please read these instructions fully before starting assembly These instructions contain important information that will help you get the best from your electric cylinder mower, ensuring it is assembled correctly and safely.
-
Page 2: Table Of Contents
Contents Safety Information Important - Please read these instructions fully before starting assembly Warning Symbols Safety Information .............................3 The following warning symbols appear throughout this assembly manual and indicate the appropriate Warning Symbols ............................3 safety measures you should take when assembling and operating the electric cylinder mower. General Safety ..............................3 This symbol indicates there is a danger of serious personal injury or death if you do not observe the warning. -
Page 3: In The Box
In the Box Assembly Parts Preparing to assemble the Electric Cylinder Mower WARNING! Always take care when removing the packaging to prevent you or to the electric Screw, 2pcs Main unit with upper Cable clip, 2pcs Grass bag cylinder mower. handle 1. -
Page 4: Step 3 Securing The Power Cord With Cable Clip
Assembly Assembly Step 2 - Assembling the upper handles (continued) Step 5 - Connection to the power supply WARNING! Make sure that the throttle switch is on the same side as the cable from the deck and WARNING! Read all of the instructions of this manual before connecting the power supply for that they are not twisted. - Page 5 Qualcast 400W Electric Cylinder Mower Operation and Maintenance Manual SCM32 Important - Please read these instructions fully before operating or maintaining your electric cylinder mower. These instructions contain important information that will help you get the best from your electric cylinder mower, ensuring it is assembled correctly and safely.
- Page 6 Contents Safety Information Important - Please read these instructions fully before operating or maintaining Warning Symbols Safety Information .............................3 Warning Symbols ............................3 Please read these instructions fully before operating or maintaining your electric cylinder mower. General Safety ..............................5 Preparation ..............................5 Warning.
-
Page 7: Safety Information
Safety Information Safety Information Important - Please read these instructions fully before operating or maintaining Important - Please read these instructions fully before operating or maintaining Warning Symbols General Safety Double insulation. WARNING! Keep this operating and maintenance manual in a safe place for furture reference. WARNING! Read the instructions carefully. -
Page 8: Pesonal Safety
Safety Information Safety Information Important - Please read these instructions fully before operating or maintaining Important - Please read these instructions fully before operating or maintaining Pesonal Safety Operation a) Use personal protective equipment (PPE). Always wear eye protection. Protective equipment a) Be certain the parts are fully tightened before operating the tool. -
Page 9: Maintenance And Storage
Safety Information Preparing to Operate the Cylinder Mower Important - Please read these instructions fully before operating or maintaining Preparing to operate the electric cylinder mower Maintenance and Storage WARNING ! Always wear safety gloves when doing any work on the electric cylinder mower. WARNING ! Always unplug the power cord from the power source before doing any work on the a) Maintain tools with care. -
Page 10: Step 2 - Switch On /Off
Preparing to Operate the Cylinder Mower Preparing to Operate the Cylinder Mower Step 2 - Switch on /off Step 3 - Adjusting the blade clearance (continued) While the blade reel is turning, insert a sheet of paper between the blade reel and the cutting bar. -
Page 11: Maintenance And Repair
Maintenance and Repair Storage and Transportation Maintenance and Repair Transportation WARNING! Always switch the product off and let the product cool down before performing 2). Always carry the product on its gripping surfaces. inspection, maintenance and cleaning work! 3). Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles. -
Page 12: Technical Data
Technical Data Recycling and Disposal Technical Data Table Disposal Instructions (continued) for the recovery and recycling of materials contained within. Your cooperation is vital to ensure the Property Value success of these schemes and for the protection of the environment. Motor Voltage 230-240V ~/50Hz 5. -
Page 13: Guarantee
Guarantee Declaration of Conformity Dear Customer, EC Declaration of Conformity Year of 1st Issue . In the unlikely event that your device develops a fault, please contact our Customer service 0359 department on the telephone number shown below. 489-499 Avebury Boulevard 1.
