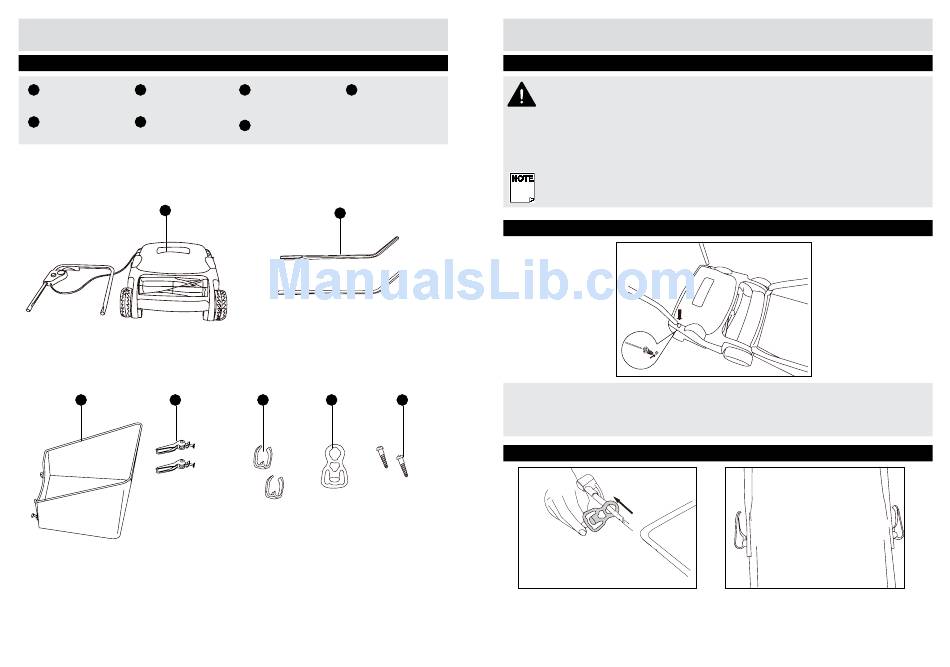

In the Box

Parts

Main unit with upper
A C Grass bag
handle
B Lower handle, 2 pcs D Quick release 2pcs
A
C D
Customer Helpline 0845 034 2279
4
www.gardenservicecentre.co.uk
Screw, 2pcs
Cable clip, 2pcs
E G
Cable retainer
F
B
E F G

Assembly

Preparing to assemble the Electric Cylinder Mower
WARNING! Always take care when removing the packaging to prevent you or to the electric
cylinder mower.
1. Remove all parts of the electric cylinder mower from the box and carefully remove all
packaging. Take care not to lose any instructions which may be attached to the parts. These
provide important information which will be required while assembling the electric cylinder
mower.
2. Keep all packaing until the electric cylinder mower is fully assembled and has been operated
successfully.
NOTE! Always recycle the packaging in accordance with local recycling schemes.
Step 1 - Assemble the lower handles
Before using the electric cylinder mower, a one-time assembly is required.
Insert each of the lower handles firmly into the slots of the deck and fix them securely in place
using the two screws provided (G).
Step 2 - Assembling the upper handles
