Qualcast GLM3300 Operating Instructions Manual

Qualcast GLM3300 Operating Instructions Manual

1200 watt electric rotary mower

Advertisement

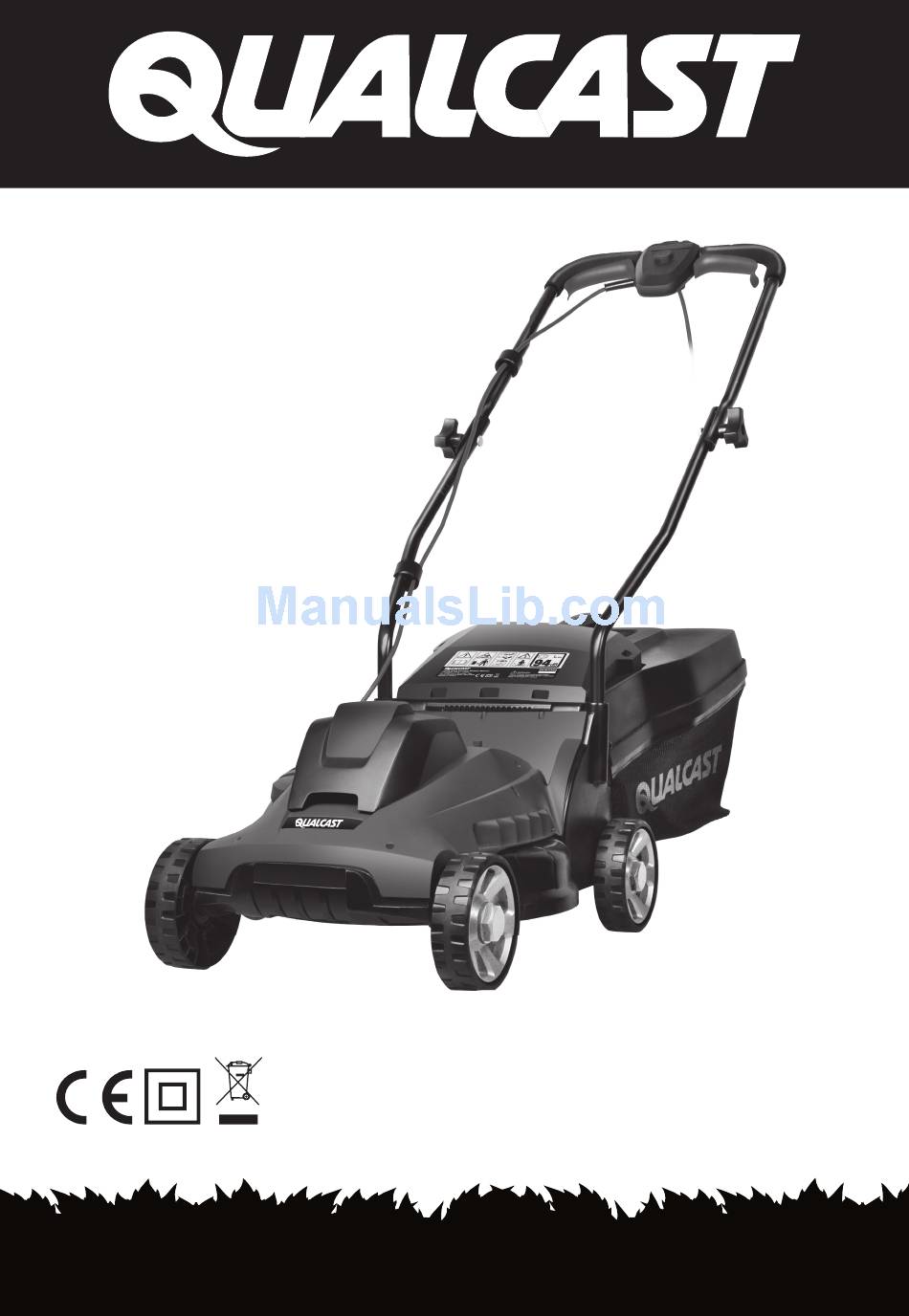

glM3300

OPErating instructiOns

1200 Watt
Electric rotary Mower
HElPlinE nO 0844 8010979

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GLM3300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Qualcast GLM3300

  • Page 1: Operating Instructions

    OPErating instructiOns 1200 Watt Electric rotary Mower HElPlinE nO 0844 8010979...
  • Page 2: General Power Tool Safety Warnings

    Original instructiOns gEnEral POWEr tOOl footwear and long trousers. Do not operate the equipment when barefoot or safEty Warnings wearing open sandals; b) Thoroughly inspect the area where the WARNING! Read all safety warnings equipment is to be used and remove and all instructions.
  • Page 3 Original instructiOns o) Stop the motor and disconnect the plug abnormally. from the mains To carefully read the instructions for the Before clearing blockages or unclogging safe operation of the machine; chute; Recommendations: Before checking, cleaning or working on Always connect the appliance to a supply the lawnmower;...
  • Page 4 Original instructiOns SAfety buttoN cAble clIP HANdle kNobS GRASS collectIoN bAG SWItcH leveR uPPeR HANdle loWeR HANdle SAfety flAP cARRy HANdle 10. MotoR coveR 11. blAde bolt (See f) 12. blAde (See f) 1200 Watt Electric rotary Mower HElPlinE nO 0844 8010979...
  • Page 5 Original instructiOns assEMBly IMPoRtANt! Before you assemble the lawn mower, check all accessories listed have been supplied. If parts or accessories are missing contact the Helpline for advice. 1. fIttING tHe HANdle (See fig A1, A2, A3) 1) Remove the screws (X 2) on the both side of poles.
  • Page 6: Operation

    Original instructiOns 4. ReMovING/eMPtyING 3 Plastic clips position Lift the safety flap (8) and hold up, and remove the grass collection bag. WARNING! Always check the safety flap can close the discharge outlet tightly before using. Never lift the safety flap (8) when the lawn mower is being used without fitted grass bag.
  • Page 7: Maintenance

    Original instructiOns continue to rotate after the machine is switched off and a rotating blade can cause injury. Wait until all machine components have completely stopped before touching them. Before your first cut, adjust the mower cutting depth to the desired position. The lawnmower can be set to 3 cutting heights between 20mm and 60mm.
  • Page 8: Blade Maintenance

    Original instructiOns stOragE (see fig g) avoid a hazard. BlaDE MaintEnancE (see fig f) WARNING! Never carry out any assembly operations or adjustments with the power connected to the mower. Always ensure that the power button is in the off position and that the power plug is disconnected from the supply.
  • Page 9: Technical Data

    Original instructiOns tEcHnical Data GlM3300 Rated voltage 230-240V~50Hz Rated power 1200W No load speed 3500/min Cutting width 33cm Cutting height 20-60mm Collection bag capacity Protection class Machine weight nOisE / ViBratiOn infOrMatiOn A weighted sound pressure :80dB (A) K :3dB (A)
  • Page 10: Environmental Protection

    Original instructiOns EnVirOnMEntal Plug rEPlacEMEnt PrOtEctiOn (uK & irElanD Only) Waste electrical products should not If you need to replace the fitted plug then be disposed of with household waste. follow the instructions below. Please recycle where facilities exist. IMPoRtANt Check with your Local Authority or retailer for recycling advice.
