INSTALLATION INSTRUCTIONS FOR PART RFASWC
The RFASWC is designed for adding steering wheel controls to vehicles
that do not have OE steering wheel controls installed. With Aftermarket
radio's with steering wheel control outputs the RFASWC is able to
give the driver control of their aftermarket radio without taking their
hands off the steering wheel allowing you to maintain the most popular
feature your aftermarket radio has to offer. The RFASWC will come
pre-programmed with your standard commands, volume up, volume
down, seeks up, seek down, and source. In addition you will be able to
mount the RFASWC anywhere on the steering wheel and reprogram

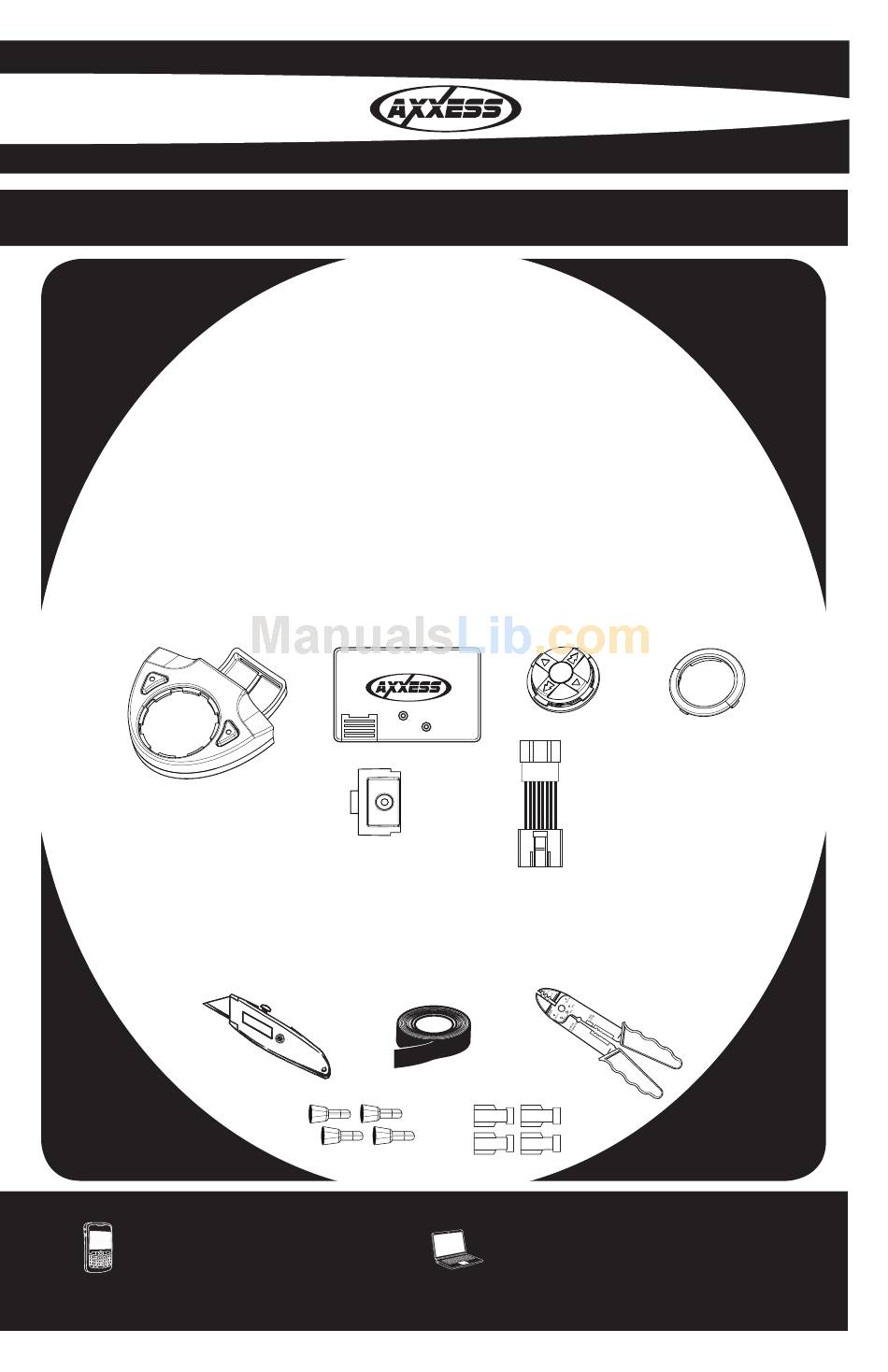

INTERFACE COMPONENTS
• A) RFASWC • B) RFASWC Interface • C) Keypad
• D) Trim Ring • E) Strap Cover • F) RFASWC Harness
A
TOOLS REQUIRED FOR INSTALLATION
•Cutting Tool •Tape •Crimping Tool
•Connectors (I.E. butt-connectors, bell caps, ECT...)
1-800-221-0932
© COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION
RFASWC
the buttons, making this a truly custom piece.
B
E
C
D
F
axxessinterface.com
Advertisement
Related Manuals for Axxess Automobile Accessories
Summary of Contents for Axxess Automobile Accessories
- Page 1 INSTALLATION INSTRUCTIONS FOR PART RFASWC The RFASWC is designed for adding steering wheel controls to vehicles that do not have OE steering wheel controls installed. With Aftermarket radio’s with steering wheel control outputs the RFASWC is able to give the driver control of their aftermarket radio without taking their hands off the steering wheel allowing you to maintain the most popular feature your aftermarket radio has to offer.
- Page 2 Mounting The RFASWC Transmitter 1. Place button pad in the OESWC transmitter with the volume up arrow (^) in the spot where you want volume up to be.(fig. 1) 2. Snap in trim ring to secure keypad in place. (fig. 2) 3.
- Page 3 Wiring The OESWC Interface 1. Connect the red wire to 12 volt accessory 2. Connect the Black wire to ground (you may use the same ground that you use for the aftermarket radio) If you are using an Eclipse or Kenwood radio, plug the female 3.5mm connector with the Brown and Brown/White wires into the male 3.5mm connector of the ASWC harness.
- Page 4 2. Turn on the ignition and press volume up on the RFASWC. This will “marry“ the RFASWC to the interface. NOTE: If you are replacing a transmitter you must turn on the ignition and within the first 10 seconds press and hold the source button for ten seconds.
- Page 5 5. The led will then flash up to 10 times. 6. This is the end of the auto detection stage. If the RFASWC detected the radio successfully the led will light up solid red. 7. Make sure the steering wheel control buttons function correctly in the vehicle and enjoy your radio.
-
Page 6: Led Feedback
Once all the information above has been verified and correct, refer back to the 2 sets of led flashes during the auto detect sequence. Here is what the flashes stand for: LED Feedback The led flashes represent what brand radio the RFASWC believes it is connected to. - Page 7 Remapping the SWC Buttons Let’s say you have the RFASWC programmed to your radio and you want to change the button assignment for the steering wheel controls. For instance you would like Seek Up to be Mute. NOTES: • The RFASWC must have detected the radio it is attached to before you can remap any buttons.
- Page 8 5. Follow the list below in order however pushing the steering wheel control button you want for the function below. If you want to skip a command press the Volume Up on the steering wheel, this will tell the ASWC to skip the command and go to the next one. 1.
- Page 9 * Note: Remember not all radios will have all these commands. Please refer to the radios’ owners manual for specific commands recognized by the radio. For instance the next command to be mapped is the Volume Down command. Let’s say you want the Mode button on your steering wheel to be the Volume Down command.
- Page 10 2. The led will turn on then release the Volume Down button and the led will turn off. 3. The original steering wheel control settings will be restored. Manually Setting The Radio Type 1. Within the first 20 seconds of turning the ignition on. Press and hold down the original Volume Down button (not the Volume Down button you just remapped) for at least 25 seconds.
- Page 11 4. If you have a different radio then Eclipse, press the Volume Up button again till the led goes solid red, then release Volume Up. You have now programmed Kenwood. 5. Here is the chart to show how many presses of the Volume Up button is needed for which radio you are trying to program: 1st led flash is for Eclipse 2nd led flash is for Kenwood...
