Axxess AXSWC Instructions

AXSWC Connections:
 Connect the Black wire of the AXSWC and
the wire in Pin 23 of the vehicle's radio
harness shown, to Chassis Ground.
 Connect the Red wire of the AXSWC to 12v
accessory power.
 Connect the Green/Orange wire of the
AXSWC to the wire in Pin 21 of the vehicle's
radio harness shown.
 Connect the Black/Green wire of the
AXSWC to the wire in Pin 22 of the vehicle's
radio harness shown.
 If a wire is present in Pin 24 of the vehicle's
radio harness, connect the Gray/Blue of the
AXSWC to it.
 Connect
the 3.5mm jack to the SWC input on
the back of the radio. If the radio does not have a
3.5mm built in, please refer to Page 2 for wiring
instructions for the Axxess 2 wire adapter.
AXSWC Resistive Wire Used:
Green/Orange, Black/Green, Gray/Blue
Programming Method:
Hold the Return button on the steering
wheel if present

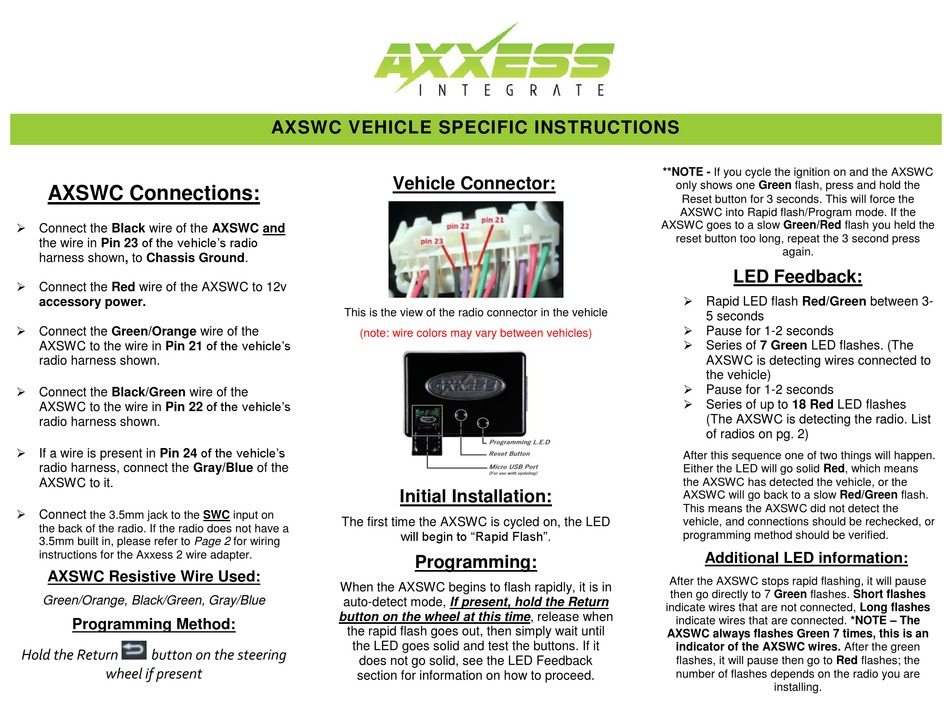

AXSWC VEHICLE SPECIFIC INSTRUCTIONS
Vehicle Connector:
This is the view of the radio connector in the vehicle
(note: wire colors may vary between vehicles)
Initial Installation:
The first time the AXSWC is cycled on, the LED
will begin to "Rapid Flash".
Programming:
When the AXSWC begins to flash rapidly, it is in
auto-detect mode, If present, hold the Return
button on the wheel at this time, release when
the rapid flash goes out, then simply wait until
the LED goes solid and test the buttons. If it
does not go solid, see the LED Feedback
section for information on how to proceed.
**NOTE - If you cycle the ignition on and the AXSWC
only shows one Green flash, press and hold the
Reset button for 3 seconds. This will force the
AXSWC into Rapid flash/Program mode. If the
AXSWC goes to a slow Green/Red flash you held the
reset button too long, repeat the 3 second press
again.
LED Feedback:
 Rapid LED flash Red/Green between 3-
5 seconds
 Pause for 1-2 seconds
 Series of 7 Green LED flashes. (The
AXSWC is detecting wires connected to
the vehicle)
 Pause for 1-2 seconds
 Series of up to 18 Red LED flashes
(The AXSWC is detecting the radio. List
of radios on pg. 2)
After this sequence one of two things will happen.
Either the LED will go solid Red, which means
the AXSWC has detected the vehicle, or the
AXSWC will go back to a slow Red/Green flash.
This means the AXSWC did not detect the
vehicle, and connections should be rechecked, or
programming method should be verified.
Additional LED information:
After the AXSWC stops rapid flashing, it will pause
then go directly to 7 Green flashes. Short flashes
indicate wires that are not connected, Long flashes
indicate wires that are connected. *NOTE – The
AXSWC always flashes Green 7 times, this is an
indicator of the AXSWC wires. After the green
flashes, it will pause then go to Red flashes; the
number of flashes depends on the radio you are
installing.
