INSTALLATION INSTRUCTIONS FOR PART OESWC-6502-STK
The OESWC-6502-STK is designed to allow you to add steering wheel control
options to 2005 and up Chrysler vehicles with a factory radio that has a 20 pin
connector. The column mounted OESWC-6502-STK will allow the customer to
adjust their radio without taking their eyes off the road. The OESWC-6502-STK
will come pre-programmed with your most popular features, volume up, volume
down, seek up, seek down, and source. But with the option of remapping the
buttons to fi t every customer needs, this makes this a must have interface that the

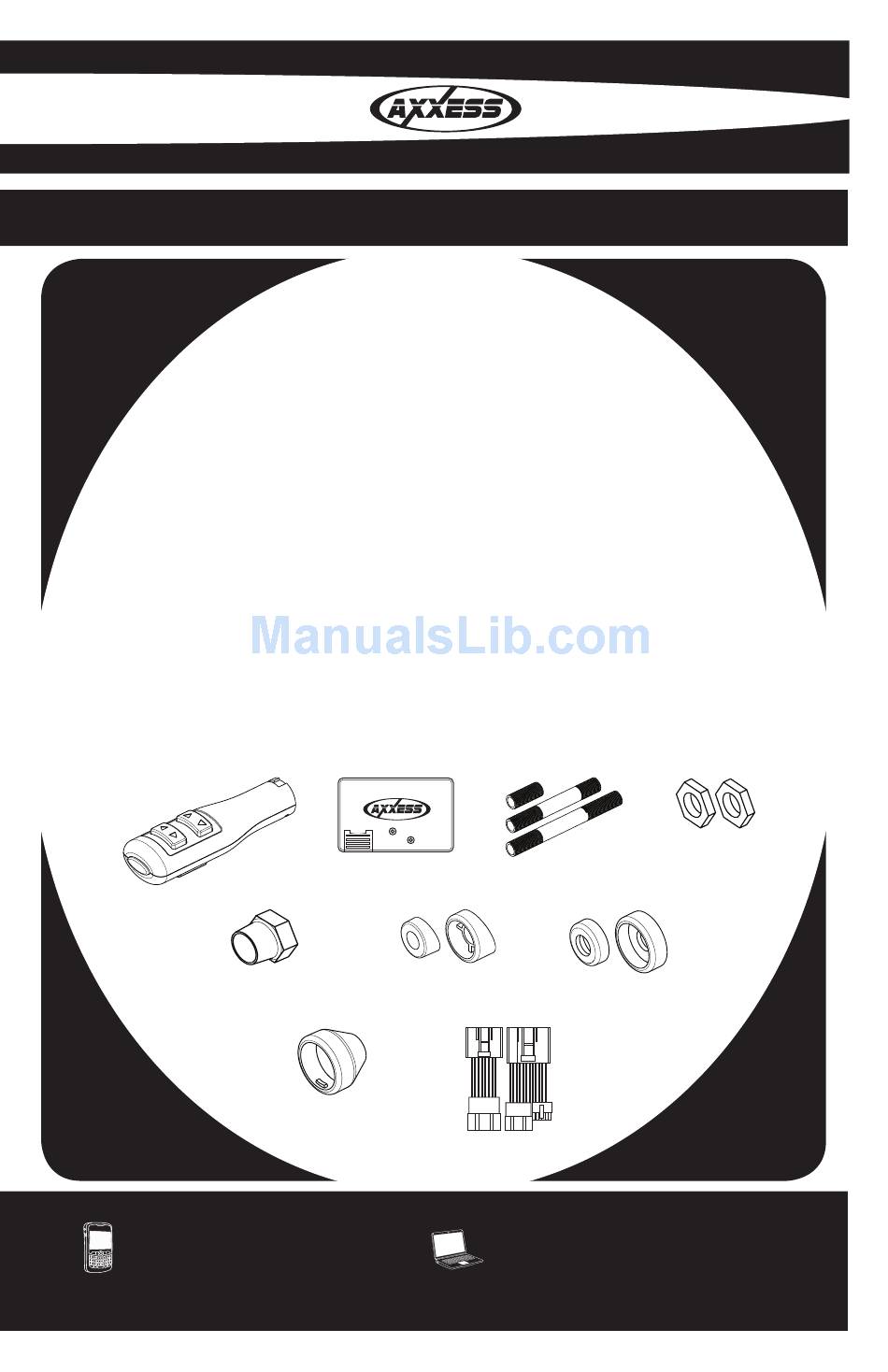

INTERFACE COMPONENTS
• A) ASWCSTALK • B) OESWC INTERFACE • C) (3) ROD ASSORTMENTS
• D) (2) 3/8 HEX NUTS • E) DECORATIVE NUT • F) (2)ANGLE MOUNT
A
E
1-800-221-0932
© COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION
OESWC-6502-STK
Axxess line offers.
• G) (2)FLAT MOUNT
• H) TWIST ON COVER • I) VEHICLE T-HARNESS
B
F
H
C
G
I
axxessinterface.com
D
Advertisement
Table of Contents
Related Manuals for Axxess AXXESS OESWC-6502-STK
Summary of Contents for Axxess AXXESS OESWC-6502-STK
-
Page 1: Interface Components
• A) ASWCSTALK • B) OESWC INTERFACE • C) (3) ROD ASSORTMENTS • D) (2) 3/8 HEX NUTS • E) DECORATIVE NUT • F) (2)ANGLE MOUNT • H) TWIST ON COVER • I) VEHICLE T-HARNESS 1-800-221-0932 © COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION Axxess line offers. • G) (2)FLAT MOUNT axxessinterface.com... -
Page 2: Tools Required For Installation
TOOLS REQUIRED FOR INSTALLATION •Cutting Tool •Tape •Crimping Tool •Connectors (I.E. butt-connectors, bell caps, ECT…) • Female Spade Connectors *Important: Please check steering shroud before drilling to make sure you have enough depth. - Page 3 ASWCSTALK ASSEMBLY 1. Remove and drill a 3/8 hole in the steering wheel shroud. 2. Select desired length rod and thread a 3/8 hex nut on to the shorter threaded section. 3. Run the four wires from the ASWCSTALK through the rod of choice and screw it into the ASWCSTALK 4.
- Page 4 Wiring Of ASWCSTALK And Interface 1. Connect the BLACK wires of the ASWCSTALK and the BLACK wire of the interface to ground. You may use the same ground point that is used for the radio. 2. Connect the GREEN/ORANGE and BLACK/GREEN wires of the ASWCSTALK to the corresponding wires on the interface.
- Page 5 8. Make sure the steering wheel control buttons function correctly in the vehicle and enjoy your radio. If the ASWCSTALK is mounted on the right side of the steering column follow the instructions below. (Auto-detect must be done first) Turn the ignition on Press the MODE on the ASWCSTALK for 10 seconds Then press volume up for 2 seconds The ASWCSTALK is now configured for the right side.
- Page 6 Volume up Volume down Seek up Seek down Mode (source) Volume up Volume down Seek up Seek down Mode (source)
- Page 7 NOTES...
- Page 8 INSTALLATION INSTRUCTIONS FOR PART OESWC-6502-STK 1-800-221-0932 © COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION NOWLEDGE IS Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry. Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow.
