Grandstream Networks GXP 2020 Quick Installation Manual

QUICK
INSTALLATION
GUIDE
Grandstream GXP 2020

Basic Installation Instructions:

for connecting the GXP-2020 video phone
to the Internet via a router connected to a
cable or DSL modem

Your Start-up Kit should include:

One GXP-2020 Main Case
One Handset
One Phone Cord
One Universal Power Adaptor
One Ethernet Cable
One High Phone Stand
One Low Phone Stand
Two Wall Mount Spacers
Installation Guide: Setting Up Your Grandstream GXP 2020
1
Step 1:
Connect the handset to the phone using the provided phone cord.
Step 2:

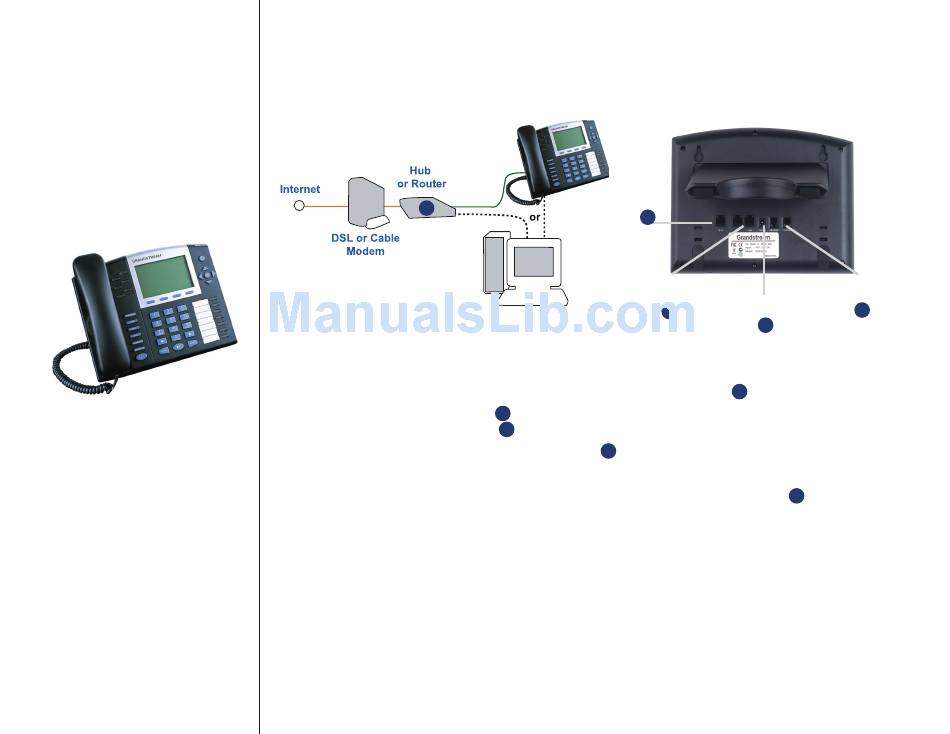

Connect the WAN port
using an Ethernet cable.
Step 3: Plug the power adapter into the GXP-2020.
Step 4:
Connect a computer or switch to the LAN port of the GXP-2020 using an Ethernet cable (optional).
Step 5:
Connect the sidecar to the GXP Ext port on the back of the phone (optional).
http://www.grandstream.com/user_manuals/
For a complete users guide:
GXP 2020 IP Phone
5
GXP Ext
Connection
WAN/LAN RJ-45
Ports
3
(optional)
Computer
3 on the back of the phone to an available port on your switch or router
1
4
Headset
Handset Jacks
Power
2
Jack
4
2
5
