Summary of Contents for Grandstream Networks GXP2130v2

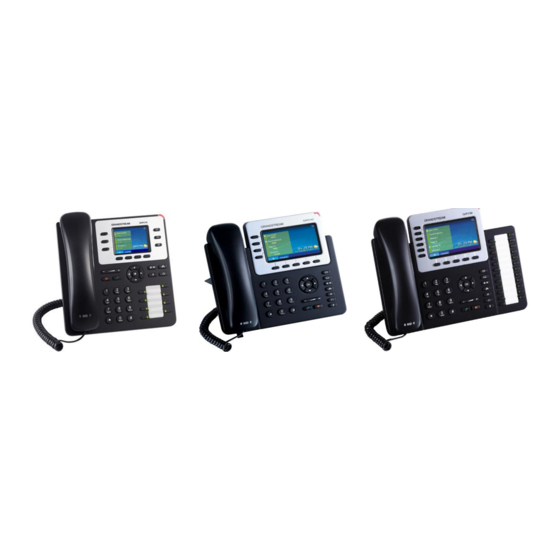

- Page 1 Grandstream Networks, Inc. GXP2130v2/GXP2140/GXP2160 Bluetooth User Guide...
-
Page 2: Table Of Contents
OVERVIEW ........................4 BASIC FUNCTIONS ....................... 5 Turn Bluetooth ON or OFF ........................6 Change GXP2130v2/GXP2140/GXP2160 Bluetooth Name..............6 Pairing to a Bluetooth device ......................... 6 Connecting to a Bluetooth device ....................8 Unpairing and disconnecting a Bluetooth device ................8 USE BLUETOOTH HEADSET.................. - Page 3 Table of Figures Figure 1: Bluetooth Configuration ......................... 5 Figure 2: Scan Bluetooth Device ........................7 Figure 3: Pairing to Bluetooth Device ......................7 Figure 4: Bluetooth Device Connected ......................8 Figure 5: Disconnect Bluetooth Device ......................8 Figure 6: BT is OFF ............................9 Figure 7: BT is ON ............................
-
Page 4: Overview
GXP2130v2/GXP2140/GXP2160 supports Bluetooth Class 2 of version 2.1. On GXP color phones, users could connect to mobile phones (which support Bluetooth function) via hands free mode, or use Bluetooth headset to answer calls. -
Page 5: Basic Functions
To connect to a Bluetooth device, turn on GXP2130v2/GXP2140/GXP2160’s Bluetooth power first. The first time when using a new Bluetooth device with GXP2130v2/GXP2140/GXP2160, the device and the phone must be paired so that both devices know how to connect securely to each other. After that, users could simply connect to the paired device. -
Page 6: Turn Bluetooth On Or Off
Highlight Power option by pressing Up/Down arrow key. When the Power option is highlighted, pressing LEFT/RIGHT arrow keys to turn on/off Bluetooth. Note: While Bluetooth is turned on, GXP2130v2/GXP2140/GXP2160 is discoverable by other Bluetooth devices. To make the phone undiscoverable, user needs to turn off Bluetooth. -
Page 7: Figure 2: Scan Bluetooth Device
Figure 2: Scan Bluetooth Device Note: If the wanted device does not show up in the list, make sure the device is turned on and set to be discoverable. User can also press “Clear” and “Rescan” softkeys to restart the scanning; 4. -
Page 8: Connecting To A Bluetooth Device
Connecting to a Bluetooth device After successfully paired, the GXP2130v2/GXP2140/GXP2160 will show the status "Paired" next to the Bluetooth device name in the scan list. select the paired device and press “Connect” softkey. Once connected, GXP2130v2/GXP2140/GXP2160 will show the status “Connected” next to the Bluetooth device name in the scan list. -
Page 9: Use Bluetooth Headset
Bluetooth headset is ready to use. Figure 7: BT is ON When BT is on, both Bluetooth headset and GXP2130v2/GXP2140/GXP2160 will alert for incoming calls. User may answer using the button on Bluetooth headset. During an active call, user may switch the audio channel between Bluetooth headset and phone handset by pressing “BT Off”/”BT On”... -
Page 10: Turn On/Off Hands Free Mode
HANDSFREE MODE By connecting cell phone to GXP2130v2/GXP2140/GXP2160 phone via hands free mode, user can sync up cellphone phonebook to GXP phone and make calls on GXP phone via cell phone account. GXP2130v2/GXP2140/GXP2160 plays the role of Bluetooth headset in hands free mode. -
Page 11: Connect To Hands Free Device
GXP2130v2/GXP2140/GXP2160. 1. Go to LCD Menu Contacts to see Bluetooth Phonebook option. 2. Press “Select” soft key to enter Bluetooth phonebook and see the connected cell phone’s contacts. Figure 11: Bluetooth Phonebook 3. In Bluetooth phonebook, user can enter digits to search contacts and phone will list the matching ones. -
Page 12: Initiate A Call With Hands Free Mode
On idle screen, when the hands free account is connected, pressing the last Line Key will bring up call screen (the 4 Line Key for GXP2130v2/GXP2140 Phones; the 6 Line Key for GXP2160). User can enter the destination number from key pad followed by “SEND” button to dial out.
