Grandstream Networks GXP 2010 Quick Installation Manual

QUICK
INSTALLATION
GUIDE
Grandstream GXP 2010
Basic Installation Instructions:
for connecting the GXV-2010 video phone
to the Internet via a router connected to a
cable or DSL modem
Your Start-up Kit should include:
One GXP-2010 Main Case
One Handset
One Phone Cord
One Universal Power Adaptor
One Ethernet Cable
One Phone Stand
Two Wall Mount Spacers
Installation Guide: Setting Up Your Grandstream GXP 2010

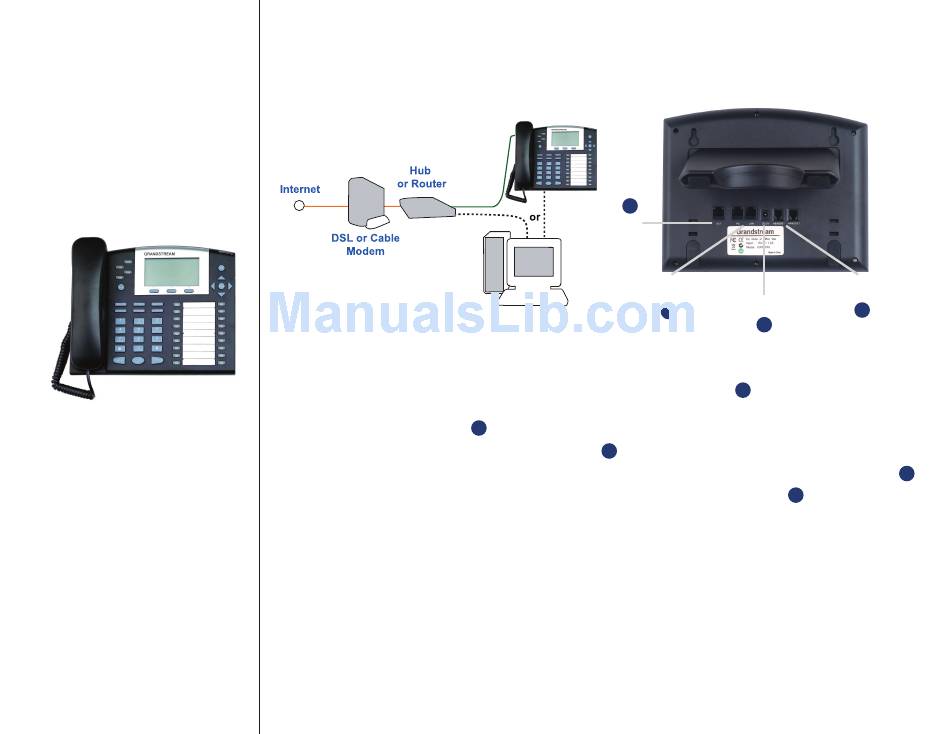

Step 1:
Connect the handset to the phone using the provided phone cord.
Step 2:
Connect the WAN port on the back of the phone to an available port on your switch or router using
an Ethernet cable.
Step 3: Plug the power adapter into the GXP-2010.
Step 4:
Connect a computer or switch to the LAN port of the GXP-2010 using an Ethernet cable (optional).
Step 5:
Connect the sidecar to the GXP Ext port on the back of the phone (optional).
For a complete users guide: http://www.grandstream.com/user_manuals/
