Remote Encoding Query - Keywish Hummer-Bot Instruction Manual

3, Copying the following program to IDE (you can also directly open the matching program in the CD), and
downloading to the development board, pulled out the transparent plastic sheet marked as "1" in the
Fig.3.2.33. Then opening the serial port monitor, observing and recording the values on it while pressing
keys on the remote control towards the receiving head as shown in Fig.3.2.37.
#include <IRremote.h>
int RECV_PIN = 12;
IRrecv irrecv(RECV_PIN);
decode_results results;
void setup()
{
Serial.begin(9600);
irrecv.enableIRIn();
}
void loop() {
if (irrecv.decode(&results))
{
Serial.println(results.value, HEX);
Serial.println();// Add a blank line for easy viewing of the output
irrecv.resume(); // Receive the next value
}
// Define the IR receiver pin to be 12
// Initialize the infrared receiver

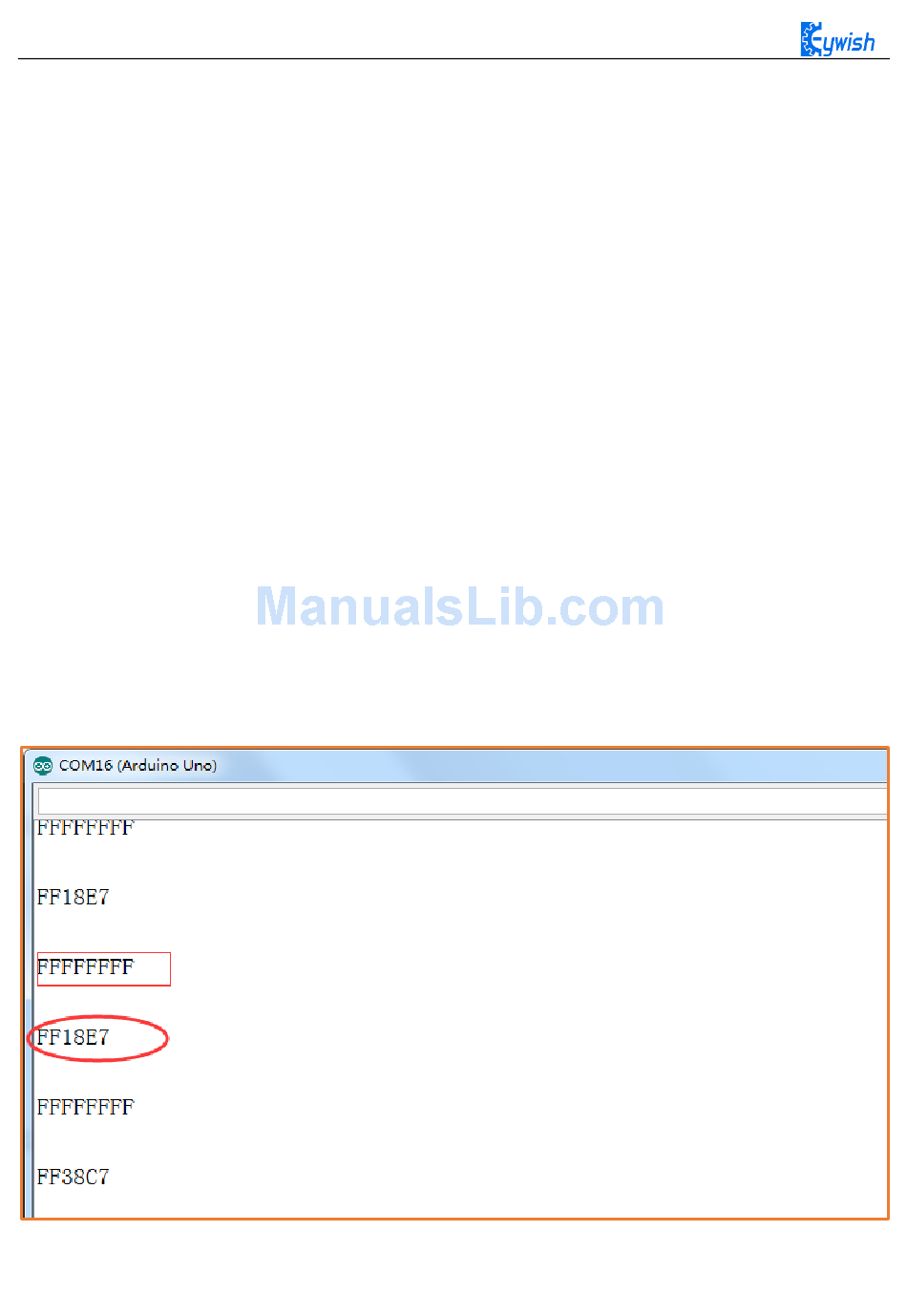

Fig.3.2.37 Remote Encoding Query
// Output the receive code in hexadecimal
}
82
