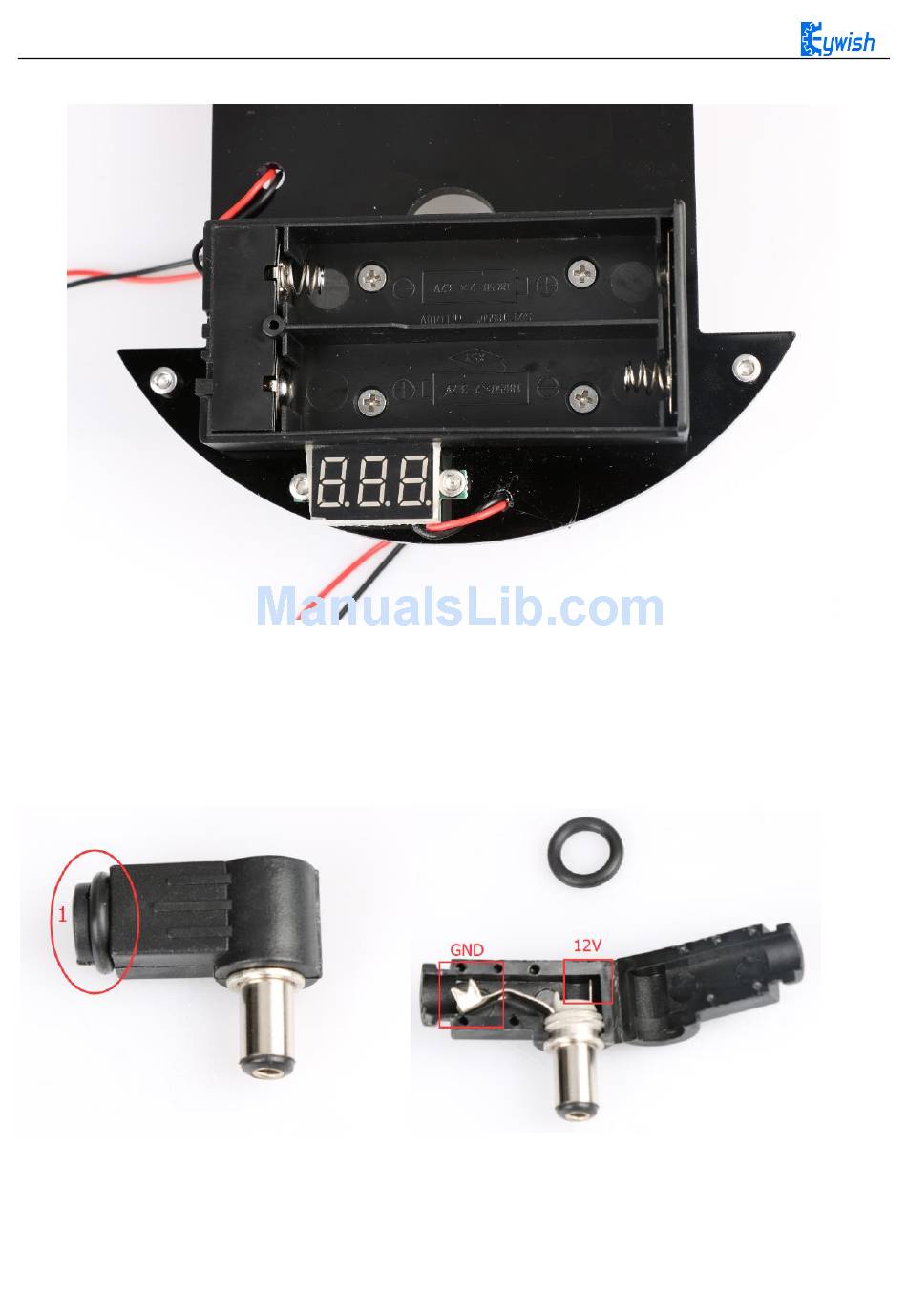

Fig.3.1.29 Diagram of Voltage Display Module Installation
Connect the power cable: First find the matching two power cables (the same as the wires used by the
motor, one red and one black) and connect the two cables to the DC power head. The DC power connector is
shown in Figure 3.1.29. The rubber ring marked as "1" can be removed to open the shell, as shown in
Fig.3.1.31. Soldering the wires to the +12V and GND, as shown in Fig.3.1.32.
Fig.3.1.30&Fig.3.1.31 DC Power Head
38
