In the fourth step we said that don't screw too tight, because it is not convenient to adjust the wheels

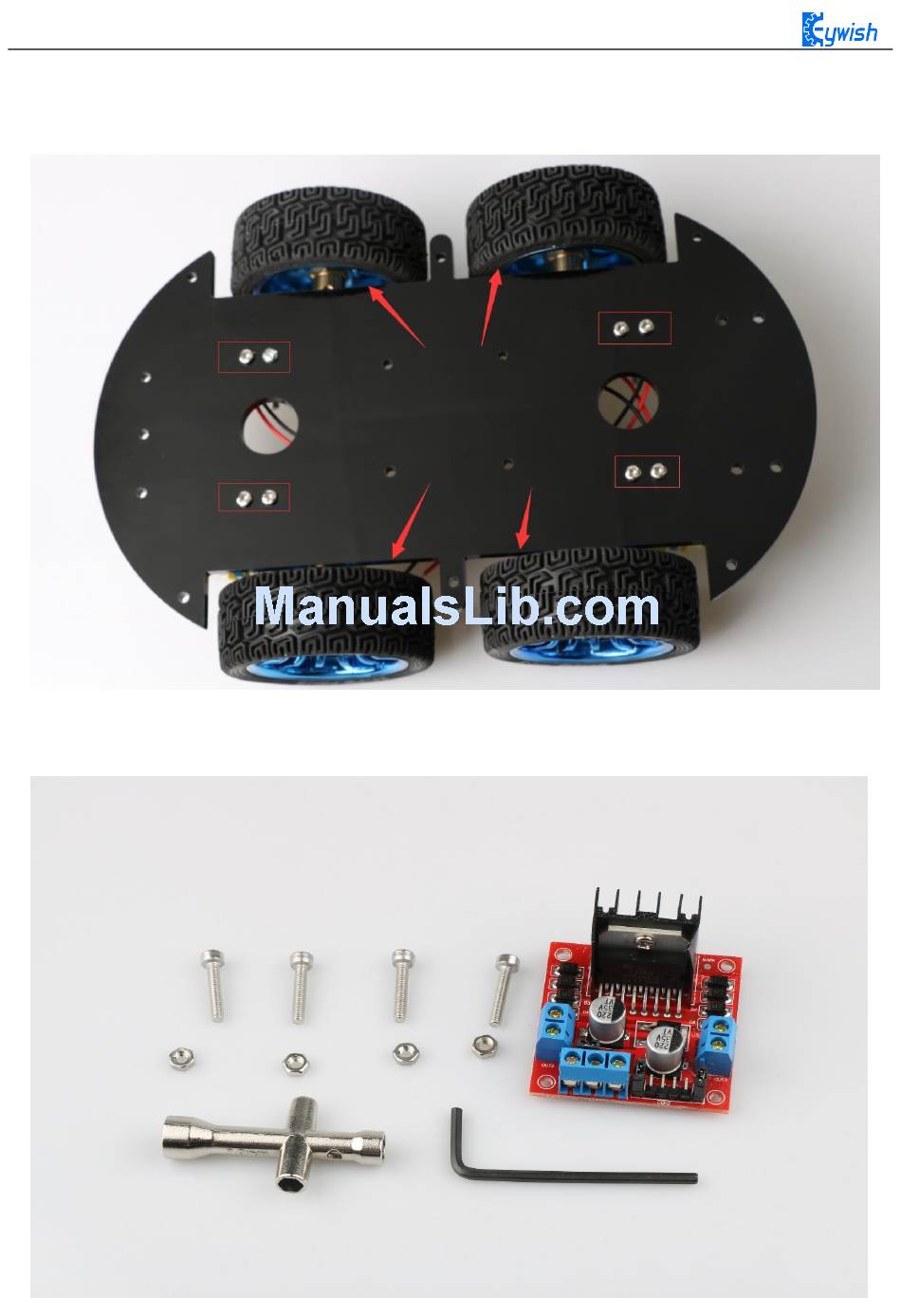

later. As shown in Fig.3.1.11,the installed wheels would have some tilt, then we need to adjust the motor by
hand gently until the wheels and the acrylic become parallel, then tighten the screws.
The seventh step is to install the motor drive. As shown in Fig.3.1.12, fixing the motor on the acrylic.
Fig.3.1.11 Adjusting Wheels and Tightening Screws
22
