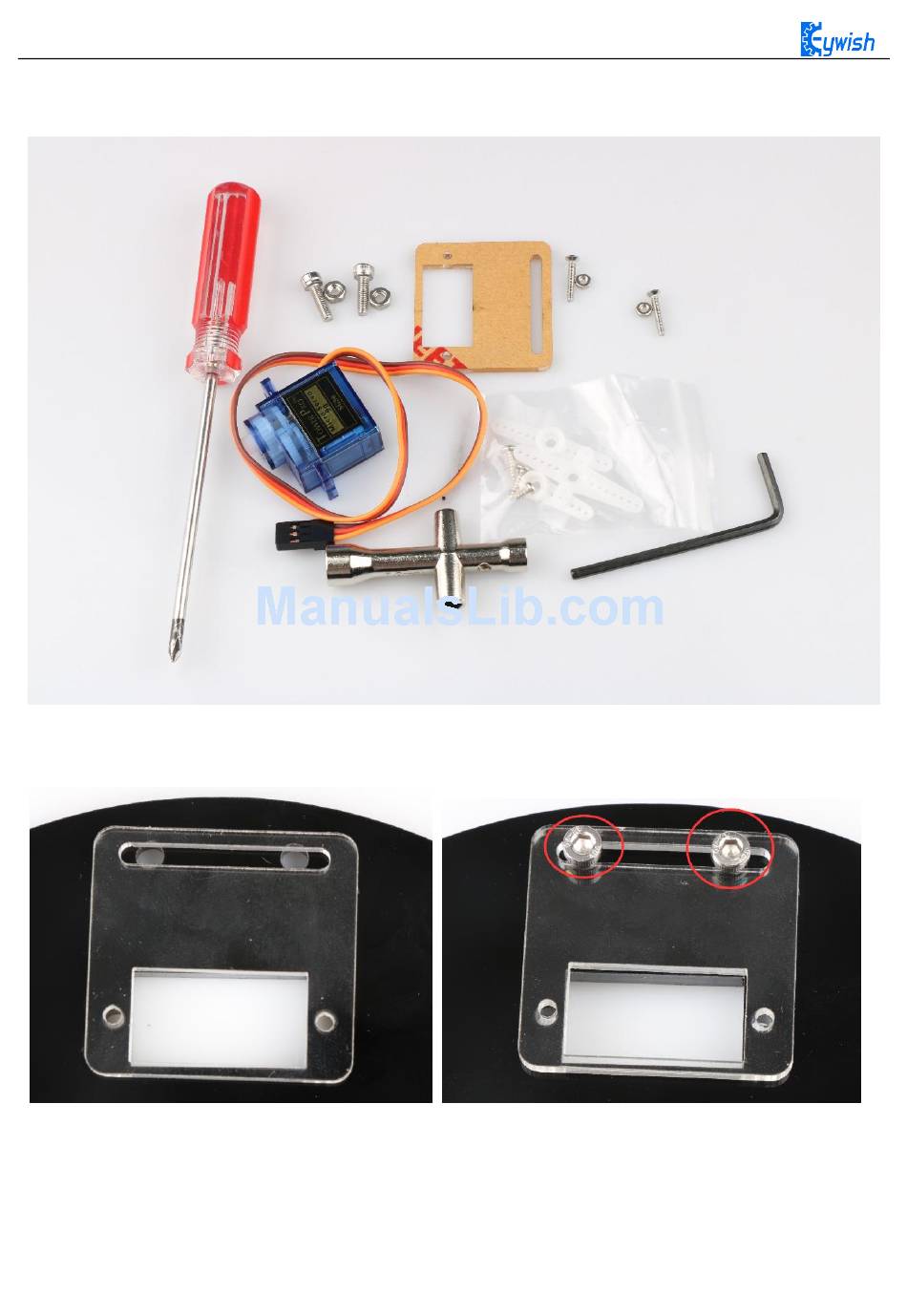

The third step is to install the steering gear and the bracket. In Fig.3.1.19, the "4" logo is the actuator
mounting position. The device used as shown ,The complete installation is shown in Fig.3.1.23.
First, install the servo fixing bracket, that is, install the bracket in the place as shown in the figure, and
add the fixing screw
32
