The seventh step is to install infrared remote control receiving head on the Arduino extended board and
fixed it with a screw, as shown in Fig.3.1.27. Pay attention to the installation direction.

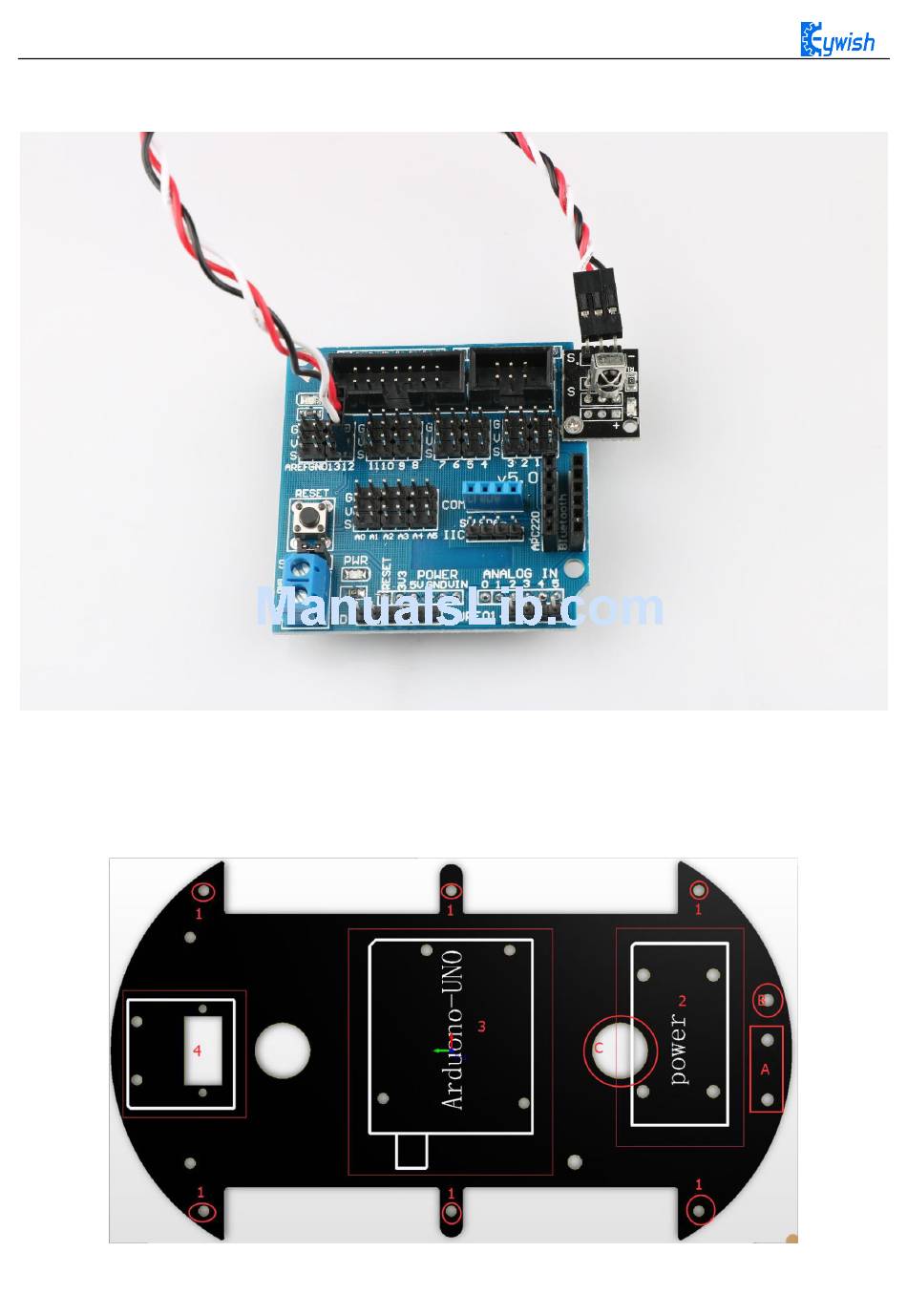

Fig.3.1.27 Diagram of Infrared Remote Control Receiving Head Installation
The eighth step is to install the voltage display module in the back of battery box to logo "A"marked in
Fig.3.1.28, and insert the wire into the hole identified as "B" and out from the hole marked as "C". The
complete installation is as shown in Fig.3.1.29.
Fig.3.1.28 Diagram of Voltage Display Module Installation
