Summary of Contents for Optoma DLP

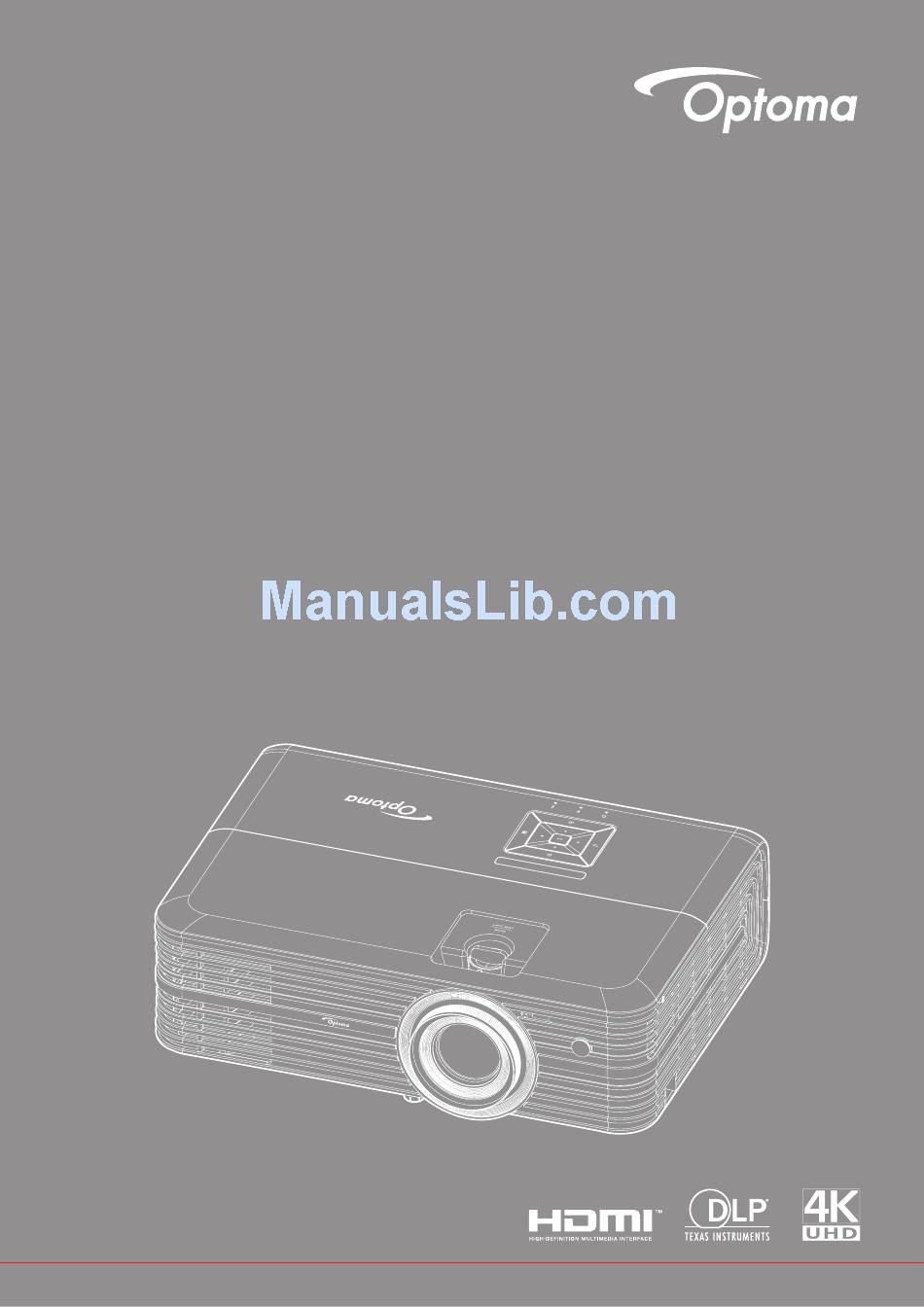

  • Page 1 Projector ® User manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY ....................4 Important Safety Instruction....................... 4 3D Safety Information ........................ 5 Copyright ........................... 6 Disclaimer ..........................6 Trademark Recognition ......................6 FCC ............................7 Declaration of Conformity for EU countries ................7 WEEE ............................7 INTRODUCTION .................. 8 Package Overview........................
  • Page 3 Image size and projection distance ..................58 Projector dimensions and ceiling mount installation ..............59 IR remote codes ........................60 Troubleshooting ........................61 Warning indicators ........................63 Specifications ........................... 65 Configuring Alexa with the projector ..................66 Optoma global offices ....................... 73 English...

  • Page 4: Safety

    SAFETY The lightning flash with arrow head within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

  • Page 5: 3D Safety Information

    ‡ Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please call Optoma before you send the unit for repair. ‡ See projector enclosure for safety related markings.

  • Page 6: Copyright

    HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. , DLP Link and the DLP logo are registered trademarks of Texas Instruments and BrilliantColor is a ®...

  • Page 7: Fcc

    This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 8: Introduction

    ‡ The actual remote control may vary depending on the region. ‡ The remote control is shipped with the battery. ‡ * For European warranty Information, please visit www.optoma.com. Optional accessories HDMI cable Lens cap Notee: Optional accessories vary depending on model, specification and region.

  • Page 9: Product Overview

    INTRODUCTION Product Overview Minimum 100mm Minimum Minimum 100mm 100mm Minimum Minimum 300mm 300mm Minimum 100mm Notee: ‡ Do not block projector intake and exhaust vents. ‡ When operating the projector in an enclosed space, allow at least 30 cm clearance around the intake and exhaust vents.

  • Page 10: Connections

    INTRODUCTION Connections Item Item RJ-45 Connector Service Connector RS232 Connector 10. S/PDIF Connector HDMI 1 Connector 11. USB2.0 Connector HDMI 2 Connector 12. AUDIO OUT Connector VGA Connector 13. USB-A Connector 12V OUT Connector 14. Kensington Lock Port AUDIO IN Connector 15.

  • Page 11: Keypad

    INTRODUCTION Keypad Item Item Power Lamp LED Enter On/Standby LED Menu Return Home Four Directional Select Keys Temp LED English...

  • Page 12: Remote Control

    INTRODUCTION Remote control Enter Item Item Power On / Off Source Home Return Four Directional Select Keys Enter Mute 10. Display Mode Volume - 11. Option Menu 12. Volume + Notee: ‡ Some keys may have no function for models that do not support these features. ‡...

  • Page 13: Setup And Installation

    Do not operate the projector in any orientation other that table top or ceiling mount. The projector should be horizontal and not tilted either forwards/backwards or left/right. Any other orientation will invalidate the warranty and may shorten the lifetime of the projector lamp or the projector itself. For none standard installation advise please contact Optoma. English...

  • Page 14: Connecting Sources To The Projector

    SETUP AND INSTALLATION Connecting sources to the projector Item Item Item Item 1. RJ-45 Cable 5. Audio In Cable 9. S/PDIF Out Cable 13. HDMI Dongle 2. HDMI Cable 6. USB Flash Drive 10. USB Power Cable 14. Wi-Fi Dongle for Alexa Wi-Fi Dongle for 3.

  • Page 15: Adjusting The Projector Image

    SETUP AND INSTALLATION Adjusting the projector image Image height The projector is equipped with elevator feet for adjusting the image height. Locate the adjustable foot you wish to adjust on the underside of the projector. Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector. Tilt-Adjustment Feet Tilt-Adjustment Ring Zoom, lens shift, and focus...

  • Page 16: Remote Setup

    SETUP AND INSTALLATION ‡ To adjust the focus, turn the focus ring clockwise or counterclockwise until the image is sharp and legible. Focus Ring Notee: The projector will focus at a distance of 1.2m to 8.1m. Remote setup Installing / replacing the battery Use a coin to turn the battery cover counterclockwise until the cover opens.
  • Page 17 SETUP AND INSTALLATION Effective range Infra-Red (IR) remote control sensor is located on top of the projector. Ensure to hold the remote control at an angle within 30° (horizontally) or 20° (vertically) perpendicular to the projector’s IR remote control sensor to function correctly.

  • Page 18: Using The Projector

    USING THE PROJECTOR Powering on / off the projector Enter Enter Powering on Securely connect the power lead and signal/source cable. When connected, the On/Standby LED will turn red. Turn on the projector by pressing the “ ” button on the projector keypad or the remote control. A start up screen will display in approximately 10 seconds and the On/Standby LED will be fl ashing blue.

  • Page 19: Powering Off

    USING THE PROJECTOR [Select Power Mode] [Initial Setup Complete] Powering off Turn off the projector by pressing the “ ” button on the projector keypad or the remote control. The following message will be displayed: Power Off Please press power again Press the “...

  • Page 20: Selecting An Input Source

    USING THE PROJECTOR Selecting an input source Turn on the connected source that you want to display on the screen, such as computer, notebook, video player, etc. The projector will automatically detect the source. If multiple sources are connected, press the “ ”...

  • Page 21: Home Screen Overview

    USING THE PROJECTOR Home screen overview The Home screen is displayed every time you start the projector. From the main Home screen, it basically divided into 3 main categories: Projector, Application, and Settings. To navigate the Home screen, simply use the buttons on the remote control or the projector keypad. You can return to the main Home screen at any time by pressing the on the remote control or on the...

  • Page 22: Projector Settings

    USING THE PROJECTOR Projector settings On the Projector home screen, you can change the input source, confi gure the projector settings, and adjust the volume level. Selecting an input source Besides pressing the “ ” button on the remote control to select the desired input, you can also change the input source by selecting Source option.
  • Page 23 USING THE PROJECTOR Confi gure the projector settings Select Projector Settings to manage various device confi gurations including confi guring the device settings, viewing the system information, and restore the system settings. General menu navigation Press Enter on the remote control or on the projector keypad to enter the Projector Settings menu.
  • Page 24 USING THE PROJECTOR Use  keys to select the desired item in the sub menu and then press Enter or to view further settings. Adjust the settings by using  keys. Select the next item to be adjusted in the sub menu and adjust as described above. Press Enter or to confi rm, and the screen will return to the main menu.
  • Page 25 USING THE PROJECTOR Level 1 Level 2 Level 3 Level 4 Value Native HDTV Color Gamut Presentation Cinema Game Auto [Default] Color Space [Not HDMI Input] Auto [Default] RGB(0~255) Color Space [HDMI Input] RGB(16~235) Red [Default] Green Color Settings Blue Color Cyan Yellow...
  • Page 26 USING THE PROJECTOR Level 1 Level 2 Level 3 Level 4 Value PureMotion Image Settings Middle High Reset 3D Mode Off [Default] Auto [Default] 3D Format Top and Bottom Frame Packing 3D Sync Invert Off [Default] On [Default] Internal Speaker Audio Out Off [Default] Audio Settings...
  • Page 27 USING THE PROJECTOR Level 1 Level 2 Level 3 Level 4 Value Projector ID 0 ~ 99 [Default: 0] None [Default] Grid (Green) Test Pattern Grid (Magenta) Grid (White) White Front [Default] Rear Projection Mode Front-Ceiling Projector Settings Others Rear-Ceiling 2.0 [Default] HDMI EDID Notification...

  • Page 28: Image Settings Menu

    USING THE PROJECTOR Image settings menu Display mode There are many factory presets optimized for various types of images. ‡ Cinema: Provides the best colors for watching movies. ‡ HDR: Decodes and displays High Dynamic Range (HDR) content for the deepest blacks, brightest whites, and vivid cinematic color using REC.2020 color gamut.
  • Page 29 USING THE PROJECTOR Color Adjust a video image from black and white to fully saturated color. Tint Adjust the color balance of red and green. Gamma Set up gamma curve type. After the initial setup and fine tuning is completed, utilize the Gamma Adjustment steps to optimize your image output.
  • Page 30 USING THE PROJECTOR Brightness Mode Adjust the brightness mode settings. ‡ Eco: Choose “Eco” to dim the projector lamp which will lower power consumption and extend the lamp life. ‡ Bright: Choose “Bright” to increase the brightness. Digital Zoom Use to reduce or magnify an image on the projection screen. Aspect ratio Select the aspect ratio of the displayed image.
  • Page 31 USING THE PROJECTOR Auto mapping rule: Input resolution Auto/Scale H-resolution V-resolution 3840 2160 2880 2160 2880 2160 1024 2880 2160 1280 1024 2880 2160 1400 1050 2880 2160 1600 1200 2880 2160 1280 3840 2160 Wide Laptop 1280 3600 2160 1280 3456 2160...
  • Page 32 USING THE PROJECTOR Audio settings menu Internal Speaker Choose “On” or “Off” to turn on or off the internal speaker. Audio Out Choose the “On” or “Off” to turn on or off the audio out. Mute Use this option to temporarily turn off the sound. ‡...

  • Page 33: Info Menu

    USING THE PROJECTOR by using RS232 command. ‡ Test Pattern: Select the test pattern from Grid (Green), Grid (Magenta), Grid (White), White or disable this function (None). ‡ Projection Mode: Select the preferred projection between Front, Rear, Front-Ceiling, and Rear-Ceiling. ‡...

  • Page 34: Adjusting The Volume Level

    USING THE PROJECTOR Adjusting the volume level Select Volume to adjust the audio volume level. Then press Enter on the remote control or on the projector keypad to enter the Volume menu. Use  keys to adjust the desired volume level. Notee: You can set the volume level to 0 to activate the mute function.

  • Page 35: Application Settings

    USING THE PROJECTOR Application settings On the Application home screen, you can view the multimedia fi les, register the projector to the Device Cloud, and stream media fi les wirelessly. To switch to the Application home screen, select one of the main categories and use ...
  • Page 36 USING THE PROJECTOR Video Decode Maximum Maximum Bit Rate File Format Video Format Profile Resolution (bps) MPG, MPEG MPEG1/2 1920 x 1080 60fps 40M bps MP@HP MOV, MP4, MKV H.264 4096 x 2176 30fps 135M bps MP/HP @Level 5.1 AVI, MOV, MP4 MPEG4 1920 x 1080 60fps 40M bps...
  • Page 37 USING THE PROJECTOR Document Size Support Version and Format Pages/Lines Limitation Format Limitation Kingsoft Spreadsheets Files (*.et) Kingsoft Spreadsheets Template (*.ett) Microsoft Excel 97/2000/XP/2003 Workbook (*.xls) Microsoft Excel 97/2000/XP/2003 Template (*.xlt) Row Limit: up to 65,535 Text Files (*.csv) Excel Column Limit: up to 256 Up to 30MB Web Pages (*.htm, *.html)
  • Page 38 USING THE PROJECTOR Entering the multimedia mode Insert a USB flash drive to the USB connector on the rear side of the projector. The available files appears on the screen. Notee: To manually enter the multimedia mode, select Application > Media Player. Browse and select the file you want to view.
  • Page 39 USING THE PROJECTOR Playing Videos From the left panel, select Video to browse all video fi les. If there are several folders, press  keys to select the desired folder, then press Enter/ / view the subfolder content. Press  keys to select the video you want play, then press Enter/ / to start the playback.
  • Page 40 USING THE PROJECTOR Viewing Photos From the left panel, select Picture to browse all picture fi les. If there are several folders, press  keys to select the desired folder, then press Enter/ / view the subfolder content. Press  keys select a photo, then press Enter/ / to view the photo in full screen.
  • Page 41 USING THE PROJECTOR ± Select enlarge photo to magnify the view of a photo. ± Select Previous to view the previous photo. ± Select Next to view the next photo. Slide show Settings cycle mode Set the slide show mode option. cycle effect Select the transition effect between each slide displays.
  • Page 42 USING THE PROJECTOR Playing Music From the left panel, select Music to browse all songs or audio fi les. If there are several folders, press  keys to select the desired folder, then press Enter/ / view the subfolder content. Press ...
  • Page 43 USING THE PROJECTOR Viewing Document From the left panel, select Doc to browse all document fi les. If there are several folders, press  keys to select the desired folder, then press Enter/ / view the subfolder content. Press  keys to select the document you want to view, then press Enter/ / to open the fi le.
  • Page 44 USING THE PROJECTOR Notee: When opening a Powerpoint file, the Play Mode menu will appear on the screen. Then select the desired play mode and select OK to start browsing the file. English...
  • Page 45 USING THE PROJECTOR Wireless Media Streaming Select Wi-Fi Display to project your mobile device display to the projector through Wi-Fi connection. Then press Enter on the remote control or on the projector keypad to enter the EZCast screen. When using Wi-Fi Display function for the fi rst time, download and install the EZCast application into your mobile device.

  • Page 46: General Settings

    USING THE PROJECTOR Notee: The connection method may varies depending on the dongle type. Please refer to its documentation for details. Launch “EZCast” application and connect to your dongle. Once connected, the mobile device display will be projected on the screen. General settings On the Settings home screen, you can set the on-screen display (OSD) language and confi gure the network settings.
  • Page 47 USING THE PROJECTOR Confi guring the network settings Select Network to confi gure the network setting. Then press Enter on the remote control or on the projector keypad to enter the Network menu. Select Projector Control Settings. Then perform the necessary settings. English...
  • Page 48 USING THE PROJECTOR Notee: To confi gure the wireless connection, select Wireless Setting (Wi-Fi Display) and do the following: a. Insert a Wi-Fi dongle fi rst, and then enable the Wi-Fi function. b. Connect to an available Wi-Fi network from the list. If you connect to a secure Wi-Fi network, you must enter the password when prompted.
  • Page 49 USING THE PROJECTOR LAN_RJ45 function For simplicity and ease of operation, the projector provides diverse networking and remote management features. Projector (Ethernet) Wired LAN terminal functionalities This projector can be controlled by using a PC (laptop) or other external device via LAN / RJ45 port and compatible with Crestron / Extron / AMX (Device -Discovery) / PJLink.
  • Page 50 USING THE PROJECTOR Ethernet Settings Confi gure the network parameters. ± DHCP: Off ± IP Address: 192.168.0.100 ± Subnet Mask: 255.255.255.0 ± Gateway: 192.168.0.254 ± DNS: 192.168.0.51 Wireless Settings Select the wireless network you want to connect to control the projector wirelessly through various protocols including Alexa.
  • Page 51 USING THE PROJECTOR Projector Control Functions Confi gure how to monitor and control your projector over the network. English...

  • Page 52: Maintenance

    MAINTENANCE Replacing the lamp The projector automatically detects the lamp life. When the lamp life is nearing the end of use, a warning message will appear on the screen. Warning Lamp Warning Lamp life exceeded. When you see this message, please contact your local reseller or service center to change the lamp as soon as possible.
  • Page 53 MAINTENANCE Replacing the lamp (continued) Procedure: Switch off the power to the projector by pressing the “ ” button on the projector keypad or the remote control. Allow the projector to cool down for at least 30 minutes. Disconnect the power cord. Remove the 2 screws securing the top cover.

  • Page 54: Installing And Cleaning The Dust Filter

    MAINTENANCE Installing and cleaning the dust filter Installing the dust filter Notee: Dust filters are only required/supplied in the selected regions with excessive dust. Cleaning the dust filter We recommend you to clean the dust filter every three months. Clean it more often if the projector is used in a dusty environment.
  • Page 55 ADDITIONAL INFORMATION Compatible resolutions Digital (HDMI 1.4) Native resolution: 1920 x 1080 @ 60Hz Established Timing Standard Timing Descriptor Timing Supported Video Mode Detail Timing 720 x 400 @ 70Hz 1280 x 720 @ 60Hz 1920 x 1080 @ 60Hz 720 x 480i @ 60Hz 16:9 1920 x 1080p @ 60Hz (default)

  • Page 56: Additional Information

    ADDITIONAL INFORMATION B0 / Established Timing B0 / Standard Timing B1 / Video Mode B1 / Detail Timing 4096 x 2160 @ 30Hz 4096 x 2160 @ 50Hz 4096 x 2160 @ 60Hz Notee: Support 1920 x 1080 @ 50Hz. Analog Native resolution: 1920 x 1080 @ 60Hz B0 / Established Timing...

  • Page 57: Image Size And Projection Distance

    ADDITIONAL INFORMATION Image size and projection distance Screen Size W x H Projection Distance (D) Offset (HD) Diagonal length (inch) size (inch) (feet) of 16e:9 Screen Width Height Width Height Wide Tele Wide Tele (feet) 0.66 0.37 25.97 14.61 1.05 3.44 0.02 0.07...

  • Page 58: Projector Dimensions And Ceiling Mount Installation

    ADDITIONAL INFORMATION Projector dimensions and ceiling mount installation To prevent damage to your projector, please use the Optoma ceiling mount. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to the projector meet the following specifi cations: ‡...

  • Page 59: Ir Remote Codes

    ADDITIONAL INFORMATION IR remote codes Enter MTX. Format Data0 Data1 Data2 Data3 Description Power Refer to the "Power On/ Off the Projector" on / off section on page 18. Source Press to select an input signal. Home Press to return to the Home screen. Press to launch the on-screen display Menu...

  • Page 60: Troubleshooting

    ADDITIONAL INFORMATION Troubleshooting If you experience a problem with your projector, please refer to the following information. If a problem persists, please contact your local reseller or service center. Image problems No image appears on-screen ‡ Ensure all the cables and power connections are correctly and securely connected as described in the "Installation"...

  • Page 61: Other Problems

    ADDITIONAL INFORMATION Two images, side-by-side format ‡ Set the “3D” --> ”3D Format” to “SBS“. Other problems The projector stops responding to all controls ‡ If possible, turn off the projector, then unplug the power cord and wait at least 20 seconds before reconnecting power.

  • Page 62: Warning Indicators

    ADDITIONAL INFORMATION Warning indicators When the warning indicators (see below) light up or flash, the projector will automatically shutdown: ‡ "LAMP" LED indicator is lit red and if "On/Standby" indicator flashes red. ‡ "TEMP" LED indicator is lit red and if "On/Standby" indicator flashes red. This indicates the projector has overheated.

  • Page 63: Power Off

    ADDITIONAL INFORMATION ‡ Power off: Power Off Please press power again ‡ Temperature warning: Warning TEMPERATURE TOO HIGH Please: 1. Make sure air in and outlets are not blocked. 2. Make sure the environment temperature is under 45 degree C. If the problem persists in spite of the above.

  • Page 64: Specifications

    ADDITIONAL INFORMATION Specifications Optical Description - Graphic up to 2160p@60Hz Maximum resolution - Maximum Resolution: HDMI1 (2.0): 2160p@60Hz HDMI2 (2.0): 2160p@60Hz Native resolution (w/o actuator) 1920x1080 Lens Manual zoom and manual focus Image size (diagonal) 34.1”~302.4”, optimized@wide 82”(2.2m) Projection distance 1.2~8.1m, optimized@1.61m Electrical Description...
  • Page 65 ADDITIONAL INFORMATION Setup Alexa To setup and link your Alexa Projector, please scan the QR code or visit the URL: https://www.optoma.com/support/download English...

  • Page 66: Optoma Global Offices

    ADDITIONAL INFORMATION Optoma global offices For service or support, please contact your local office. Japan 3178 Laurelview Ct. 888-289-6786 東京都足立区綾瀬3-25-18 Fremont, CA 94538, USA 510-897-8601 info@os-worldwide.com 株式会社オーエス www.optomausa.com services@optoma.com 0120-380-495 www.os-worldwide.com コンタクトセンター: Canada Taiwan 3178 Laurelview Ct. 888-289-6786 12F., No.213, Sec. 3, Beixin Rd.,...
  • Page 67 *36.7CM08G001-A* P/N:36.7CM08G001-A www.optoma.com...
