Summary of Contents for Optoma DLP D2+

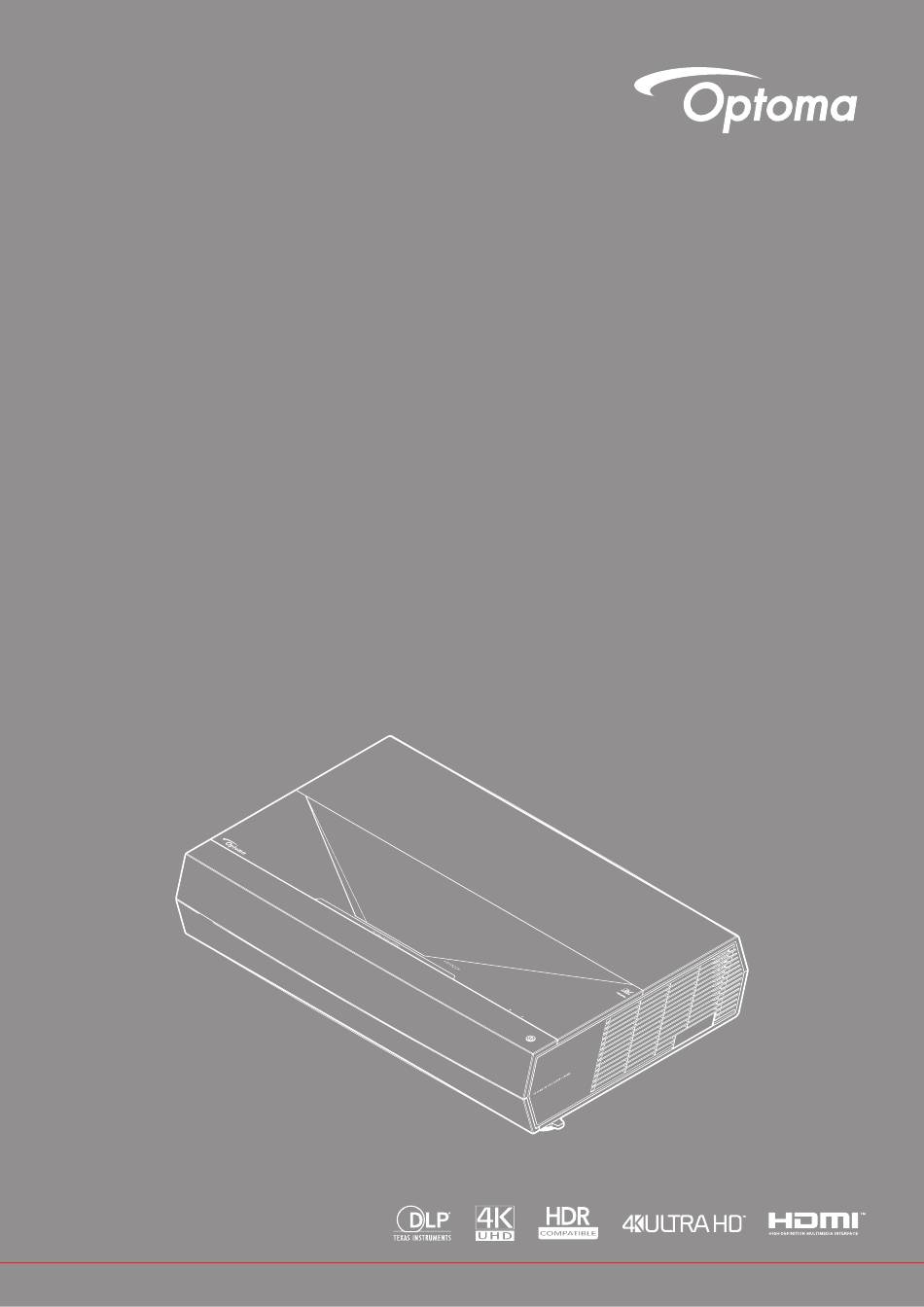

  • Page 1 Projector ® User manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY ....................4 Important Safety Instruction....................... 4 Cleaning the Lens........................5 Laser Radiation Safety Information ................... 6 3D Safety Information ........................ 7 Copyright ........................... 8 Disclaimer ..........................8 Trademark Recognition ......................8 FCC ............................8 Declaration of Conformity for EU countries ................9 WEEE ............................
  • Page 3 ADDITIONAL INFORMATION ............37 Compatible resolutions ......................37 Image size and projection distance ..................42 Remote control codes....................... 43 Troubleshooting ........................45 Warning indicators ........................46 Specifications ........................... 49 Optoma global offices ....................... 50 English...

  • Page 4: Safety

    SAFETY The lightning fl ash with arrow head within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of suffi cient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

  • Page 5: Cleaning The Lens

    ‡ Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please call Optoma before you send the unit for repair. ‡ See projector enclosure for safety related markings.

  • Page 6: Laser Radiation Safety Information

    Laser Radiation Safety Information ‡ Complies with 21 CFR 1040.10 and 1040.11 except for conformance as a Risk Group 2 LIP as defined in IEC 62471-5:Ed. 1.0. For more information, see Laser Notice No. 57, dated May 8, 2019 IEC/EN 60825-1:2014 CLASS 1 LASER PRODUCT RISK GROUP 2 Complies with 21 CFR 1040.10 and 1040.11 except for conformance as a Risk Group 2 LIP as defined in IEC 62471-5:Ed.

  • Page 7: 3D Safety Information

    3D Safety Information Please follow all warnings and precautions as recommended before you or your child use the 3D function. Warning Children and teenagers may be more susceptible to health issues associated with viewing in 3D and should be closely supervised when viewing these images. Photosensitive Seizure Warning and Other Health Risks ‡...

  • Page 8: Copyright

    Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. © Copyright 2021 Disclaimer The information in this document is subject to change without notice.

  • Page 9: Declaration Of Conformity For Eu Countries

    Notice: Shielded cables All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations. Caution Changes or modifications not expressly approved by the manufacturer could void the user’s authority, which is granted by the Federal Communications Commission, to operate this projector. Operation Conditions This device complies with Part 15 of the FCC Rules.

  • Page 10: Introduction

    Quick Start User Manual Documentation HAKO ATV dongle Note: ‡ The actual remote control may vary depending on the region. ‡ (*) For European warranty Information, please visit www.optoma.com. Please scan the QR code or visit the following URL: https://www.optoma.com/support/download English...

  • Page 11: Product Overview

    INTRODUCTION Product Overview Minimum Minimum Minimum 500mm 500mm 500mm Note: ‡ Do not block projector intake and exhaust vents. ‡ When operating the projector in an enclosed space, allow at least 50cm (19”) clearance around the intake and exhaust vents. Item Item Ventilation (outlet)

  • Page 12: Connections

    INTRODUCTION Connections Item Item Audio Out Port USB Port (Power 5V 1.5A)(*) S/PDIF Port (PCM 2-channel, HDMI 2 Port (HDMI v2.0) Digital 5.1) HDMI 3 Port (HDMI v2.0) Power Socket RS-232 Port Kensington Lock Port HDMI 1 Port (HDMI v2.0 eARC) Note: (*) Not recommended for charging a cell phone.

  • Page 13: Remote Control

    INTRODUCTION Remote control Item Item Power On 15. User2 (assignable) Re-sync 16. Source Backlight 17. Aspect Ratio Keystone 18. Sleep Timer Contrast 19. 3D Menu On / Off Brightness 20. Lamp 21. HDR Enter 22. Mode Four Directional Select Keys 23.

  • Page 14: Setup And Installation

    Do not operate the projector in any orientation other that table top or ceiling mount. The projector should be horizontal and not tilted either forwards/backwards or left/right. Any other orientation will invalidate the warranty and may shorten the lifetime of the projector lamp or the projector itself. For none standard installation advise please contact Optoma. English...

  • Page 15: Connecting Sources To The Projector

    SETUP AND INSTALLATION Connecting sources to the projector Item Item 1. Audio Out Cable 5. USB Power Cable 2. S/PDIF Out Cable 6. HDMI Dongle 3. RS232 Cable 7. HDMI Cable 4. USB Cable (Service only / DDP FW upgrade) 8.

  • Page 16: Adjusting The Projector Image

    SETUP AND INSTALLATION Adjusting the projector image Image height The projector is equipped with elevator feet for adjusting the image height. Locate the adjustable foot you wish to adjust on the underside of the projector. Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector. Tilt-Adjustment Feet Tilt-Adjustment Ring Note:...

  • Page 17: Remote Setup

    SETUP AND INSTALLATION Remote setup Installing / replacing the batteries Two AAA size batteries are supplied for the remote control. Remove the battery cover on the back of the remote control. Insert AAA batteries in the battery compartment as illustrated. Replace back cover on remote control.
  • Page 18 SETUP AND INSTALLATION Effective range Infra-Red (IR) remote control sensor is located on the front of the projector. Ensure to hold the remote control at an angle within ±15° perpendicular to the projector’s IR remote control sensor to function correctly. The distance between the remote control and the sensor should not be longer than 6 meters (~19.6 feet).

  • Page 19: Using The Projector

    USING THE PROJECTOR Powering on / off the projector Powering on Securely connect the power lead and signal/source cable. When connected, the Power LED will turn red. Turn on the projector by pressing the button on the projector keypad or the button on the remote control.

  • Page 20: Selecting An Input Source

    USING THE PROJECTOR Selecting an input source Turn on the connected source that you want to display on the screen, such as computer, notebook, video player, etc. The projector will automatically detect the source. If multiple sources are connected, press the Source button on the remote control to select the desired input.

  • Page 21: Menu Navigation And Features

    USING THE PROJECTOR Menu navigation and features The projector has multilingual on-screen display menus that allow you to make image adjustments and change a variety of settings. The projector will automatically detect the source. To open the OSD menu, press the button on the remote control.

  • Page 22: Osd Menu Tree

    USING THE PROJECTOR OSD Menu tree Note: The OSD menu tree items and features are subject to models and region. Optoma reserve the right to add or remove items to improve product performance without notice. Main Sub Menu 1 Sub Menu 2...
  • Page 23 USING THE PROJECTOR Main Sub Menu 1 Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Film Video Graphics Gamma Standard(2.2) BrilliantColor™ 1 ~ 10 Warm Standard Color Temperature Cool Cold Red [Default] Green Blue Color Cyan Yellow Magenta Color Matching White(*)
  • Page 24 USING THE PROJECTOR Main Sub Menu 1 Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu DynamicBlack Eco. Constant Power Brightness Power =100%/95%/90%/85%/80%/ Mode Image Settings 75%/70%/65%/60%/55%/50% Constant Luminance Power=85%/80%/75%/70% Reset Enhanced Gaming Off [Default] 3D Mode 3D Sync Invert Off [Default] Display 16:9...
  • Page 25 USING THE PROJECTOR Main Sub Menu 1 Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu 0 ~ 990 (30 min increments) [Default: 0] Sleep Timer (min.) No [Default] Always On Power Settings Active (SmartHome) Power Mode (Standby) Eco [Default] Off [Default] USB Power...
  • Page 26 USING THE PROJECTOR Main Sub Menu 1 Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Top Left Top Right Menu Location Center [Default] Bottom Left Menu Settings Bottom Right Menu Timer 5sec 10sec [Default] Off [Default] Auto Source HDMI1 Input Source HDMI2...

  • Page 27: Display Menu

    USING THE PROJECTOR Display menu Image settings menu Display Mode There are several predefined display modes that you can choose from to suit your viewing preference. Each mode has been fine-tuned by our expert colour team to ensure superior colour performance for wide range of content. ‡...
  • Page 28 USING THE PROJECTOR ‡ If HDR or HLG are enabled, Cinema, Film, Vivid, Game, Reference, and Bright options are grayed out. Wall Color Designed to adjust the colors of the projected image when projecting on to a wall without a screen. Each mode has been fine-tuned by our expert colour team to ensure superior color performance.
  • Page 29 USING THE PROJECTOR Gamma Set up gamma curve type. After the initial setup and fine tuning is completed, utilize the Gamma Adjustment steps to optimize your image output. Film: For home theater. ‡ ‡ Video: For video or TV source. ‡...
  • Page 30 USING THE PROJECTOR Enhanced Gaming menu Enable this feature to reduce response times (input latency) during gaming to 4ms*. Note: ‡ Only support to HDMI1. ‡ *Only for 1080p 240Hz signals. ‡ The input lag by signals is described in the following table: ‡...
  • Page 31 USING THE PROJECTOR enhanced for 16x9 Display in a wide 2.35:1 image. In this case, there are no black bars. Light source power and vertical resolution are fully utilized. ‡ To use the Full Screen format, do the following: Set the screen aspect ratio to 2.0:1. Select “Full Screen”...
  • Page 32 USING THE PROJECTOR Zoom menu Use to reduce or magnify an image on the projection screen. Note: Zoom settings are retained on power cycle of the projector. Image Shift menu Adjust the projected image position horizontally (H) or vertically (V). Note: The image size will reduce slightly when adjusting the horizontal and vertical keystone.

  • Page 33: Audio Menu

    USING THE PROJECTOR Audio menu Audio Mode Select the appropriate audio mode. Note: ‡ The selected audio mode applies to all sources: ‡ The projector detects automatically Speaker / Audio Out mode. ‡ eARC function is supported only with HDMI1 source. ‡...
  • Page 34 USING THE PROJECTOR Power Mode (Standby): Set the power mode setting. ‡ ‡ Active: Choose “Active” to return to normal standby. ‡ Eco: Choose “Eco.” to save power dissipation further < 0.5W. USB Power (Standby): Enable or disable the USB power function when the projector is in standby ‡...
  • Page 35 USING THE PROJECTOR Projector ID ID definition can be set up by menu (range 0-99), and allow user control an individual projector by using RS232 command. Focus Press the User1 or User2 button on the remote control to autmatically adjust focus. Eye Protection Sensor Enable eye protection sensor to temporarily switch off the lights when objects are too close to the projector beam.

  • Page 36: Info Menu

    USING THE PROJECTOR Info menu View the projector information as listed below: ‡ Regulatory ‡ Serial Number ‡ Source ‡ Resolution ‡ Refresh Rate ‡ Display Mode ‡ Projector ID ‡ Brightness Mode ‡ FW Version English...

  • Page 37: Additional Information

    ADDITIONAL INFORMATION Compatible resolutions Video compatibility Signal Resolution SDTV 480i/p, 576i/p HDTV 720p (50/60Hz), 1080i (50/60Hz), 1080p (24/50/60Hz) 2160p (24/50/60Hz) Video timing in details: Signal Resolution Refresh Rate (Hz) Notes SDTV (480i) 640 x 480 SDTV (480p) 640 x 480 SDTV (576i) 720 x 576 SDTV (576p)
  • Page 38 ADDITIONAL INFORMATION Timing table for PC: Frequency H. Refresh Rate Signal Resolution (KHz) (Hz) Video Digital Note SVGA 800 x 600 35.2 56.3 √ 56Hz SVGA 800 x 600 37.9 60.3 √ 60Hz SVGA 800 x 600 46.9 √ SVGA 800 x 600 48.1 72.2...
  • Page 39 ADDITIONAL INFORMATION Computer Compatibility for MAC Macbook Macbook Pro Power Mac G5 Power Mac G4 Compatibility (Intel) Compatibility Compatibility Compatibility Resolution Digital Digital Digital Digital 800 x 600 √ √ √ 800 x 600 √ √ √ 800 x 600 √...
  • Page 40 ADDITIONAL INFORMATION Signal Resolution Refresh Rate (Hz) Notes for Mac WQHD 2560 x 1440 60RB/120 UHD(2160p) 3840 x 2160 24/30/50/60 Mac 24/30 UHD(2160p) 4096 x 2160 24/30/50/60 Mac 24 Note: ‡ (*1) 1920 x 1200 @ 60Hz only supports RB(reduced blanking). ‡...
  • Page 41 ADDITIONAL INFORMATION 3D Timing HDMI1.4a 3D Timing For Blue-Ray 3D: Signal Timing Supported Port 720p (Frame Packing) 1280 x 720 @ 50Hz HDMI1, HDMI2, HDMI3 720p (Frame Packing) 1280 x 720 @ 60Hz HDMI1, HDMI2, HDMI3 1080p (Frame Packing) 1920 x 1080 @ 23.98 / 24Hz HDMI1, HDMI2, HDMI3 PC 3D Timing: Signal...

  • Page 42: Image Size And Projection Distance

    ADDITIONAL INFORMATION Image size and projection distance Image Size Offset=121.5% ~ 130% Offset=121.5% ~ 130% (inch) inch inch inch inch inch 85" 0.530 20.876 0.147 5.774 0.166 6.518 0.176 ~ 0.266 6.92 ~ 10.462 0.241 ~ 0.313 9.507 ~ 12.327 90"...

  • Page 43: Remote Control Codes

    ADDITIONAL INFORMATION Remote control codes Custom code Key Code Description Byte 1 Byte 2 Byte 3 Byte 3 Power on Press to turn on the projector. Source Press “Source” to select an input signal. Backlight Backlight toggle. Automatically synchronizes the projector Re-sync to the input source.
  • Page 44 Byte 1 Byte 2 Byte 3 Byte 3 Lamp Select the brightness mode. Open the Optoma Color Management System (CMS). (not supported) Select a display mode for optimized Mode settings for different applications. Please see page 27. Configure the (HDR) settings.

  • Page 45: Troubleshooting

    ADDITIONAL INFORMATION Troubleshooting If you experience a problem with your projector, please refer to the following information. If a problem persists, please contact your local reseller or service center. Image problems No image appears on-screen ‡ Ensure all the cables and power connections are correctly and securely connected as described on page 15.

  • Page 46: Warning Indicators

    ADDITIONAL INFORMATION Other problems The projector stops responding to all controls ‡ If possible, turn off the projector, then unplug the power cord and wait at least 20 seconds before reconnecting power. Remote control problems If the remote control does not work ‡...
  • Page 47 ADDITIONAL INFORMATION LED lightning messages On/Standby LED Temp LED Light Source LED Message (Red) (White) (Red) (Red) Standby state Steady light (Input power cord) Flashing Power on (Warming) (0.5 sec off / 0.5 sec on) Power on and light source Steady light lighting Flashing...
  • Page 48 ADDITIONAL INFORMATION ‡ Fan failed: Warning FAN LOCKED The projector will switch off automatically Please contact a service center for repair. ‡ Out of display range: HDMI Out Of Range ‡ Power down warning: Power Down Power Down Timer Active Power down in sec.

  • Page 49: Specifications

    ADDITIONAL INFORMATION Specifications Optical Description Texas Instrument DMD, 0.47”(dimension)/ 4K UHD HSSI DMD X1 Technology S451 (Packing typing), with 4-Way XPR actuator Output resolution 4K UHD 3840 x 2160 at 60Hz Maximum input resolution 4096 x 2160 at 60Hz ‡ Throw ratio: 0.254 ‡...

  • Page 50: Optoma Global Offices

    ADDITIONAL INFORMATION Optoma global offices For service or support, please contact your local office. Taiwan https://www.optoma.com/tw/ 47697 Westinghouse Drive, 888-289-6786 Fremont, CA 94539, USA 510-897-8601 www.optomausa.com services@optoma.com China Room 2001, 20F, Building 4, Canada No.1398 Kaixuan Road, +86-21-62947376 47697 Westinghouse Drive,...
  • Page 51 www.optoma.com...
