Setting Transmitter Operating Frequency

Frequency displayed
in MHz
Frequency displayed as
two-digit hexadecimal
number
transmitter:
Press the FREQ button to enter this screen.
1)
2) While holding the FREQ button, use the UP or DOWN arrow buttons to
move the operating frequency up or down in 100 kHz increments from the
current setting. Holding the UP or DOWN arrows will cause rapid scrolling
through the frequencies.
Note: The operating frequency displayed on the LCD wraps as it
reaches the upper or lower end of its range.

Set Up in 100 kHz Mode

Down arrows to select the frequency.

Set Up in 25kHz Mode

The hexidecimal display in the 25 kHz mode will appear with a decimal suffix
to indicate the 25 kHz steps.
www.lectrosonics.com
The operating frequency of the HM is displayed
either in MHz or as a two-digit hexadecimal
number. Pressing the FREQ button toggles
between the two display modes. The frequency can
be set with the unit in Standby Mode or while
powered up for normal operation.
Note: You must first find a clear frequency
with the receiver, then set the transmitter to
match.
To change the Operating Frequency of the HM

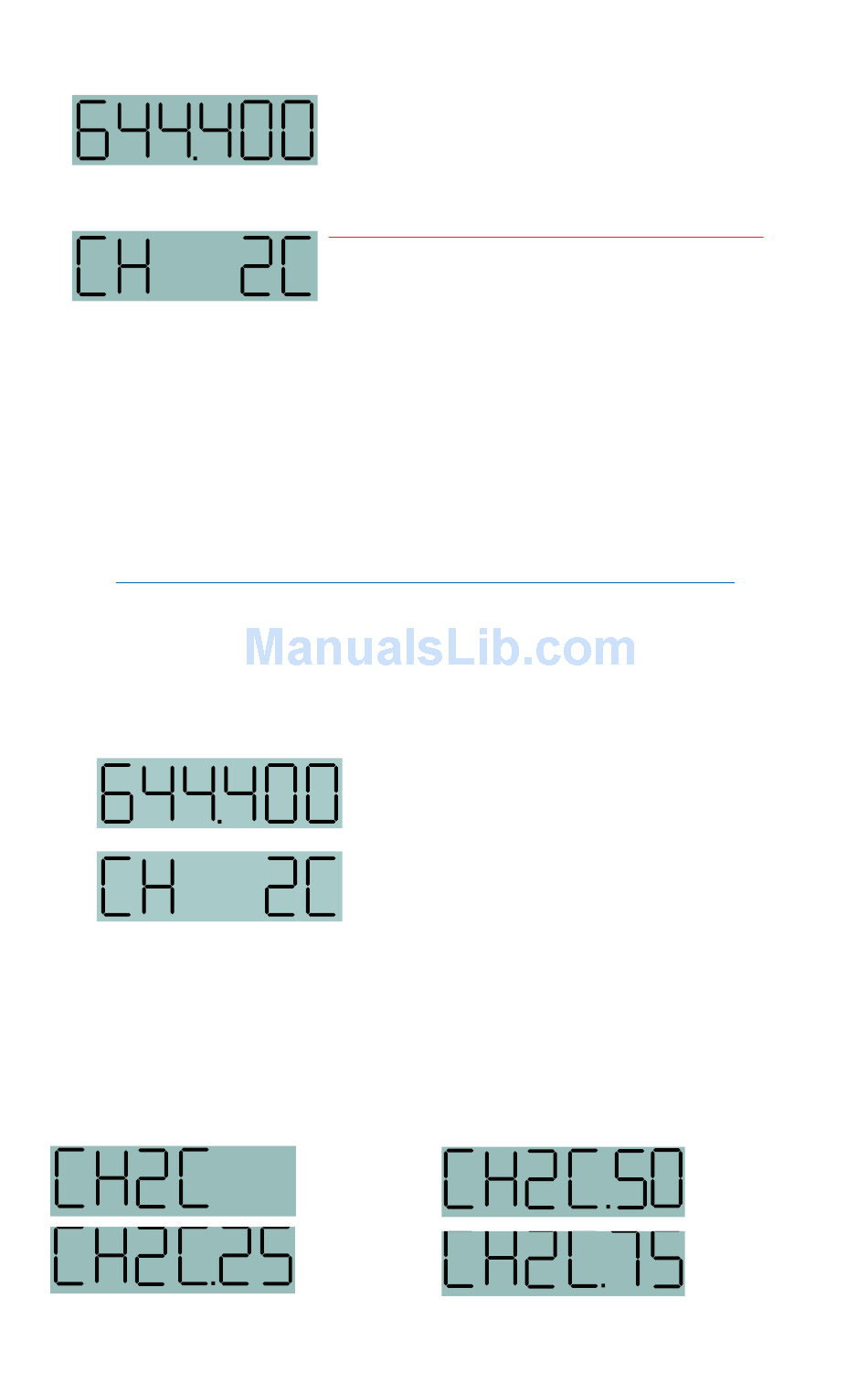

The Frequency Screen displays the operating
frequency in MHz or as a two-digit hexadecimal
number that corresponds to the equivalent
Lectrosonics Frequency Switch Setting. The
example of the two-digit display shown here
indicates CH (channel) and 2C as the frequen-
cy. Repeatedly pressing the FREQ button
toggles between the two displays. Press and
hold the FREQ button and use the Up and
644.400 MHz
644.425 MHz
644.450 MHz
644.475 MHz
