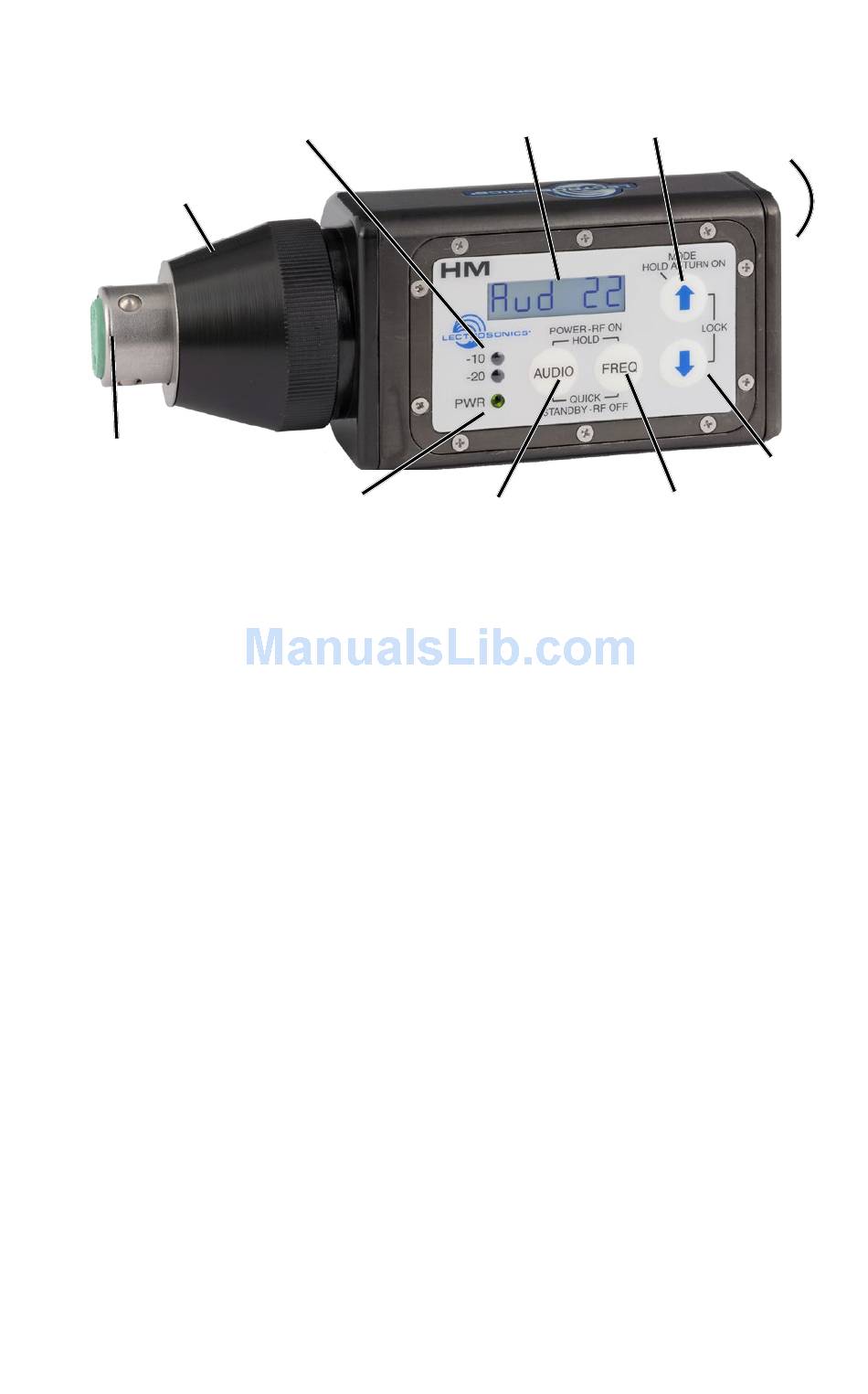

Controls and Functions
Input
Coupler
XLR Input
Jack
LCD Screen
Backlit for easy viewing in bright or dimly lit conditions.
Pwr (power) LED
Indicates power status and battery strength.
XLR Input Jack
Standard 3-pin Switchcraft XLR type. Coupler is spring-loaded to maintain a
snug fit and to prevent noise.
Modulation LEDs
Provides a visual indication of the audio input signal level - either red or green
to indicate modulation levels.
AUDIO Button
Used to display the view and adjust the audio gain setting (0 dB to 44 dB).
FREQ Button
Used to set the operating frequency and toggle the LCD between the operating
frequency in MHz and a two-digit hexadecimal frequency code.
UP/DOWN Arrows
Used to view and select parameters and values during setup and operation.
Battery Compartment Cover
Hinged to housing to prevent loss.
www.lectrosonics.com
Modulation
LEDs
PWR LED
LCD
UP Arrow
AUDIO Button
FREQ Button
Battery
Compartment
Cover
DOWN Arrow
3
