Setting Transmitter Operating Frequency

1) If the LCD is displaying something other than the Frequency Screen, press
the FREQ button on the Control Panel to enter this screen.
Note: The default display is in MHz. Pressing the FREQ button again
displays the operating frequency as a two‑digit hexadecimal number
that corresponds to legacy Lectrosonics products that used two
16‑position switches to set the frequency.
2) While holding the FREQ button, use the UP or DOWN arrow buttons to
move the operating frequency up or down.
Note: The operating frequency displayed on the LCD wraps as it
reaches the upper or lower end of its range. Thus, if you intend to move
the operating frequency from the lower end of the range to the upper
end, it may be faster to do this by using the DOWN arrow until the
frequency wraps to the upper end.
Set Up in 100 kHz Mode
Frequency displayed
in MHz
Frequency displayed as
two-digit hexadecimal
number
Set Up in 25kHz Mode
The hexidecimal display in the 25 kHz mode will appear with a decimal suffix
to indicate the 25 kHz steps.
8

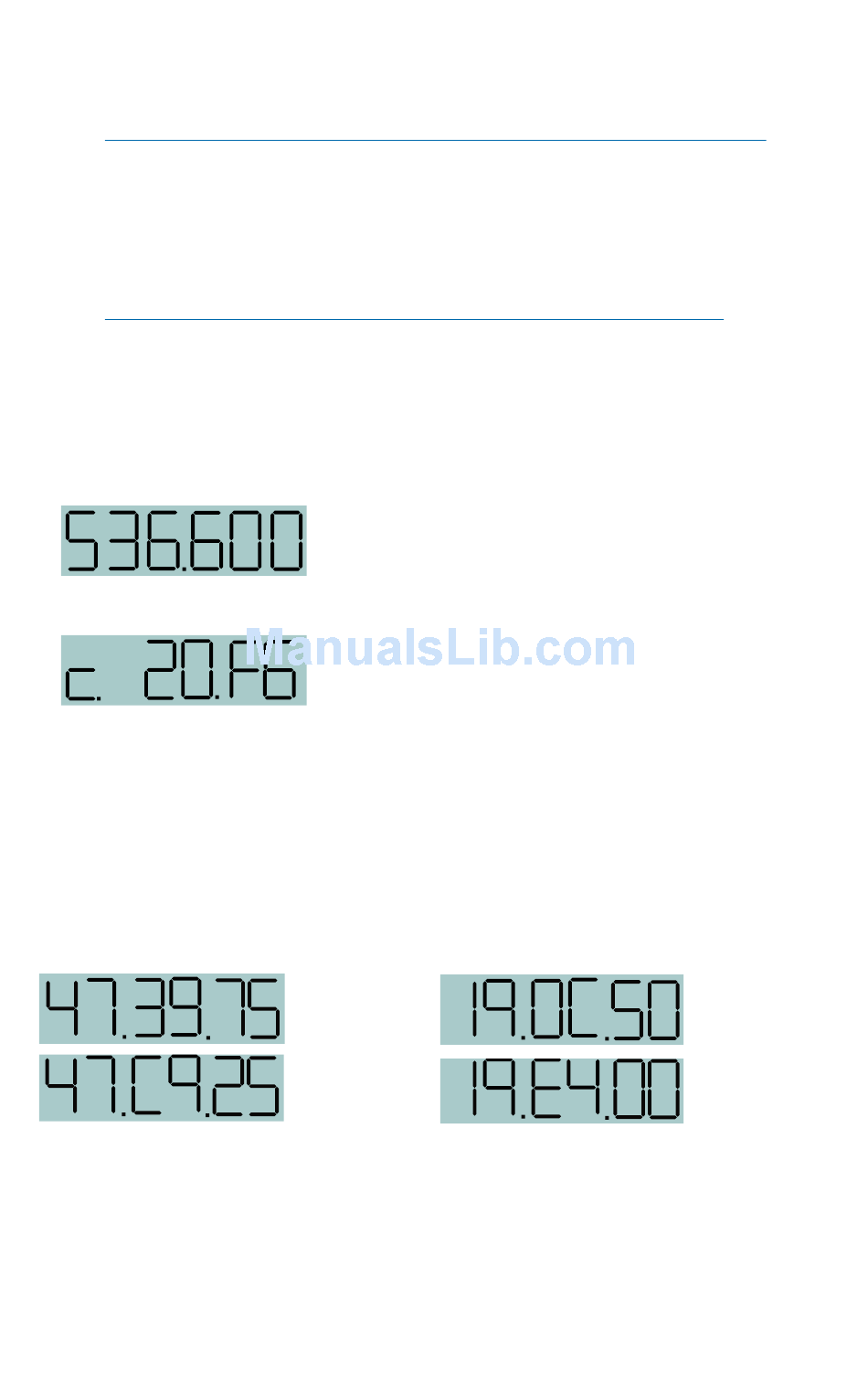

The operating frequency can be displayed either in
MHz or as a two‑digit hexadecimal number. The
example of the two‑digit display shown here
indicates CH (channel) and 2C as the frequency.
The frequency can be set with the unit in standby
mode or when powered up for normal operation.
475.875 MHz
490.225 MHz
