Operating Instructions

Power On
1) Ensure that good batteries are installed.
Simultaneously press and hold the AUDIO and
2)
FREQ buttons as the timer counts from 1 to 3
(about 3 seconds).

Power Off

Simultaneously press and hold the AUDIO and
1)
FREQ buttons while observing that the word
OFF and the counter in the LCD.
2) When the counter reaches 0, the unit turns off.
Note: If the AUDIO and FREQ buttons are released before the end of
the countdown, the unit will not turn off.

Standby Mode

From the OFF position, quickly press and release
both the AUDIO and FREQ buttons simultaneously
to enter and exit this mode. Adjustments and set-
tings can be checked or changed, but the unit will
not be transmitting to avoid interfering with other systems in the vicinity.

Selecting the Compatibility Mode

400 Series or Digital
Hybrid Wireless
Compatibility Mode
• 100 Series mode:
• 200 Series mode:
• Mode 3 (Contact factory for details):
• 400 Series mode:
• IFB Series mode:
• Mode 6 (Contact factory for details):

Selecting the Audio Polarity

www.lectrosonics.com
Hold the UP arrow in, then press the AUDIO and
FREQ buttons at the same time. Press the AUDIO
button repeatedly until the compatibility mode
screen appears as shown here. Press the UP and
DOWN arrows to select the desired mode.
®
The input to the transmitter can be set for
Pin 2
XLR Pin 2 as positive (+) or negative (–) to
(+)
match the polarity of other mics being used.
Hold the UP arrow in, then press the AUDIO
and FREQ buttons at the same time. Press
Pin 2
the UP and DOWN arrows to select the
(–)
desired mode.

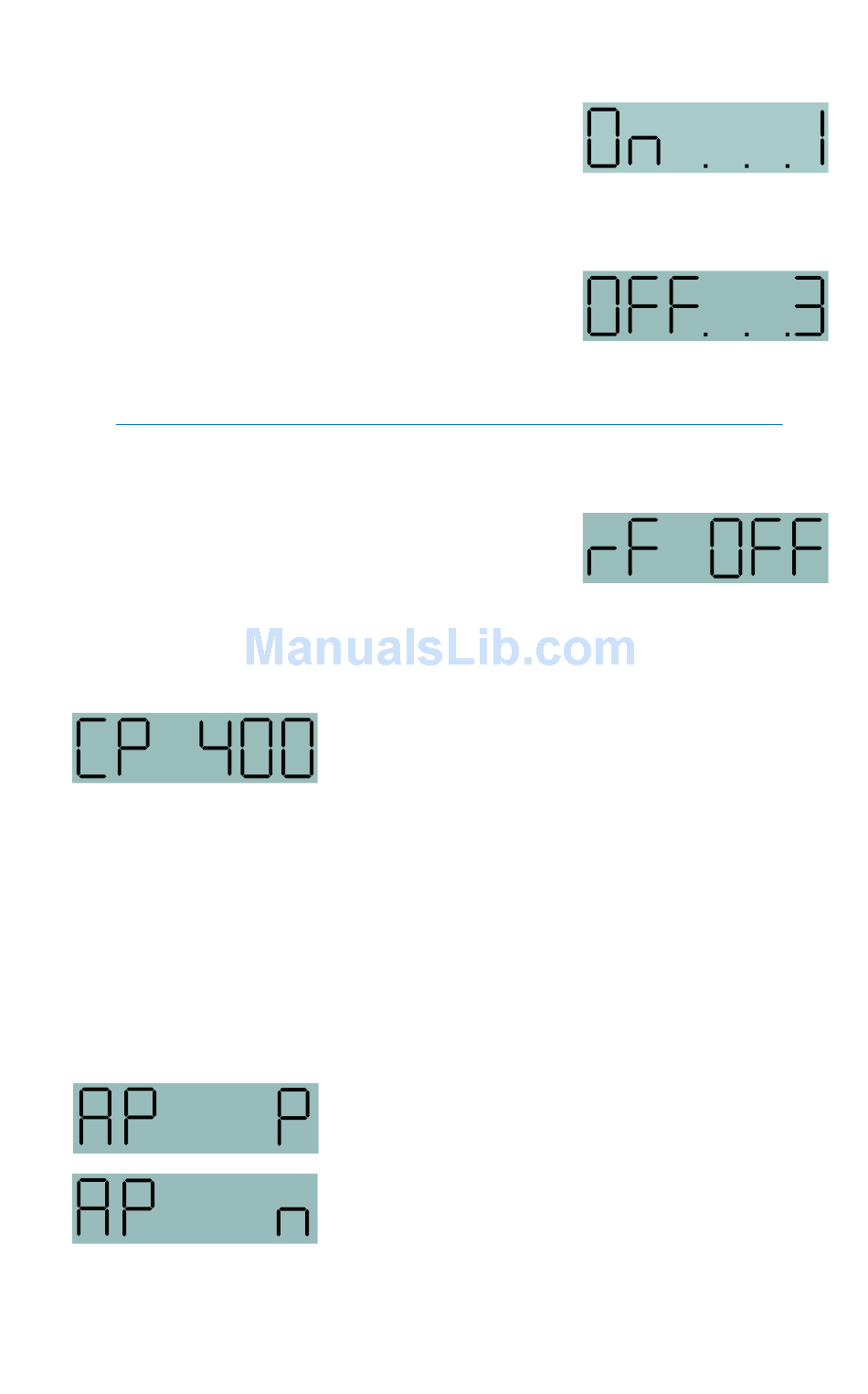

Initial Power On
Timer Screen
Initial Power Off
Timer Screen
Standby Screen
CP 100
CP 200
CP 3
CP 400
CP IFB
CP 6
5
