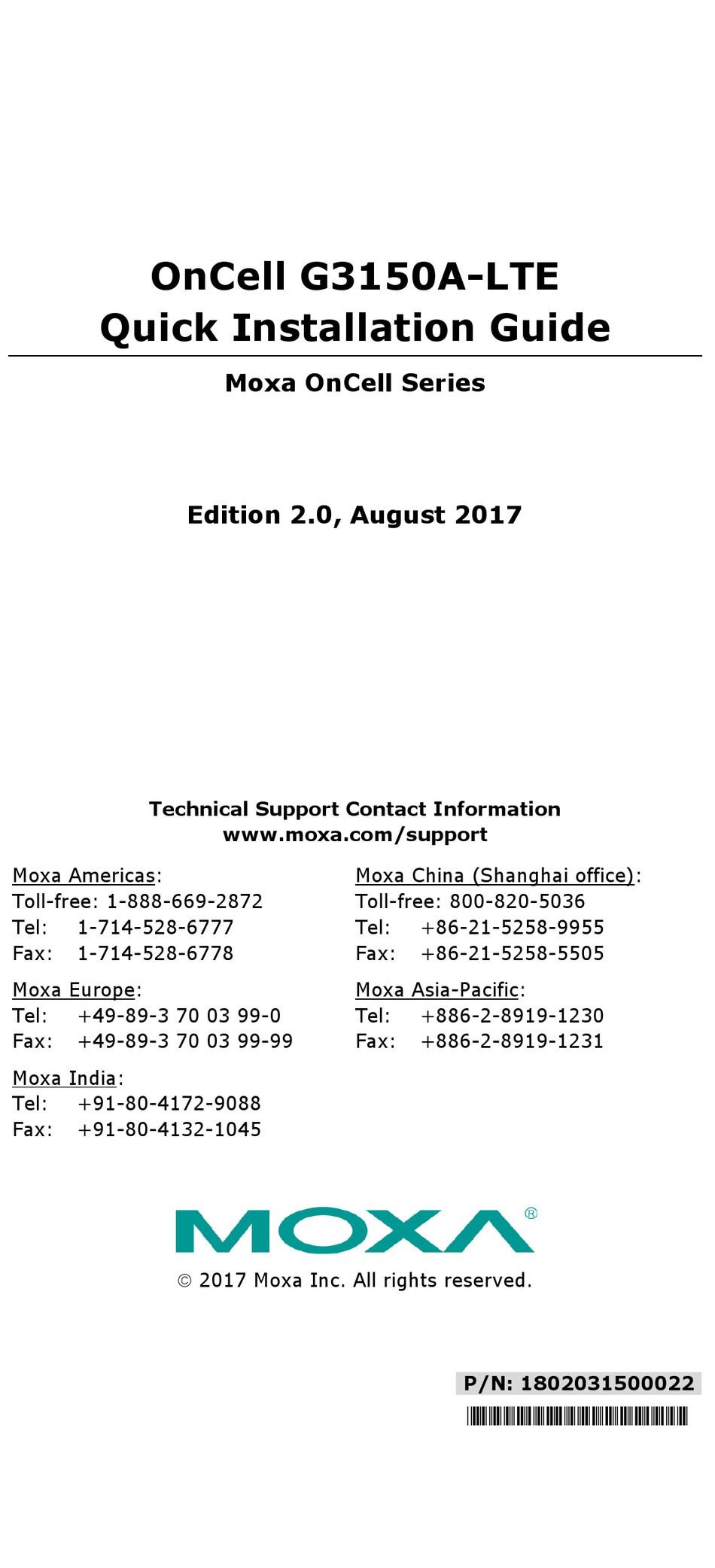

Quick Installation Guide
Moxa Americas:
Toll-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045

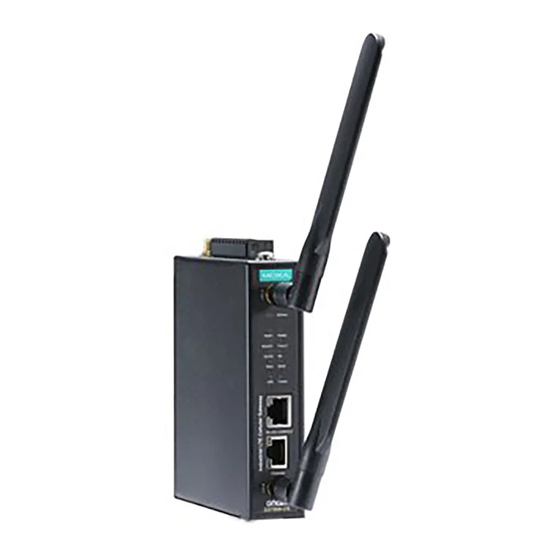

OnCell G3150A-LTE
Moxa OnCell Series
Edition 2.0, August 2017
Technical Support Contact Information
www.moxa.com/support
2017 Moxa Inc. All rights reserved.
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802031500022
*1802031500022*
Advertisement
Table of Contents
Related Manuals for Moxa Technologies OnCell G3150A-LTE
Summary of Contents for Moxa Technologies OnCell G3150A-LTE
-
Page 1: Quick Installation Guide
OnCell G3150A-LTE Quick Installation Guide Moxa OnCell Series Edition 2.0, August 2017 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel:... -
Page 2: Package Checklist
OnCell G3150A-LTE supports network redundancy to ensure uninterrupted connectivity. The OnCell G3150A-LTE also comes with a 3-in-1 serial port for serial over LTE cellular network communication. Use the OnCell G3150A-LTE to collect data and exchange data with serial/Ethernet devices. - Page 3 Step 3: Set up an IP address for the computer Set an IP address on the same subnet as the OnCell G3150A-LTE. Since the OnCell G3150A-LTE’s default IP address is 192.168.127.254, and the subnet mask is 255.255.255.0, you should set the IP address of the computer to 192.168.127.xxx and subnet mask to 255.255.255.0.
-
Page 4: Panel Layout Of The Oncell G3150A-Lte
Panel Layout of the OnCell G3150A-LTE 1. GPS antenna connector (female SMA) 2. Terminal block (top-down PWR1 and PWR2, 1 digital relay and 2 digital inputs) 3. Grounding screw (M5) 4. 2x2 MIMO antenna ports for LTE (female SMA) 5. -
Page 5: Device Dimensions
DIN-Rail Kit Dimensions Unit = mm (inch) The OnCell G3150A-LTE Series computers come with a DIN-rail kit attached to the back panel. Mount the OnCell G3150A-LTE Series on corrosion-free mounting rails that meet the EN 60715 standard. - 5 -... -
Page 6: Installation
STEP 1: Insert the upper lip of the DIN rail into the top hook of the DIN-rail mounting kit. STEP 2: Press the OnCell G3150A-LTE Series towards the DIN rail until it snaps into place. To remove the OnCell G3150A-LTE from the DIN rail, reverse steps 1 and 2 above. -
Page 7: Wiring Requirements
STEP 2: Mounting the OnCell G3150A-LTE to a wall requires 4 screws. Use the OnCell G3150A-LTE device, with wall mount plates attached as a guide, to mark the correct locations of the 4 screws. The heads of the screws should be less than 6.0 mm in diameter, and the shafts should be less than 3.5 mm in diameter, as shown in... -
Page 8: Grounding The Moxa Oncell G3150A-Lte
Grounding the Moxa OnCell G3150A-LTE Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. -
Page 9: Connecting The Power Input
Wiring the Redundant Power Inputs The top two pairs of contacts of the 10-contact terminal block connector located on the top panel of the OnCell G3150A-LTE are used as the two DC inputs. Top and front views of the terminal block connector are shown... -
Page 10: Communication Connections
Wiring the Digital Inputs The OnCell G3150A-LTE has two sets of digital inputs—DI1 and DI2. Each DI comprises of two contacts on the 6-pin terminal block connector located on the top panel of the OnCell G3150A-LTE. Refer to the Specifications section for detailed information on isolated digital input definition. -
Page 11: Led Indicators
(or port). Refer to the pinout diagram above for details. LED Indicators The front panel of the Moxa OnCell G3150A-LTE contains several LED indicators. The function of each LED is described in the table below: Type... -
Page 12: Specifications
The serial port is transmitting data No data is being transmitted or received through the serial port Specifications Cellular Specification Standards GSM/GPRS/EDGE/UMTS/HSPA/LTE Band Options OnCell G3150A-LTE-EU: • B1 (2100 MHz)/B3 (1800 MHz)/B7 (2600 MHz)/B8 (900 MHz)/B20 (800 MHz) • UMTS/HSPA 2100/1900/850/800/900 MHz OnCell G3150A-LTE-US: •... -
Page 13: Software Specification
Interface Cellular Antenna 2 SMA (female), MIMO for LTE, antenna diversity Connectors for WCDMA SIM Slots Dual SIM card support, full-sized SIM (1FF) GNSS 1 SMA (female), GPS: 1575.42 MHz, GLONASS: 1602 MHz Ethernet 1, 10/100 Mbps auto negotiation speed, F/H duplex mode and auto MDI/MDI-X connection (RJ45-type) Serial Console Port 1, RS-232 (RJ45-type) - Page 14 The OnCell G3150A-LTE is NOT a portable mobile device and should be located at least 20 cm away from the human body. The OnCell G3150A-LTE is NOT designed for the general public. A well-trained technician is required to deploy the OnCell G3150A-LTE units and safely establish a wireless network.
-
Page 15: Atex Zone 2 Certification Information
> 2 in accordance with EN 60664-1. When you install the OnCell G3150A-LTE in an enclosure, the antennas must also be installed in such a way that they are inside the enclosure. External antenna deployment is allowed only if the antennas are certified for ATEX Zone 2 use or confirm to IECEx standards. -
Page 16: Grounding-Wire Size
Grounding-Wire Size The minimum cross-sectional area of the grounding conductor should be equal to that of the input cable. Moxa Inc. Floor, No.135, Lane 235, Baoqiao Rd. Xindian Dist., New Taipei City, Taiwan - 16 -...
