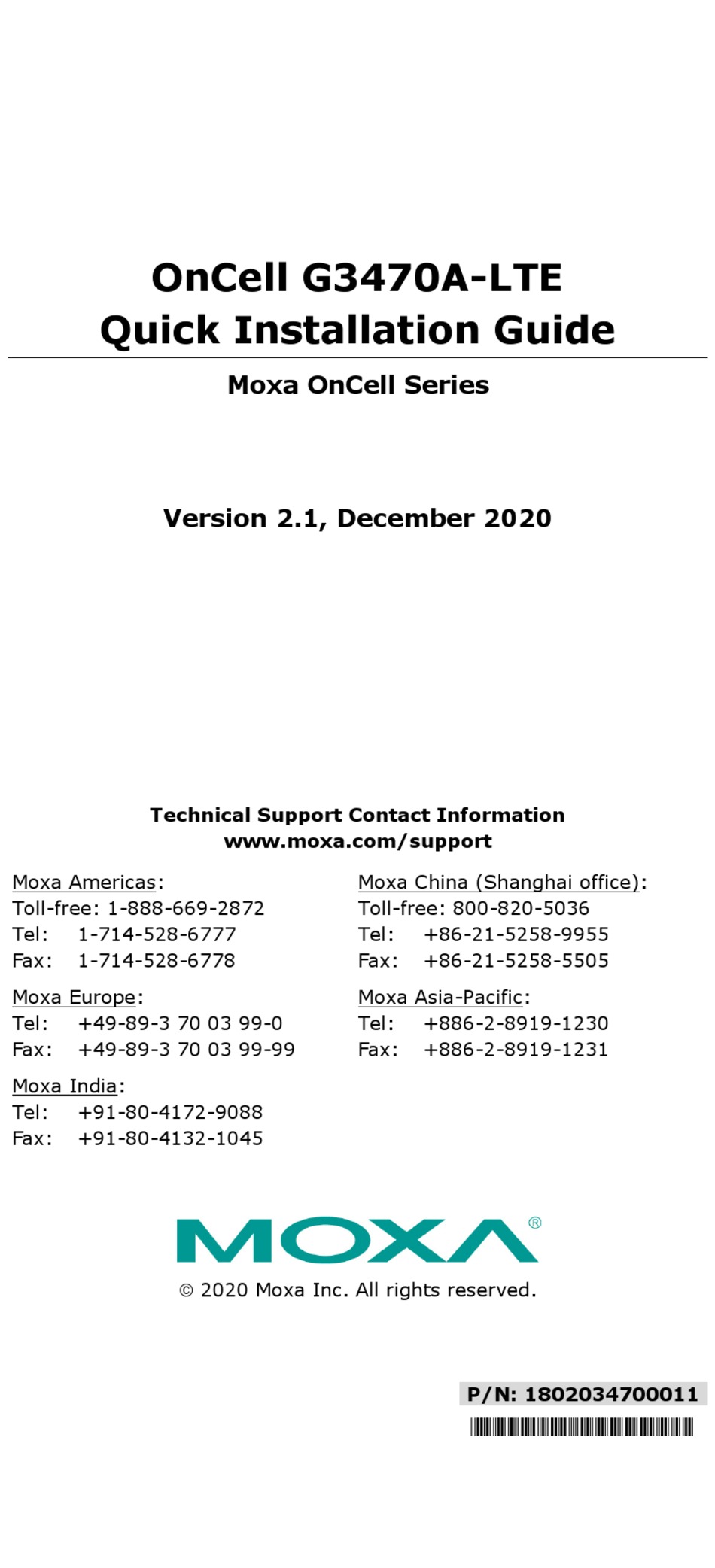

Quick Installation Guide
Moxa Americas:
Toll-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045
OnCell G3470A-LTE
Moxa OnCell Series
Version 2.1, December 2020
Technical Support Contact Information
www.moxa.com/support
2020 Moxa Inc. All rights reserved.
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802034700011
*1802034700011*
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Moxa Technologies OnCell Series
Summary of Contents for Moxa Technologies OnCell Series
- Page 1 OnCell G3470A-LTE Quick Installation Guide Moxa OnCell Series Version 2.1, December 2020 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel:...
-
Page 2: Package Checklist

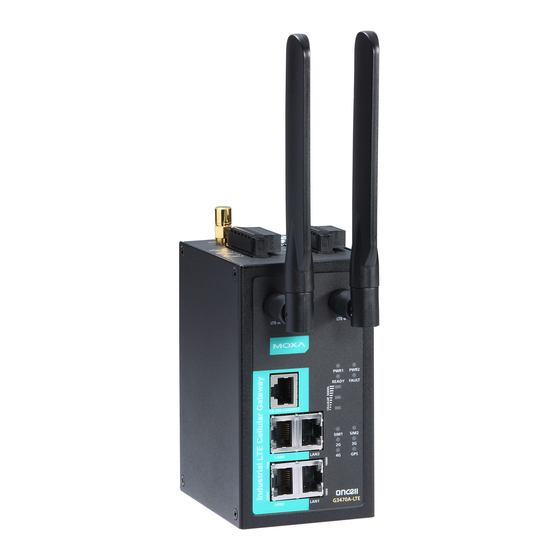

Overview The OnCell G3470A-LTE is Moxa's 4G/Ethernet IP gateway that provides a higher cellular bandwidth and more reliable connection to your Ethernet network for cellular applications. With the integrated 4-port gigabit Ethernet switch and 4G LTE support, the OnCell G3470A-LTE offers a faster cellular connection with a lower total cost of ownership. - Page 3 Step 4: Use the web-based manager to configure the OnCell G3470A-LTE Open your computer’s web browser and type http://192.168.127.254 in the address field to access the homepage of the web-based management system. Before the homepage opens, you will need to enter the user name and password.
-
Page 4: Hardware Overview
Hardware Overview 1. GPS antenna connector (female SMA) 2. Terminal block (two digital input and one digital relay) 3. Grounding screw (M5) 4. Terminal block (PWR1 and PWR2) 5. 2x2 MIMO antenna ports for LTE (female SMA) 6. RS-232 serial console (RJ45) 7. -
Page 5: Device Dimensions
Device Dimensions DIN-Rail Mounting DIN-Rail Kit Dimensions: Unit = mm (inch) The DIN-rail kit is attached to the back panel of the OnCell G3470A-LTE series. Mount the OnCell G3470A-LTE series on corrosion-free mounting rails that meet the EN 60715 standard. - 5 -... -
Page 6: Installation
Installation STEP 1: Insert the upper lip of the DIN rail into the DIN-rail mounting kit. STEP 2: Press the OnCell G3470A-LTE series towards the DIN rail until it snaps into place. Removal STEP 1: Pull down the latch on the mounting kit using a screwdriver. - Page 7 For some applications, it may be more convenient to mount the OnCell G3470A-LTE to a wall, as illustrated below. STEP 1: Remove the aluminum DIN-rail attachment plate from the OnCell G3470A-LTE, and then attach the wall mount plates with M3 screws, as shown in the adjacent diagram.
-
Page 8: Wiring Requirements
Wiring Requirements WARNING Safety First! Be sure to disconnect the power cord before installing and/or wiring your Moxa OnCell G3470A-LTE. WARNING Safety First! Calculate the maximum possible current in each power wire and common wire. Observe all electrical codes dictating the maximum current allowed for each wire size. -
Page 9: Wiring The Redundant Power Inputs
Grounding the Moxa OnCell G3470A-LTE Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. ATTENTION This product is intended to be mounted to a well-grounded mounting surface, such as a metal panel. -
Page 10: Communication Connections
Communication Connections 10/100BaseT(X) Ethernet Port Connection The 10/100BaseT(X) ports located on the OnCell G3470A-LTE’s front panel are used to connect to Ethernet-enabled devices. Below we show pinouts for both MDI (NIC-type) ports and MDI-X (HUB/Switch-type) ports. MDI Port Pinouts MDI-X Port Pinouts 8-pin RJ45 Signal Signal... -
Page 11: Led Indicators
NOTE The pin numbers for both 8-pin and 10-pin RJ45 connectors (and ports) are typically not labeled on the connector (or port). Refer to the Pinout diagram above to see how RJ45 pins are numbered. LED Indicators The front panel of the Moxa OnCell G3470A-LTE contains several LED indicators. -
Page 12: Specifications
Specifications Cellular Specification Standards GSM/GPRS/EDGE/UMTS/HSPA/LTE Band Options OnCell G3470A-LTE-EU: B1 (2100 MHz)/B3 (1800 MHz)/B7 (2600 MHz)/B8 (900 MHz)/B20 (800 MHz) OnCell G3470A-LTE-US: B2 (1900 MHz)/B4 (AWS)/B5 (850 MHz)/B13 (700 MHz)/B17 (700 MHz)/B25 (1900 MHz) OnCell G3470A-LTE-EU: UMTS/HSPA 2100/1900/850/800/900 MHz OnCell G3470A-LTE-US: UMTS/HSPA 2100/1900/AWS/850/900 MHz Quad-band GSM/GPRS/EDGE 850/900/1800/1900 LTE Data Rate... - Page 13 Software Specification (Moxa Proprietary) GuaranLink 3-tier heart-beat for reliable and persistent cellular connectivity OnCell Central Large scale centralized device management over Management private cellular IP addresses Search Utility Simple device configuration and management utility Physical Characteristics Housing Metal casing for high EMC-level, providing IP30 protection Mounting DIN-rail (default) or wall-mount (optional)
- Page 14 ATTENTION Use the antennas correctly: Wide-band (2G/3G/4G) antennas are needed when the OnCell G3470A-LTE operates. Make sure that your antenna installation is within a safety area, which is covered by a lightning protection or surge arrest system. ATTENTION This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.
