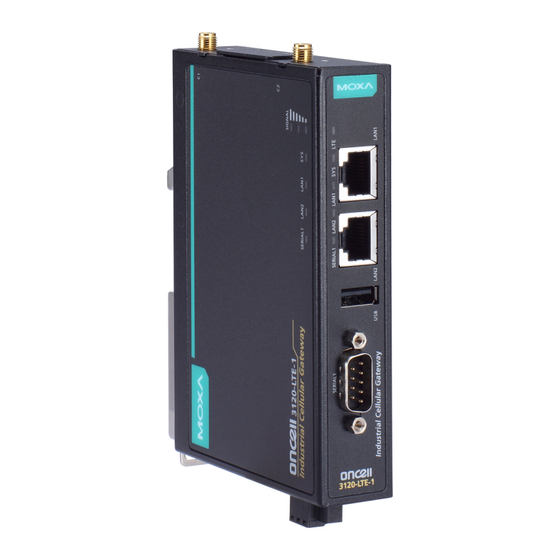

OnCell 3120-LTE-1 Series User Manual
Version 1.4, May 2024
www.moxa.com/products
© 2024 Moxa Inc. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OnCell 3120-LTE-1 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Moxa Technologies OnCell 3120-LTE-1 Series

Summary of Contents for Moxa Technologies OnCell 3120-LTE-1 Series

  • Page 1 OnCell 3120-LTE-1 Series User Manual Version 1.4, May 2024 www.moxa.com/products © 2024 Moxa Inc. All rights reserved.
  • Page 2 OnCell 3120-LTE-1 Series User Manual The software described in this manual is furnished under a license agreement and may be used only in accordance with the terms of that agreement. Copyright Notice © 2024 Moxa Inc. All rights reserved. Trademarks The MOXA logo is a registered trademark of Moxa Inc.

  • Page 3: Table Of Contents

    Table of Contents Introduction ............................5 Overview .............................. 5 Package Checklist ..........................5 Product Features ........................... 5 Product Specifications ..........................6 Functional Design ..........................6 LED Indicators ..........................7 Beeper ............................7 Reset Button ..........................7 Getting Started ............................. 8 First-time Installation and Configuration ....................
  • Page 4 DHCP Client List ........................... 87 System Log ..........................88 LAN Status ..........................88 System Status ..........................88 Network Status ..........................89 Maintenance ............................91 Console Settings .......................... 91 Ping Command ..........................92 Firmware Upgrade ........................93 Configuration Import & Export ....................... 93 Load Factory Default ........................

  • Page 5: Introduction

    •  Power save mode to reduce power consumption  -30 to 70°C wide operating temperature (wide temperature support only applies to certain SKUs)  Rugged hardware design well-suited for hazardous locations (ATEX Zone 2/IECEx) OnCell 3120-LTE-1 Series User Manual...

  • Page 6: Product Specifications

    LED display Reset button Console port (reserved for engineering use) 10. Grounding screw (M3) 11. Terminal block (V+, V-, GND) 12. LED display 13. DIN-rail mounting kit Bottom Panel View Side Panel View Back Panel View OnCell 3120-LTE-1 Series User Manual...

  • Page 7: Led Indicators

    The OnCell 3120-LTE-1 is NOT designed for the general public. A well-trained technician should be • enlisted to ensure safe deployment of OnCell 3120-LTE-1 units, and to establish a wireless network. OnCell 3120-LTE-1 Series User Manual...

  • Page 8: Getting Started

    255.255.255.0, you should set the IP address of the computer to 192.168.127.xxx. NOTE In the OnCell 3120-LTE-1, you can select Maintenance > Load Factory Default and click Submit to reset the OnCell 3120-LTE-1 to the factory default settings, which will reset the IP address to 192.168.127.254. OnCell 3120-LTE-1 Series User Manual...

  • Page 9: Step 5: Access The Web Console

    Go to Cellular Settings > Cellular WAN Settings and enter the SIM card PIN and APN values. Restart the OnCell 3120-LTE-1. The OnCell 3120-LTE-1 automatically establishes a cellular connection to the service provider after it restarts. OnCell 3120-LTE-1 Series User Manual...

  • Page 10: Step 7: Verify The Cellular Connection

     Laptop Primary DNS Server: 8.8.4.4 (test with Google's public DNS server) After the configuration process is complete, your computer will be able to access the Internet. For information on testing the connection with a DHCP server, refer to Chapter 3, Advanced Settings, DHCP Server. OnCell 3120-LTE-1 Series User Manual...

  • Page 11: Web Console Configuration

    XX, where XX is the country code. The country code indicates the OnCell 3120-LTE-1 version and the bandwidth that it uses. The figures shown in this document use an OnCell 3120-LTE-1-EU. The model name that is displayed for your OnCell 3120-LTE-1 may be different from the one shown in this manual. OnCell 3120-LTE-1 Series User Manual...

  • Page 12: Configuration Menu Overview

    Configuration Menu Overview Quick overview of the OnCell device status. Basic settings for administering the OnCell and interface management. Essential settings for establishing a cellular network using GuaranLink and OnCell Central Manager. OnCell 3120-LTE-1 Series User Manual...
  • Page 13 Real COM, Reverse Real COM, and RFC2217. Application-oriented device management functions to set up events, traps, and responses via email and SNMP notification. Note: These functions are all optional. OnCell 3120-LTE-1 Series User Manual...
  • Page 14 Current status information for monitoring wired/wireless network performance, advanced services, and device management functions. Functions for maintaining the OnCell 3120-LTE-1 and for diagnosing network issues On-demand functions to support web console management OnCell 3120-LTE-1 Series User Manual...

  • Page 15: Overview

    You can also include information that specifies the role or OnCell 3120-LTE-1_[serial no] application of the OnCell 3120-LTE-1 unit. Device Specify the location (up to 31 characters) of the OnCell N/A (Not applicable) location 3120-LTE-1 OnCell 3120-LTE-1 Series User Manual...

  • Page 16: Interface On/Off

    Since all Ethernet ports are bridged on the same interface, any Ethernet port can act as a WAN interface to provide Internet connectivity for serial devices. If the connection on the primary WAN interface is unavailable, the connection will automatically switch to the backup WAN interface to connect to the OnCell 3120-LTE-1 Series User Manual...
  • Page 17 The prefix length in IPv6 is the equivalent of the subnet Prefix Length mask in IPv4. For example, a prefix length of 64 specified like: 2001:db8:1:ffff::c0a8:7ffe/64 tells the system to divide the network into 64 subnetworks. The subnet range is 2001:db8:1:ffff:0000:0000:0000:0000 - 2001:db8:1:ffff:ffff:ffff:ffff:ffff. OnCell 3120-LTE-1 Series User Manual...

  • Page 18: System Time

    Enter the IP address or the domain name of the primary or secondary time.nist.gov NTP server. Time sync Specify how many seconds (600 to 9999) the OnCell 3120-LTE-1 must interval wait before requesting updates from the NTP server. OnCell 3120-LTE-1 Series User Manual...

  • Page 19: Cellular Settings

    Virtual modem: The OnCell connects to the computer using the Ethernet port interface. A software-based virtual serial port needs to be created on the computer using Windows Driver Manager. Please refer to Appendix D for more information. OnCell 3120-LTE-1 Series User Manual...

  • Page 20: Cellular Wan Settings

    If configured, enter the PIN (numeric with up to 7 digits) to unlock SIM 1 PIN the SIM card. SIM 2 PIN Note: A SIM card becomes locked if you enter an incorrect PIN more than three times. OnCell 3120-LTE-1 Series User Manual...

  • Page 21: Guaranlink Settings

    If one of the SIM cards is not readable, GuaranLink will automatically force a cellular connection using the other SIM card account. The system log will record this event. If the second SIM card also cannot be read, GuaranLink will not try again. OnCell 3120-LTE-1 Series User Manual...
  • Page 22 LTE-1 is to request an IP address from the ISP. Data session retry If the OnCell 3120-LTE-1 fails to obtain an IP address after 3 tries count (default value), it starts the GuaranLink recovery process. The time interval between each retry is 3 minutes. OnCell 3120-LTE-1 Series User Manual...
  • Page 23 GuaranLink recovery process. Select Disable to allow the OnCell 3120-LTE-1 to wait until base station registration is successful. Cellular Connection Alive Check (Default) Packet-Level Connection Check (Default) OnCell 3120-LTE-1 Series User Manual...
  • Page 24 OnCell 3120-LTE-1 starts the GuaranLink recovery process. Transmission Enter the time (between 1 to 600 minutes) the OnCell 3120- connection alive LTE-1 is to wait for polling information from a remote system check interval before starting the GuaranLink recovery process. OnCell 3120-LTE-1 Series User Manual...

  • Page 25: Auto Ip Report Settings

    4, DWORD Little-endian (LAN IP) AP ID 4, DWORD Little-endian IP Address2 4, DWORD Little-endian (WAN IP) Signal Level Unsigned char RSSI Unsigned char Example: ID Value Length Note C0,a8,81,71 30,12,19,89 C0,a8,81,71 ---- ---- ---- OnCell 3120-LTE-1 Series User Manual...

  • Page 26: Oncell Central Manager Settings

    LTE-1 provides a Static DHCP mapping list with up to 16 entities. Be reminded to check the Active check box for each entity to activate the setting. You can check the IP assignment status in the DHCP Client List screen (click Status > DHCP Client List). OnCell 3120-LTE-1 Series User Manual...

  • Page 27: Ddns

    Service provider Select an option from the drop-down list. Host name Enter the host name that you created with the service provider. Username Enter the username for update authentication. Password Enter the password for update authentication. OnCell 3120-LTE-1 Series User Manual...

  • Page 28: Packet Filters

    ATTENTION Be careful when you enable the filter function: Drop + entity on list is activated” = all packets are allowed. “no Accept + entity on list is activated” = all packets are denied. “no OnCell 3120-LTE-1 Series User Manual...
  • Page 29 ATTENTION Be careful when you enable the filter function: Drop + entity on list is activated” = all packets are allowed. “no Accept + entity on list is activated” = all packets are denied. “no OnCell 3120-LTE-1 Series User Manual...
  • Page 30 Accept + “no entity on list is activated” = all packets are denied. OnCell device itself is NOT included within this policy. For device interface access and security settings, go to Maintenance > Console settings. OnCell 3120-LTE-1 Series User Manual...

  • Page 31: Port Forwarding

    Enter the IP address of a LAN device to receive the redirected LAN IP traffic. Enter the port number on a LAN device to which to redirect LAN Port the traffic to. OnCell 3120-LTE-1 Series User Manual...

  • Page 32: Snmp Agent

    Select Enable to allow remote management via SNMP agent. Disable management Enter the community string or password (up to 31 characters Read community long) for an SMNP agent to access objects with read-only public permission. OnCell 3120-LTE-1 Series User Manual...

  • Page 33: Vpn

    OnCell 3120-LTE-1 can act as a VPN client or VPN server. Once the connection is established, cellular devices can communicate with other network devices on the same private network. The following figure shows an example of a network topology: OnCell 3120-LTE-1 Series User Manual...
  • Page 34 IPsec traffic to traverse through NAT-enabled devices. Disable Make sure that the remote VPN device supports this feature. Click Edit to configure a VPN tunnel. Action Click Delete to remove the selected VPN tunnel. OnCell 3120-LTE-1 Series User Manual...
  • Page 35 WAN port to internal IP address. For example, this function can be used to enable PLCs from different sites to have the same IP address. GRE enable Enables generic routing encapsulation (GRE) in IPsec tunneling. Disable OnCell 3120-LTE-1 Series User Manual...
  • Page 36 The rekey expire time will change randomly to enhance the security. Rekey fuzz percent is the maximum random change Rekey fuzz percent 100% margin of the Rekey expire time. 100% means the rekey expire time will not change randomly. OnCell 3120-LTE-1 Series User Manual...
  • Page 37 Remote public key field.  Click Import Remote Public Key and select a key file to import. After the OnCell 3120-LTE-1 successfully imports the selected key, the system displays the key information in the Remote public key field. OnCell 3120-LTE-1 Series User Manual...
  • Page 38 Make sure that the port number specified is not already used by OP modes. Enter the IP address of a LAN device to receive the redirected LAN IP traffic. Enter the port number on a LAN device to which to redirect LAN Port traffic. OnCell 3120-LTE-1 Series User Manual...
  • Page 39 X.509 is a digital certificate method commonly used for IPsec authentication. You can generate a self-signed root CA or local certificate on the OnCell 3120-LTE-1 and import or export the certificate on a remote VPN gateway. OnCell 3120-LTE-1 Series User Manual...
  • Page 40 Enter the name of the organization. Organization unit name Enter the unit or section in the organization. Common name Enter a name (such as a server name or your name). Email address Enter an email address. Click Generate Root CA. OnCell 3120-LTE-1 Series User Manual...
  • Page 41 In the PKCS#12 upload field, click Choose File to select a local certificate file In the Password field, enter the certificate password. Click Import. NOTE You can generate a local certificate in the Certificate Generation screen. OnCell 3120-LTE-1 Series User Manual...
  • Page 42 VPN server’s gateway. (Figure2) • Enables the OnCell 3120-LTE-1 to act as an OpenVPN server to allow duplicate OpenVPN clients access under the same account name. This also allows OpenVPN clients to communicate with each site. (Figure OnCell 3120-LTE-1 Series User Manual...
  • Page 43 OnCell 3120-LTE-1 Series User Manual...
  • Page 44 The first network address will Network IP be assigned to the server virtual interface. The remaining 10.8.0.0 network addresses can optionally be assigned to the connecting clients. Netmask Enter the subnet netmask of virtual network. 255.255.255.0 OnCell 3120-LTE-1 Series User Manual...
  • Page 45 This setting is not recommended but may be needed in some scenarios. Server Setting—TAP (Bridge Mode) Setting Description Factory Default DHCP Proxy Select Disable to activate the DHCP function. Disable External Gateway IP Enter the remote site VPN serer gateway IP address. 192.168.127.254 OnCell 3120-LTE-1 Series User Manual...
  • Page 46 Password Enter the password that you fill in X.509 password column. The column shows the information of certification password and subject that Server CA imported. Server User Management Enables management and export of user configurations. OnCell 3120-LTE-1 Series User Manual...
  • Page 47 Enter the IP address of the remote network the user is connecting Network from. Remote Enter the subnet mask of the remote network the user is Netmask connecting from. Server to User Config Export the user configuration. Client Settings OnCell 3120-LTE-1 Series User Manual...
  • Page 48 The column shows the client certification password and Client CA subject imported. NOTE Before using the OpenVPN function, run an NTP check on the device to ensure that it is synchronized with the local time for proper authentication to take place. OnCell 3120-LTE-1 Series User Manual...
  • Page 49 Enter the number of days the certificate is valid for. Certificate Password (4 to 63 Enter a password to create a password-protected characters) certificate. Organizational unit (E.g., Section) Enter the unit or section in the organization. Email address Enter an email address. OnCell 3120-LTE-1 Series User Manual...

  • Page 50: Scheduling And Power Management

    The time (HH:MM) should be set for both Enter power saving mode time and Leave power saving mode time. Note that only one time can be set for each day of the week. OnCell 3120-LTE-1 Series User Manual...

  • Page 51: Moxa Remote Connect (Mrc)

    MRC Status the authentication key. Online: The gateway is online and ready to establish a • remote connection via MRC. Connected: A remote connection is established • successfully. Click Refresh to update the connection status. OnCell 3120-LTE-1 Series User Manual...

  • Page 52: Serial Port Settings

    The serial port of the OnCell 3120-LTE-1 can be configured to different operation modes for different applications. After selecting the application and mode, click Add and the selected mode will be shown in the “Overview” below. OnCell 3120-LTE-1 Series User Manual...
  • Page 53 TCP/IP packet, and then transparently sends the data through the serial port to the attached serial device. NOTE In order to avoid a TCP port conflict with other applications, please aware of that data port used on the driver is 950 and the command port is 966. OnCell 3120-LTE-1 Series User Manual...
  • Page 54 OnCell 3120-LTE-1 will use the serial communication parameters as defined here in the web console, and all hosts connected to the port must use identical serial settings. If one of the hosts opens the COM port with different serial settings, data will not be transmitted properly. OnCell 3120-LTE-1 Series User Manual...
  • Page 55 Delimiter + 2: Data in the buffer will be transmitted after • 2 additional bytes are received following the delimiter. Strip Delimiter: Data in the buffer is first stripped of the • delimiter before being transmitted. OnCell 3120-LTE-1 Series User Manual...
  • Page 56 If your cellular service provider offers a fixed public IP address after you connect to the cellular network, you can access the OnCell 3120-LTE-1 via a host PC using either a private IP or public IP. OnCell 3120-LTE-1 Series User Manual...
  • Page 57 COM port on the host computer. RFC2217 defines general COM port control options based on the Telnet protocol. Third party drivers supporting RFC-2217 are widely available on the Internet and can be used to implement virtual COM mapping to your OnCell 3120-LTE-1’s serial port. OnCell 3120-LTE-1 Series User Manual...
  • Page 58 Delimiter + 2: Data in the buffer will be transmitted after • 2 additional bytes are received following the delimiter. Strip Delimiter: Data in the buffer is first stripped of the • delimiter before being transmitted. OnCell 3120-LTE-1 Series User Manual...
  • Page 59 COM port on the remote host. Reverse Real COM mode supports up to 2 simultaneous connections that enable serial devices to send data to 2 hosts simultaneously. OnCell 3120-LTE-1 Series User Manual...
  • Page 60 Port 60950 might be blocked by a firewall. You should make sure the port is NOT blocked before you start using it. ATTENTION The destination IP address parameter can be the IP address or domain name. OnCell 3120-LTE-1 Series User Manual...
  • Page 61 Delimiter + 2: Data in the buffer will be transmitted after • 2 additional bytes are received following the delimiter. Strip Delimiter: Data in the buffer is first stripped of the • delimiter before being transmitted. OnCell 3120-LTE-1 Series User Manual...
  • Page 62 With Reverse Real COM mode, you can connect to a PC host using the PC’s IP address. You can also connect to your PC host with the PC’s domain name, if you have one. Please refer to Appendix B for more information. OnCell 3120-LTE-1 Series User Manual...
  • Page 63 OnCell 3120-LTE-1, which is configured for TCP Server mode. Once the connection is established, data can be transmitted in both directions between the host and the OnCell 3120-LTE-1. TCP Server mode includes optional data encryption using SSL OnCell 3120-LTE-1 Series User Manual...
  • Page 64 If used, the Inactivity time setting should be greater than the Force transmit time. To prevent the unintended loss of data due to the session being disconnected, it is highly recommended that this value is set large enough so that the intended data transfer is completed. OnCell 3120-LTE-1 Series User Manual...
  • Page 65 Delimiter + 2: Data in the buffer will be transmitted after • 2 additional bytes are received following the delimiter. Strip Delimiter: Data in the buffer is first stripped of the • delimiter before being transmitted. OnCell 3120-LTE-1 Series User Manual...
  • Page 66 OnCell 3120-LTE-1 is changed every time it is connected to the cellular network, the host IP can be aware of the change by the Auto IP Report message sent from the OnCell 3120-LTE-1. Please refer to Auto IP report settings for the format of the Auto IP Report Protocol. OnCell 3120-LTE-1 Series User Manual...
  • Page 67 The OnCell 3120-LTE-1, configured for TCP Client mode, requests a connection to the host. Once the connection is established, data can be transmitted in both directions between the host and the OnCell 3120-LTE-1. TCP Client mode includes optional data encryption using SSL. OnCell 3120-LTE-1 Series User Manual...
  • Page 68 The Destination IP address parameter can be the IP address, domain name, or the name defined in the host table. For some applications, the user may need to send the data actively to the remote destination domain name. OnCell 3120-LTE-1 Series User Manual...
  • Page 69 This setting determines the parameters under which a TCP connection is established or disconnected. The different Startup/ Connection control options are given in the following table. In general, both the None) Connect condition and Disconnect conditions are given. OnCell 3120-LTE-1 Series User Manual...
  • Page 70 Delimiter 1 and never on its own; otherwise there may be data errors. Even when a delimiter is enabled, the OnCell 3120-LTE-1 will still pack and send the data when the amount of data exceeds 1 KB. OnCell 3120-LTE-1 Series User Manual...
  • Page 71 3120-LTE-1’s internal buffer size (1 KB per port). Types of TCP Client Connection TCP Client to PC’s IP address The OnCell 3120-LTE-1 will only be able to connect to a host PC if the PC is using a public IP address. OnCell 3120-LTE-1 Series User Manual...
  • Page 72 Compared to TCP communication, UDP is faster and more efficient. In UDP mode, you can unicast to one host or multicast to multiple hosts and the serial device can receive data from one or multiple host computers. These traits make UDP mode especially well-suited for message display applications. OnCell 3120-LTE-1 Series User Manual...
  • Page 73 Delimiter 1 and never on its own; otherwise there may be data errors. Even when a delimiter is enabled, the OnCell 3120-LTE-1 will still pack and send the data when the amount of data exceeds 1 KB. OnCell 3120-LTE-1 Series User Manual...
  • Page 74 Fixed Public IPs for both OnCell and Host PC If your cellular service provider offers a fixed public IP address after you connect to the cellular network, you can access the OnCell 3120-LTE-1 from a host PC that has a fixed public IP. OnCell 3120-LTE-1 Series User Manual...

  • Page 75: Communication Parameters

    The serial parameters for the each serial port on the OnCell 3120-LTE-1 should match the parameters used by the connected serial device. You may need to refer to your serial device’s user’s manual to determine the appropriate serial communication parameters. OnCell 3120-LTE-1 Series User Manual...

  • Page 76: Data Buffering/Log

    If this field is set to Yes, the OnCell 3120-LTE-1 will store data Serial data logging logs on the system RAM for all serial ports. Note that this data Disable is not saved when the OnCell 3120-LTE-1 is powered off. OnCell 3120-LTE-1 Series User Manual...

  • Page 77: Cipher Settings

    Detail information for grouped events is shown in the following table. You can select the Enable logging check box to enable the selected event types. All default values are enabled (checked). The log for system events can be seen in Status > System Log. OnCell 3120-LTE-1 Series User Manual...

  • Page 78: Syslog

    Detail information for the grouped events is shown in the following table. You can the Enable log check box to enable the selected event types. All default values are enabled (checked). For information on the event types, refer to the System Log Event Types section. OnCell 3120-LTE-1 Series User Manual...

  • Page 79: Email Notifications

    Email Notifications Notification Event Types Select the Active checkbox to enable an event item. By default, all values are deactivated (unchecked). For information on the event types, refer to the System Log Event Types section. OnCell 3120-LTE-1 Series User Manual...

  • Page 80: Trap

    It would be better if the managed device agent could notify the management station by sending a message known as a trap for the event. OnCell 3120-LTE-1 Series User Manual...
  • Page 81 Select the SNMP version for SNMP traps. Trap server Enter the IP address or domain name of the SNMP trap server. IP/name Enter the community string or password (up to 31 characters) for Trap community alert authentication. OnCell 3120-LTE-1 Series User Manual...

  • Page 82: Sms

    You can set the OnCell 3120-LTE-1 to send SMS notifications to up to four phone numbers and select a message encoding format in the SMS Alert Settings screen. Field Description Factory Default To phone number Enter the phone numbers to which the OnCell 3120-LTE-1 1/2/3/4 sends SMS notifications. OnCell 3120-LTE-1 Series User Manual...

  • Page 83: Status

    The transmission breaks originating from serial devices connected behind the OnCell 3120- Break LTE-1 Serial Port Settings Go to Serial Port Settings under Serial Status to view a summary of the settings for each serial port. OnCell 3120-LTE-1 Series User Manual...

  • Page 84: Vpn

    Clear the remote VPN SA and keep the peer routing table [VPN name] DPD: Hold connection status. [VPN name] DPD: Clearing Connection Clear the remote VPN SA and peer routing table status. [VPN name] DPD: Restarting Connection Renegotiate VPN SA immediately. OnCell 3120-LTE-1 Series User Manual...
  • Page 85 The IPsec triggered events are recorded in IPsec Logs. You can export the log contents to an available viewer by clicking Export Log. You can use the Clear Log button to clear the log contents and the Refresh button to refresh the log. OnCell 3120-LTE-1 Series User Manual...

  • Page 86: Dns Status

    Go to DNS Status for DNS server settings information designated at General Setup > Network Settings. It shows OnCell 3120-LTE-1’s DNS assigned by DNS server and Server 3/4 is stand for Primary DNS and Secondary DNS information at General Setup > Network Settings OnCell 3120-LTE-1 Series User Manual...

  • Page 87: Sim Status

    The DHCP Client List shows all the clients that require and have successfully received IP assignments. You can click the Refresh button to refresh the list. You can press Select all button to select all content in the list for further editing. OnCell 3120-LTE-1 Series User Manual...

  • Page 88: System Log

    LAN Status The LAN Status screen displays the LAN port information of the device. System Status The System Status screen displays the OnCell 3120-LTE-1 internal memory capacity status and CPU load information. OnCell 3120-LTE-1 Series User Manual...

  • Page 89: Network Status

    The total number of input TCP segment packets received by the device Sent The total number of output TCP segment packets received by the device The input TCP segment packets received with invalid headers. (e.g., bad ErrHeader checksum) OnCell 3120-LTE-1 Series User Manual...
  • Page 90 The Routing Table screen displays the list of routes the OnCell 3120-LTE-1 uses to send packets on each interface. Possible flags include: U: route is up +: default gateway D: route is down T: static route G: use gateway H: target is a host OnCell 3120-LTE-1 Series User Manual...

  • Page 91: Maintenance

    Active the access policy for the corresponding IP address. None Source IP Enter the IP address(es) to allow or deny access to the device. Enter the netmask of the IP to allow or deny access to the Source Netmask device. OnCell 3120-LTE-1 Series User Manual...

  • Page 92: Ping Command

    If the node and access path are available, you will see that all packets were successfully transmitted with no loss. Otherwise, some, or even all, packets may get lost, as shown in the following figure. OnCell 3120-LTE-1 Series User Manual...

  • Page 93: Firmware Upgrade

    Please note that the firmware of different model revisions might be not compatible with other models. Make sure to only export and import configuration settings to models with the same model revision and firmware version. OnCell 3120-LTE-1 Series User Manual...

  • Page 94: Load Factory Default

    Use this function to reset the OnCell 3120-LTE-1 and roll all settings back to the factory default values. You can also reset the hardware by pressing the reset button on the top panel of the OnCell 3120-LTE-1. OnCell 3120-LTE-1 Series User Manual...

  • Page 95: Account Settings

    Click Edit to create a new, or edit an existing, user account. The items shown below can be configured. Note that a maximum of 2 admin-level users can be logged in to the system at the same time. OnCell 3120-LTE-1 Series User Manual...

  • Page 96: Change Password

    New password and Confirm password input boxes. NOTE To maintain a higher level of network security, do not use the default password (moxa), and be sure to change all user account passwords regularly. OnCell 3120-LTE-1 Series User Manual...

  • Page 97: Locate Device

    Always enable–Set the reset button to perform a factory restore on the OnCell 3120-LTE-1. This is the • default option. Disable factory reset function after 60 seconds–Deactivate the factory reset function of the reset • button 60 seconds after the OnCell 3120-LTE-1 restarts. Troubleshooting OnCell 3120-LTE-1 Series User Manual...

  • Page 98: Manual Sms

    After the SMS is sent, the screen displays the following information: The item number • The time the message was sent • The destination phone number • Status of the message—Information on whether the SMS was successfully sent. • OnCell 3120-LTE-1 Series User Manual...

  • Page 99: Remote Sms Control

    For example, if you enter “12345” for the password and send an SMS message with the content “@12345@cell.report” to the OnCell 3120-LTE-1, the OnCell 3120-LTE-1 sends an SMS message with the current status back to the sender. OnCell 3120-LTE-1 Series User Manual...

  • Page 100: Saving The Configuration

    Alternatively, you may choose to run other functions and put off saving the configuration until later. However, the new changes will remain in the non-volatile memory until you save the configurations. OnCell 3120-LTE-1 Series User Manual...

  • Page 101: Restart

    Restart time 1 or 2, enter the time and click Submit. Logout Logout helps users disconnect the current HTTP or HTTPS session and go to the Login page. For security reasons, we recommend that you logout before quitting the console manager. OnCell 3120-LTE-1 Series User Manual...

  • Page 102: Software Installation And Configuration

    Installing the Wireless Search Utility Download the executable for the Wireless Search Utility from the Moxa website and run it. In the installation screen, click Yes to proceed. In the welcome screen, click Next to proceed with the installation. OnCell 3120-LTE-1 Series User Manual...
  • Page 103 Click Next to install program files to the default directory, or click Browse to select an alternate location. Click Next to create the program’s shortcut files to the default directory, or click Browse to select an alternate location. OnCell 3120-LTE-1 Series User Manual...
  • Page 104 Click Next to proceed with the installation. The installer then displays a summary of the installation options. Click Install to begin the installation. The setup window will report the progress of the installation. To change the installation settings, click Back and navigate to the previous screen. OnCell 3120-LTE-1 Series User Manual...

  • Page 105: Configuring The Wireless Search Utility

     Device management–Assign IP addresses, upgrade firmware, and locate devices. NOTE To apply device search and management, ensure your device at factory default setting or remove your SIM card. This is to avoid assigned IP different from default subnet and result in function failure. OnCell 3120-LTE-1 Series User Manual...
  • Page 106 Click Search. The “Searching” window indicates the progress of the search. When the search is complete, all devices that were located will be displayed in the Wireless Search Utility window. OnCell 3120-LTE-1 Series User Manual...
  • Page 107 Add. Key in the password for the device and then click OK to save. If you return to the search page and search for the device again, you will find that the device will unlock automatically. OnCell 3120-LTE-1 Series User Manual...
  • Page 108 Refer to Chapter 3, Using the Web Console, for information on how to use the web console. Click Telnet if you would like to use telnet to configure your devices. OnCell 3120-LTE-1 Series User Manual...
  • Page 109 Retry count (default=5): Indicates how many times the search will be retried automatically. • Retry interval (ms): The time to wait between retries. • Multicast retry count (default = 3): Indicates how many times the search will be retried • automatically by multicast mode. OnCell 3120-LTE-1 Series User Manual...
  • Page 110 If no response within 200 msec will recognize connection failed. Misc. Search on start: Checkmark this box if you would like the search function to start searching for devices after you log in to the Wireless Search Utility. OnCell 3120-LTE-1 Series User Manual...

  • Page 111: Supporting Information

    3120-LTE-1 will reboot when the firmware recovery process has been finished. Trying eth0 Using eth0 device TFTP from server 192.168.127.1; our default IP address is 192.168.127.254 Filename 'OnCell 3120-LTE-1.rom'. Load address: 0x80060000 Loading: *################################################################# ################################################################# ################################################################# OnCell 3120-LTE-1 Series User Manual...

  • Page 112: Doc (Declaration Of Conformity)

    France (with Frequency channel restrictions), Germany, Greece, Ireland, Italy, Luxembourg, Portugal, Spain, Sweden, The Netherlands, and United Kingdom. The ETSI version of this device is also authorized for use in EFTA member states Norway and Switzerland. EU Countries Not Intended for Use None. OnCell 3120-LTE-1 Series User Manual...
  • Page 113 Potential Restrictive Use France: only channels 10, 11, 12, and 13. OnCell 3120-LTE-1 Series User Manual...

  • Page 114: Dynamic Domain Name Server

    If the OnCell 3120-LTE-1 is not authorized to update the DNS server, the DHCP server can be used to update the DNS server. The DHCP server will register the DNS server with the PTR RR (the record of request for a domain name with IP address). OnCell 3120-LTE-1 Series User Manual...
  • Page 115 The above screenshot shows how DHCP can be set up to update the DNS. OnCell 3120-LTE-1 Series User Manual...

  • Page 116: Well-Known Port Numbers

    Host name server (names server) Whois (nickname) Login Host Protocol (login) Domain Name Server (domain) Finger protocol (finger) World Wide Web (HTTP) Network News Transfer Protocol (NNTP) Network Time Protocol 160 to 223 Reserved for future use OnCell 3120-LTE-1 Series User Manual...
  • Page 117 Finger Protocol World Wide Web (HTTP) Remote Telnet Service Sun Remote Procedure Call (Sunrpc) Network News Transfer Protocol (NNTP) Network Time Protocol (NTP) SNMP (Simple Network Mail Protocol) SNMP Traps IPX (used for IP Tunneling) OnCell 3120-LTE-1 Series User Manual...

  • Page 118: At Commands For Modem Mode

    Set up a virtual serial port interface using Windows Driver Manager for Virtual modem data transmission. If you selected Serial mode, skip this step. a. Download Windows Driver Manager from the Moxa website and install the software. b. Run Windows Driver Manager and click Add. OnCell 3120-LTE-1 Series User Manual...
  • Page 119 PComm Lite suite. You may use a different terminal emulator utility, although appearance and procedures may vary from the following instructions. a. Download PComm Lite from Moxa’s website and install the software. b. Run the PComm Terminal Emulator, go to Port Manager and click Open. OnCell 3120-LTE-1 Series User Manual...
  • Page 120 Driver Manager (for virtual modem) or the physical COM port of the device (for serial modem) and configure the parameters as follows and click OK. Baud rate: 115200 Data bits: 8 Parity: None Stop bits: 1 d. You can now use AT commands to transmit data. OnCell 3120-LTE-1 Series User Manual...

  • Page 121: List Of Supported At Commands

    Result Code Presentation Mode Configuration Commands Set number of rings before automatically answering ATS0 Call related Commands a call Result code format mode Configuration Commands Restore AT Command Settings from User Defined Configuration Commands Profile OnCell 3120-LTE-1 Series User Manual...

  • Page 122: Short Message Service (Sms) Commands

    PDU mode (AT+CMGF=0), the length of the actual TP data unit in octets. <fo> First Octet <mr> Message Reference <scts> Service Centre Time Stamp <dt> Discharge Time <st> Status <ct> Command Type <pid> Protocol Identifier <dcs> Data Coding Scheme <vp> Validity Period <mn> Message Number OnCell 3120-LTE-1 Series User Manual...
  • Page 123 Read Command Write Command AT+CMGF? AT+CMGF=[<mode>] Response(s) Response(s) +CMGF: <mode> ERROR ERROR +CMS ERROR: <err> +CMS ERROR: <err> <mode> 0: PDU mode. Default value set if parameter is omitted. Default Factory value. 1: Text mode OnCell 3120-LTE-1 Series User Manual...
  • Page 124 +CMGL: <index>, <stat>, <fo>, <ct><CR><LF> [... ] Output if PDU mode AT+CMGF=0 and command successful: For SMS-SUBMITs and/or SMS-DELIVERs +CMGL: <index>, <stat>,, <length><CR><LF><pdu><CR><LF> [... ] If error is related to functionality ERROR +CMS ERROR: <err> OnCell 3120-LTE-1 Series User Manual...
  • Page 125 +CMS ERROR: <err> AT+CMGS Send SMS Write Command If text mode Write Command If PDU mode AT+CMGS=<da>[, <toda>]<CR> Text can be AT+CMGS=<length><CR> PDU can be entered. entered. <CTRL-Z>/<ESC> <CTRL-Z>/<ESC> Response(s) Response(s) +CMGS: <mr>[, <scts>] +CMGS: <mr>[, <ackpdu>] OnCell 3120-LTE-1 Series User Manual...
  • Page 126 Write Command AT+CSCA? AT+CSCA=<sca>[, <tosca>] Response(s) Response(s) +CSCA: <sca>, <tosca> AT+CSMP Set SMS Text Mode Parameters Read Command Write Command AT+CSMP? AT+CSMP=<fo>, <vp>/<scts>[, <pid>[, <dcs>]] Response(s) Response(s) +CSMP:<fo>, <vp>/ <scts>, <pid>, <dcs> ERROR +CMS ERROR: <err> OnCell 3120-LTE-1 Series User Manual...

  • Page 127: Call-Related Commands

    If no dialtone: NO DIALTONE If busy: BUSY If connection cannot be set up: NO CARRIER NO ANSWER ERROR +CME ERROR: <err> <n> <n> is default for last number that can be dialed by ATDL. OnCell 3120-LTE-1 Series User Manual...

  • Page 128: Network Service Commands

    2: Numeric format of <opName>. This is the Location Area Identification (LAI) number, which consists of the 3-digit Mobile Country Code (MCC) plus the 2- or 3-digit Mobile Network Code (MNC). <AcT> 0: GSM 2: UTRAN 7: E-UTRAN OnCell 3120-LTE-1 Series User Manual...
  • Page 129 2...30: -109... -53 dBm 31: -51 dBm or greater 99: not known or not detectable <ber> 0…7: as RXQUAL values in the table in 3GPP TS 45.008 [50] section 8.2.4. 99: not known or not detectable OnCell 3120-LTE-1 Series User Manual...

  • Page 130: Configuration Commands

    “UCS2“: 16-bit universal multiple-octet coded character set. UCS2 character strings are converted to hexadecimal numbers in the range 0000 to FFFF; e.g. "004100620063" equates to three 16-bit characters with decimal values 65, 98 and 99. OnCell 3120-LTE-1 Series User Manual...

  • Page 131: Identification Commands Miscellaneous Commands

    Identification Commands Miscellaneous Commands AT+CGMI Request manufacturer identification Exec Command AT+CGMI Response(s) Cinterion AT+CGMR Request revision identification of software status Exec Command AT+CGMR Response(s) <sn> AT+CGSN Request International Mobile Equipment Identity (IMEI) Exec Command AT+CGSN Response(s) <IMEI> OnCell 3120-LTE-1 Series User Manual...

  • Page 132: Miscellaneous Commands

    SIM PIN: Waiting for SIM PIN1. SIM PUK: Waiting for SIM PUK1 if PIN1 was disabled after three failed attempts to enter PIN1. SIM PIN2: Waiting for PIN2. SIM PUK2: Waiting for PUK2 to unblock a disabled PIN2. OnCell 3120-LTE-1 Series User Manual...

  • Page 133: Serial Interface Control Commands

    <parity> If <format> does not support parity, this parameter has to be omitted. 0: odd 1: even AT+IPR Bit Rate Read Command Write Command AT+IPR? AT+IPR=<rate> Response(s) Response(s) +IPR: <rate> ERROR +CME ERROR: <err> <rate> 0: Autobauding 1200/2400/4800/9600/115200 OnCell 3120-LTE-1 Series User Manual...

  • Page 134: Status Control Commands

    Cause for last call release or error as number code. Sent by network or internally. <description> Verbose string containing the textual representation of the cause. <tag> Numeric value indicating an Supplementary Services Reject code. <reset> 0: Reset the extended error report to initial value. OnCell 3120-LTE-1 Series User Manual...

Table of Contents
