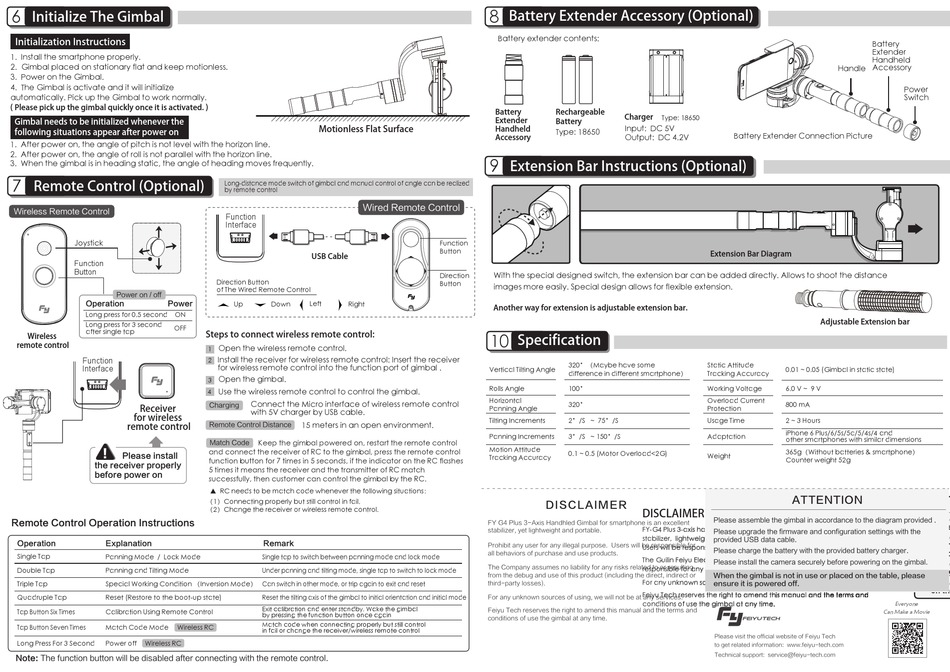

FeiYu Tech G4 Plus Operation Instructions page 2

6
Initialize The Gimbal
Initialization Instructions
1. Install the smartphone properly.
2. Gimbal placed on stationary flat and keep motionless.
3. Power on the Gimbal.
4. The Gimbal is activate and it will initialize
automatically. Pick up the Gimbal to work normally.
( Please pick up the gimbal quickly once it is activated. )
Gimbal needs to be initialized whenever the
following situations appear after power on
1. After power on, the angle of pitch is not level with the horizon line.
2. After power on, the angle of roll is not parallel with the horizon line.
3. When the gimbal is in heading static, the angle of heading moves frequently.
7
Remote Control (Optional)
Wireless Remote Control
Joystick
Function
Button
Power on / off
Operation Power
Long press for 0.5 second ON
Long press for 3 second
OFF
after single tap
Wireless
remote control
Function
Interface
Receiver
for wireless
remote control
!
Please install
the receiver properly
before power on
Remote Control Operation Instructions
Operation Explanation
Single Tap Panning Mode / Lock Mode
Double Tap Panning and Tilting Mode
Triple Tap Special Working Condition （Inversion Mode） Can switch in other mode, or trip again to exit and reset
Quadruple Tap Reset (Restore to the boot-up state)
Tap Button Six Times Calibration Using Remote Control
Tap Button Seven Times Match Code Mode Wireless RC
Long Press For 3 Second Power off Wireless RC
Note: The function button will be disabled after connecting with the remote control.
Motionless Flat Surface
Long-distance mode switch of gimbal and manual control of angle can be realized
by remote control
Wired Remote Control
Function
Interface
USB Cable
Direction Button
of The Wired Remote Control
Up Down Left
Right
Steps to connect wireless remote control:
Open the wireless remote control.
1
Install the receiver for wireless remote control: Insert the receiver
2
for wireless remote control into the function port of gimbal .
Open the gimbal.
3
Use the wireless remote control to control the gimbal.
4
Connect the Micro interface of wireless remote control
Charging
with 5V charger by USB cable.
15 meters in an open environment.
Remote Control Distance
Keep the gimbal powered on, restart the remote control
Match Code
and connect the receiver of RC to the gimbal, press the remote control
function button for 7 times in 5 seconds, if the indicator on the RC flashes
5 times it means the receiver and the transmitter of RC match
successfully, then customer can control the gimbal by the RC.
▲ RC needs to be match code whenever the following situations：
（1）Connecting properly but still control in fail.
（2）Change the receiver or wireless remote control.
Remark
Single tap to switch between panning mode and lock mode
Under panning and tilting mode, single tap to switch to lock mode
Reset the tilting axis of the gimbal to initial orientation and initial mode
Exit calibration and enter standby. Wake the gimbal
by pressing the function button once again
Match code when connecting properly but still control
in fail or change the receiver/wireless remote control
8
Battery Extender Accessory (Optional)
Battery extender contents:
Battery Rechargeable
Extender
Battery
Handheld
Type: 18650
Accessory
9
Extension Bar Instructions (Optional)
Function
Button
With the special designed switch, the extension bar can be added directly. Allows to shoot the distance
Direction
Button
images more easily. Special design allows for flexible extension.
Another way for extension is adjustable extension bar.
10
Specification
320°（Maybe have some
Vertical Tilting Angle
difference in different smartphone）
Rolls Angle 100°
Horizontal
320°
Panning Angle
Tilting Increments 2°/S ~ 75°/S
Panning Increments 3°/S ~ 150°/S
Motion Attitude
0.1 ~ 0.5 (Motor Overload<2G)
Tracking Accuracy
DI SC L A I MER
FY G4 Plus 3-Axis Handhled Gimbal for smartphone is an excellent
stabilizer, yet lightweight and portable.
Prohibit any user for any illegal purpose. Users will be responsible for
all behaviors of purchase and use products.
The Company assumes no liability for any risks related to or resulting
from the debug and use of this product (including the direct, indirect or
third-party losses).
For any unknown sources of using, we will not be at any services.
Feiyu Tech reserves the right to amend this manual and the terms and
conditions of use the gimbal at any time.
Charger Type: 18650
Input: DC 5V
Battery Extender Connection Picture
Output: DC 4.2V
Extension Bar Diagram
Static Attitude
0.01 ~ 0.05 (Gimbal in static state)
Tracking Accuracy
Working Voltage 6.0 V ~ 9 V
Overload Current
800 mA
Protection
Usage Time 2 ~ 3 Hours
iPhone 6 Plus/6/5s/5c/5/4s/4 and
Adaptation
other smartphones with similar dimensions
365g（Without batteries & smartphone）
Weight
Counter weight 52g
ATTENTION
DISCLAIMER
Please assemble the gimbal in accordance to the diagram provided .
FY-G4 Plus 3-axis handheld gimbal for smartphone is an excellent camera
Please upgrade the firmware and configuration settings with the
stabilizer, lightweight and portable. Prohibit any user for any illegal purpose.
provided USB data cable.
Users will be responsible for all behavior of purchase and use products.
Please charge the battery with the provided battery charger.
The Guilin Feiyu Electronic Technology Co. and our associates are not
Please install the camera securely before powering on the gimbal.
responsible for any damages or liabilities caused by the use of this product.
When the gimbal is not in use or placed on the table, please
For any unknown sources or using, we will not be any service.
ensure it is powered off.
Feiyu Tech reserves the right to amend this manual and the terms and
conditions of use the gimbal at any time.
Please visit the official website of Feiyu Tech
to get related information: www.feiyu-tech.com
Technical support: service@feiyu-tech.com
Battery
Extender
Handheld
Accessory
Handle
Power
Switch
Adjustable Extension bar
Please
to the
Please
param
USB d
Please
config
Please
on the
