Summary of Contents for ALDI GERM32
-

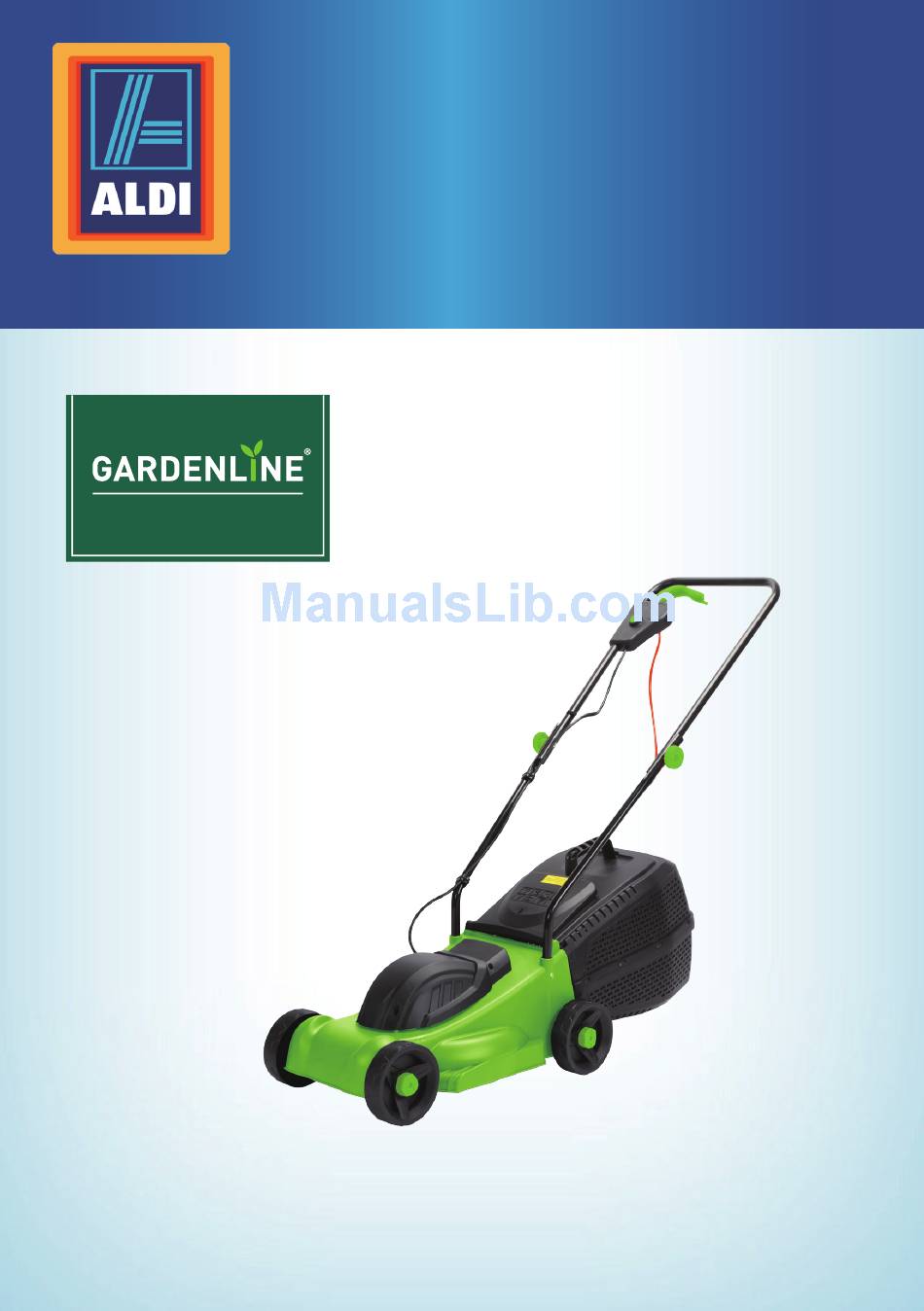

Page 1: Lawn Mower
User Manual Spend a little Live a lot Essentials 1000W Lawn Mower GERM32... -
Page 2: Table Of Contents
Contents Product images and parts list ..............3 General information.................9 Reading and storing the instruction manual........9 Explanation of symbols................9 Safety .......................13 Proper use....................13 Safety notes ....................14 Checking the lawn mower and product contents .........18 Assembly ....................19 Wheel assembly..................19 Mounting the lower handle bar.............20 Mounting the upper handle bar ............20 Mounting the grass catcher ..............21 Operation ....................22... -
Page 3: Product Images And Parts List
Product images and parts list... - Page 4 Product images and parts list Upper handle Knob with bolt x 2 Lower handle Transportation handle Air vents Wheel x 4 Hand knob x 4 Screw x 2 Deflector guard Grass catcher handle Grass catcher Cord Cord clip x2 Lock-off button Start lever Blade Bolt...
- Page 5 Product images and parts list On the left hand side of the deck: On the right hand side of the deck: SILVER BOLTS tighten BLACK BOLTS tighten clockwise to secure ANTI-clockwise to secure...
- Page 6 Product images and parts list...
- Page 7 Product images and parts list...
- Page 8 Product images and parts list...
-
Page 9: General Information
General information 1000W Lawn Mower Reading and storing the instruction manual This instruction manual accompanies this lawn mower. It contains important information on assembly, start-up and handling. Before using the lawn mower, read the instruction manual carefully. This particularly applies to the safety notes. - Page 10 General information 1000W Lawn Mower You must always wear safety goggles to guard your eyes from flying debris, ear plugs or similar ear defenders to protect your hearing and respiratory protection to protect breathing. IMPORTANT! Wear gloves to protect your hands. Wear safety boots to protect your feet.
- Page 11 General information 1000W Lawn Mower This product is constructed using protection class II. That means it is equipped with enhanced or double insulation and does not need to be earthed. Objects thrown by the product could hit the user or other bystanders.
-
Page 12: Operating Instructions
General information 1000W Lawn Mower WARNING! This appliance should be connected to your mains supply using an RCD (Residual Current Device). The operating current of this device must be less than 30mA. Contact an electrician if you are unsure of how to proceed. -
Page 13: Safety
Safety 1000W Lawn Mower Safety Proper use 1. Operate the product only in daylight or in good artificial light. 2. Avoid operating the product in wet grass. 3. Always be sure of your footing on slopes. 4. Walk, never run. 5. -
Page 14: Safety Notes
Safety 1000W Lawn Mower running. 15. Stop the product, and remove the plug from the socket. Make sure that all moving parts have come to a complete stop: − Whenever you leave the product. − Before clearing blockages or unclogging the chute. −... -
Page 15: Work Area Safety
Safety Safety Safety 1000W Lawn Mower −Never allow children or people unfamiliar with these instructions to use the appliance. Never operate this appliance when tired or under the influence of alcohol, medication or drugs. −Use appropriate tools. This product is intended for private use only, not for any commercial applications. -
Page 16: Operational Safety
Safety Safety Safety 1000W Lawn Mower the tool. A moment of lapsed concentration while operating the tool may result in serious personal injury. −This appliance can be used by persons aged 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Page 17 Safety 1000W Lawn Mower or wearing open sandals. Avoid wearing clothing that is loose fitting or that has hanging cords or ties. −Thoroughly inspect the area where the product is to be used and remove all objects which can be thrown by the product. −Before using, always visually inspect to see that the blade, blade bolt and the blade assembly are not worn or damaged.
-
Page 18: Checking The Lawn Mower And Product Contents
Checking the lawn mower and product contents 1000W Lawn Mower Checking the lawn mower and product contents WARNING! RISK OF DAMAGE! If you are not cautious when opening the packaging with a sharp knife or other pointed objects, you may easily damage the lawn mower. -
Page 19: Assembly
Assembly 1000W Lawn Mower Assembly Wheel assembly WARNING! Always check the mounting plates before assembling the wheels. Never attach the wheel on a damaged or loose mounting plate. The wheels must be assembled on the same height level. Using a product with wheels assembled on different height level may cause damage of the cutting unit (e.g. -
Page 20: Mounting The Lower Handle Bar
Assembly 1000W Lawn Mower 4. Ensure the four wheels are assembled at the same height level and rotate smoothly. Place the lawnmower on its side when tightening each wheel (See Fig E). IMPORTANT! Ensure all four wheels are securely tightened before each use. -
Page 21: Mounting The Grass Catcher
Assembly 1000W Lawn Mower 4. Fix the power cord with the cord clips to the handle bars (See Fig J). Mounting the grass catcher 1. Fit the upper part onto the lower part by fixing all the outer clips correctly (See Fig K). 2. -
Page 22: Operation
Operation 1000W Lawn Mower Operation Cutting height adjustment Adjust the cutting height according to the needs of your lawn. The cutting height depends on the kind of lawn and its actual height. When mowing high grass, start with the maximum cutting height and make a second cut with a lower cutting height. -
Page 23: Grass Catcher
Operation 1000W Lawn Mower 4. Repeat the height adjustment for the other three wheel assemblies. 5. Ensure the four wheels are assembled at the same height level and rotate smoothly. Grass catcher Always attach the grass catcher when using the product for grass collection. -
Page 24: Switching On/Off
Operation 1000W Lawn Mower Switching on/off 1. Ensure the start lever is released. 2. Press the lock-off button and hold it in position (See Fig N). 3. Squeeze the start lever towards the handle to switch the product on (See Fig O). Hold the start lever in position during operation. - Page 25 Operation 1000W Lawn Mower without missing any spots. 4. Circle around flower beds. When reaching a flower bed in the middle of the lawn, cut a width or two around the circumference of the bed. 5. Pay special attention when changing direction. WARNING! If the product strikes a foreign object stop the motor immediately.
-
Page 26: Maintenance
Maintenance 1000W Lawn Mower Maintenance 1. Always switch the product off, disconnect it from the power supply and let the product cool down before performing inspection, maintenance and cleaning work! 2. Keep the product clean. Remove debris from it after each use and before storage. - Page 27 Maintenance 1000W Lawn Mower with this instruction manual or take it to an authorised service centre before using the product again. NOTE! Do not use chemical, alkaline, abrasive or other aggressive detergents or disinfectants to clean this product as they may cause damage to the cosmetic surfaces. Spare parts/Replacement parts The following parts of this product may be replaced by the consumer.
- Page 28 Maintenance 1000W Lawn Mower reduced and the cutting device should be replaced. 3. Keep the cutting device sharp to ensure a good cutting performance. Replace a worn or damaged cutting device with a new one of the same type. Replacing the blades Always unplug the lawn mower before removing or refitting the blades.
- Page 29 Maintenance 1000W Lawn Mower Power cord If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. UK plug If you need to replace the fitted plug, then follow the instructions below.
- Page 30 Maintenance 1000W Lawn Mower Repair This product does not contain any parts that can be repaired by the consumer other than those covered in the Maintenance section. Contact an authorised service centre or a similarly qualified person to have it checked and repaired. Transportation 1.
-
Page 31: Cleaning
Cleaning 1000W Lawn Mower Cleaning Before cleaning, inspecting or repairing your unit, make sure that the motor has stopped and is cool. Disconnect the plug to prevent accidental starting. Note! To ensure the best performance of your lawn mower, it is important to keep it clean. -
Page 32: Troubleshooting
Troubleshooting 1000W Lawn Mower Troubleshooting Suspected malfunctions are often due to causes that the user can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorised service centre or a similarly qualified specialist if you cannot... - Page 33 Troubleshooting 1000W Lawn Mower Fault Possible cause Troubleshooting Not connected to Connect to power power supply supply Power cord or plug Perform check by a is defective qualified electrician Other electrical Perform check by a defect qualified electrician. Product does not start Press the lock-off Lock-off button not...
-
Page 34: Storage
Storage 1000W Lawn Mower Storage 1. Clean the product as described above. 2. Store the product and its accessories in a dry, frost-free place. 3. Always store the product in a place that is inaccessible to children. The ideal storage temperature is between 10°C and 30°C. -
Page 35: Disposal
Disposal 1000W Lawn Mower Disposal Disposing of the packaging Dispose of the packaging separated into single type recyclenow.com materials. Dispose of cardboard and carton as waste paper and foils via the recyclable material collection service. Disposing of old devices Old devices must not be disposed of with household waste! If the lawn mower can no longer be used, every user is required by law to dispose of old devices separately... -
Page 36: Technical Data
Technical data 1000W Lawn Mower Technical Data Rated voltage 230 - 240 V~, 50 Hz Rated input 1000 W Cutting width 320 mm Rated no load speed n 3500 min Cutting height 25/45/65 mm; 3 levels Protection class Degree of protection IPX4 Weight approx. -
Page 37: Ec Declaration Of Conformity
SUMEC UK Co.,Ltd. Unit A&B, Escrick Business Park Escrick, York YO 19 6FD Declare that the product Electric Lawn Mower Model No: GERM32 Manufacture Model No.: SLM32E Function: Cutting grass Serial number: 00001---20000 Complies with the following directives: EMC Directive: 2004/108/EC... -
Page 38: Warranty Card
+44 (0)1904 727501 +353 (0)1 902 2605 www.coreservice.co.uk Unit A&B Escrick Business Park MODEL: GERM32 PRODUCT CODE: 60514 06/2016 Escrick York Phone lines available YO19 6FD Mon - Fri : 9am - 5pm Sat - Sun: 11am - 4pm. -
Page 39: Warranty Conditions
Warranty conditions Dear Customer, The ALDI warranty offers you extensive benefits compared to the statutory obligation arising from a warranty: Warranty period: 1 years from date of purchase Costs: Free repair/exchange or refund. No transport costs. Hotline: Support line charged at local rate... - Page 40 Importer: SUMEC UK UNIT A&B ESCRICK BUSINESS PARK ESCRICK, YORK, YO19 6FD, UK Email: support@coreservice.co.uk AFTER SALES SUPPORT-7 DAYS A WEEK +44 (0)1904 727501 +353 (0)1 902 2605 www.coreservice.co.uk MODEL: GERM32 PRODUCT CODE: 60514 06/2016 YEARS WARRANTY...
