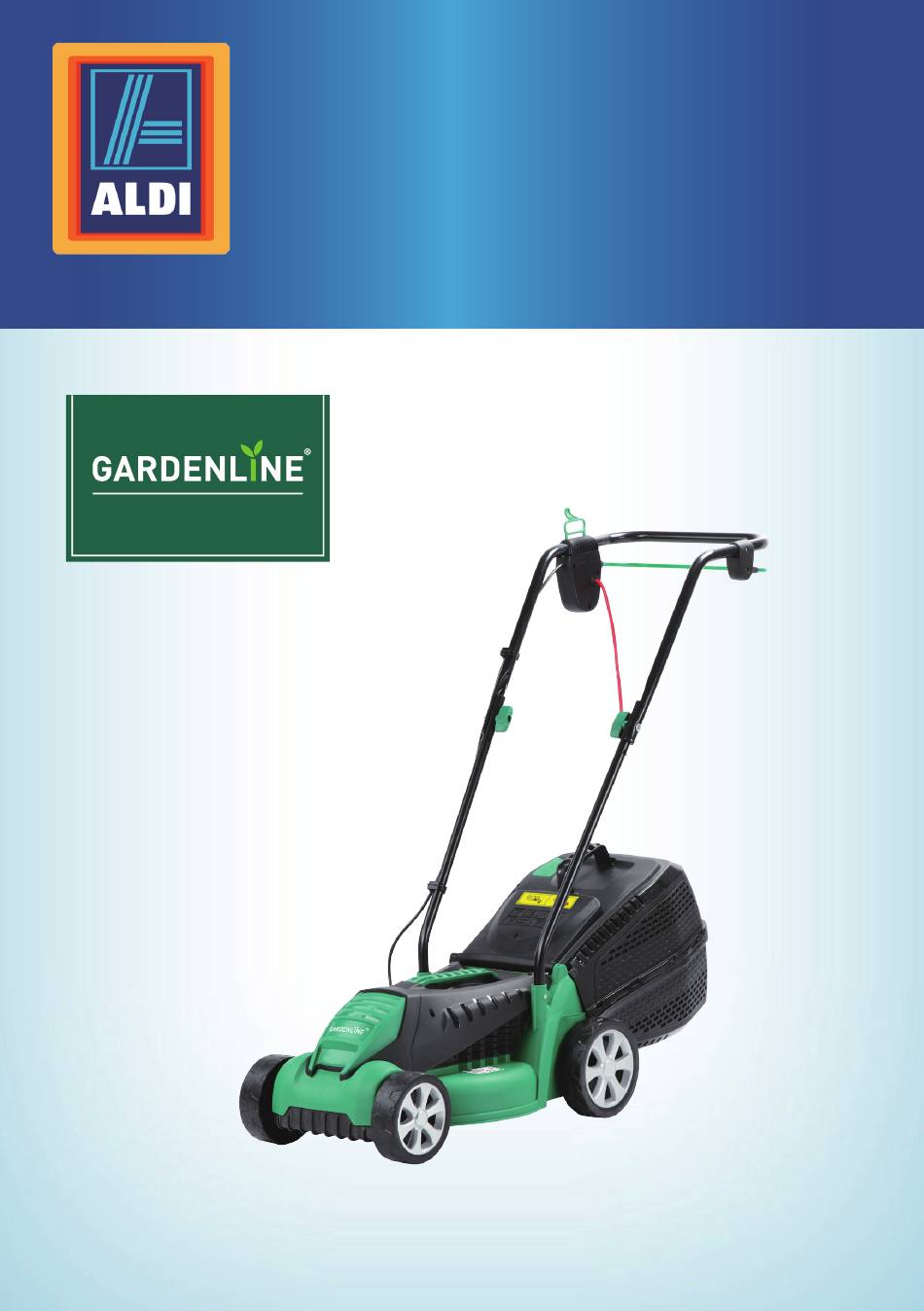

- Page 1 User Manual Spend a little Live a lot ORIGINAL INSTRUCTIONS Essentials 1200W Lawnmower GLM32F...
-
Page 2: Table Of Contents
Contents Product images and parts list ..............3 General information................7 Reading and storing the instruction manual........7 Explanation of symbols................7 Safety .......................11 Proper use....................11 Safety notes ....................12 Checking the lawnmower and product contents ........16 Assembly ....................17 Mounting the lower handle..............17 Mounting the upper handle ..............17 Mounting the grass collector ..............17 Connecting to the power supply............18 Operation ....................19... -
Page 3: Product Images And Parts List
Product images and parts list Grass box Upper handle Grass full indicator Knob with bolt x 2 Cord Wing nut x 2 Cord clip x 2 Lower handle x 2 10m cable Transportation handle Lock-off button Motor housing Switch bar Screw x 2... - Page 4 Product images and parts list...
- Page 5 Product images and parts list...
- Page 6 Product images and parts list...
-
Page 7: General Information
General information 1200W Lawnmower Reading and storing the instruction manual This instruction manual accompanies this lawnmower. It contains important information concerning assembly, start-up and handling. Before using the lawnmower, read the instruction manual carefully. This particularly applies to the safety notes. Failure to heed this instruction manual may result in severe injury or damage to the lawnmower. - Page 8 General information 1200W Lawnmower Wear correct Personal Protective Equipment (PPE) when operating this machine such as eye protection, ear protection and respiratory equipment where necessary. IMPORTANT! Wear gloves to protect your hands. Wear safety boots to protect your feet. Guaranteed sound power level value in 96dB. The product complies with the applicable European directives and an evaluation method of conformity for these directives was carried out.
- Page 9 General information 1200W Lawnmower Double insulation Objects thrown by the product could hit the user or other bystanders. Always ensure that other people and pets remain at a safe distance from the product when it is in operation. In general, children should be kept away from the area where the product is being operated.
- Page 10 General information 1200W Lawnmower WARNING! This appliance should be connected to your mains supply using an RCD (Residual Current Device). The operating current of this device must be less than 30mA. Contact an electrician if you are unsure of how to proceed.
-
Page 11: Safety
Safety 1200W Lawnmower Safety Proper use 1. Operate the product only in daylight or in good artificial light. 2. Avoid operating the product in wet grass. 3. Always be sure of your footing on slopes. 4. Walk, never run. 5. Do not use this appliance in wet conditions. 6. -
Page 12: Safety Notes
Safety 1200W Lawnmower 15. Stop the product and remove the plug from the socket. Make sure that all moving parts have come to a complete stop: − Whenever you leave the product unattended. − Before clearing blockages or unclogging the chute. −... - Page 13 Safety Safety Safety 1200W Lawnmower when tired or under the influence of alcohol, medication or drugs. −Use appropriate tools. This product is intended for private use only, not for any commercial applications. It may not be used for any purposes other than those described in this manual. Work Area Safety −Keep work areas clean.
- Page 14 Safety Safety Safety 1200W Lawnmower −This appliance can be used by persons aged 16 years and above and people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 15 Safety 1200W Lawnmower −Thoroughly inspect the area where the product is to be used and remove all objects which could be thrown by the product. −Before use, always visually inspect to see that the blade, blade bolt and the blade assembly are not worn or damaged. −Replace worn or damaged components in sets to preserve balance.
-
Page 16: Checking The Lawnmower And Product Contents
Checking the lawnmower and product contents 1200W Lawnmower Checking the lawnmower and product contents WARNING! RISK OF DAMAGE! If you are not cautious when opening the packaging with a sharp knife or other pointed objects, you may easily damage the lawnmower. Therefore, be very careful when opening. -
Page 17: Assembly
Assembly 1200W Lawnmower Assembly Mounting the lower handle 1. Insert the lower handle into the supports. Ensure the mounting holes in the lower handle are aligned with the ones in the supports (See Fig B). 2. Secure the lower handle with the screws and tighten them with a suitable crosshead screwdriver. -
Page 18: Connecting To The Power Supply
Assembly 1200W Lawnmower 2. Fit the handle onto the top of the grass collector, where there is the grass full indicator, so that it clicks into place (See Fig F). 3. Hang the grass collector on to the hooks on the back of the machine (See Fig G&H). -
Page 19: Operation
Assembly 1200W Lawnmower Operation Cutting height adjustment Adjust the cutting height according to the needs of your lawn. The cutting height depends on the kind of lawn and its actual height. When mowing high grass, start with the maximum cutting height and make a second cut with a lower cutting height. -
Page 20: Switching On/Off
Operation 1200W Lawnmower indicator will be open. (See Fig M) If the collection box is full of grass the grass full indicator will close. (See Fig N) NOTE! A full grass collector will reduce the performance of this product. 1. Lift the deflector guard and lift the grass collector off the hooks. -
Page 21: Mowing
Operation 1200W Lawnmower NOTE! The product can only be started by pressing the lock- off button first, followed by squeezing the start lever . Reverse operation will not start the product. NOTE! The cutting device will continue to rotate for a short period after the product has been switched off. - Page 22 Operation 1200W Lawnmower product thoroughly for damage. Have any damage repaired by a suitably qualified person before restarting. Excessive vibration of the product during operation is an indication of damage. Stop the motor, unplug and check for damage. AFTER SALES SUPPORT 0124 751 50 www.coreservice.co.uk 01904 727506...
-
Page 23: Maintenance
Maintenance 1200W Lawnmower Maintenance 1. Always switch the product off, disconnect it from the power supply and let the product cool down before performing any inspection, maintenance or cleaning work! 2. Keep the product clean. Remove debris from it after each use and before storage. - Page 24 Maintenance 1200W Lawnmower with this instruction manual or take the lawnmower to an authorised service centre before the next use. NOTE! Do not use chemical, alkaline, abrasive or other aggressive detergents or disinfectants to clean this product as they may cause damage to the cosmetic surfaces. Spare parts/Replacement parts The following parts of this product may be replaced by the consumer.
- Page 25 Maintenance 1200W Lawnmower device should be replaced. 3. Keep the cutting device sharp to ensure the best cutting performance. Replace a worn or damaged cutting device with a new one of the same type. Replacing the blades Always unplug the lawnmower before removing or refitting the blades.
- Page 26 Maintenance 1200W Lawnmower Repair This product does not contain any parts that can be repaired by the consumer other than those covered in the Maintenance section. Contact an authorised service centre or a similarly qualified person to have it checked and repaired. Power cord If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in...
- Page 27 Maintenance 1200W Lawnmower Transportation 1. Switch the product off and disconnect from the power supply before transporting. 2. Adjust the cutting height to the highest position as described above. 3. Attach transportation guards, if applicable. 4. Always transport the product by its handle. When lifting the product use the transportation handle as an aid.
-
Page 28: Cleaning
Cleaning 1200W Lawnmower Cleaning Before cleaning, inspecting or repairing your unit, make sure that the motor has stopped and has had time to cool. Disconnect the plug to prevent accidental starting. Note! To ensure the best performance of your lawnmower, it is important to keep it clean. -
Page 29: Troubleshooting
Troubleshooting 1200W Lawnmower Troubleshooting Suspected malfunctions are often due to causes that the user can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorised service centre or a similarly qualified specialist if you cannot... - Page 30 Troubleshooting 1200W Lawnmower Fault Possible cause Troubleshooting Not connected to Connect to power power supply supply Power cord or plug Contact customer is defective service centre. Other electrical Contact customer defect service centre. Product does not start Press the lock-off Lock-off button not button first, then pressed...
-
Page 31: Storage
Storage 1200W Lawnmower Storage 1. Clean the product as described above. 2. Store the product and its accessories in a dry, frost-free place. 3. Store the product in a place that is inaccessible to children. The ideal storage temperature is between 10°C and 30°C. 4. -
Page 32: Disposal
Disposal 1200W Lawnmower Disposal Disposing of the packaging Recycle packaging in line with local recycling schemes. Disposing of old devices Old devices must not be disposed of with household waste! If the lawnmower can no longer be used, every user is required by law to dispose of old devices separately from their household waste, e.g. -
Page 33: Technical Data
Technical data 1200W Lawnmower Technical Data Model GLM32F Input voltage rating 230-240V~,50Hz Input power 1200 W No load speed 3500/min Max. cutting length 320mm Cutting height 25/45/65mm, 3 adjustments Grass catcher volume Safety class Class II Weight 10kg Protection degree... - Page 34 Technical data 1200W Lawnmower The sound values have been determined according to noise test code given in EN 60335-2-77, using the basic standards EN ISO 11094 and EN ISO 3744. The sound intensity level for the operator may exceed 80 dB(A) and ear protection measures are necessary.
-
Page 35: Ec Declaration Of Conformity
Unit A&B, Escrick Business Park Escrick, York YO 19 6FD Declare that the product Electric Lawnmower Model No: GLM32F Manufacture Model No.: GLM32F Function: Cutting grass Serial number: 00001---20000 Fulfils all the relevant provisions of the following EU Directives and standards: EMC Directive: 2014/30/EU... -
Page 36: Warranty Card
0124 751 50 01904 727506 www.coreservice.co.uk Unit A&B Escrick Business Park MODEL: GLM32F PRODUCT CODE: 82914 06/2018 Escrick York Phone lines available YO19 6FD Mon - Fri : 9am - 5pm Sat - Sun: 11am - 4pm. -
Page 37: Warranty Conditions
Warranty conditions Dear Customer, The ALDI warranty offers you extensive benefits compared to the statutory obligation arising from a warranty: Warranty period: 3 years from date of purchase Costs: Free repair/exchange or refund. No transport costs. Customer Service Line: Support line charged at local rate... - Page 38 Importer: SUMEC UK UNIT A&B ESCRICK BUSINESS PARK ESCRICK, YORK, YO19 6FD, UK Email: support@coreservice.co.uk AFTER SALES SUPPORT-7 DAYS A WEEK 01904 727506 0124 751 50 www.coreservice.co.uk MODEL: GLM32F PRODUCT CODE: 82914 06/2018 YEARS WARRANTY...
