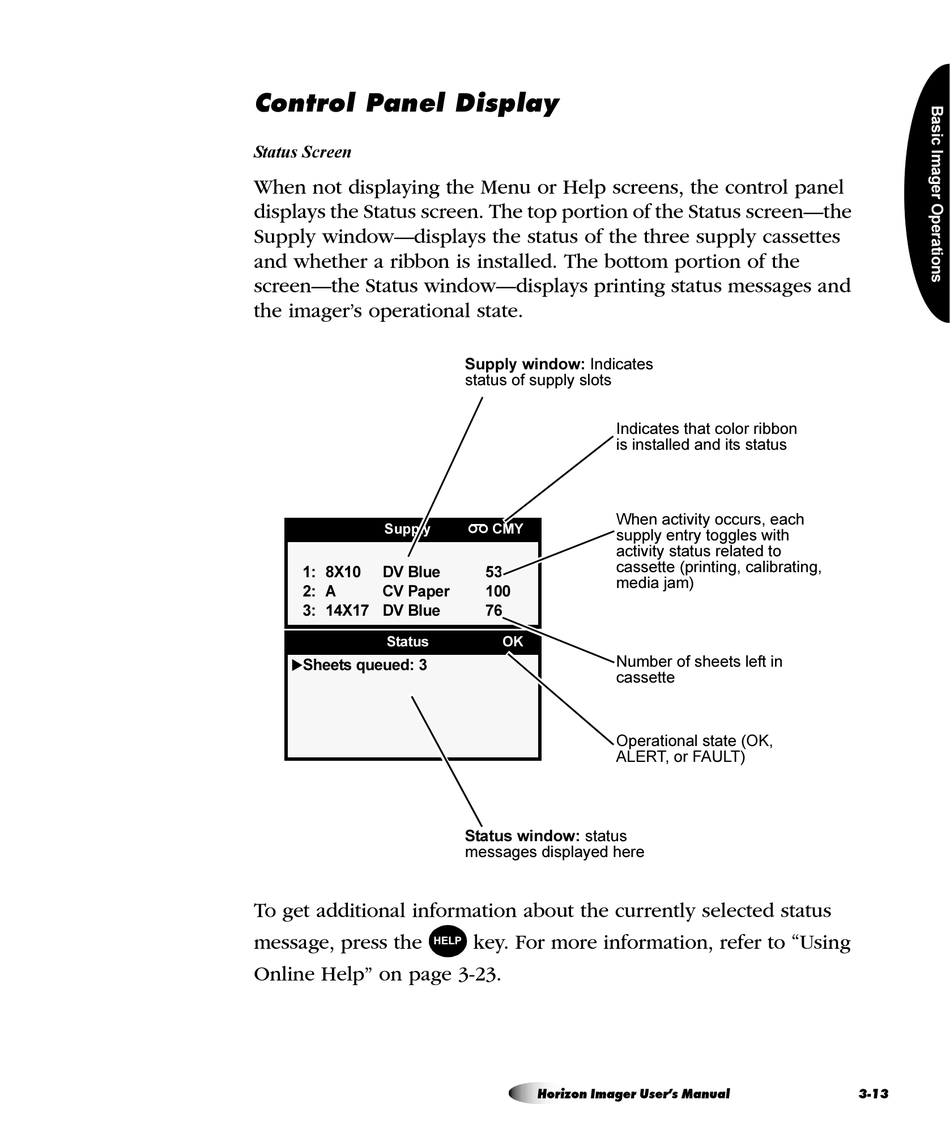

Status Screen
When not displaying the Menu or Help screens, the control panel
displays the Status screen. The top portion of the Status screen—the
Supply window—displays the status of the three supply cassettes
and whether a ribbon is installed. The bottom portion of the
screen—the Status window—displays printing status messages and
the imager's operational state.
Supply
1: 8X10 DV Blue
2: A CV Paper
3: 14X17 DV Blue
Status
Sheets queued: 3
To get additional information about the currently selected status
message, press the
Online Help" on page 3-23.
Supply window: Indicates
status of supply slots
CMY
53
100
76
OK
Status window: status
messages displayed here
HELP key. For more information, refer to "Using
Horizon Imager User's Manual
Indicates that color ribbon
is installed and its status
When activity occurs, each
supply entry toggles with
activity status related to
cassette (printing, calibrating,
media jam)
Number of sheets left in
cassette
Operational state (OK,
ALERT, or FAULT)
3-13
