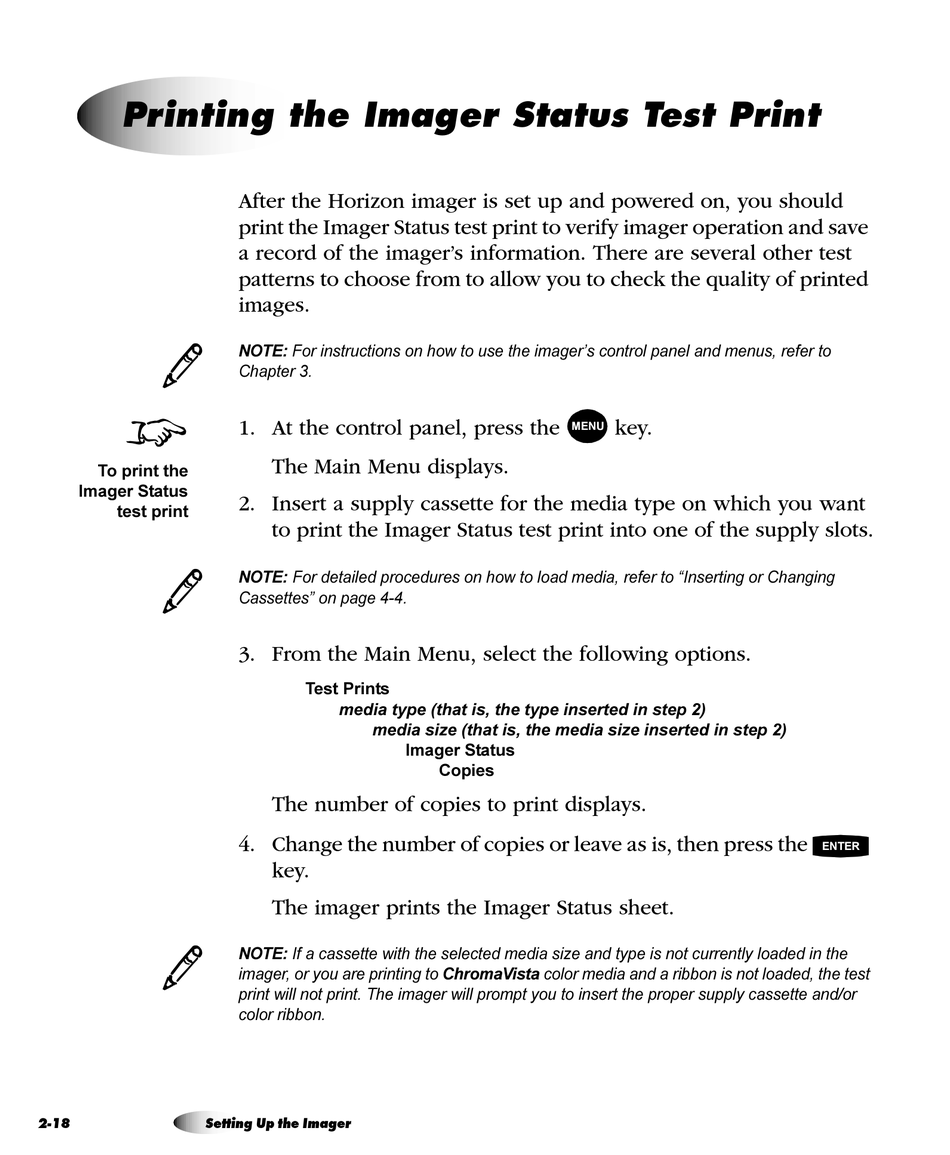

Printing The Imager Status Test Print - Codonics Horizon User Manual

mêáåíáåÖ=íÜÉ=fã~ÖÉê=pí~íìë=qÉëí=mêáåí
3
8
To print the
Imager Status
test print
3
3
2-18 Setting Up the Imager
After the Horizon imager is set up and powered on, you should
print the Imager Status test print to verify imager operation and save
a record of the imager's information. There are several other test
patterns to choose from to allow you to check the quality of printed
images.
NOTE: For instructions on how to use the imager's control panel and menus, refer to
Chapter 3.
1. At the control panel, press the
The Main Menu displays.
2. Insert a supply cassette for the media type on which you want
to print the Imager Status test print into one of the supply slots.
NOTE: For detailed procedures on how to load media, refer to "Inserting or Changing
Cassettes" on page 4-4.
3. From the Main Menu, select the following options.
Test Prints
media type (that is, the type inserted in step 2)
media size (that is, the media size inserted in step 2)
Imager Status
The number of copies to print displays.
4. Change the number of copies or leave as is, then press the
key.
The imager prints the Imager Status sheet.
NOTE: If a cassette with the selected media size and type is not currently loaded in the
imager, or you are printing to ChromaVista color media and a ribbon is not loaded, the test
print will not print. The imager will prompt you to insert the proper supply cassette and/or
color ribbon.
key.
MENU
Copies
ENTER
