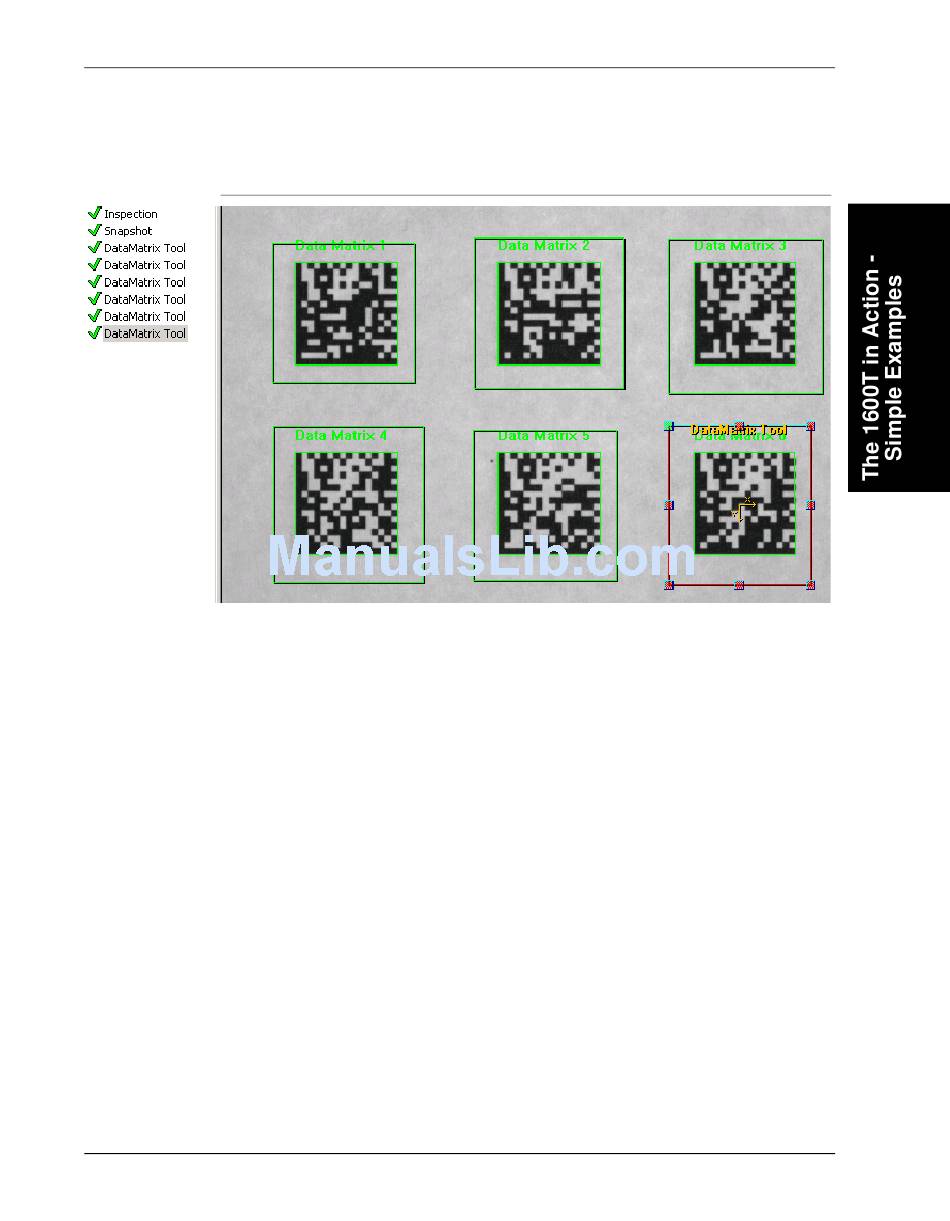

FIGURE 2–37.
2

Training Tools

Some FrontRunner™ tools, such as the Data Matrix tool, can be trained, that is,
told what to expect when reading. For example, if you train a Data Matrix tool to
read a Data Matrix with 8 rows and 32 columns, the Data Matrix tool will fail
when it tries to read something other than a Data Matrix with 8 rows and 32
columns. So, a trained tool is more restricted in what it can read; an untrained
tool is less restricted in what it can read.
For this tutorial, you saw a red Train button and red boxes in front of each Data
Matrix tool. Even though we didn't train the six Data Matrix tools, they each read
their respective Data Matrices without problems.
