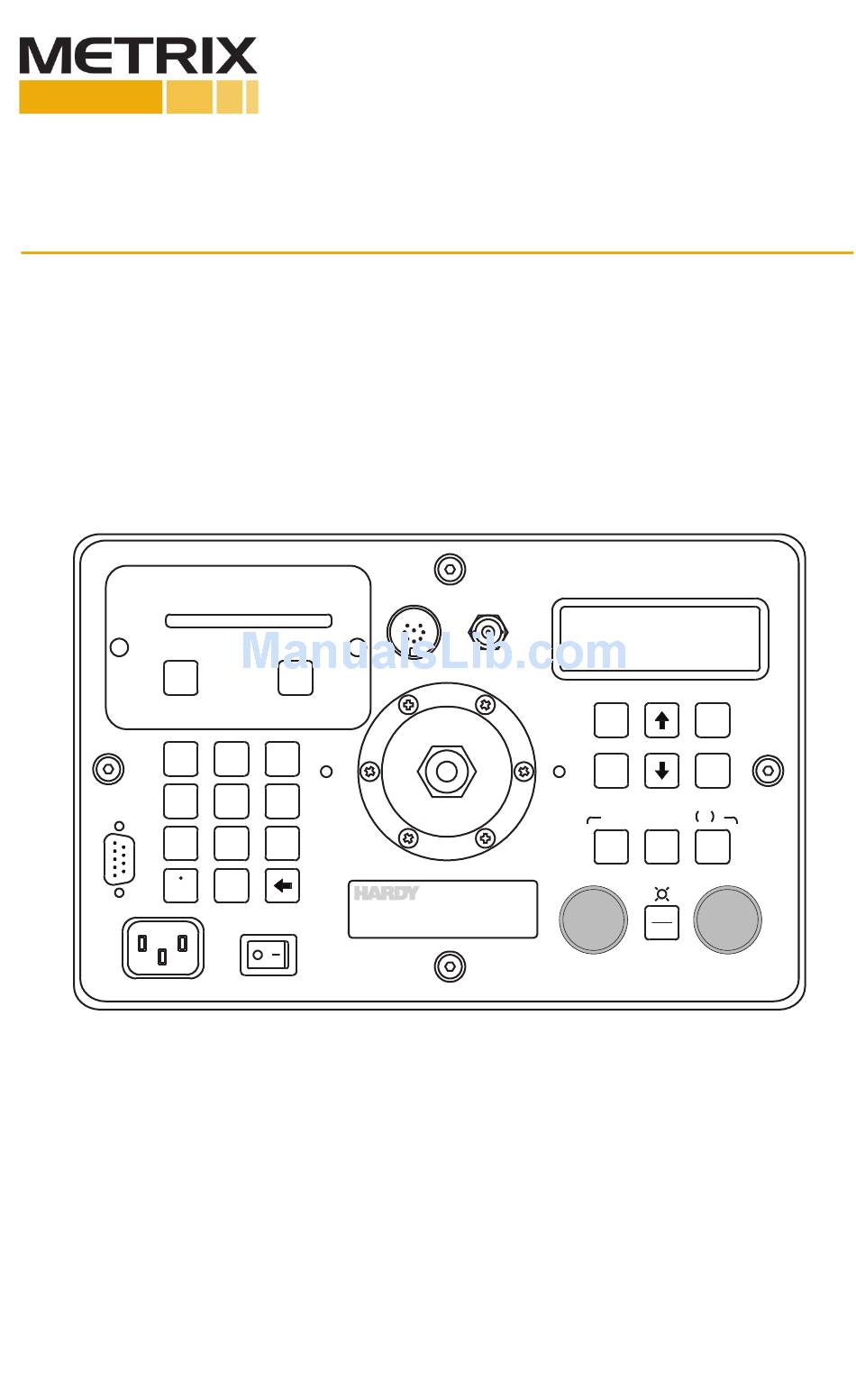

MODEL HI 803
Operation and Installation Manual
PRINT
ABC
7
JKL
4
RS-232
STU
1
0
Doc#
0296-0018 • REV R
PAPER
ADV
DEF
GHI
8
9
MNO
PQR
5
6
VWX
YZ -
2
3
SPACE
(July 2017)
REF.
INPUT
50 mV/g
HI 803
TRANSDUCER TEST SET
MODE
CURSOR
HELP
SELECT
FREQUENCY RANGE
Hz
100
1K
10K
RUN
STORE
FREQUENCY
AMPLITUDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HI 803 and is the answer not in the manual?

Questions and answers

Related Manuals for Metrix HI 803

Summary of Contents for Metrix HI 803

  • Page 1 MODEL HI 803 Operation and Installation Manual REF. INPUT PAPER 50 mV/g PRINT MODE CURSOR HELP SELECT RS-232 FREQUENCY RANGE YZ - SPACE HI 803 TRANSDUCER TEST SET STORE FREQUENCY AMPLITUDE Doc# 0296-0018 • REV R (July 2017)

  • Page 2: Table Of Contents

    TABLE of CONTENTS Chapter 1 - Overview A Brief Description of Chapter 1 About METRIX Manuals Description Capabilities Amplitude Units Frequency Units Automatic Calculation Phase Automatic Mass Load Correction Help Screens Large Memory Printer Automatic Date/Time Battery Powered ICP Accelerometers...
  • Page 3 Chapter 3 - Installation A Brief Description of Chapter 3 Unpacking Optional Accessories Mounting Bracket DI-103 (Triax) - Prt #0205-0057-01 Mounting Bracket DI-103A (Triax) - Prt #0205-0057-01 Cables for Sensitivity Mode of Operation Installation Procedures TTS to TUT Cable Connector Pin Out Diagram (See Fig. 3-1) Channel A Channel B &...
  • Page 4 Frequency Calibration Procedures Unit Setup Procedures Chapter 5 - operating procedures A Brief Description of Chapter 5 Modes of Operation Battery Check Setup Mode Monitor Mode Sensitivity Mode Bit Test Mode Support Functions Help Print Up/Down Arrows Power Message Control and Indicators Displacement Limits Recommended Maximum Loads to be Placed on the TTS Stud Torque Values...
  • Page 5 Table of Illustrations CHAPTER 1 - OVERVIEW FIG. 1-1 TRANSDUCER TEST SET (TTS) - BLOCK DIAGRAM CHAPTER 3 - INSTALLATION FIG. 3-1 CABLE CONNECTOR PIN OUT DIAGRAM FIG. 3-2 ACCELEROMETER ICP TYPE FIG. 3-3 ACCELEROMETER (CHARGE TYPE) FIG. 3-4 TRIAX ACCELEROMETER (ICP TYPE) FIG.

  • Page 6: Chapter 1 - Overview

    METRIX Instruments HI 803 Transducer Test Set (TTS). The HI 803 TTS is a totally self-contained battery powered vibration transducer tester. The TTS can be used in the field or in the laboratory. The TTS tests and verifies the performance of most vibration transducers including accelerometers, velocity pickups and displacement probes.

  • Page 7: Phase

    (approximately .125 inch P-P dis- placement). Principles of Operation The HI 803 Transducer Test Set is comprised of a Signal Generator, Power Amplifier, Electro dynamic Vibrator, Reference Accelerometer, Digital Voltmeter, Microcomputer and Digital Indicator.

  • Page 8: The Signal Generator

    Capabilities (continued) The Signal Generator The signal generator produces a variable frequency sine wave which becomes the source of the driving signal to produce the vibration at the shaker head. The amplitude of this sine wave signal is controlled by the front panel AMPLITUDE dial controller. The frequency is also con trolled by the front panel FREQUENCY dial controller.

  • Page 9: Fig. 1-1 Transducer Test Set (Tts) - Block Diagram

    AMPLIFIER ASSEMBLY Ref Accel Amplifier Assembly Electrodynamic Sine Shaker Generator Power Amplifier Freq Assy Ampl Adjust Micro Computer Keyboard CHARGER BATTERIES DISPLAY PRINTER FIG. 1-1 TRANSDUCER TEST SET (TTS) - BLOCK DIAGRAM Battery Operation The TTS can be operated using an AC line power source or from its internal rechargeable batteries.

  • Page 10: Lithium Battery

    TTS will display the following message upon start up, indicating a RAM problem: RAM Error If this message appears contact your local METRIX Representative right away. The TTS will have to be returned to the factory to have a new lithium battery installed and the software reentered and functionally checked.

  • Page 11: Chapter 2 - Specifications

    CHAPTER 2 - SPECIFICATIONS A Brief Description of Chapter 2 Chapter 2 lists the specifications for the HI 803 TTS. Specifications are listed for the standard instrument and for optional equipment. The specifications listed are designed to assist in the installation, operation and troubleshooting of the instrument.

  • Page 12: Transducer Sensitivity Range

    Transducer Sensitivity Range • Accelerometers: 5 mV/g - 200 mV/g Charge 5 PC/g - 200 PC/g • Velocity 5 mV/I.P.S. - 1 Volt/I.P.S. • Displacement 30 mV/Mil - 300 mV/Mil Reference Accelerometer Output • Sensitivity = 50 mV/g +- .15 dB @ 100 Hz •...

  • Page 13: Chapter 3 - Installation

    It is very important that the user and service personnel be familiar with the procedures contained in this chapter, before installing or operating the HI 803 TTS. METRIX Instruments appreciates your business. Should you experience any problems installing this equipment, contact your local or METRIX Instruments Inc., Customer Support for assistance.
  • Page 14 • Accel, ICP, Alligator Clips 0215-0132-01 • Displacement, Alligator Clips 0215-0133-01 NOTE: Other TTS to TUT cables and connectors can be purchased from METRIX Instruments Inc. Con- tact your local METRIX Dealer for information. Mounting Studs/Bushings • 1/4-28 Stud 0228-0070-01 •...

  • Page 15: Fig. 3-1 Cable Connector Pin Out Diagram

    Installation Procedures TTS to TUT Cable Connector Pin Out Diagram (See Fig. 3- 1) FIG. 3-1 CABLE CONNECTOR PIN OUT DIAGRAM Channel A Input for all transducers that provide voltage outputs. Current can be selected by menu for those transducers requiring current between.5 mA and 6 mA for power. (See Fig.

  • Page 16: Fig. 3-3 Accelerometer (Charge Type)

    Accelerometer (Charge Type) FIG. 3-3 ACCELEROMETER (CHARGE TYPE) Triax Accelerometer (ICP Type) FIG. 3-4 TRIAX ACCELEROMETER (ICP TYPE) Velocity Pickup FIG. 3-5 VELOCITY PICKUP Doc# 0296-0018 • REV R (July 2017) Page 16 of 61...

  • Page 17: Fig. 3-6 Piezoelectric Velocity Transducer

    Piezoelectric Velocity Transducer FIG. 3-6 PIEZOELECTRIC VELOCITY TRANSDUCER Displacement Eddy Current Proximity Probe FIG. 3-7 PROXIMITY PROBE Voltage Powered Some examples of Voltage Powered Accelerometers - Dynamic Instruments Accelerometers DI-151, Wilcoxon 991B and Chadwick-Helmuth 4177B. FIG. 3-8 VOLTAGE POWERED ACCELEROMETERS Doc# 0296-0018 •...

  • Page 18: Fig. 3-9 Externally Powered (Floating) Electrical Setup

    Chadwick-Helmuth Velocimeter #7310 Test Setup The following information provides the electrical diagram for connect- ing the Chadwick-Helmuth Velo- cimeter #7310 to the TTS. (See Figs. 3-9 & 3-10) EXTERNAL POWER (FLOATING) VELOCIMETER MODEL #7310 -V = -5V TO -15V +V = +5V TO +15V @ 0.4 AMPS CHANNEL A TTS INPUT PLUG...

  • Page 19: Fig. 3-11 Installation Of Mounting Bracket For Axis A & B

    Triaxial Mounting Bracket Mounting Bracket Screw Spanner Wrench Prt. #0228-072-01 Reference Accelerometer FIG. 3-11 INSTALLATION OF MOUNTING BRACKET FOR AXIS A & B Step 2. While holding the reference accelerometer steady with the spanner wrench, place the mounting bracket (Prt. #0205- 0043-01) over the top of the reference accelerometer. WARNING ALWAYS USE THE SPANNER WRENCH WHEN INSTALLING, REMOVING OR ADJUSTING THE TRANSDUCERS OR MOUNTING BRACKET ON THE REFERENCE ACCELEROMETER.

  • Page 20: Fig. 3-12 Top Panel/Input Connector

    50 mV/g PRINT MODE CURSOR HELP SELECT RS-232 FREQUENCY RANGE YZ - SPACE HI 803 TRANSDUCER TEST SET STORE FREQUENCY AMPLITUDE FIG. 3-12 TOP PANEL/INPUT CONNECTOR FIG. 3-13 ACCELEROMETER CONNECTOR PIN OUT DIAGRAM Function SIG A AXIS SIG B AXIS...

  • Page 21: Fig. 3-14 Di-103 A-Axis Position With A Arrow Pointing Down

    FIG. 3-14 DI-103 A-AXIS POSITION WITH A ARROW POINTING DOWN Step 6. Screw the socket head bolt into the mounting bracket. Use a torque wrench and tighten the bolt that fastens the transducer to the bracket to 18 inch pounds. Do not overtighten. Step 7.

  • Page 22: Fig. 3-15 Di-103 B-Axis Position With B Arrow Pointing Down

    FIG. 3-15 DI-103 B-AXIS POSITION WITH B ARROW POINTING DOWN Step 9. Screw the socket head bolt into the mounting bracket. Use a torque wrench and tighten the bolt that fastens the transducer to the bracket to 18 inch pounds. Do not overtighten. Step 10.

  • Page 23: Fig. 3-16 Di-103 Installation For C Axis Test

    FIG. 3-16 DI-103 INSTALLATION FOR C AXIS TEST Step 14. Use the spanner wrench to hold the reference accelerometer. (See Fig. 3-11) Step 15. Use a torque wrench to tighten the socket head bolt to the reference accelerometer. Tighten to 18 inch pounds.

  • Page 24: Fig. 3-17 Di-103A A-Axis Position With A Arrow Pointing Down

    Step 2. While still holding the spanner wrench in place, use the allen wrench provided with the bracket kit to screw the mounting bracket socket head screw into the reference accelerometer. (See Fig. 3-9) Tighten the screw so that the bracket is snug against the reference accelerometer. If you want, use a torque wrench and torque to 18 inch pounds.

  • Page 25: Fig. 3-18 Di-103A B-Axis Position With B Arrow Pointing Down

    FIG. 3-18 DI-103A B-AXIS POSITION WITH B ARROW POINTING DOWN Step 8. Screw the socket head bolt into the mounting bracket. Use a torque wrench and tighten the bolt that fastens the transducer to the bracket to 18 inch pounds. Do not overtighten. Step 9.

  • Page 26: Fig. 3-19 Di-103A Installation For C-Axis Test

    FIG. 3-19 DI-103A INSTALLATION FOR C-AXIS TEST Step 13. Use the spanner wrench to hold the reference accelerometer. (See Fig. 3-11) Step 14. Use a torque wrench to tighten the socket head bolt to the ref- erence accelerometer. Tighten to 18 inch pounds. (See Fig. 3- 19) NOTE: You can position the TUT in any of 1 of four directions.

  • Page 27: Fig. 3-20 Printer Paper Installation

    Step 7. Discard the old paper roll. Step 8. Get a new roll of paper (Prt. # 1901-0057). You can purchase replacement rolls from METRIX Instruments Inc. An alternate source for the paper rolls is the Seiko Corporation (Prt. #TP201-211-25C).
  • Page 28 Follow these instructions to transfer data from TTS to PC: Step 1. Install Metrix Shaker Result Retriever software into computer (for first time user only). Step 2. Connect RS232 cable or USB-to-RS232 cable from computer to TTS RS-232 Serial Port.

  • Page 29: Fig. 3-22 Select Com Port

    FIG. 3-22 Select COM port FIG. 3-23 Browse to folder for saving data Doc# 0296-0018 • REV R (July 2017) Page 29 of 61...
  • Page 30 Data Format The data is transferred as a comma delimited ASCII file. There is one line in the file for each reading made. All readings are in standard English units (G’s Peak, IPS Peak, or MILS P-P). Each line has the fol- lowing fields which appear in the order shown: 1.
  • Page 31 A Brief Description of Chapter 4 Chapter 4 pertains to the setup and calibration of the HI 803 TTS. This chapter lists the equipment nec- essary, test equipment setup and Calibration test in order to perform a calibration of the TTS. Do not at- tempt this calibration without proper test equipment.
  • Page 32 Test Equipment Setup NOTE: All the test equipment 5 minutes to warm up. Synthesizer Setup Output - Channel 1 Waveform - Sine wave Non-Floating Clear Memory Procedures Step 1. If the TTS is on, shut it off. Step 2. Simultaneously press the SPACE button and the HELP but- ton, then turn the TTS on. Keep hold- ing the SPACE and HELP buttons until a message appears that says “Memory Clears”.
  • Page 33 Step 11. Use Input Test Cable (Prt. # 0215-0097-01). Connect the Calibration Capacitor (Model 2947B-2) between the synthesizer output channel 1 and the CHARGE CHANNEL input (J4) BNC on the Input Test Cable. Step 12. Repeat steps 5 through 8. Then disconnect the synthesizer and calibration capacitor from the TTS.
  • Page 34 Step 31. Press the Cursor button to move to the Correction Factor Field. Step 32. Press the Run button. Step 33. Turn the Frequency Lock Nut counterclockwise to unlock the Frequency Knob. Step 34. Turn the Frequency Knob clockwise to see if the frequency increases in value. Mark this step on the Check Off Sheet.
  • Page 35 Step 45. Press the Cursor button to move to the second line on the screen which reads FREQ. CAL (Fre- quency Calibration). Enter the sensitivity value that corresponds to the frequency to be set (3000 Hz). You can get the sensitivity value from the Standard Accelerometer documentation. •...
  • Page 36 Step 50. Press the Cursor button to move to the second line on the screen which reads FREQ. CAL (Fre- quency Calibration). Enter the sensitivity value that corresponds to the frequency to be set (8000 Hz). You can get the sensitivity value from the Standard Accelerometer documentation. •...

  • Page 37: Fig. 4-2 Adjusting The Reference Output (R113)

    Step 62. Set the TTS frequency to 100 Hz and the GIR (G Internal Reference) amplitude to 4.00 G’s. Step 63. The SF reading should be between 49.8 and 50.2 mV/eu. Step 64. If the reference output is not within tolerance, use an allen wrench and remove the adjustment plug on the front panel of the TTS.
  • Page 38 Built-in-Test (BIT) Checks Plus Battery Voltage Negative Battery Voltage BIT ON Internal Signal Level with Signal On BIT-OFF Internal Signal Level with Signal Off TG30 Test Channel with AGC Gain at 30 RG30 Reference Channel with AGC Gain at 30 TG10 Test Channel with AGC Gain at 10 RG10...
  • Page 39 CHAPTER 5 - OPERATING PROCEDURES A Brief Description of Chapter 5 All information contained in Chapter 5 pertains to the operation of the HI-803 TTS. The Operating Proce- dures include Modes of Operation, Support Functions, Calibrating a Transducer Under Test and Printing the Results of the Test.

  • Page 40: Fig. 5-1 Tts Controls, Indicators And Connectors

    PAPER 50 mV/g PRINT MODE CURSOR SELECT HELP RS-232 FREQUENCY RANGE YZ - SPACE HI 803 TRANSDUCER TEST SET STORE FREQUENCY AMPLITUDE FIG. 5-1 TTS CONTROLS, INDICATORS AND CONNECTORS CONTROL/INDICATOR/ ITEM# FUNCTION CONNECTOR Power Switch Powers TTS ON and OFF Mount for TUT to “shaker”...
  • Page 41 CONTROL/INDICATOR/ ITEM# FUNCTION CONNECTOR Used in Sensitivity Mode to select Down Arrow Button “pages” in ascending order Frequency Range But- Selects 3-100 Hz, 100-1000 Hz and tons 1000-10,000 Hz frequency ranges FREQUENCY Control Provides fine adjustment of test fre- Knob quency.
  • Page 42 CAUTION: THE FLEXURE SYSTEMS IN THE VIBRATOR ARE SUSCEPTIBLE TO DAMAGE DUE TO TWISTING FORCES APPLIED TO THE SHAKER HEAD. WARNING: DO NOT OVERLOAD THE INSTRUMENT FOR EXTENDED PERIODS OF TIME AT HIGH AMPLI- TUDES. TO DO SO MAY CAUSE PROPERTY DAM AGE. Displacement Limits - As long as the displacement limits of the vibrator are not exceeded, the full power of the amplifier can be used to drive the shaker.

  • Page 43: Fig. 5-2 Battery Check Mode Screen

    is usually a pancake coil in the end of cylindrical tube, that can be mounted close to the mov- ing part. Excitation is very high frequency, about 240,000 Hz for detection of small gap changes (as low as 1 micrometer [40 milli-inch] at 0.5 Hz. Velocity Sensor Used primarily in handheld probes, providing information for vibration monitoring and bal- ancing of rotating machinery.

  • Page 44: Fig. 5-3 Setup Mode Screen #1

    Battery Check Mode Step 7. Make sure of the following: • The + voltage must be greater than the - voltage. This is due to the higher + voltage con- sumption. • Both the + voltage and - voltage must be => 8.0. If they are not, plug in a power cord con- nected to a 110 VAC, single phase, 50/60 Hz outlet.
  • Page 45 Setup Screen #1 Step 1. The flashing field, either Units, Date or Time indicates the location of the cursor. To move from one field to the other push the CURSOR button. Step 2. To set the Amplitude Units, press the CURSOR button until the Units field is flashing. Press the Select button to select: •...

  • Page 46: Fig. 5-6 Monitor Mode Screen

    Monitor Mode Step 1. Press the Mode button to get to the Monitor Mode screen. (See Fig. 5-6) Step 2. Press the CURSOR button until the Transducer type is flashing. Step 3. Press the Select button to select the Transducer Type Under Test. The choices are: •...

  • Page 47: Fig. 5-7 Sensitivity Mode Screen

    ment. The shaker shuts down to prevent damage to the instrument and a message appears: SHAKER DISPLACEMENT OUT OF RANGE! PLEASE TURN AMPLITUDE DOWN • Turn down the amplitude. When the amplitude is within limits, press the RUN/STORE but- ton once. Step 5.
  • Page 48 Step 10. Press the CURSOR button until the Mass field is flashing. Step 11. Use the keypad to enter the weight in grams of the TUT and the test fixture. (See Appendix B for weights) NOTE: If the Velocity or accelerometer adapter fixture is used, add 103 grams to the transducer mass. Step 12.

  • Page 49: Fig. 5-8 Sensitivity Test 1 Screen A

    FREQUENCY AMPLITUDE TUT TYPE HIGH HIGH Triaxial 70 Hz 130 Hz 5 g’s Velocity 70 Hz 130 Hz 0.2 in/sec 1.0 in/sec Single Axis Voltage 30 Hz 2000 Hz 5 g’s Displacement 70 Hz 130 Hz 2 mils 20 mils TABLE 5-3: TEST FREQUENCY AND AMPLITUDE PARAMETERS Step 5.

  • Page 50: Fig. 5-9 Displacement Interim Screen

    Transducer System Manual for Instructions) Contact your local METRIX Representative for purchase information. METRIX Instruments provides two types of Mounting Fixture Kits as options. The type of fixture determines the type of operational checks that can be performed using the TTS.

  • Page 51: Fig. 5-10 Displacement Probe Mounting Fixture With Dial Micrometer

    Dynamic Sensitivity Test The test measures the sensitivities of the displacement probe at the various gaps, typically; 30, 40, 50 and 60 mils. Step 1. Turn on the Power Switch. Step 2. Install the Target by screwing the target into the reference accelerometer until it is finger tight. Be sure to use the spanner wrench when installing.
  • Page 52 Step 5. Turn the TTS Amplitude control knob to the minimum amplitude. Step 6. Set TTS to operate in the Sensitivity Mode, select Displace ment Sensor Type and to read sensi- tivity in Mils. (Test Page A) Step 7. Press the 100 Hz Frequency Control button. Step 8.

  • Page 53: Fig. 5-11 Sensitivity Response Variances

    Copper Aluminum 304 Stainless Steel Sintered Tungsten Carbide 4140 Steel Gap from Probe Tip to Test Article: Mils FIG. 5-11 SENSITIVITY RESPONSE VARIANCES Typical M61/M606 Performance Sensitivity vs Gap Gap (mils) FIG. 5-12 TYPICAL EDDY CURRENT PROBE PERFORMANCE Doc# 0296-0018 • REV R (July 2017) Page 53 of 61...
  • Page 54 Static Linearity Test This procedure is for checking the displacement probe output over its total measurement range, from minimum gap to maximum gap. The Dial Micrometer Attachment and Mounting Fixture is required for this test. Step 1. Install the Mounting Fixture and Target. Step 2.
  • Page 55 Sensitivity Mode Phase Check During the sensitivity testing of an accelerometer, the phase relation- ship can be compared to the internal reference accelerometer. The HI-803 automatically does a phase check when the test frequency is set below 60 Hz. A small arrow appears in the lower right corner of the display.
  • Page 56 29.3 Hz D x 0.01 = v (0.05 inches pk-to-pk = 5 ips) 44.3 Hz D x 0.01 = A (0.05 inches pk-to-pk = 5 g’s) 61.44 Hz V = g (1 ips = 1 g) Standard Checks for Transducers There are two standard checks that can be very easily made with the TTS: •...
  • Page 57 Velocity Pickup Reference Level 0.2 ips 0.4 ips 0.6 ips 0.8 ips 1.0 ips Test Number Actual Level TABLE 5-8: LINEARITY CHECK - FREQUENCY 100 HZ Frequency (Hz) Test Number Actual Level TABLE 5-9: FREQUENCY RESPONSE CHECK - REF. LEVEL 0.2 IPS Cable and Connector Checks Following any vibration performance checks made for transducers and their measurement systems, it is always a good idea to check for cable and connector integrity by running the TTS at a high frequency...
  • Page 58 Parameter Blink Region SENSITIVITY FREQUENCY hz < 10 or Charge & Voltage hz > 10000 hz < 10 or TRIAX Blink hz > 601 hz < 8 or Velocity Blink Hz > 2001 hz < 8 or Displacement Blink hz > 200 SENSITIVITY AMPLITUDE gs <...
  • Page 59 TTS CALIBRATION PROCEDURE CHECK-OFF SHEET TTS S/N __________________________________________________ DATE _______________ TECHNICIAN ___________________________________________________________________ List all of the test equipment and their “TE” numbers used during this procedure: Synthesizer ____________________________________ TE# ____________________________ DMM _________________________________________ TE# ___________________________ After each test is completed successfully, record the appropriate correction factor as shown on the TTS display.
  • Page 60 Test Transducer and Mounting Fixture Weight Guide Appendix B TRANSDUCER MODEL WEIGHT FIX WGHT CHG/VOLT CEC Instruments 4-102-0001 Velocity 396.2 Self/120k ohm 4-106-0001 Velocity 226.4 Self/120k ohm 4-106-0002 Velocity 226.4 Self/120k ohm 4-123-0001 Velocity Self/120k ohm 4-125-0001 Velocity 226.4 Self/120k ohm 4-125-0112 Velocity 226.4 Self/120k ohm...
  • Page 61 (commonly known as WEEE) should never be disposed of in the public waste stream. The “Crossed-Out Waste Bin” label affixed to this product is a reminder to dispose of this product in accordance with local WEEE regulations. If you have questions about the disposal process, please contact Metrix Customer Services. info@metrixvibration.com www.metrixvibration.com...
