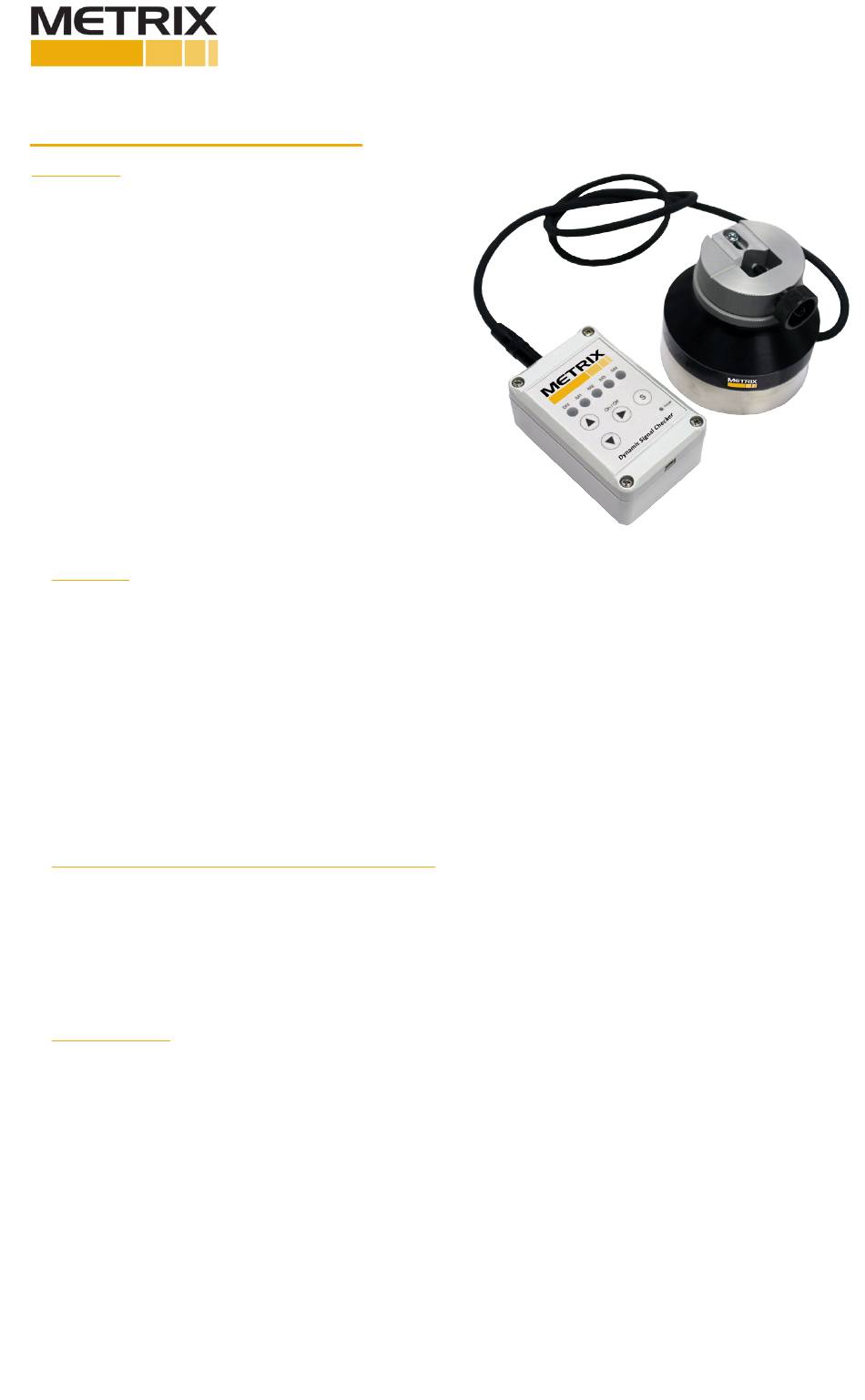

MX2040, DYNAMIC SIGNAL CHECKER
Instruction Manual
CONTENTS
1 Warnings
2 Scope of Delivery (ordering code KS04)
3.1 Handheld Control Unit
4.3 Test Setup
4.5 Vibration Indication
1. Warnings
The instruction manual is an integral part of the product. Please read the instruction manual carefully
before using the product, and keep it available for future reference. The measuring system should
only be operated by qualified personnel who have read this instruction manual. In case of doubt, the
prevailing conditions of the area of application and the resulting requirements have to be examined
by an expert before operation can be commenced.
Correct transportation, appropriate storage and professional assembly, operation and maintenance
must be provided in order to ensure proper functioning. Safety instructions concerning the battery
can be found under section 5 on page 5 of this manual.
2. Scope of Delivery (ordering code MX2040-001)
•
Handheld control unit with battery
•
Vibration simulator
•
Battery charger with charging cable
•
Instruction manual
3. Technical Data
3.1 Handheld Control Unit
The device has to be fully charged before the first operation. In order to do this, connect the power
adapter to the control unit with the aid of the charging cable. When the device is fully charged, the
charge indicator lamp goes off.
The battery should always be charged when storing the device over longer periods of time. When the
battery is discharged, the simulation unit can be operated via the provided USB power adapter.
Doc#
100911 • REV B
(May 2016)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX2040 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Metrix MX2040

Summary of Contents for Metrix MX2040

  • Page 1: Table Of Contents

    Correct transportation, appropriate storage and professional assembly, operation and maintenance must be provided in order to ensure proper functioning. Safety instructions concerning the battery can be found under section 5 on page 5 of this manual. 2. Scope of Delivery (ordering code MX2040-001) • Handheld control unit with battery •...

  • Page 2: Technical Data

    Socket for 3. Technical Data (cont.) connection to vibration simulator Dimensions: 98 x 64 x 40 mm Weight: 150 g (5.2 oz) w/o battery Protective class: IP 54 Battery: 3.7 volt 1000 mAh LiPoly battery Stored settings of Charging socket: USB Mini-B vibration amplitudes STATUS...
  • Page 3 4.2 Vibration Amplitudes After having determined the loop sensitivity (probe, cable, driver/transmitter) by means of a suitable static calibration unit (e.g. the 9060-001) and a calibrated voltmeter, the Dynamic Signal Checker vibration amplitudes can be simulated precisely. The accuracy of the simulation goes hand-in-hand with the accuracy of the used voltmeter.
  • Page 4 Conversion “mV AC” “peak to peak [µm or mils] vibration [mV AC] 4 mV/µ 8 mV/ u10 mV/µ Conversion “mV AC” “peak to peak [µm or mils] 10.4 100 150 450 500 vibration [mV AC] 4 mV/µ 8 mV/u 10 mV/µ -100mV/mil 200 mV/mil 250 mV/mil...
  • Page 5 Doc# 100911 • REV B (May 2016) Page 5 of 8...

  • Page 6: Test Procedure

    1. Before the dynamic test with the Dynamic Signal Checker the measuring loop sensitivity has to be determined, since deviations from the specified sensitivity influence the accuracy and indication. Using a static calibrating unit like the METRIX 9600-001 and a calibrated voltmeter you can verify that probe, cable and driver match the specification (typically: 7.87 V/mm, 200mV/mil).

  • Page 7: Rechargeable Battery

    SAFETY INSTRUCTIONS FOR LITHIUM ION POLYMER BATTERIES (LiPoly batteries) (cont.) DISCLAIMER Due to the fact that Metrix cannot monitor the handling of the batteries, any liability and warranty is expressly disclaimed with regard to incorrect charging / discharging or handling.

  • Page 8: Environmental Information

    The “Crossed-Out Waste Bin” label affixed to this product is a reminder to dispose of this product in accordance with local WEEE regulations. If you have questions about the disposal process, please contact Metrix Customer Services. info@metrixvibration.com www.metrixvibration.com...
