Operation

Menu System Navigation

To get to the MENU, use the ESCAPE button from any page. You may need to press the ESCAPE button several times
before reaching the MENU page. Navigate to the desired menu by using the
displayed and flashing, press the ENTER button.
SYNERGY HSB MENU MAP
Note: Menu functions and features may vary depending
on unit model and firmware revision.
Running Manual
Running-Utility Lost
Running-Remote Start
Running-2 Wire Start
Running - Exercise
Switched Off
Stopped - Auto
Stopped - Alarm
- 1 thru 50 +
- 1 thru 50 +
Warning Message(s)
"Low Battery"
"Exercise Set Error"
"FIRMWARE ERROR-9"
"Fuel Pressure"
"Battery Problem"
"Charger Warning"
"Charger Missing AC"
"Overload Warning"
"Overload Cooldown"
"SEEPROM ABUSE"
"USB Warning"
"Download Failure"
Alarm Message(s)
"High Engine Temp."
"Low Oil Pressure"
"Overcrank"
"Overspeed"
"RPM Sense Loss"
"Underspeed"
"Internal Fault"
"FIRMWARE ERROR-7"
"WIRING ERROR"
"Over Voltage"
"Under Voltage"
"Overload Remove Load"
"Low Volts Remove Load"
"Stepper Over Current"
"Fuse Problem"
*"Fuse Problem" on
Firmware 1.11 and older
ONLY
14
Battery Condition
"Good" "Inspect Battery" or "Check Battery"
ENTER
- Run Log +
ESC
- Alarm Log +
ENTER
Language
ENTER
ESC
English
Fuel Selection
ENTER
ESC
NG or LP
Current Date/Time
ESC
2/12/13 12:22
Exercise Time
ENTER
ESC
14:00 Wednesday
Firmware Update
ENTER
ESC
Press Enter

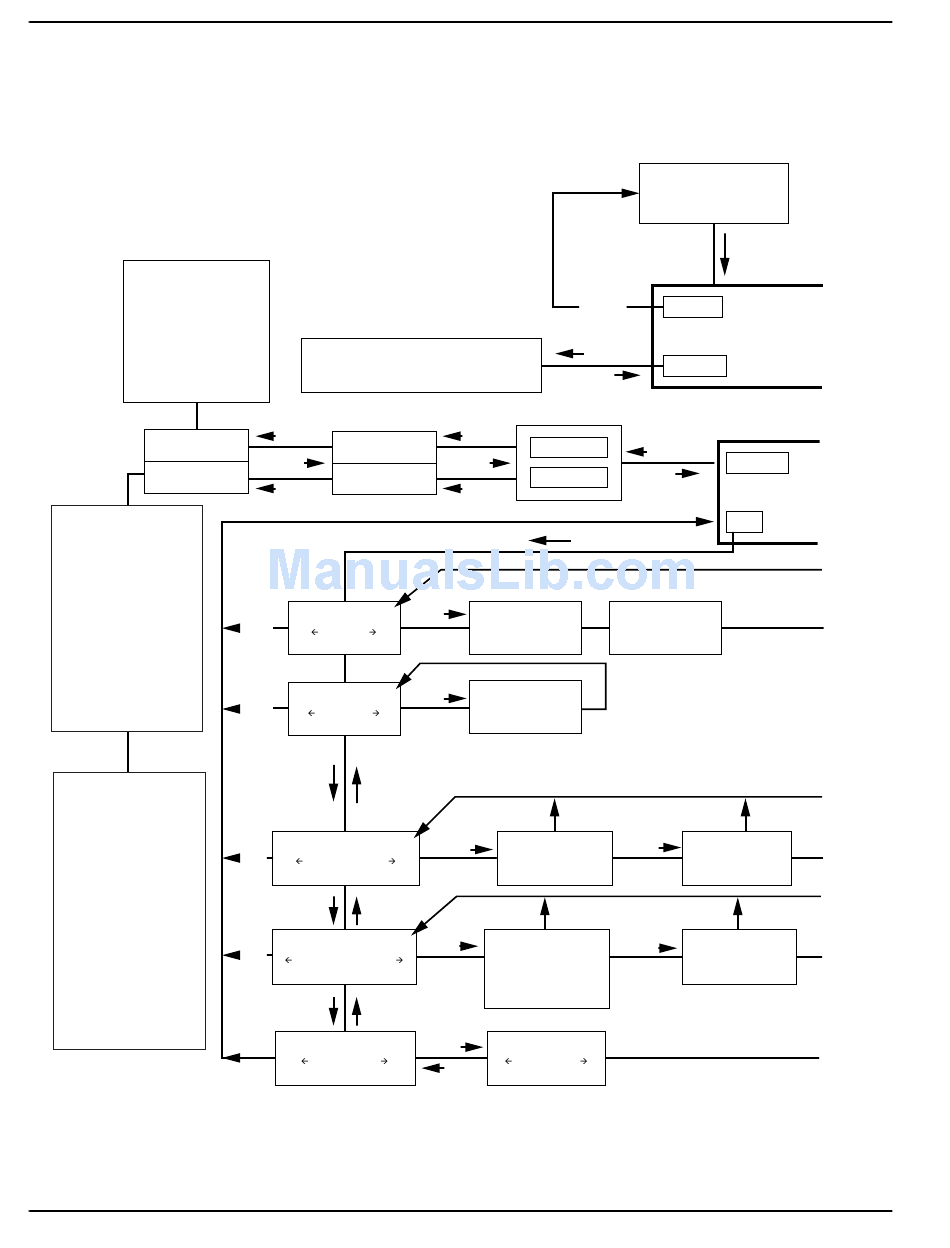

Figure 3-6. Navigation Menu
↑
/
ENTER
ENTER
ESC
ENTER
"Run Log"
ESC
"Alarm Log"
ENTER
ENTER
Language
+
+ English -
-
ESC
Fuel Selection
+ NG or LP -
ESC
Select Hour (0-23)
ENTER
- 14 +
ESC
Select Frequency
- WEEKLY +
- BIWEEKLY +
- MONTHLY +
Firmware Update
Insert USB
ESC
