Intake Side Panel Removal

See Figure 3-2. The intake side panel (A) must be
removed to access the battery compartment, fuel
regulator, and sediment trap.
1. Raise the lid and remove the front panel.
2. Use an Allen wrench to remove two mounting
screws (B) and the L-bracket screw (C).
Owner's Manual for 60 Hz Synergy™ Generators
A

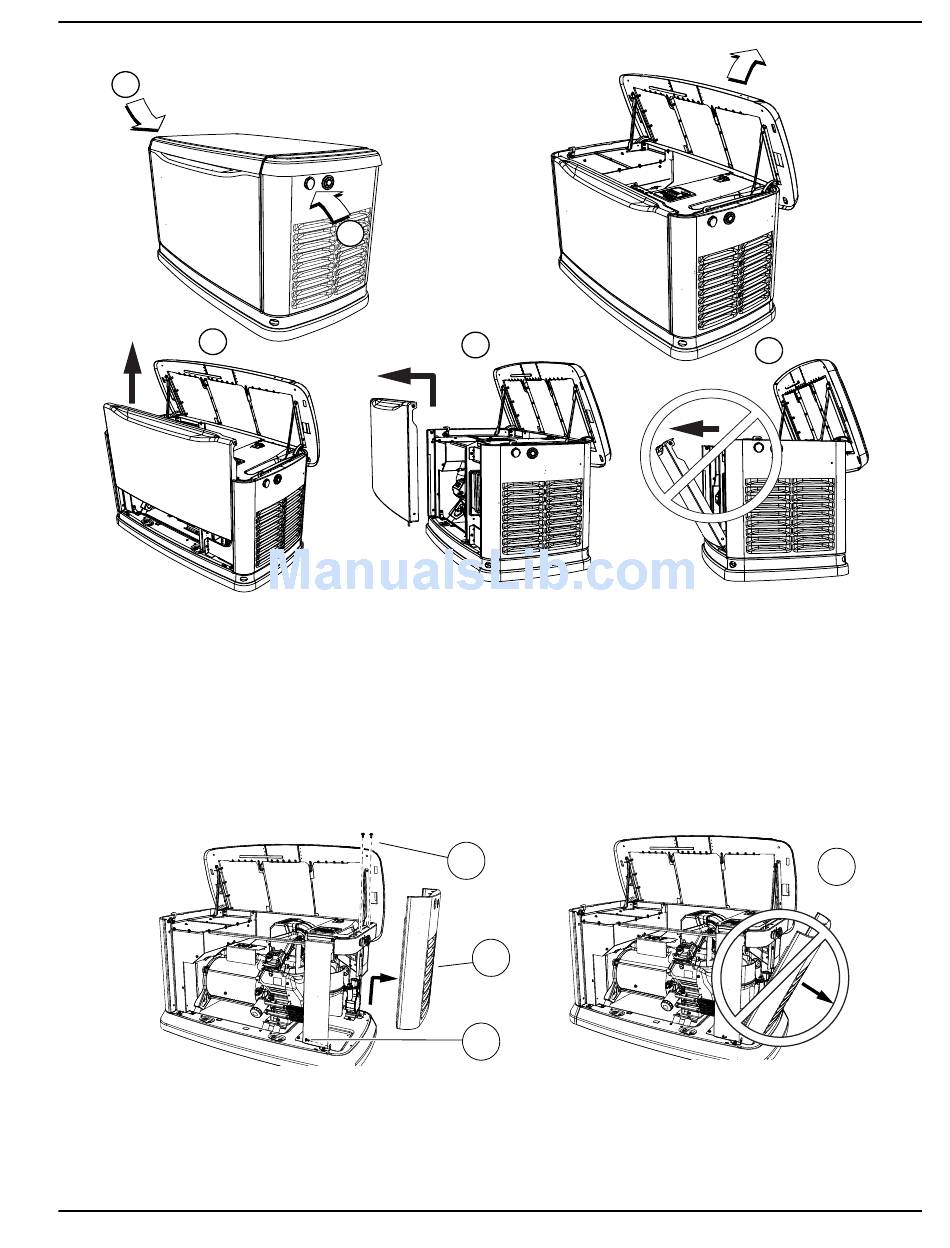

Figure 3-1. Side Lock Location and Front Panel Removal
Figure 3-2. Intake Side Panel Removal
C
3. Lift the intake panel up and away from the
generator.
NOTE: Always lift the intake side panel straight up
before pulling away from enclosure. Do not pull the panel
away from the enclosure before lifting up (D).
