Anolis ArcPix User Instructions

The Anolis ArcPix Outdoor 4 MC is a multi-purpose, high-intensity RGB LED node for generating a wide
variety of effects without the limitations associated with a solid fixture unit.The unit´s high light output can be
pixel mapped and therefore can be controlled and used for large scale matrix applications, as well as used for
individual illuminating needs.
1.Attention
Consider the respective national norms during the installation!
Do not install the module near high inflammable liquids or materials
Do not allow anything to rest on the module
Do not install the unit near naked flames.
Avoid using the unit in locations subject to possible impacts.
Do not attempt to dismantle or modify the unit.
Do not install the module in badly ventilated location
2.Installation
The ArcPix Outdoor 4 MC can be arranged in any position orientation. Three holes of diameter of 4.3mm in the
ArcSource Outdoor´s base serve for mounting on the non-flammable surface. The light head can be adjusted
against the base in range of 120°.The ArcPix Outdoor units should be connected to the ArcPix Power. See
the ArcPix Power user manual for full details of mains power requirements, DMX operation and installation.
As the ArcPix Outdoor 4 MC is equipped with one input cable only, the T-connector Chogori has to be used
for connecting the ArcPix modules each other.
Avoid looking directly into the LED light beam at close range!

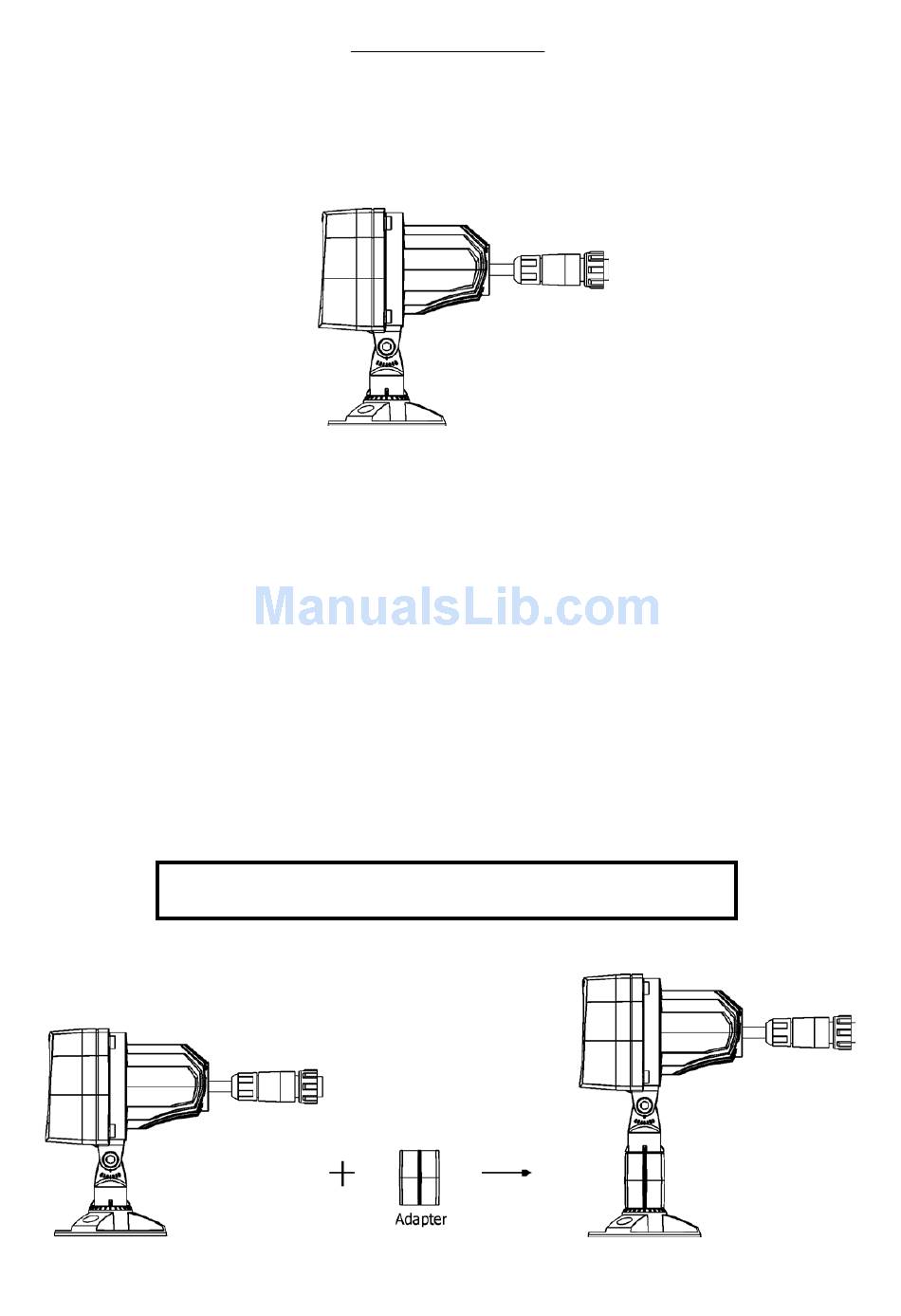

The enclosed adapter stand (with M5x45 screw) allows to place light head higher:
User instructions
ArcPix Outdoor 4 MC
CAUTION!
