Anolis ArcDot-CE User Instructions

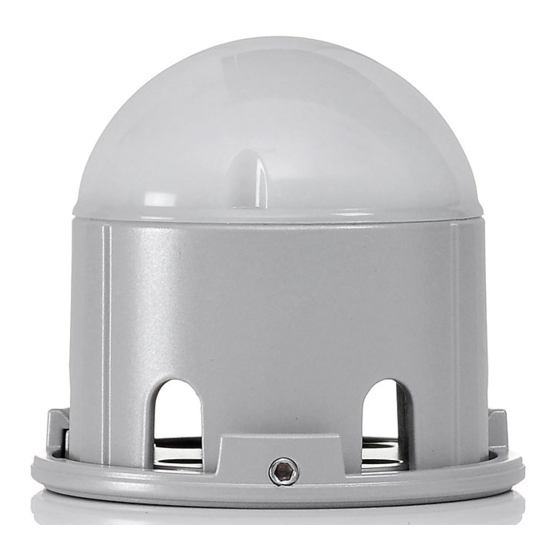

The Anolis ArcDot-CE is a Cree MC-E RGBW multichip based high powered multicolored LED fixture.
The unit´s high light output can be pixel mapped and therefore can be controlled and used for large scale
matrix applications, as well as used for individual illuminating needs. Cast aluminium housing with frosted UV
stable polycarbonate dome allows flexible solutions to both interior and exterior environments. The product is
manufactured in two versions:
Version 1- with two supply cables
1. Attention
Do not install the module near high inflammable liquids or materials.
Do not allow anything to rest on the module.
Do not install the module near the naked flames.
Do not install the module in dirty,dusty or badly ventilated location.
Avoid using the unit in locations subject to possible impacts.
Avoid looking directly into the LED light beam at close range.
Warning: Operation of this equipment in a residential environment could cause
radio interference.
2. Installation

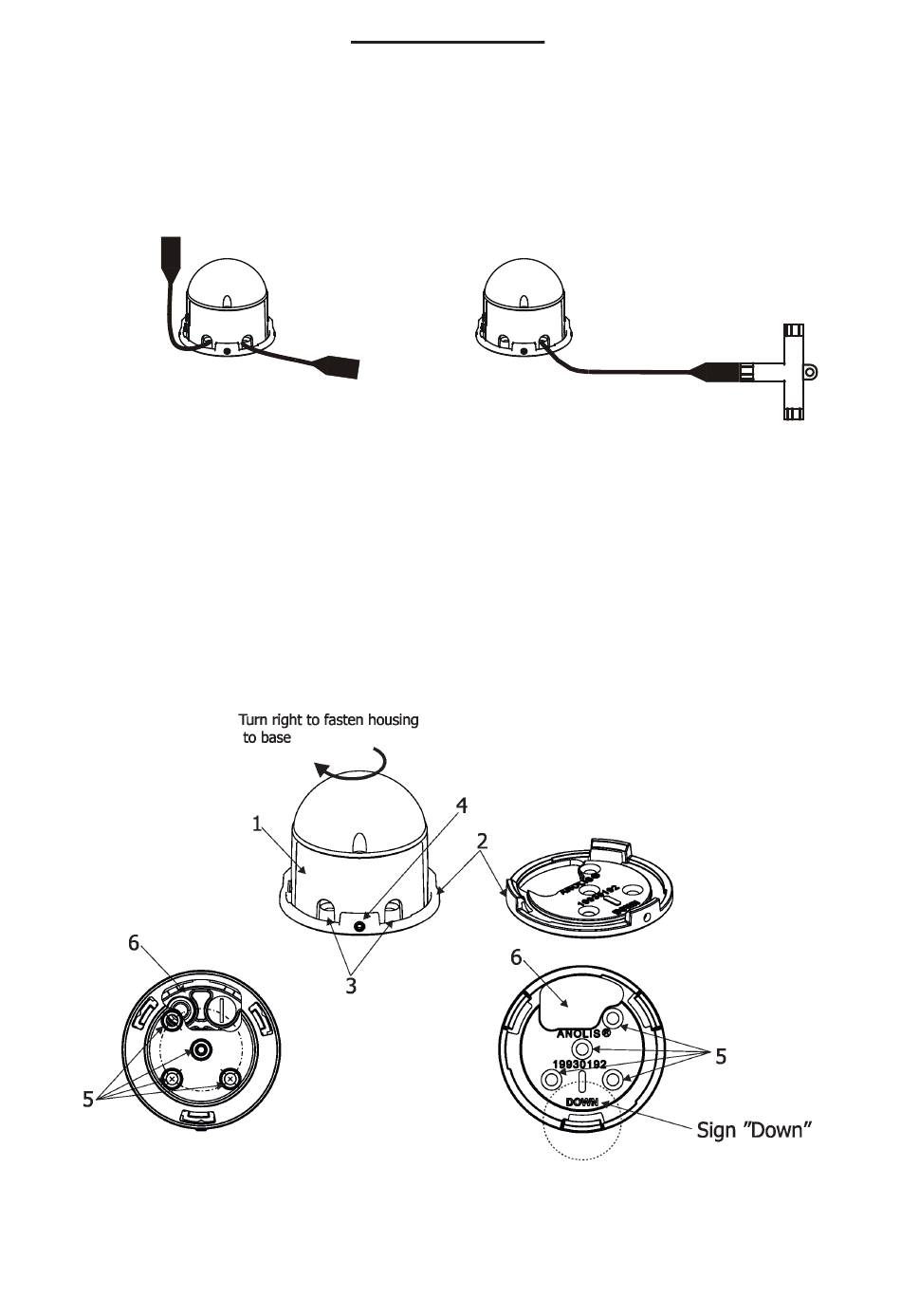

Four holes (5) of diameter of 5.5mm in the ArcDot base (2) serve for mounting the base on a non-flammable
flat surface. The supply cable (s) can be led through the slots (3) in the housing (1) of the ArcDot or through
the aperture (6) in the ArcDot base .
Outside view of base
1. Fasten the ArcDot´s base (2) on the mounting surface. Keep its orientation as shown on the picture above
(sign DOWN has to lead down).
2. Put the housing on the base, turn it to right and secure with screw M5 (4).
3. Connect ArcDots each other and to the ArcPixel Power-CE. See the ArcPixel Power-CE user manual for
detail description.
User instructions
ArcDot-CE
Version 2-with one supply cable and T-connector
Iinside view of base
