Anolis ArcPower 16x12 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Version 1.3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ArcPower 16x12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Anolis ArcPower 16x12

Summary of Contents for Anolis ArcPower 16x12

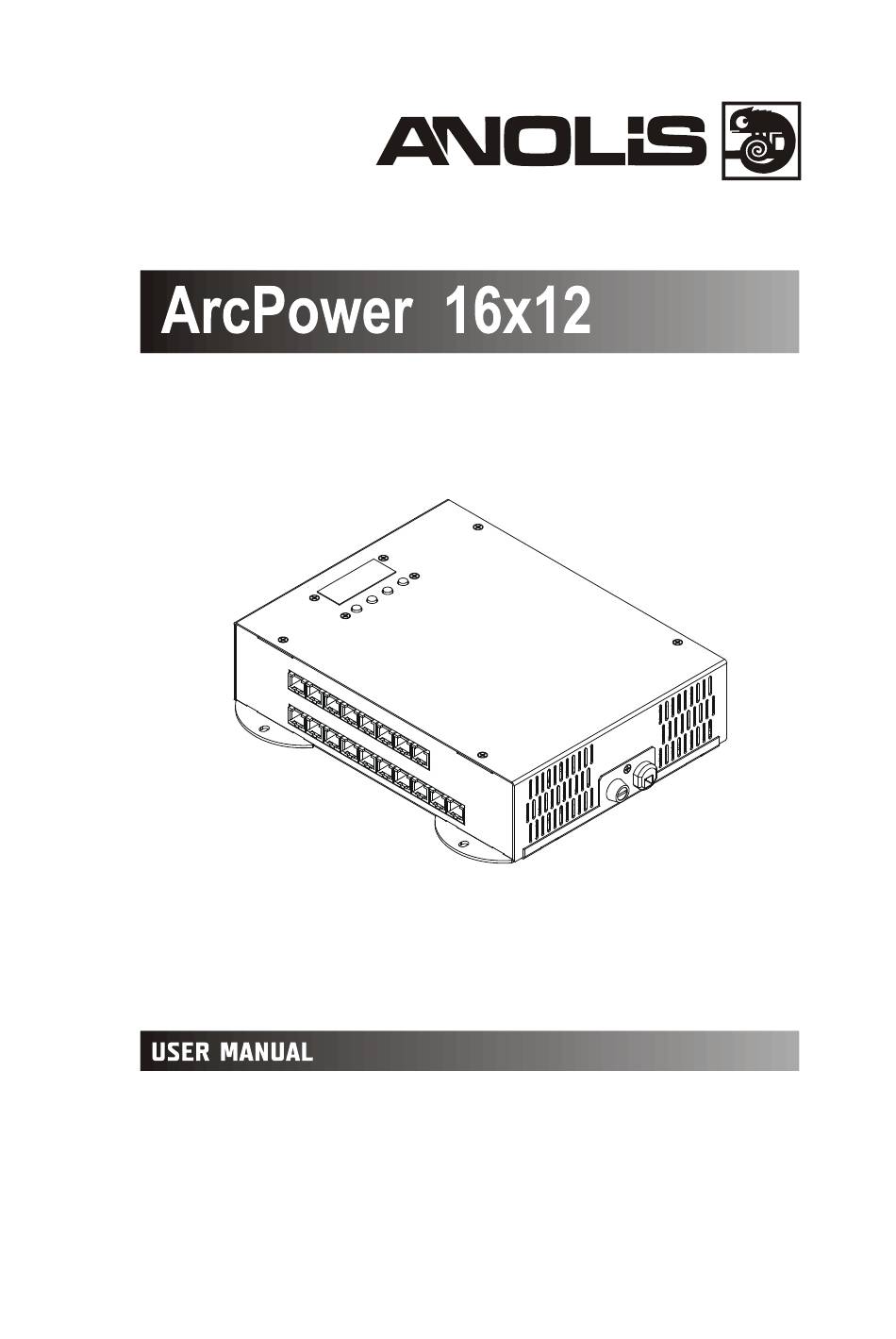

  • Page 1 Version 1.3...

  • Page 2: Table Of Contents

    5.1 Single ArcPower 16x1 installation ................6 5. Multiple ArcPower 16x1 installation ................. 7 6.ArcPower 16x12 - Control menu map ................8 7. ArcPower 16x12 - DMX protocol ( version 1.) ............10 8.Control board ......................... 16 8.1 Addressing the ArcPower 16x1 ................16 8. Fixture information ....................

  • Page 3: Safety Instructions

    CAUTION! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOU INITIAL START - UP! 1. Safety instructions Every person involved with installation and maintenance of this product has to: - be qualilfied - follow the instructions of this manual CAUTION! Be careful with your operations.

  • Page 4: Description Of The Arcpower 16X12

    3.Description of the ArcPower 16x12 1 - Control board 2 - LED output zones 3 - DMX Input 4 - DMX Output 5 - Fuse holder 6 - Power cord LED output zones (RGB operation) LED output zones (RGBW operation)

  • Page 5: Mounting The Arcpower 16X1

    4.2.Mounting the ArcPower 16x12 The ArcPower 16x12 should be be placed on a non-flammable flat surface in any orientation and fixed by the four screws.There are four mounting holes of a diameter 5 mm in housing of the driver. Ensure that instalation place is enough ventilated.

  • Page 6: Dmx Operation

    The ArcPower 16x1 allows to operate 1 RGBW outputs (zones) and it is not necessary to change its menu setting. Note: Only 12 zones of the ArcPower 16x12 can be used for RGBW operation - see chapter 3 "Descrip- tion of the ArcPower 16x12".

  • Page 7: Multiple Arcpower 16X1 Installation

    5.2 Multiple ArcPower 16x12 installation Connect the DMX output of the first ArcPower 16x12 with the DMX input of the next ArcPower 16x12. Always connect one output with the input of the next ArcPower 16x12 until all fixtures are connected.In this way,up to 32 fixtures can be chained together.

  • Page 8: Arcpower 16X12 - Control Menu Map

    6.ArcPower 16x12 - Control menu map Default settings=Bold print A001 (001-464) Info dM.In tEMP VErS VEr1 VEr MAn.C. rEd.1 (0-255) GrE.1 (0-255) bLu.1 (0-255) Stro. (0-255) dimr (0-255) tESt. St.AL. Auto tESt EPG.1 EPG. PLAY tESt EPG1 EPG Edit EPG1 EPG St.01...
  • Page 9 CHAr LinE i.bLi (On,Off) dFSE (no,YES) uPd (no,YES)

  • Page 10: Arcpower 16X12 - Dmx Protocol ( Version 1.)

    7. ArcPower 16x12 - DMX protocol ( version 1.) RGB operation Mode 1 Mode 2 Mode 3 Mode 4 Type of Value Function control Channel Channel Channel Channel ZONE 1 Red LED 1 0-55 Red LED saturation control (0-100%) proportional...
  • Page 11 Mode 1 Mode 2 Mode 3 Mode 4 Type of Value Function control Channel Channel Channel Channel ZONE 9 Red LED 9 0-55 Red LED saturation control (0-100%) proportional Green LED 9 0-55 Green LED saturation control (0-100%) proportional Blue LED 9 0-55 Blue LED saturation control (0-100%) proportional...
  • Page 12 Mode 1 Mode 2 Mode 3 Mode 4 Type of Value Function control Channel Channel Channel Channel Shutter/Strobe 0-31 Shutter closed step 3-63 Shutter open step 64-5 Strobe-effect from slow to fast proportional 6-17 Shutter open step 18-143 Opening pulses in sequences slow--> fast proportional 144-15 Closing pulses in sequences fast -->...
  • Page 13 RGBW operation Mode 5 Mode 6 Type of con- Value Function trol Channel Channel ZONE 2 Red LED 1 0-55 Red LED saturation control (0-100%) proportional Green LED 1 0-55 Green LED saturation control (0-100%) proportional Blue LED 1 0-55 Blue LED saturation control (0-100%) proportional White LED 1...
  • Page 14 Mode 5 Mode 6 Type of con- Value Function trol Channel Channel ZONE 10 Red LED 7 0-55 Red LED saturation control (0-100%) proportional Green LED 7 0-55 Green LED saturation control (0-100%) proportional Blue LED 7 0-55 Blue LED saturation control (0-100%) proportional White LED 7 0-55...
  • Page 15 Mode 1 Mode 2 Type of con- Value Function trol Channel Channel Shutter/Strobe 0-31 Shutter closed step 3-63 Shutter open step 64-5 Strobe-effect from slow to fast proportional 6-17 Shutter open step 18-143 Opening pulses in sequences slow--> fast proportional 144-15 Closing pulses in sequences fast -->...

  • Page 16: Control Board

    After switching on the ArcPower 16x1 ,the display shows the initial DMX address: Use [UP],[DOWN] to browse through the menu. To select a function or submenu,press [ENTER]. 8.1 Addressing the ArcPower 16x12 Setting the DMX start channel: 1. Connect the ArcPower 16x1 to the mains.

  • Page 17: Manual Mode

    8.3 Manual mode Use this menu for control the fixture without connected DMX console. Man.C. --- Manual effect control. Select this menu to control all channels via buttons of the control board. To control fixture channels. Use the UP/DOWN buttons to find “ Man.C“ menu. Press the ENTER button.

  • Page 18: Special Functions

    --- Balance.Select this function to enable (On) or disable (OFF) the white balance which is set in "White colour balance" menu below.If this function is set OFF,ArcPower 16x12 will use maximum value (255) of satura- tion for red, green and blue channels.
  • Page 19 --- Initial blink. If this function is on, the ArcPower 16x1 makes auto-calibration (LED modules, one by one, lit on 100% for short time,) after switching it on. During this action the ArcPower 16x12 finds out the load connected to its LED outputs and makes auto-calibration. If the LED modules will not be changed (still the same LED modules connected), after first auto-calibration you can set "i.bLi"...
  • Page 20 If the connection is OK, click on the Start Uploading button to start uploading. It will take several minutes to perform software update. If the option "Incremental Update" is not checked, all processors will be updated (including processors with the same software version). If you wish to update only later versions of processors, check the Incremental Update box.

  • Page 21: Technical Specifications

    RGBW operation LED zones: 1 Max.load per zone: 16 x 1W LED Total max.load: 1x16 LEDs Maximum total cable length between one zone of the Arcpower 16x12 and connected LED modules: 80 metres at max.load. DMX channels: Mode 1: 3...

  • Page 22: Replacing The Fuse

    Adaptor RJ45/DMX 5 pin..No.13050731 10. Replacing the fuse 1.Before replacing the fuse, unplug mains lead! 2.Unscrew the fuse holder on the rear side of the ArcPower 16x12 with a fitting screwdriver from the housing (anti-clockwise). 3.Remove the old fuse from the fuse holder.
