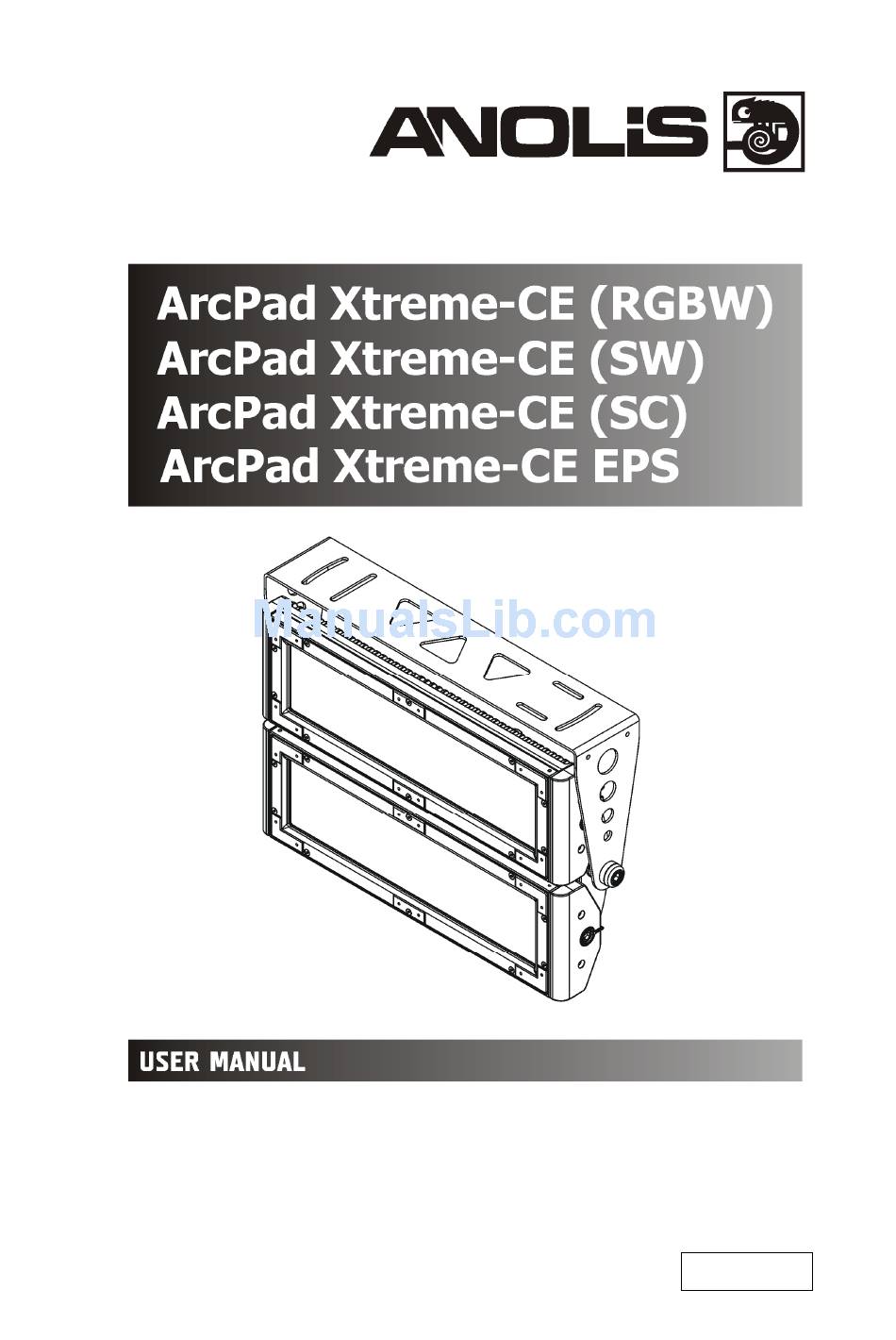

  • Page 1 Version 4.0...

  • Page 2: Table Of Contents

    ArcPad Xtreme-CE Table of contents 1. Safety instructions ..............................3 2. Fixture exterior view ..............................4 3. Installation .................................. 5 3.1 Mounting the fixture ............................5 3.2 Connection to the mains ............................6 3.3 Installation of the barn-doors, top/half top hats ....................7 3.4 Setting and control ...............................

  • Page 3: Safety Instructions

    ArcPad Xtreme-CE FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR INSTALLING YOUR ArcPad Xtreme ! Save it for future reference. This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this manual.

  • Page 4: Fixture Exterior View

    ArcPad Xtreme-CE When choosing the installation spot, please make sure that the fixture is not exposed to extreme heat or dust. Avoid using the unit in locations subject to possible impacts. The fixture body never must be covered with cloth or other materials.

  • Page 5: Installation

    ArcPad Xtreme-CE 3. Installation 3.1 Mounting the fixture Ensure that the structure (truss, wall) to which you are attaching the fixture is secure. The ArcPad Xtreme can be arranged in any position orientation. The ArcPad Extreme allows to adjust its LED modules to the desired position either both modules together (by means of the Allen key 14 ) or each module separately (by means of the self-locking screws).

  • Page 6: Connection To The Mains

    ArcPad Xtreme-CE 3.2 Connection to the mains Fixtures must be installed by a qualified electrician in accordance with all national and local electrical and construction codes and regulations The ArcSource Outdoor 48 MC Integral is equiped with with a 5-cored power/data cable. The 3 cores serve for the power supply and next 2 shielded cores are intended for DMX connection as shown the table.

  • Page 7: Installation Of The Barn-Doors, Top/Half Top Hats

    ArcPad Xtreme-CE 3.3 Installation of the barn-doors, top/half top hats You can install barn-doors or top hats to better define illuminated surface. Before installing the equipment disconnect the fixture from the mains. 1. Fit the barn-doors module (1) or top/half top hat (2) on the LED module (4) and fasten it by means of the 12 screws (3) as shown on the picture below.

  • Page 8: Dmx 512 Connection

    ArcPad Xtreme-CE 2. RDM Communicator Note: DMX controller has to be disconnected from the fixture when the RDM communicator is operated. After addressing and setting fixtures´behaviour you can use the Cyber Arch (after programming it) for stand-alone operation of fixtures.

  • Page 9: Stand-Alone Operation

    ArcPad Xtreme-CE 3.7 Stand-alone operation The fixtures on a data link are not connected to the controller but can execute pre-set programs which can be different for every fixture. To set the program to be played, see the "Stand-alone setting" (menu "St.AL.").

  • Page 10: Arcpad Xtreme - Dmx Protocols

    ArcPad Xtreme-CE 4. ArcPad Xtreme - DMX protocols 4.1 RGBW version (1.0) Mode/Channel Value Function Type of control Red LEDs - both LED modules 0 - 255 Red LEDs saturation control (0-100%) proportional Green LEDs - both LED modules 0 - 255...
  • Page 11 ArcPad Xtreme-CE Mode/Channel Value Function Type of control Colour macros – both LED modules 216 - 254 Red down, Green=0, Blue=full, White=0 proportional Blue (Red=0, Green=0, Blue=full, White=0) step Shutter/ Strobe – both LED modules 0-31 Shutter closed step 32-63...

  • Page 12: Sw Version (1.0)

    ArcPad Xtreme-CE 4.2 SW version (1.0) Mode Value Function Type of control Warm white –both LED modules 0 - 255 Warm white LEDs saturation control (0-100%) proportional Cool white – both LED modules 0 - 255 Cool white LEDs saturation control (0-100%) proportional Warm white –LED module 1...

  • Page 13: Sc Version (1.0)

    ArcPad Xtreme-CE 4.3 SC version (1.0) Mode Value Function Type of control Dimmer –LED module 1 0 - 255 Dimmer intensity from 0% to 100% proportional Dimmer –LED module 2 0 - 255 Dimmer intensity from 0% to 100% proportional Strobe –both LED modules...

  • Page 14: Control Menu Maps

    ArcPad Xtreme-CE 5. Control menu maps 5.1 RGBW version (Red,Green,Blue,White) Default settings=Bold print Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 A001 dM.Ad. 001-512 MA.SL. d.AbL MASt. InFo Poti. totL...
  • Page 15 ArcPad Xtreme-CE Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 tEM.U. °C, °F bALA On, Off C.bAL. 0..200..255 GrEn 0..255 bLuE 0..237..255 Stor LOAd FuLL In.Po. rEd1 0-255 F.dim 0-255 Stor.
  • Page 16 ArcPad Xtreme-CE Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 PrG.3 Edit PrG.1 St.01 rEd1 0-255 PrG.3 St.68 S.tim. 0-25.5 sec CoPY SPEC. rdML rdMH Adj. rEd1 F.dimr CaL.U. rEd1 Stor.

  • Page 17: Sw Version (Smart White)

    ArcPad Xtreme-CE 5.2 SW version (Smart White) Default settings=Bold print Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 A001 dM.Ad. 001-512 MA.SL. d.AbL MASt. InFo Poti. totL totL rSEt rSEt DM.In.
  • Page 18 ArcPad Xtreme-CE Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 In.Po. Uhi1 0-255 F.din 0-255 Stor. dFSE MAn.M. PrE.C. Uhi1 Uh0.1..Uh0.3 F.dim dim0...dim.7 Man.C. Uhi1 0-255 F.dim 0-255 TESt St.AL.
  • Page 19 ArcPad Xtreme-CE Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 SPEC. rdML rdMH Adj. Uhi1 F.dim CaL.U. Uhi1 Uhi4 Stor. Hold On, Off uPd.

  • Page 20: Sc Version (Single Colour)

    ArcPad Xtreme-CE 5.3 SC version (Single Colour) Default settings=Bold print Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 A001 dM.Ad. 001-512 MA.SL. d.AbL MASt. InFo Poti. totL totL rSEt rSEt DM.In.
  • Page 21 ArcPad Xtreme-CE Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 In.Po. CoL.1 0-255 F.dim 0-255 Stor. dFSE MAn.M. PrE.C. CoL.1 Co1.1..Co1.3 dimr dim0...dim.7 Man.C. rEd1 0-255 F.dim 0-255 TESt St.AL.

  • Page 22: Fixture Menu

    ArcPad Xtreme-CE Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 rdMH Adj. CoL.1 F.dimr CaL.U. CoL.1 CoL.16 Stor. Hold On, Off uPd. 6. Fixture menu RDM communicator: Connect the RDM communicator to the fixture and from the menu “Control” select the “Remote LED display”...
  • Page 23 ArcPad Xtreme-CE The Remote LED Display window will appear. Now you can fullly control the fixture using the UP, Down, Enter, Escape and Reset buttons.

  • Page 24: Fixture Address

    ArcPad Xtreme-CE 6.1 Fixture Address Use this menu to set the DMX address of the fixture or set the fixture as a Master (Slave). dM.Ad. --- DMX addressing. Select this submenu to set a DMX start address. To set a DMX address.

  • Page 25: Personality

    ArcPad Xtreme-CE Note: The ambient temperature should not exceed 40°C. Measuring points: LEdS.--- the temperature of the LEDs module. boAr. --- the temperature on the PCB in the fixture head. The temperatures can be displayed in either °C or °F units - see option “tEM.U“ in the menu “Pers“.

  • Page 26: Manual Mode

    ArcPad Xtreme-CE 6.4 Manual mode Use this menu for control the fixture without connected DMX console. PrE.C. --- Preset effects control. Select this menu to call up preset positions of the channel effects. Man.C. --- Manual effect control. Select this menu to control all channels via buttons of the control board.

  • Page 27: Special Functions

    ArcPad Xtreme-CE Auto. --- Automatic playback. This function allows you to select the program which will be played after switching the fixture on. Selected program will be played continuously in a loop. 1. Use the UP/DOWN buttons to find “ St.AL.“ menu.
  • Page 28 To update software in the fixture: I. Installation of the DMX Software Uploader. 1. DMX Software Uploader program is available from theAnolis web site at WWW.anolis.cz. 2. Make a new directory ( e.g. Anolis_Uploader) on your hard disk and download the software into it.

  • Page 29: Rdm

    ArcPad Xtreme-CE 5. Press the ENTER button 6. Use the UP/DOWN buttons to select “ yES“ option 7. Press the ENTER button Note: If you do not want to continue in software update, you have to switch off and on the fixture to escape from this menu.

  • Page 30: Error And Information Messages

    ArcPad Xtreme-CE The list of commands for ArcPad Xtreme is the following. Parameter ID Discovery command SET command GET command DISC_UNIQUE_BRANCH DISC_MUTE DISC_UN_MUTE DEVICE_INFO SUPPORTED_PARAMETERS SOFTWARE_VERSION_LABEL DMX_START_ADDRESS IDENTIFY_DEVICE DEVICE_MODEL_DESCRIPTION MANUFACTURER_LABEL DEVICE_LABEL SENSOR_DEFINITION SENSOR_VALUE DISPLAY_LEVEL DEVICE_RESET DMX_PERSONALITY DMX_PERSONALITY_DESCRIPTION STATUS_MESSAGES STATUS_ID_DESCRIPTION DEVICE_HOURS 8.

  • Page 31: Technical Specifications

    ArcPad Xtreme-CE 9. Technical specifications Power supply • Electronic auto-ranging • Input voltage: 100 - 250V AC, 50-60 Hz • Power consumption Power Max. power consumption Typical power consumption Ambient mode (All LED channels at full) ( 2 LED Channels at full)
  • Page 32 ArcPad Xtreme-CE Connection • Power/data cable • junction box Rigging • Via mounting bracket Temperatures • Maximum ambient temperature: 40° C • Maximum housing temperature: 85° C Dimensions (mm) ArcPad Xtreme...
  • Page 33 ArcPad Xtreme-CE Junction box Weight • 57 kg Protection factor • IP 67, IP 66 junction box Included items • 1 x ArcPad Xtreme • 1 x Junction box (P/N99012672) • 1 x User manual • 1 x Gasket of cable grommet M20, PF ½ (P/N 1305 1388) Optional accessories •...

  • Page 34: Cleaning And Maintenance

    ArcPad Xtreme-CE 10. Cleaning and maintenance DANGER ! Disconnect from the mains before starting any cleaning or maintenance work Rinse off loose dirt with a garden hose or low pressure water spray. Wash the housing with a soft brush or sponge and a mild, non-abrasive washing detergent.

  • Page 35: Apendix

    ArcPad Xtreme-CE 11.Apendix 11.1 ArcPad Xtreme EPS Besides the ArcPad Xtreme exists variant with separated LED modules and control unit, which is named the ArcPad Xtreme EPS. Its differences compared to the ArcPad Xtreme integral are described below. Control ans setting is the same as at the compact version.
  • Page 36 ArcPad Xtreme-CE Standard cables allow max. distance betwen LED module and control unit cca 0.7m. For longer distance you have to use adapter cables wired 1:1. Max. length betwen LED module and control unit must not exceed 20m. If the LED modules and the base are installed separately on the metal structure (LED modules and the base are galvanic interconnected), the LED modules fall under protection class I and must be grounded in accordance with all national and local electrical and construction regulations.
  • Page 37 ArcPad Xtreme-CE Dimensions (mm) Weight LED module with mounting bracket: 24 kg Control unit: 9 kg Specifications are subject to change without notice. December 2, 2015...
  • Page 38 ArcPad Xtreme-CE...
