Anolis arcpower smartwhite 72 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
version 1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the arcpower smartwhite 72 and is the answer not in the manual?

Questions and answers

Related Manuals for Anolis arcpower smartwhite 72

Summary of Contents for Anolis arcpower smartwhite 72

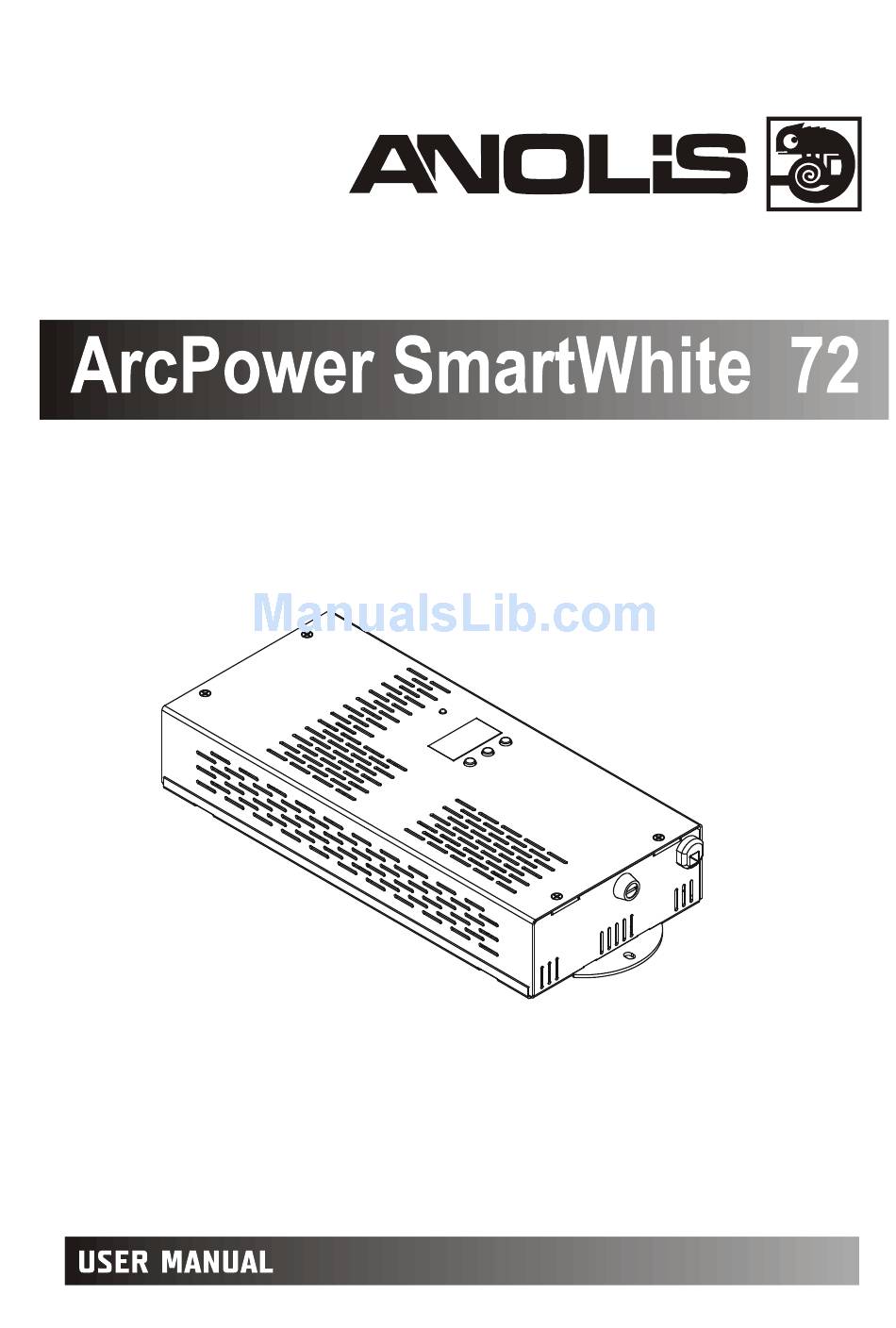

  • Page 1 version 1.2...

  • Page 2: Table Of Contents

    8.4 Test sequences ......................15 8.5 Stand-alone mode ....................15 8.6 Special functions ...................... 15 9.Control of the ArcPower SmartWhite 72 via RS-232 ..........17 9.1Wiring an RS-232 serial port ..................17 9.2 Selecting a zone ....................... 17 9.3 Setting a serial port of PC ..................17 9.4 Zone commands ......................

  • Page 3: Safety Instructions

    CAUTION! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOU INITIAL START - UP! 1. Safety instructions Every person involved with installation and maintenance of this product has to: - be qualilfied - follow the instructions of this manual CAUTION! Be careful with your operations.

  • Page 4: Description Of The Arcpower Smartwhite 72

    4.Installation 4.1.Connection to the mains The ArcPower SmartWhite 72 is equipped with auto-switching power supply that automatically adjusts to any 50/60Hz AC power source from 100-240 Volts. Carefully prepare the end of the the supply cord and fit a suitable plug.A 3-prong grounding-type plug must be...

  • Page 5: Mounting The Arcpower Smartwhite 72

    4.2.Mounting the ArcPower SmartWhite 72 The ArcPower SmartWhite 72 should be be placed on a non-f lammable f lat surface in any orientation and fixed by the two screws.There are two mounting holes of diameter 5 mm in housing of the driver. Ensure that instalation place is enough ventilated.

  • Page 6: Installing Instructions

    White 72. Always connect one output with the input of the next ArcPower SmartWhite 72 until all fixtures are connected.In this way,up to 32 fixtures can be chained together. At the last ArcPower SmartWhite 72 the data link has to be terminated with a terminator. A termination plug is Ω...
  • Page 7 Maximum possible number of LED modules connected to the one zone of the ArcPower SmartWhite 72: total Warm Cool Max.number Model LEDs White White of connected LEDs LEDs modules ArcLine SmartWhite Optic 12 ArcLine SmartWhite Optic 24 ArcLine SmartWhite Optic 36...

  • Page 8: Master-Slave Operating

    5.2.Master-slave operating 1.Unplug from the mains before installation. 2.Connect the LED modules to the fixtures. 3.Connect the DMX output of the master fixture in the data-chain with the DMX input of the first slave. Always connect output with the input of the next slave until all slaves are connected.Up to 32 fixtures can be connected in master/slave chain 4.Insert the termination plug (with 120 Ohm) into DMX input of the master fixture and into the DMX output of the last slave fixture in the link in order to ensure proper transmission on the data link.

  • Page 9: Operating Via Dynet Protocol

    5.3. Operating via DyNet protocol 1.Unplug from the mains before installation. 2.Connect LED modules to the fixtures. Connect first fixture to the control panel which uses DyNet protocol (e.g. DLP 8100) 3.Connect the DMX output of the first fixture in a data link with the DMX input of the second fixture. Always connect output with the input of the next fixture until all fixtures are connected.Up to 32 fixtures can be con- nected in data chain.
  • Page 10 A description of each byte in DyNet protocol is the following: Byte 0: 1C - hexadecimal Logical Message (fixed value) Byte 1: 01 - Area Byte 2: 00 – Channel level Byte 3: 80 - Channel Byte 4: ff – Channel Offset Byte 5: 00 –...

  • Page 11: Arcpower Smartwhite 72 - Control Menu Map

    6.ArcPower SmartWhite 72 - Control menu map Default settings=Bold print 001 (001-507) E.P.1 E.P.2 E.P.3 P.01 P.06 Aut (OFF,On) EdI. E.P.1 E.P.2 E.P.3 S.01 S.30 VAr (0-255) FA.t.(0-255) S.tI. (0-255) COP. MAn. VAr (0-255) (0-255) (0-255) Co2: Str. (0-255) diM. (0-255) St.A.

  • Page 12: Arcpower Smartwhite 72-Dmx Protocol

    7.ArcPower SmartWhite 72-DMX protocol Version 2.0 (software version 5.2 and higher) Mode/Channel Value Function Type of control ZONE 1 Warm white LED 1 0-255 LED saturation control (0-100%) proportional Cool white LED 1 0-255 LED saturation control (0-100%) proportional DIMMER 1...

  • Page 13: Control Board

    See the chapter "Stand-alone mode" for detail description. For DMX mode, it is important to define the starting DMX address from which the ArcPower SmartWhite 72 will respond to the DMX controller Setting the DMX start channel for DMX operating: 1.

  • Page 14: Manual Mode

    Programming procedure: 1. Enter "EdI." menu 2. Press [UP] or [DOWN] to select the desired program which you wish to edit and press [ENTER]. 3. Press [UP] or [DOWN] to select the desired program step ("S.01" - "S.30") and press [ENTER]. 4.

  • Page 15: Stand-Alone Mode

    100% for short time) after switching it on.If this function is set off,you have to set manually every colour on max.brightness after switching on the driver before starting regular operating.This action should last min. one second.In this moment, the ArcPower SmartWhite 72 finds out the load connected to its LED output and makes auto-calibration.
  • Page 16 To update software in the fixture: 1.Installation of DMX Software Uploader: 1.DMX Software Uploader program is available from the ANOLIS web site at WWW.anolis.cz. 2.Make a new directory ( e.g. ANOLIS_Uploader) on your hard disk and download the software to it.

  • Page 17: Control Of The Arcpower Smartwhite 72 Via Rs-232

    9600 Baud,8 Data Bits,Non Parity,One Stop Bit,No Flow Control Required. 9.4 Zone commands The ArcPower SmartWhite 72 uses the 2 types of the zone commands which can be used in a suitable soft- ware running on PC. All zone commands stated below have to be send to the ArcPower SmartWhite 72 in ASCII codes.
  • Page 18 zone Z blackout; Z ...means number of the zone (0-9) warm/cool..determines colour blackout..closes light output ;.....means end of character sequence Examples: zone 4 warm; zone 0 blackout; Type 2: Colour mixing The syntax of the command is: zone Z w,c; Z....

  • Page 19: Technical Specifications

    10.Technical Specifications Power supply: Input Voltage: 100-240 V AC, 50/60 Hz Fuse:T 2 A Max.Pover Consumption:120VA Input: Control:DMX 512 or DyNet protocol DMX connection:RJ45 RS 232 connection:9-pin D connector Output: Max.Output Voltage:48V DC Max.Output current:350mA per colour Max.load per zone : 36 LED´s i Total load :72 LED´s Maximum total cable length between one LED zone output and all its connected LED modules: 80 metres at max.

  • Page 20: Replacing The Fuse

    11. Replacing the fuse 1.Before replacing the fuse, unplug mains lead! 2.Unscrew the fuse holder on the rear side of the ArcPower SmartWhite 72 with a fitting screwdriver from the housing (anti-clockwise). 3.Remove the old fuse from the fuse holder.
