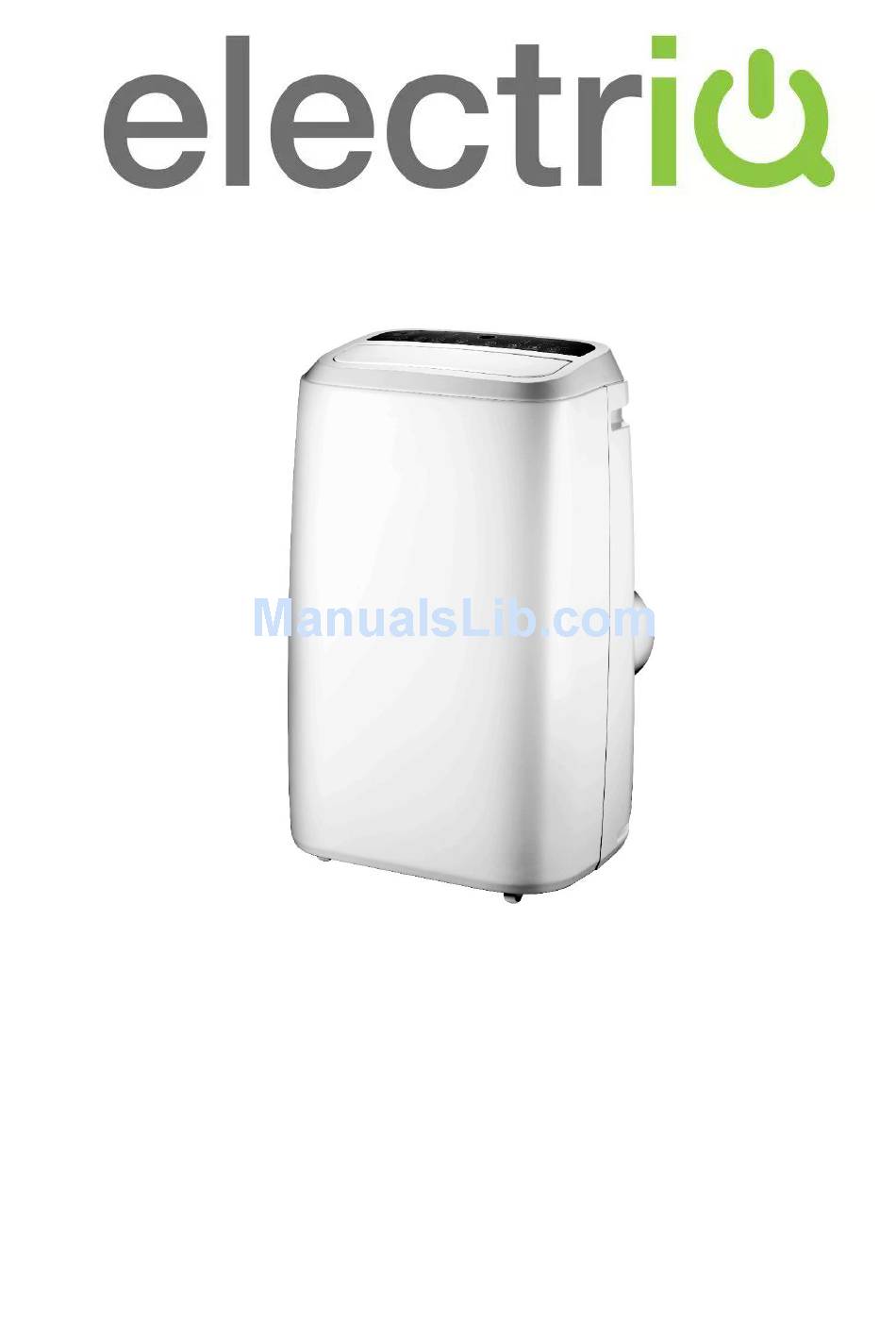

USER MANUAL

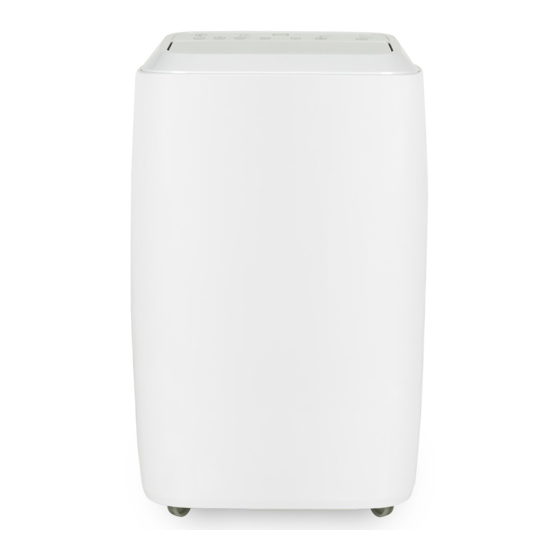

12,000 BTU PORTABLE AIR CONDITIONER
P12C
P12HPW (with Heat Pump and WIFI Smart App)
Thank you for choosing ElectriQ
Please read this user manual before using this innovative Air Conditioner and
keep it safe for future reference.
Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals
Advertisement
Table of Contents
Related Manuals for ElectrIQ P12C
Summary of Contents for ElectrIQ P12C
-
Page 1: User Manual
P12HPW (with Heat Pump and WIFI Smart App) Thank you for choosing ElectriQ Please read this user manual before using this innovative Air Conditioner and keep it safe for future reference. Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals... -
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS FEATURES AND PARTS LIST INSTALLATION OPERATION AND SETTINGS CONNECTING THE AIR CONDITIONER TO WIFI (P12HPW ONLY) WATER-DRAINAGE MAINTENANCE TROUBLESHOOTING TECHNICAL DATA Page 2 of 18... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Important! Carefully read the instructions before operating the unit This appliance is for indoor use only. Rating: This unit must be only connected to a 220-240 V / 50 Hz earthed outlet. Installation must be in accordance with regulations of the country where the unit is used. ... -
Page 4: Features And Parts List
Never use the mains plug or an external timer as a switch to start and stop the air conditioning unit. Use the provided ON/OFF button located on the control panel. Always place the unit on a dry and stable surface. ... - Page 5 FEATURES Self-evaporative system - no external water tank needed Powerful but compact LED screen, indicates temperature and operation mode Enhanced design with hot air outlet positioned higher – this allows for improved performance with the use of a short hose ...
- Page 6 PARTS LIST ACCESSORIES Page 6 of 18...
-
Page 7: Installation
INSTALLATION Warning：Before using this unit, please keep it upright for at least 3-4 hours. This unit can easily be moved from one room to another. While moving the unit please note that it must always be kept upright and then placed on an even surface. - Page 8 INSTALLATION OF WINDOW KIT 4. Partially open the window and then fix the window kit to the window 5. Make sure the unit is upright and there are no obstructions to the air inlets and outlet grill. The unit should be positioned at least 50cm away from walls or other objects within the room.
-
Page 9: Important Safeguards
The outlet vent must be well ventilated and not obstructed as this will cause the unit to overheat. Avoid bending the air hose more than 30 degrees. OPERATION AND SETTINGS CONTROL PANEL & FUNCTION P12C: P12HPW: Page 9 of 18... - Page 10 POWER BUTTON Press to turn unit “ON” or “OFF” TEMPERATURE UP & DOWN During cooling/heating function – These buttons raise or lower the temperature by 1 C for each press. The minimum temperature is 16 C and max. 31 FAN SPEED Press to select either LOW, MEDIUM or HIGH fan speed.
- Page 11 PROGRAMMABLE TIMER The in-built timer will allow you to set the unit to turn on or turn off after a set period of time, Please note only one timer can be used at any time. ON TIMER – The timer will turn on the unit automatically after the time set has elapsed. 1.
-
Page 12: Connecting The Air Conditioner To Wifi (P12Hpw Only)
Illuminated to indicate the unit is connected to wifi. When flashing indicates the unit is ready to connect to WIFI. Flashing twice per second unit in normal connection mode, and flashing once every two seconds indicates the unit is in AP connection mode. To turn the WIFI function on, or change between the modes hold the fan speed button for 5 seconds. -
Page 13: Water-Drainage
WATER-DRAINAGE MANUAL DRAINAGE: 1. When the internal water tank is full the unit will stop working and display the message “E2” on the display. 2. Shut off the unit and unplug. Try not to move the model abruptly as this may cause water to spill out from internal water tank. -
Page 14: Maintenance
MAINTENANCE CLEANING Please shut off the unit and unplug from the mains before cleaning or performing any maintenance CLEAN THE SURFACE Clean the plastic housing with a duster or a soft wet cloth. Do not use chemical solvents (such as benzene, alcohol or gasoline) as they may cause irreversible damage. - Page 15 5. Coil the wire and bind it together, then put it into the accessories space. Separate the air-exhausted pipe and store it safely. 7. Cover the unit and keep it in a dry place. 8. Take the batteries out of remote control and store, or dispose, them safely Keep all accessories with the unit ready for next season.
-
Page 16: Troubleshooting
TROUBLESHOOTING Do not repair or disassemble the unit by yourself, unauthorized repair attempts will invalidate the warranty and may cause bodily harm. Trouble Reason Solution No power supply Power-on and turn on the unit. Water-full indicator illuminated Drain the internal water tank The unit does Timer function is active Cancel Timer function... -
Page 17: Technical Data
TECHNICAL DATA P12C P12HPW Capacity Cooling: 12,000 BTU Cooling: 12,000 BTU Heating:11,000 BTU Rated Input Cooling: 1345W Cooling: 1345W Heating: 1391W Running Current Cooling: 6.0A Cooling: 6.0A Heating:6.3A Noise (sound power) ≤65dB(A) ≤65dB(A) Permitted Excessive 1.0/2.6 MPa 1.0/2.6 MPa Operating... - Page 18 ElectriQ UK SUPPORT www.ElectriQ.co.uk/support Please, for your own convenience, make these simple checks before calling the service line. If the unit still fails to operate call: 0871 620 1057 or complete the online form 1. Has the unit been standing upright for at least 2 hours? 2.
