USER MANUAL

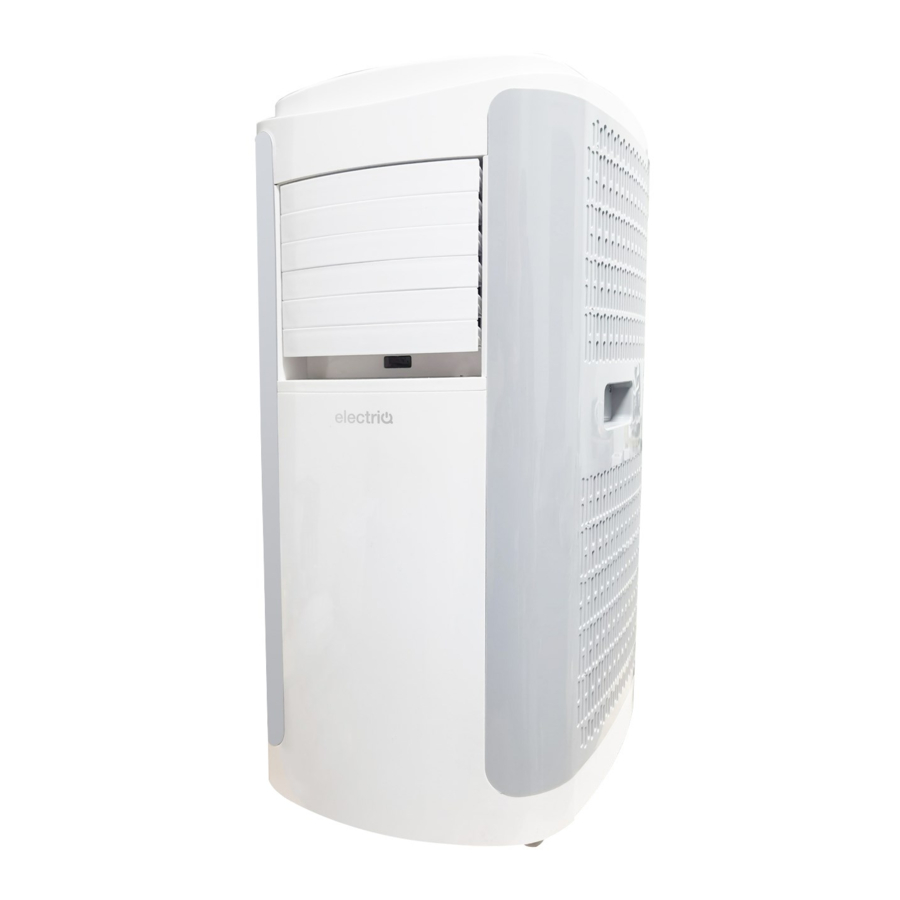

electriQ 12,000 BTU PORTABLE AIR CONDITIONER
WITH HEATPUMP AND WIFI
P12HPW
Thank you for choosing electriQ
Please read this user manual before using this innovative Air Conditioner and keep it
safe for future reference.
Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals
Advertisement
Table of Contents
Related Manuals for ElectrIQ P12HPW
Summary of Contents for ElectrIQ P12HPW

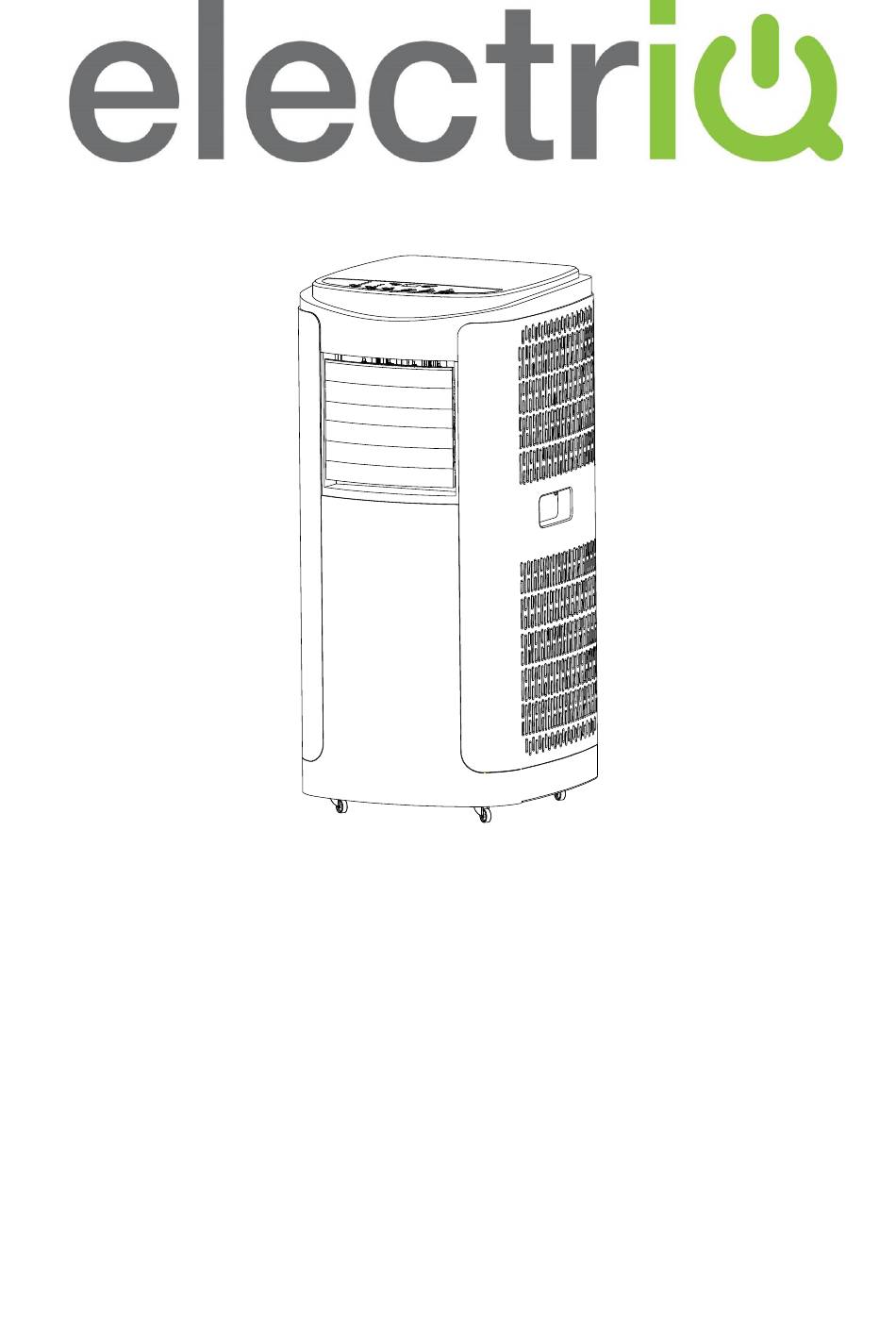

- Page 1 12,000 BTU PORTABLE AIR CONDITIONER WITH HEATPUMP AND WIFI P12HPW Thank you for choosing electriQ Please read this user manual before using this innovative Air Conditioner and keep it safe for future reference. Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals...
-
Page 2: Table Of Contents
CONTENTS SAFETY INFORMATION FEATURES PARTS LIST INSTALLATION OPERATION REMOTE CONTROL EMPTYING THE INTERNAL WATER TANK WIFI APP CONTROL SETTING UP THE APP CONNECTING THE AIR CONDITIONER CONTROLLING YOUR DEVICE SMART SCENES CLEANING AND MAINTENANCE TROUBLESHOOTING ERROR CODES SUPPORT TECHNICAL SPECIFICATION... -
Page 3: Safety Information
SAFETY INSTRUCTIONS Important! • Carefully read the instructions before operating the unit • This appliance is for indoor use only. • Rating: This unit must be only connected to a 220-240 V / 50 Hz earthed outlet. • Installation must be in accordance with regulations of the country where the unit is used. •... - Page 4 • R290 refrigerant gas complies with European environmental directives. • R290 has a low GWP (Global Warming Potential) of 3. • This air conditioner contains around 280 g of R290 refrigerant gas. • Do not use or store in an unventilated space with an area smaller than 18.2 m per unit.
-
Page 5: Features
FEATURES 4 in 1 Cooling, Heating, Fan, Dehumidifier. The P12HPW is great for Rooms up to 30 m • 3 speed fan: Balancing quiet operation with performance. • 24 Hours Start / Stop Timer. • Digital Thermostat. • Remote Control. -
Page 6: Installation
INSTALLATION WARNING: Before using this unit, please keep it upright for at least 3-4 hours. This unit can easily be moved from one room to another. While moving the unit please note that it must always be kept upright and then placed on an even surface. Attach the fishtail connector to the end of the hose, by extending the end and twisting until firmly attached (At least 3 full rotations). - Page 7 NOTES: • The window kit is only designed to be installed with sliding or sash windows or doors. The window kit is not designed or to be used with any other style of windows. • The fish tail adaptor can be used without the slide bar with most windows / doors. •...
-
Page 8: Operation
OPERATION Press the POWER button to turn the unit ON or OFF. Press the MODE button to cycle between the 3 modes, the indicator for the selected mode will be illuminated. COOL: The room is cooled with the cold air expelled through the front air outlet while hot air is expelled through the vent pipe. -
Page 9: Remote Control
REMOTE CONTROL POWER Press to turn the unit on or off. Press to decrease the desired temperature or TEMP - timer duration. Press to increase the desired temperature or TEMP + TEMP + POWER timer duration. SPEED Press to change between the three fan speeds. TEMP - SPEED SLEEP... -
Page 10: Emptying The Internal Water Tank
EMPTYING THE INTERNAL WATER TANK MANUAL DRAINAGE: When the internal water tank is full the unit will stop working. Shut off the unit and unplug. Try not to move the model abruptly as this may cause the water in the internal tank to spill out. Place a tray under the lower water plug or place the unit in a drainage area. -
Page 11: Wifi App Control
WIFI SMART CONTROL BEFORE YOU START • Ensure your router provides a standard 2.4ghz connection. • If your router is dual band ensure that both networks have different network names (SSID). The provider of your router / Internet service provider will be able to provide advice specific to your router. •... -
Page 12: Setting Up The App
REGISTER THE APP 1. Press on the Sign Up button 2. Read the Privacy policy and 3. Enter your email address or at the bottom of the screen. press the Agree Button. phone number and press continue to register. 4. A verification code will be 5. -
Page 13: Connecting The Air Conditioner
CONNECTING USING EZ (QUICK CONNECTION) MODE Before initiating the connection, make sure the unit is in standby mode, with the WIFI light flashing twice per second. If not follow the instructions for changing the connection mode. Also ensure your phone is connected to the WIFI network. - Page 14 CONNECTING USING AP MODE (ALTERNATIVE METHOD) Before initiating the connection, make sure the unit is in standby mode, with the WIFI light flashing once per second. If not follow the instructions for changing the WIFI connection mode. Also ensure your phone is connected to the WIFI network.
-
Page 15: Controlling Your Device
CONTROLLING YOUR DEVICE THROUGH THE APP Add Device: Add a device THE HOME SCREEN to the app, and go through the setup process. Voice Control: Use to give verbal instructions to the Your Device: Press app. to enter the device screen. - Page 16 DEVICE SCREEN The device screen is the main control screen for the air conditioner, providing access to the controls to amend the functions and settings Edit Name: Use to change the name of Back: Returns to the the air conditioner. Home Screen Current Room Desired Temperature:...
- Page 17 CREATING ROOMS 1. ON THE HOME SCREEN Type in a name for your home, Press on Home Management Press on the location button button to select the location of your home. (See SETTING YOUR LOCATION below) New rooms can be added by pressing the ADD ANOTHER ROOM option at the bottom.
-
Page 18: Smart Scenes
SMART SCENES Smart Scenes is a powerful tool providing the option to customise the operation of the air conditioner based both on conditions within the room and outside influences. This gives the user the option of specifying much more intelligent actions. These are split into two categories Scene and Automation. SCENE Scene allows for a one touch button to be added to the Home screen. - Page 19 AUTOMATION Automation allows an automatic action to be set up for the device. This can be triggered by the Time, indoor temperature, humidity of the room, weather conditions, and a range of other influences. 1. Press on the Smart Scene 2.
- Page 20 PROFILE TAB The profile tab gives you the option to edit both your detail, and use the added features of the unit. CHANGING THE NAME OF YOUR DEVICE When in any of the device screens further settings for the device can be accessed, by pressing on the three dots in the top right hand corner.
-
Page 21: Cleaning And Maintenance
CLEANING AND MAINTENANCE PLEASE TURN OFF THE UNIT AND UNPLUG FROM THE MAINS BEFORE CLEANING OR PERFORMING ANY MAINTENANCE CLEAN THE SURFACE Clean the surface of the machine with a wet soft cloth. Do not use chemicals, such as benzene, alcohol, gasoline, etc; otherwise, as this may cause damage to the surface and or the internal workings of the machine AIR FILTER CLEANING If the filter screen is clogged with dust, the effectiveness of the air conditioner is reduced. -
Page 22: Troubleshooting
TROUBLESHOOTING Do not repair or disassemble the air conditioning. Unqualified repair will invalidate the warranty and may lead to failure, causing injuries and property damage. Only use it as directed in this user manual and only perform operations advised here. Problems Reasons Solutions... -
Page 23: Support
Lowfields Way, Elland West Yorkshire, HX5 9DA DECLARATION OF CONFORMITY Hereby, electriQ declares that this Portable air conditioner is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.electriQ.co.uk/content/declaration-of-conformity... -
Page 24: Technical Specification
TECHNICAL DATA Model P12C Cooling capacity: 12,000 BTU Heating Capacity 11,800 BTU Cooling Input Power: 1300 W Heating Input Power 1150 W AC motor with 3 fan speeds. Air flow volume: 420 m³/h Cooling Input Current: 5.65 A Heating Input Current: 5.0 A Refrigerant: R290/280g...
