ElectrIQ P15HP User Manual

Portable air conditioner with heatpump
Hide thumbs Also See for P15HP:

Advertisement

Quick Links

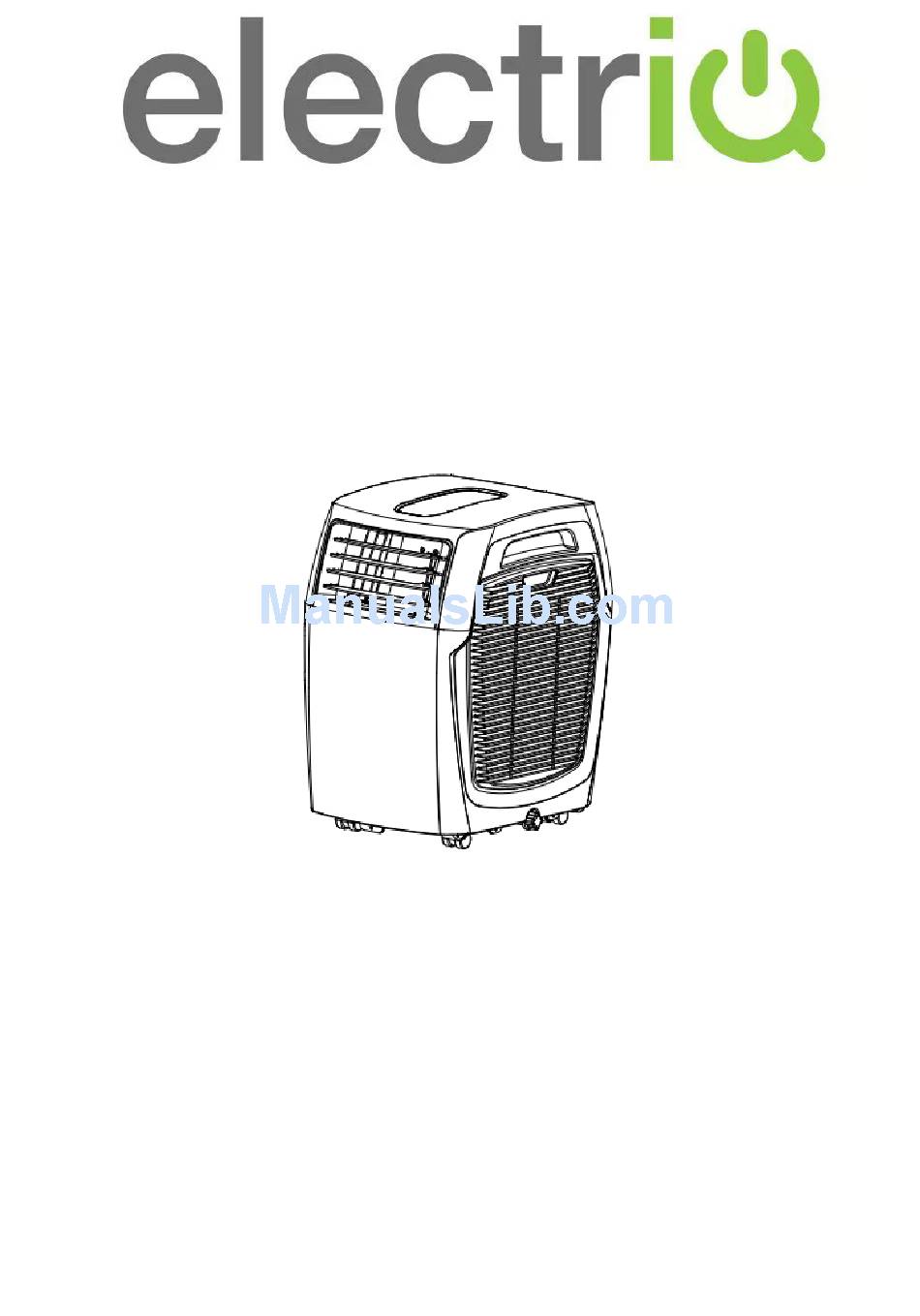

P15HP
PORTABLE AIR CONDITIONER WITH HEATPUMP
USER MANUAL
Thank you for choosing ElectriQ
Please read this user manual before using this innovative Air Conditioner and keep it safe for
future reference.
Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals
Page 1 of 15

Advertisement

loading
Need help?

Need help?

Do you have a question about the P15HP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ElectrIQ P15HP

Summary of Contents for ElectrIQ P15HP

  • Page 1 USER MANUAL Thank you for choosing ElectriQ Please read this user manual before using this innovative Air Conditioner and keep it safe for future reference. Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals Page 1 of 15...

  • Page 2: Table Of Contents

    CONTENTS 1．SAFETY INSTRUCTIONS ………………………………………………… 2．FEATURES AND PARTS LIST …………………………....3．INSTALLATION ………………………………….…………………….….. 4．OPERATION AND SETTINGS ………………………………………. 5．WATER-DRAINAGE ………………………………………………….……. 6．MAINTENANCE …………………………………………………………….. 7．TROUBLE SHOOTING ………………………………………………….. 8．APPENDIX …………………………………………………………………….. Page 2 of 15...

  • Page 3: 1．Safety Instructions

    SAFETY INSTRUCTIONS Important!  Carefully read the instructions before operating the unit  This appliance is for indoor use only.  Rating: This unit must be only connected to a 220-240 V / 50 Hz earthed outlet.  Installation must be in accordance with regulations of the country where the unit is used. ...

  • Page 4: 2．Features And Parts List

    Energy Saving and Unit Safety Protection Tips  Do not cover or restrict the airflow from the outlet or inlet grills.  For maximum performance the air conditioner should be situated at least 50cm from the walls or other objects. ...
  • Page 5 PARTS LIST 1. Control panel 6. Hot air filter 2. Remote control sensor 7. Water Drain hole 3. Adjustable air vent 8. Hot air outlet 4. Fish tail adaptor 9. Cool air filter 5. Exhaust hose ACCESSORIES Page 5 of 15...

  • Page 6: 3．Installation

    INSTALLATION Warning：Before using this unit, please keep it upright for at least 3-4 hours. This unit can easily be moved from one room to another. While moving the unit please note that it must always be kept upright and then placed on an even surface.
  • Page 7 Place the hose flush against the front of the opening and turn the hose clockwise to screw the thread of the hose into the body of the air conditioner (1). 8-10 turns should securely locate the hose. The hose can be removed by screwing the hose anti-clockwise (2) Page 7 of 15...
  • Page 8 INSTALLATION OF THE WINDOW KIT 1. Partially open the window and then fix the window kit to the window 2. Make sure the unit is upright and there are no obstructions to the air inlets and outlet grills 3. Fix the other end of the hose to the air-outlet window kit Note: The window kit is only designed to be installed with sliding or sash windows or doors.

  • Page 9: 4．Operation And Settings

    OPERATION AND SETTINGS CONTROL PANEL & FUNCTIONS 1. Power 2. Temperature down 3. Sleep 4. Fan speed 5. Temperature up 6. Timer 7. Mode 8. Fan speed low 9. Sleep mode active 10. Timer indicator 11. Cool mode indicator 12. Dehumidifier mode indicator 13.
  • Page 10 PROGRAMMABLE TIMER The in built timer will allow you to set the unit to turn on or turn off after a set period of time, Please note only one timer can be used at any time. On Timer – The timer will turn on the unit automatically after the time set has elapsed. 1.

  • Page 11: 5．Water-Drainage

    WATER-DRAINAGE MANUAL DRAINAGE: 1. When the internal water tank is full the unit will stop working and display “E2 or E4” on the display. 2. Turn off the unit using the power button and unplug from the mains. Try not to move the air conditioner abruptly as this may cause water to spill out from internal water tank.

  • Page 12: 6．Maintenance

    MAINTENANCE CLEANING Please shut off the unit and unplug from the mains before cleaning or performing any maintenance CLEAN THE SURFACE Clean the plastic housing with a duster or a soft wet cloth. Do not use chemical solvents (such as benzene, alcohol or gasoline) as they may cause irreversible damage.
  • Page 13 TROUBLESHOOTING Do not repair or disassemble the unit by yourself, unauthorized repair attempts will invalidate the warranty and may cause bodily harm. Trouble Reason Solution No power supply Power-on and turn on the unit. Water-full indicator illuminated Drain the internal water tank The unit does not Timer function is active Cancel Timer function...

  • Page 14: 8．Appendix

    APPENDIX Disposal: Do not dispose this product as unsorted municipal waste. Collection of such waste must be handled separately as special treatment is necessary. Recycling facilities are now available for all customers at which you can deposit your old electrical products. Customers will be able to take any old electrical equipment to participating civic amenity sites run by their local councils.
  • Page 15 ElectriQ UK SUPPORT www.ElectriQ.co.uk/support Please, for your own convenience, make these simple checks before calling the service line. If the unit still fails to operate call: 0871 620 1057 or complete the online form 1. Has the unit been standing upright for at least 2 hours? 2.
