3257$%/( $,5 &21',7,21(5
3257$%/( $,5
3257$%/( $,5
3257$%/( $,5
Please read this user manual before using this innovative Air Conditioner and keep it
Visit our page www.electrIQ.co.uk for our entire range of Intelligent Electricals
3/0+3
3/0+3
3/0+3
3/0+3
&21',7,21(5 :,7+ +($7
&21',7,21(5
&21',7,21(5
USER MANUAL
Thank you for choosing ElectrIQ.
safe for future reference.
:,7+ +($7 3803
:,7+ +($7
:,7+ +($7
Page 1 of 16
3803
3803
3803
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ElectrIQ PLM12000HP

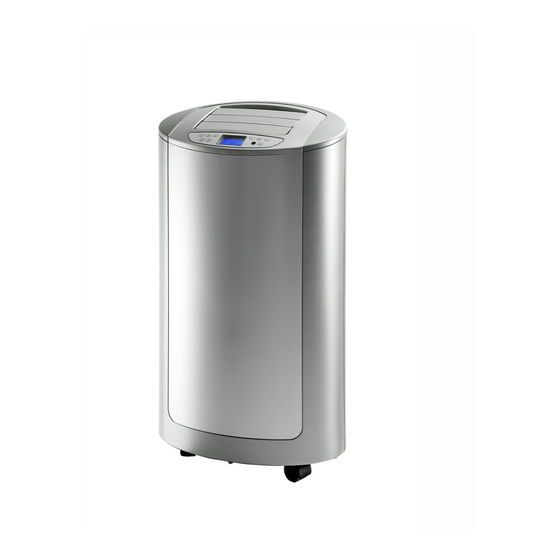

Summary of Contents for ElectrIQ PLM12000HP
-

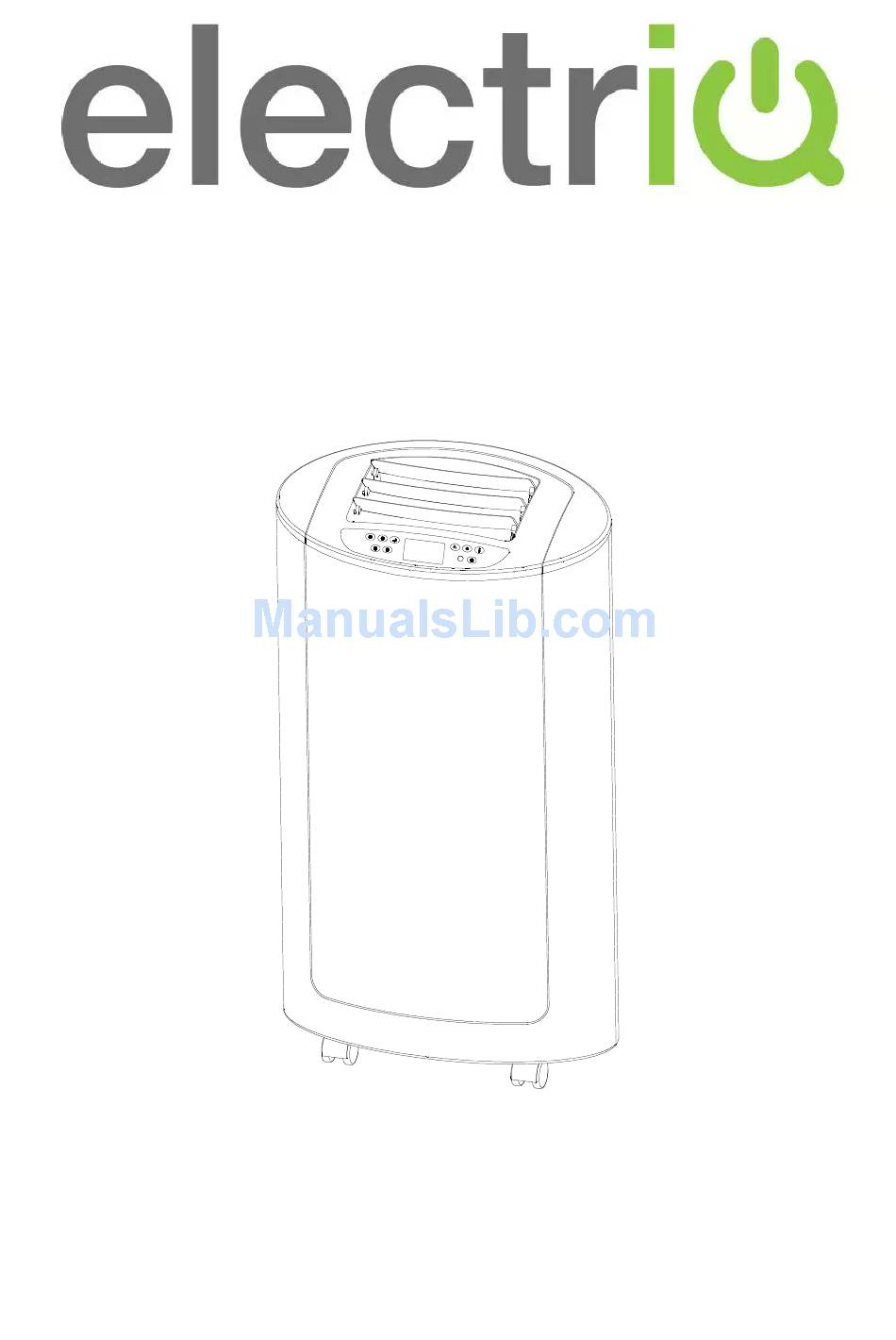

Page 1: User Manual
USER MANUAL Thank you for choosing ElectrIQ. Please read this user manual before using this innovative Air Conditioner and keep it safe for future reference. Visit our page www.electrIQ.co.uk for our entire range of Intelligent Electricals Page 1 of 16... -
Page 2: Table Of Contents
CONTENTS 1 SAFETY INSTRUCTIONS ………………………………….. 2 FEATURES AND PARTS LIST …………………………..3 INSTALLATION …………………………………. …………. 4 OPERATION AND SETTINGS …………………………….. 5 WATER-DRAINAGE …………………………………………. 6 MAINTENANCE ……………………………………………… 7 TROUBLE SHOOTING …………………………………. …. 8 APPENDIX ……………………………………………………. Page 2 of 16... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Important! • Carefully read the instructions before operating the unit • This appliance is for indoor use only. • Rating: This unit must be only connected to a 220-240 V / 50 Hz earthed outlet. • Installation must be in accordance with regulations of the country where the unit is used. •... -
Page 4: Features And Parts List
FEATURES AND PARTS LIST 1. Features Self-evaporative system - no external water tank needed Slim oval design - designer inspired luxury model Louvres outlet closes automatically when shutting down the unit, this prevents dust and dirt entering the machine. Bright LCD screen, indicates temperature and operation mode Remote control and power plug can be stored at the rear of the unit after use. -
Page 5: Parts List
2. Parts list 1. Top cover Upper filter frame 2. Air outlet grille 10. Protective net 3. Control panel 11. Lower filter frame 4. Front cover 12. Water plug 5. Castor 13. Remote control 6. -
Page 6: Installation
INSTALLATION 1. Installation Warning Before using this unit, please keep it upright for at least 3-4 hours. This unit can easily be moved from one room to another. While moving the unit please note that it must always be kept upright and then placed on an even surface. -
Page 7: Important Safeguards
7. Make sure the unit is upright and there are no obstructions to the air inlets and outlet grills 8. Fix the other end of the hose to the air-outlet window kit Note: The window kit is only designed to be installed with sliding or sash windows or doors. The window kit is not designed or to be used with any other style of windows. -
Page 8: Operation And Settings
OPERATION AND SETTINGS This portable air conditioner boasts four functions: cooling, heating, dehumidifying and fan. The fan has three speeds: high, medium and low Temperature range settings are: 18--30 The unit will also display operating function, temperature, fault diagnostic and protective functions on the LCD screen. - Page 9 1.6 Up and Down button: set temperature and timer . In cooling and heating mode, the temperature can range from 18- 30 Pressing buttons simultaneously, shifts between 1.7 Sleep mode key In cooling or heating mode, press the key and the unit will go into sleeping mode.
- Page 10 2. Remote control Drawing of Remote Control panel / 2 & . / 2 & . 5 ( 6 ( 7 5 ( 6 ( 7 Remote control for Cool only Remote control for Cool & Heat Power Press this key to turn the unit on/off. Mode Press this key to choose cooling, heating, dehumidifying or fan mode 3Up...
- Page 11 3. Multi protective function 3.1 Anti-freezing protecting control: When the ambient temperature is low while in Cooling Mode, the compressor and water motor will stop working if the copper coil temperature reaches <2 for over 20 seconds. When the copper coil temperature increases to >8 , the protection will be stopped automatically.
-
Page 12: Water-Drainage
WATER-DRAINAGE 1. Manual drainage: 1.1 When the internal water tank is full the unit will stop working. 1.2 Shut off the unit and unplug. Try not to move the model abruptly as this may cause water to spilt out from internal water tank. 1.3 Place a tray under the water plug. -
Page 13: Maintenance
Maintenance Cleaning. Please shut off the unit and unplug from the mains before cleaning or performing any maintenance Clean the surface Clean the plastic housing with a duster or a soft wet cloth. Do not use chemical solvents (such as benzene, alcohol or gasoline) as they may cause irreversible damage. -
Page 14: Trouble Shooting
Trouble Shooting Do not repair or disassemble the unit by yourself, unauthorized repair attempts will invalidate the warranty and may cause bodily harm. Trouble Reason Solution No power supply Power-on and turn on the unit. Water-full indicator illuminated Drain the internal water tank The unit does Timer function is active Cancel Timer function... -
Page 15: Appendix
APPENDIX Disposal: Do not dispose this product as unsorted municipal waste. Collection of such waste must be handled separately as special treatment is necessary. Recycling facilities are now available for all customers at which you can deposit your old electrical products. Customers will be able to take any old electrical equipment to participating civic amenity sites run by their local councils. - Page 16 ElectrIQ UK SUPPORT www.ElectrIQ.co.uk/support Please, for your own convenience, make these simple checks before calling the service line. If the unit still fails to operate call: 0871 620 1057 or complete the online form 1. Has the unit been standing upright for at least 2 hours? 2.
