Electrical System

Replacing Bulbs

To remove, push the bulb in and
turn to the left, then lift the bulb out.
To install, grip the bulb with a
paper tissue or similar cloth, align
the pins on the base of the bulb
with the grooves in the bulb socket,
>
push in lightly and turn to the right
until the stop is felt.
Install only bulbs of prescribed wat­
tage. Refer to "Technical Data and
last page".
Headlamp Aiming
Correct headlamp aiming is of para­
mount importance to the roadwor­
thiness of the car. Check and
readjust headlamps at regular inter­
vals and invariably when a lamp
has been replaced.
66

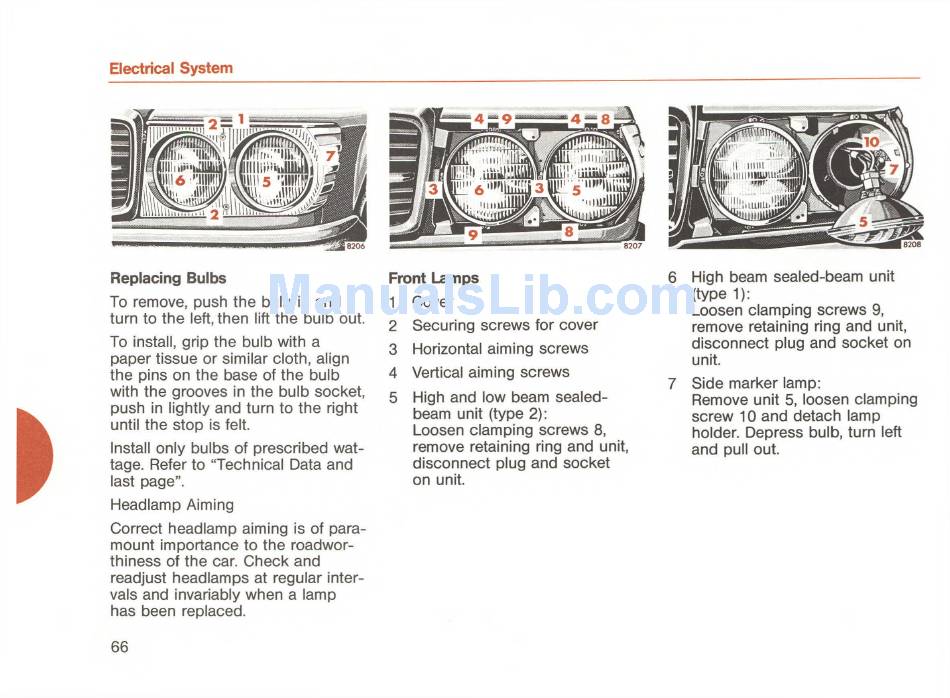

Front Lamps
1 Cover
2 Securing screws for cover
3 Horizontal aiming screws
4 Vertical aiming screws
5 High and low beam sealed-
2
beam unit (type ):
Loosen clamping screws
remove retaining ring and unit,
disconnect plug and socket
on unit.
6
High beam sealed-beam unit
1
(type ):
Loosen clamping screws 9,
remove retaining ring and unit,
disconnect plug and socket on
unit.
7 Side marker lamp:
Remove unit 5, loosen clamping
10
screw and detach lamp
8
,
holder. Depress bulb, turn left
and pull out.
