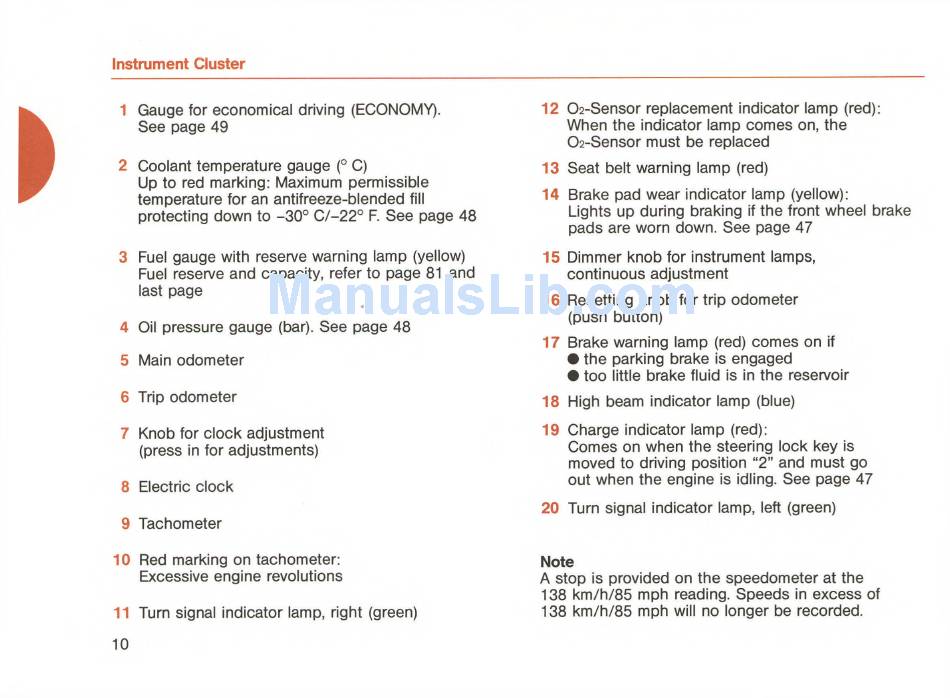

Instrument Cluster

1 Gauge for economical driving (ECONOMY).
See page 49
2 Coolant temperature gauge (° C)
Up to red marking: Maximum permissible
temperature for an antifreeze-blended fill
protecting down to -3 0 ° 0,1-22° F. See page 48
3 Fuel gauge with reserve warning lamp (yellow)
Fuel reserve and capacity, refer to page 81 and
last page
4 Oil pressure gauge (bar). See page 48
5 Main odometer
6 Trip odometer
7 Knob for clock adjustment
(press in for adjustments)
8 Electric clock
9 Tachometer
10 Red marking on tachometer:
Excessive engine revolutions
11 Turn signal indicator lamp, right (green)
12 02-Sensor replacement indicator lamp (red):
When the indicator lamp comes on, the
02-Sensor must be replaced
13 Seat belt warning lamp (red)
14 Brake pad wear indicator lamp (yellow):
Lights up during braking if the front wheel brake
pads are worn down. See page 47
15 Dimmer knob for instrument lamps,
continuous adjustment
16 Resetting knob for trip odometer
(push button)
17 Brake warning lamp (red) comes on if
• the parking brake is engaged
• too little brake fluid is in the reservoir
18 High beam indicator lamp (blue)
19 Charge indicator lamp (red):
Comes on when the steering lock key is
moved to driving position "2" and must go
out when the engine is idling. See page 47
20 Turn signal indicator lamp, left (green)
Note
A stop is provided on the speedometer at the
138 km /h/85 mph reading. Speeds in excess of
138 km /h/85 mph will no longer be recorded.
