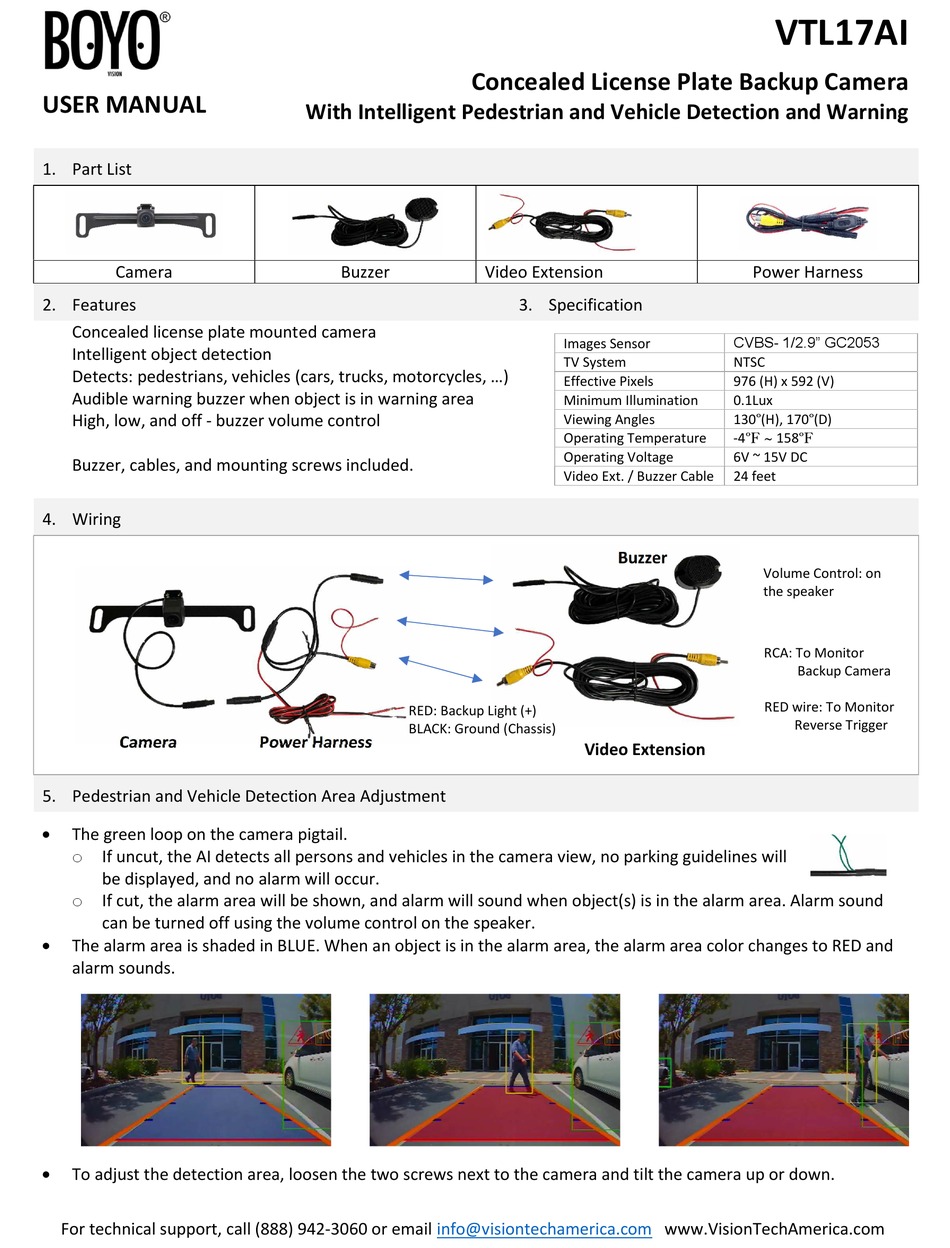

Boyo VTL17AI User Manual

USER MANUAL
1. Part List
Camera
2. Features
Concealed license plate mounted camera
Intelligent object detection
Detects: pedestrians, vehicles (cars, trucks, motorcycles, ...)
Audible warning buzzer when object is in warning area
High, low, and off - buzzer volume control
Buzzer, cables, and mounting screws included.
4. Wiring
Camera
5. Pedestrian and Vehicle Detection Area Adjustment

The green loop on the camera pigtail.
o If uncut, the AI detects all persons and vehicles in the camera view, no parking guidelines will
be displayed, and no alarm will occur.
o If cut, the alarm area will be shown, and alarm will sound when object(s) is in the alarm area. Alarm sound
can be turned off using the volume control on the speaker.

The alarm area is shaded in BLUE. When an object is in the alarm area, the alarm area color changes to RED and
alarm sounds.

To adjust the detection area, loosen the two screws next to the camera and tilt the camera up or down.
For technical support, call (888) 942-3060 or email
With Intelligent Pedestrian and Vehicle Detection and Warning
Buzzer
RED: Backup Light (+)
BLACK: Ground (Chassis)
Power Harness
info@visiontechamerica.com

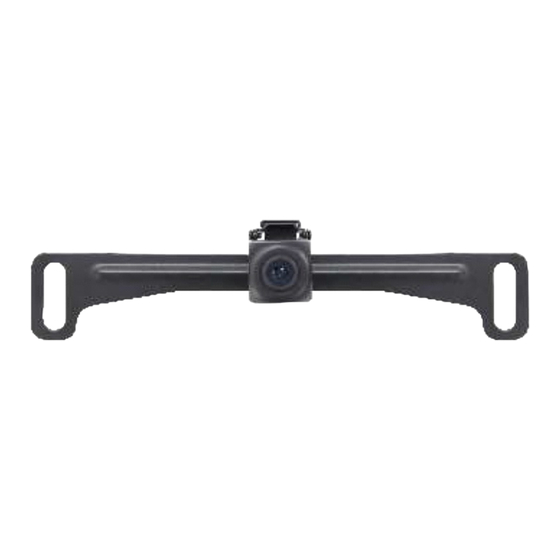

Concealed License Plate Backup Camera
Video Extension
3. Specification
Images Sensor
TV System
Effective Pixels
Minimum Illumination
Viewing Angles
Operating Temperature
Operating Voltage
Video Ext. / Buzzer Cable
Buzzer
Video Extension
VTL17AI
Power Harness
CVBS- 1/2.9" GC2053
NTSC
976 (H) x 592 (V)
0.1Lux
130 (H), 170 (D)
-4 158
6V ~ 15V DC
24 feet
Volume Control: on
the speaker
Backup Camera
RCA: To Monitor
Backup Camera
RED wire: To Monitor
Reverse Trigger
