HITEC SPECTRA 2.4J Instructions

HITEC SPECTRA 2.4J
AFHSS Module Instruction
• Risk of explosion if battery is replaced by an incorrect type.
Dispose of used battery according to the instructions.
European CE notice to users and product statements.
This product is CE marked according to the provisions of the R&TTE Directive(99/5/EC).
Hereby, HITEC RCD Inc. declares that this product is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
For further information, please contact http://www.hitecrcd.co.kr
FCC notice to users and product statements:
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
CAUTION: Changes or modi cations not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
• FRANCE Frequency Range : 2.4056GHz~ 2.4482GHz
Introduction
Thank you for your purchase of the Hitec Adaptive Frequency Hopping Spread Spectrum or AFHSS, 2.4GHz
module and receiver system. This manual contains the complete directions on how to use the Optima series
receivers and Spectra 2.4GHz module. We encourage you to review the entire manual before using these
products.
Service & Support
Hitec Customer Service
Help is available from Hitec customer service through phone support and e-mail inquiries.
Our US o ce is open Monday thru Friday, 8:00AM to 4:30PM PST. These hours and days may vary by season. We
make every attempt to answer all incoming service calls; should you reach our voicemail, please leave your
name and number and a sta member will promptly return your call.
Hitec Website
We invite you to regularly visit our website at www.hitecrcd.com for speci cation information and descriptions
of our entire product line. Our FAQ pages provide valuable information as well as program updates on the
Spectra 2.4GHz module and Optima series of receivers.
The On-Line Community
One of the bene ts of the extensive RC on-line community is the vast wealth of archived information available.
Hitec sponsors forums on most of the popular RC websites where a Hitec sta member or representative
answers product-related questions. Bringing together strangers with common interests is proving to be one of
the greatest gifts of the internet. If past history is any guide to the future, we are certain forums will be started
about the Hitec 2.4GHz system creating valuable archived information for future access.
Warranty and Non-Warranty Service
All Hitec products carry a two-year warranty against manufacturing defects from date-of- purchase. Our trained,
professional service representative will determine if the item will be repaired or replaced. Please complete and
include the repair form at www.hitecrcd.com when you return your item so that we may administer your repair
promptly.
Hitec Service
12115 Paine St. Poway CA 92064
1-858-748-6948
E-mail: service@hitecrcd.com
1. For maximum performance, we recommend positioning the antenna at a 90 degree
angle as shown below.
Recommended Position
2. The receiver antenna should not be placed near
version 1.3
the engine, metal parts or high current batteries.
3. When using a large number of high-power digital
servos, we recommend using the SPC feature to
insure the receiver gets the power it needs in
high-load conditions.
4. Depending on ying conditions, you may possibly
experience a time delay in receiving telemetry
data from the HTS-SS (Sensor Station).
* Above image is di erent than the actual transmitter used. JR* transmitter is required to work this module properly.
*JR is a registered trademark of Japan Remote Control Corporation of Japan

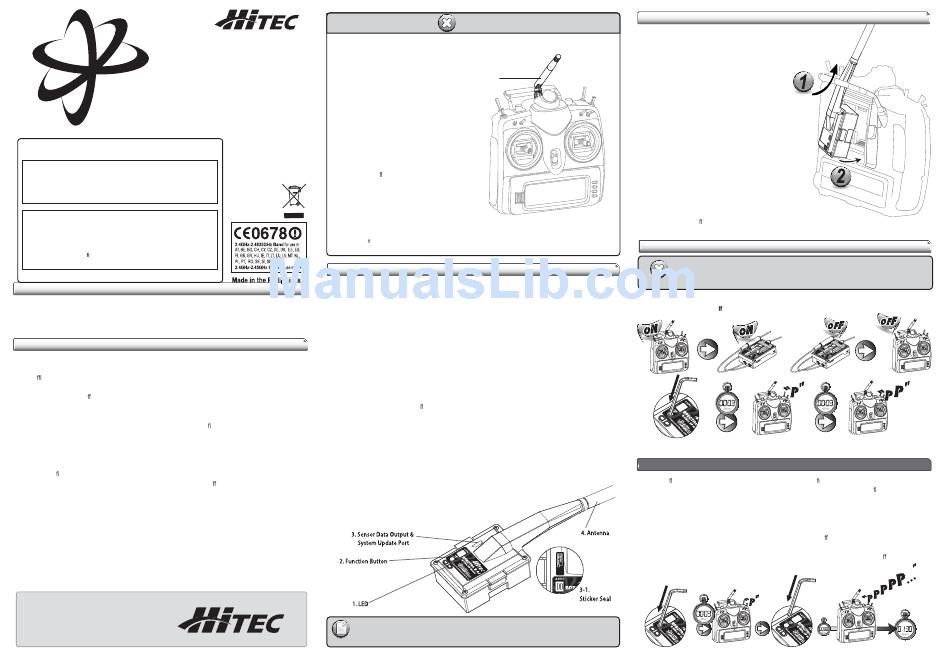

Spectra 2.4 Module Features
AFHSS 2.4GHz Telemetric Module
Stock # 28315
1. Dual Blue and Red Status Indicator LEDs
- Indicates the set-up process codes and current status of the module.
2. Function Button
- Used for linking the module to a receiver, entering the "power down" mode for range checks and switching
system to the Scan / Normal Mode set-up.
3. Sensor Data Output and System Update Connector Port
- A three-pin servo connector port is featured on the Spectra 2.4GHz module allowing you to upgrade the
device software as well as download any information recorded when using Hitec's AFHSS 2.4GHz optional
on-board sensors. This port also interfaces with our new Telemetry System Sensor Station, allowing real-time
data display on the ground when ying with the Aurora 9 transmitter.
4. Adjustable Omnidirectional Antenna
- The Spectra 2.4GHz antenna is an omnidirectional antenna which can transmit and receive the transmitter
and receiver data.
For the best reception, refer to the set-up example picture in the above Warning box.
5. Compatible Transmitters
- The Spectra 2.4GHz module and antenna can be used with the following Hitec transmitters:
Eclipse 7, Optic 6, Aurora 9 and all future Hitec module-type transmitters.
- In all cases, any transmitter using the Spectra 2.4GHz module will be compatible only with
Hitec AFHSS 2.4GHz series receivers.
With the exception of the Aurora 9 and future Hitec 2.4GHz models, all other transmitter
modules should be set up as PPM.
Note
Warning!
Before each ight, it is critical that you perform a range check to con rm the signal between the receiver and
transmitter is appropriate. Unlike the FM/PPM or PCM signal radios, 2.4GHz systems use a xed, shorter
transmitter antenna commonly called a "rubber duck" antenna. Therefore, the traditional method of range
check, lowering the transmitter antenna, is not applicable.
The Hitec 2.4GHz system uses a "power down" mode to reduce the transmitter signal strength.
Once the "power down" mode is activated, it runs for about 90 seconds e ectively shortening the range to 30
meters or 100 feet. During this "power down" mode, you should walk away from the secured aircraft carrying the
transmitter to a minimum distance of approximately 30 meters or 100 feet in order to test the e ective range.
How to use "Power Down"
Spectra 2.4J Module Installation
- Installing Spectra 2.4J module to your JR* transmitter is as easy
as one, two, three. simply slide the module through the carrying
handle bar and slide-in the module to the module slot of the
transmitter, until you hear the 'click' sound. Turn the power
on of the transmitter and the receiver, wait until the
Spectra 2.4J moudle and Optima receiver get connected.
Now you are ready to y, and you can experience Hitec's AFHSS 2.4GHz telemetry system, which will teach you
the whole new way of enjoy your R/C.
General Use Guidelines
* When the Spectra 2.4J module is used for JR* radios, the PPM mode is required to be
activated for proper work.
Warning
General Use Guidelines
To turn the system on and o , use the following sequence at all times.
www.hitecrcd.com
Press & Hold Button Range Check Mode
Range Check Function
www.hitecrcd.com
www.hitecrcd.com
Scan/Normal Mode
