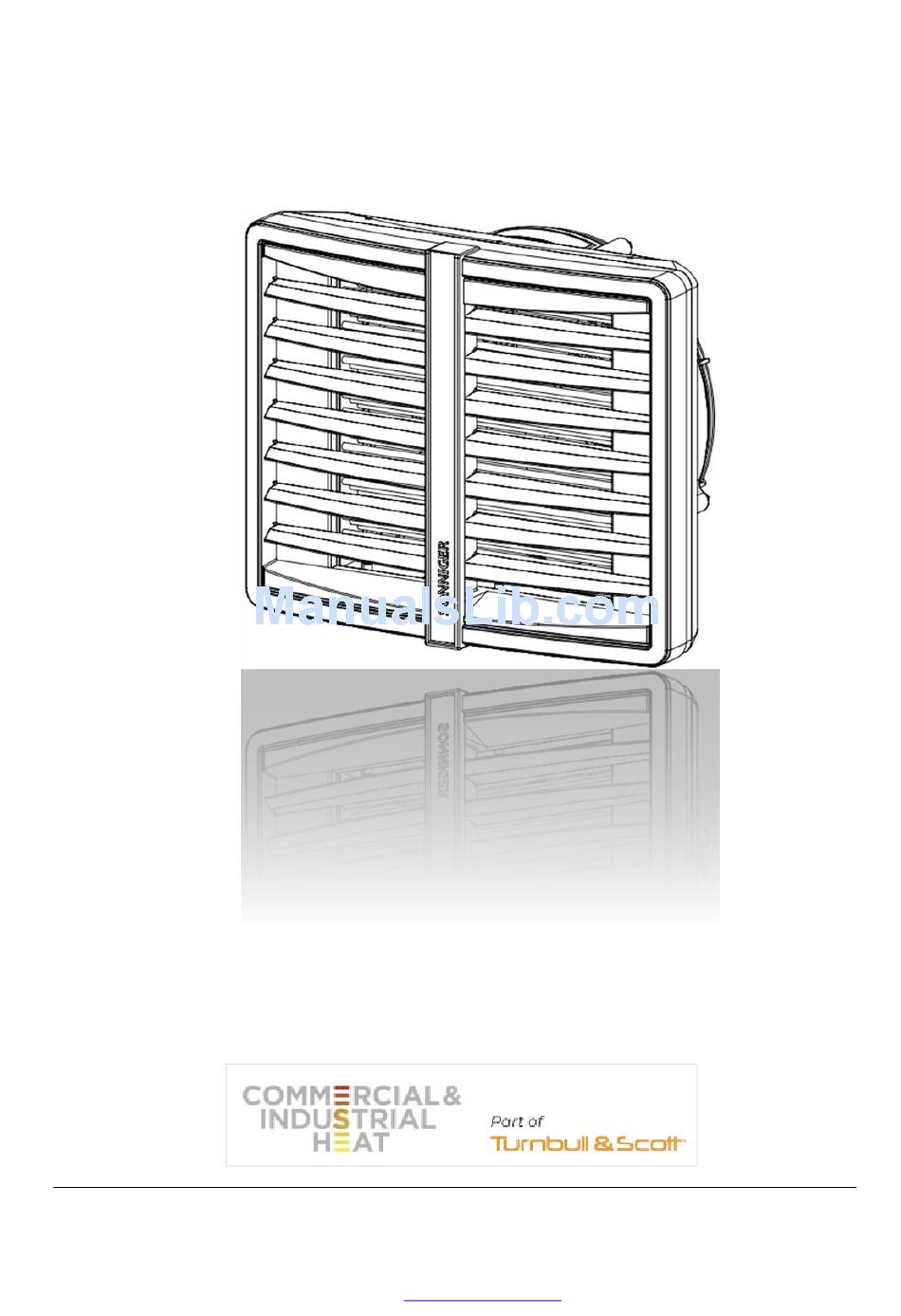

- Page 1 Technical Documentation water fan HEATER T&S OPERATION AND MAINTENANCE DOCUMENTATION Commercial Industrial Heat Limited Unit 1A Burnfoot Industrial Estate Hawick, TD9 8SL Tel: +44 (0) 1450 372103, Fax: +44 (0) 1450 377800 Website: www.turnbull-scott.co.uk Email: Info@turnbull-scott.co.uk...
- Page 2 Technical Documentation water fan HEATER T&S INTRODUCTION HEATER heating and ventilation devices are designed to be applied in the buildings of small and medium capacity, especially such as: production and warehouse halls, car showrooms and service stations, sports halls and stadiums, sacral buildings and churches, retail stores and wholesales outlets, agricultural facilities, exhibition surfaces.
-
Page 3: General Information
Technical Documentation water fan HEATER T&S 3. GENERAL INFORMATION HEATER heating and ventilation devices are manufactured in compliance with standards concerning quality, ecology, utility and work comfort. HEATER devices are delivered ready-to-use in a cardboard package that is to protect from mechanical damages. The package consists of: the device, the Manual (Operation and Maintenance Documentation) and Guarantee. -
Page 4: Instalacja Elektryczna
Technical Documentation water fan HEATER T&S Mounting bracket to the heater The bracket set consists of: a holder, two sleeves, two M8 screws and washers. In order to mount the bracket, drill two Ø12- 13mm holes in places visibly marked on the casing. -
Page 5: Electrical Installation
Guarantee and the user will be charged with any costs of the device exchange. The connection of the automatic control should be carried out in accordance with the electrical diagram. In case of any doubts or problems, unplug the device and contact the device’s installer or SONNIGER Authorized Service. 6. WATER INSTALLATION The installation of the unit should be done in a way enabling maintenance service;... -
Page 6: First Start
In case of any metallic knocks, vibration or increase in sound level check if the fan mounting/fixing does not work loose contact the installer or SONNIGER Authorized Service 11. MAINTENANCE The heat exchanger requires systematical cleaning all dirt’s /impurities off. Before the start of the heating period the heat exchanger is advised to be cleaned with compressed air directed to the air outlets;... - Page 7 Technical Documentation water fan HEATER T&S 12. TECHNICAL PARAMETERS HEATER...
-
Page 8: Electrical Connection Diagrams
Technical Documentation water fan HEATER T&S 13. ELECTRICAL CONNECTION DIAGRAMS 1. Connecting HEATER with no automatic control * The unit set does not consist of: a master switch, a fuse, a feeding cable Fan wiring description high speed – brown middle speed –... - Page 9 Technical Documentation water fan HEATER T&S 3. Connecting HEATER units with INTELLIGENT panel. Intelligent PSH panel controls actuators/valves and automatically regulates fans’ speed depending on the required room temperature. Fans speed changes automatically for lower rate, when temperature in a room gets closer to desired one. Additional functions –...
- Page 10 Technical Documentation water fan HEATER T&S 5. Connection of HEATER unit with transformer speed regulator. * When using transformer speed regulator please use only maximum speed connector on a fan - U1 high speed...
- Page 11 Technical Documentation water fan HEATER T&S 14. INTELLIGENT automatic control – PROGRAMMABLE LOGIC CONTROLLER MANUAL The control panel that is equipped with a weekly programmer selects speed of a device automatically depending on required/set temperature. The lower the room temperature is, the higher the air output is. Any change of fan speed is automatic, without user’s manual intervention.
- Page 12 Technical Documentation water fan HEATER T&S Controller programming; Controller is factory pre-programmed as follows: Heating (Mon. – Fri.) Cooling (Mon. – Fri) Heating (Sat. – Sun.) Cooling (Sat. – Sun.) Hours Programme Alarm 22°C 24°C 22°C 24°C (07:00) 16°C 28°C 16°C 28°C (09:30)
-
Page 13: Guarantee Terms And Conditions
Technical Documentation water fan HEATER T&S GUARANTEE TERMS AND CONDITIONS General In these Conditions of Sale:- “The seller means Commercial Industrial Heat Ltd, “the buyer means a buyer of any goods from the seller and “the goods means any goods sold by the seller to the buyer. The seller only does business upon the terms of these Conditions of Sale which shall be deemed to be incorporated into any contract between the buyer and the seller. - Page 14 Technical Documentation water fan HEATER T&S rights”) and will in no way affect the statutory rights of the buyer and in particular, in the case of a consumer sale, none of the statutory rights are excluded by condition 3 (e) above. All goods are sold explicitly on the understanding that they will be used only in the prescribed manner as designed.
- Page 15 Technical Documentation water fan HEATER T&S Before payment in full for the goods has been received by the seller, the buyer (acting on its own account and not as agent of the seller) is licensed by the seller to agree to sell any of the goods in its possession in the ordinary course of its business provided that the seller has not required the return of the goods.
-
Page 16: Warranty Card
Technical Documentation water fan HEATER T&S WARRANTY CARD INVESTMENT NAME……………………………………………………………….. Unit type………………………………………………………………………………………………… Unit number…………..………………………………………………………………………………. Purchase date….…………………………………………………………………………....Startup date……… ………………………………………………………………………………….. Installation company date: :……………………………………………………….. Name of startup Installer Company name..……………………………………………………………………………………….. ……………………………………………………………………………………………………………. Address:.……………………………………………………………………………..………………….. Phone..…………………………………………………………………………………………………… Signature of startup installer……………..:…………………………………………………………… Maintenance and repair registration: Stamp and signature Maintenance and repair description date...
