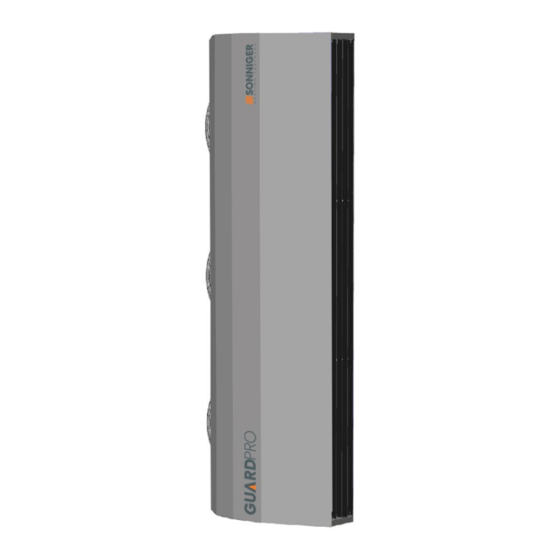

Operation and Maintenance Documentation of GUARD PRO air curtains GUARD PRO EC v202210

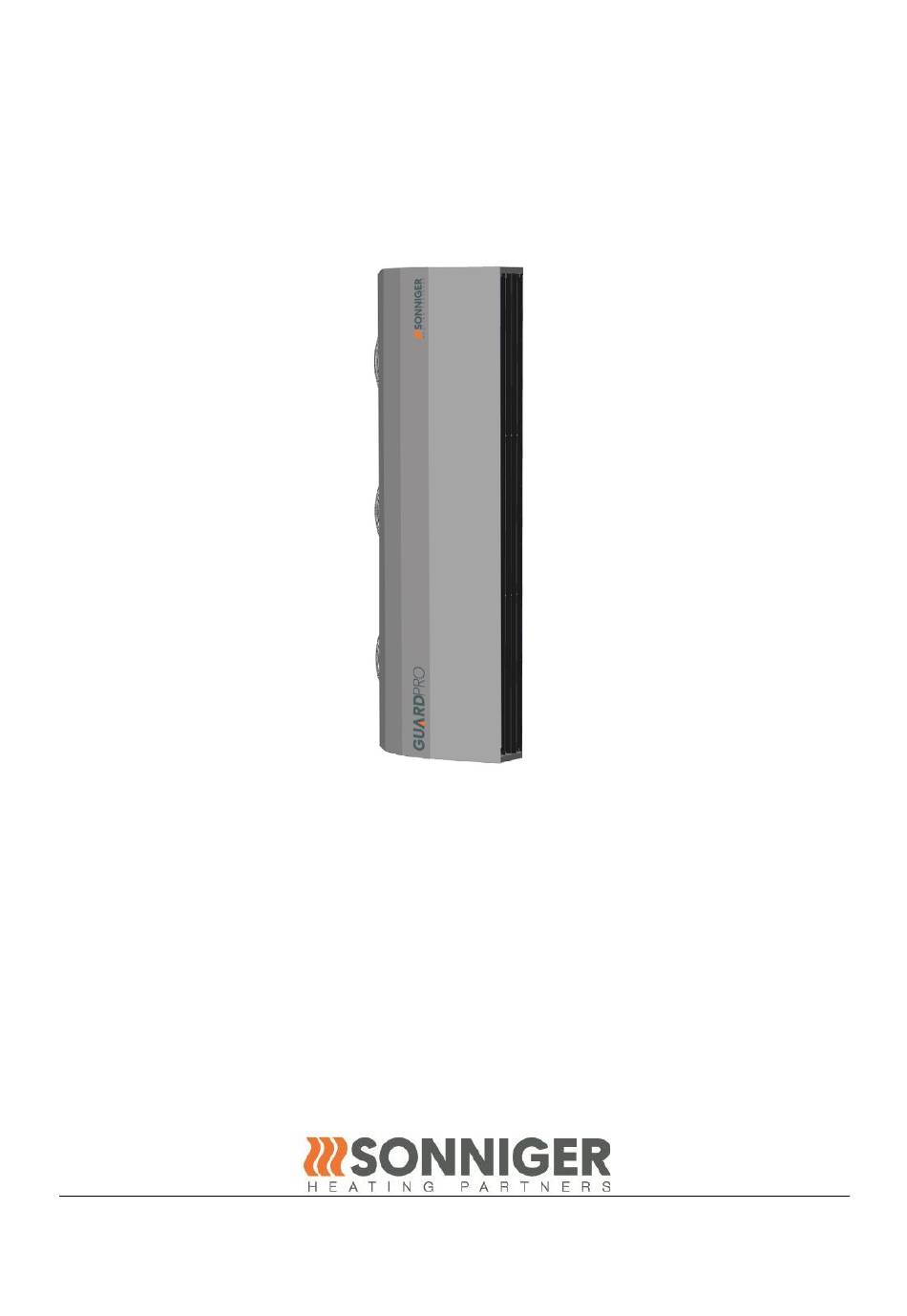

Operation and Maintenance Documentation GUARD PRO
SONNIGER S.A.
ul. Śląska 35/37, 81-310 Gdynia, Poland, infolinia 801 055 155, tel. + 48 58 785 34 80, www.sonniger.com
Sąd Rejonowy Gdańsk-Północ, VIII Wydział Gospodarczy Krajowego Rejestru Sądowego, KRS 0000966611, NIP 586 227 35 14
Regon 22154369 kapitał zakładowy: 1.655.000 PLN
Advertisement
Table of Contents
Related Manuals for Sonniger GUARDPRO
Summary of Contents for Sonniger GUARDPRO
- Page 1 Operation and Maintenance Documentation GUARD PRO SONNIGER S.A. ul. Śląska 35/37, 81-310 Gdynia, Poland, infolinia 801 055 155, tel. + 48 58 785 34 80, www.sonniger.com Sąd Rejonowy Gdańsk-Północ, VIII Wydział Gospodarczy Krajowego Rejestru Sądowego, KRS 0000966611, NIP 586 227 35 14...
-
Page 2: Purpose Of The Device
Loading/unloading sections in supermarkets and large commercial premises, Car showrooms and service stations, exhibition surfaces BASIC TECHNICAL PARAMETERS GUARD PRO GUARD PRO Curtain with water heater Curtain with electric heater Curtain without heater GUARDPRO GUARDPRO GUARDPRO GUARDPRO GUARDPRO GUARDPRO PARAMETERS 150W... - Page 3 Operation and Maintenance Documentation of air curtains GUARD PRO EC v202210 DIMENSIONS GUARD PRO 200W, 200E 200C PTC HEATERS GUARD PRO type E air curtain is equipped with modern PTC electric heaters. PTC are thermistors which means that along with the temperature increase the resistance of the heating element increases as well.
- Page 4 4.1. CONNECTING GUARD PRO CURATAINS The GUARDPRO multi-purpose connector is designed to connect curtains and to mount curtains to the ceiling (in case of horizontal mounting) or to the wall (in case of vertical mounting). The GUARDPRO multi-purpose connector is not included in the content of the delivery and is available optionally. The connector should be installed in accordance with the figures below.
- Page 5 300 mm between the outlet casing and the wall. To mount two GUARDPRO curtains one above the other, it is necessary to use the GUARDPRO multi-purpose connector to install the curtain to the wall. To mount GUARDPRO curtain to the floor, use...
-
Page 6: Electrical Connection Diagrams
Operation and Maintenance Documentation of air curtains GUARD PRO EC v202210 HEAT OUTPUT RANGES GUARD PRO 150W 50/30 60/40 70/50 80/60 90/70 inlet/outlet water temperature inlet air temperature air flow 6500 m /h (speed 3) 13,5 10,9 18,3 16,1 13,7 11,3 23,4 21,3 19,1 16,9 14,8 28,0 25,8 23,6 21,5 19,3 32,5 30,3 28,2 26,0 23,8 heat output outlet air temperature ˚C... - Page 7 Operation and Maintenance Documentation of air curtains GUARD PRO EC v202210 6.1. CONNECTION SCHEME FOR GUARD PRO TYPE E (ELECTRIC HEATER) WITH THE MULTI 10 EC CONTROL BOX (UP TO 10 UNIT) Power supply cables not included...
-
Page 8: Operation And Maintenance
Doorswitch. NOTICE ! Power supply for PTC heaters are 3x400V/50Hz For GUARDPRO 150E use wire min. 5x6mm , fuse B25 For GUARDPRO 200E use wire min. 5x6mm , fuse C32 HYDRONIC CONNECTION Water connections are located at the back of the unit on the right side. - Page 9 Intelligent WIFI EC allow to manage works of device via mobile app TUYA SMART. Functions Panel INTELLINGENT WIFI EC is designed for the SONNIGER products Weekly thermostat (5/1/1 days) ...
- Page 10 Operation and Maintenance Documentation of air curtains GUARD PRO EC v202210 Dimensions Settings menu When Panel Intelligent is switched off, press and hold MODE for 5 seconds To change option use MODE button. To change value use +/- buttons. Setting menu Option Value Temperature calibration...
-
Page 11: Spare Parts Catalogue
Operation and Maintenance Documentation of air curtains GUARD PRO EC v202210 BMS Functions Setting/Reading work parameters Work/Stop conditions Weekly program Temperature Fan speed Heating, ventilation, cool mode Antifreeze mode Setting Paremeters Working Mode RS485 Semi-duplex; PC or main controller is master; thermostat is slave Interface A(+),B(-), 2 wires Baud Rate... -
Page 12: Guarantee Terms And Conditions
Operation and Maintenance Documentation of air curtains GUARD PRO EC v202210 COMPLIANCE WITH WEEE 2012/19 / EU In accordance with applicable legal regulations, at the time of purchasing new electrical or electronic equipment with the following mark: REMEMBER IT IS FORBIDDEN TO PLACE THE WORN EQUIPMENT WITH OTHER WASTE For information on the waste collection system of electrical and electronic equipment, please contact your distributor GUARANTEE TERMS AND CONDITIONS... - Page 13 The Claimant is obliged to give a written confirmation of the service provided. Sonniger Poland is entitled to refuse the warranty service if Sonniger Poland has not received full payment for the product complained about under the Guarantee or any previous servicing activities.
- Page 14 Operation and Maintenance Documentation of air curtains GUARD PRO EC v202210 WARRANTY CARD INVESTMENT NAME……………………..…………………….………………………….. UNIT TYPE………………………………………………………………………………… UNIT NUMBER…………..…………………………………………………………………... PURCHASE DATE….………………………………………………………………………. STARTUP DATE……………………………………………………………………………… INSTALLATION COMPANY DATE: NAME OF STARTUP INSTALLER:…………………………………………………… COMPANY NAME..………………………………………………………………………… …………………………………………………………………………………………………. ADDRESS:.………………………………………………………………………………..PHONE..…………………………………………………………………………………... SIGNATURE OF STARTUP INSTALLER……………..:……………………………… MAINTENANCE AND REPAIR REGISTRATION: Stamp and signature of Date Maintenance and repair description...
