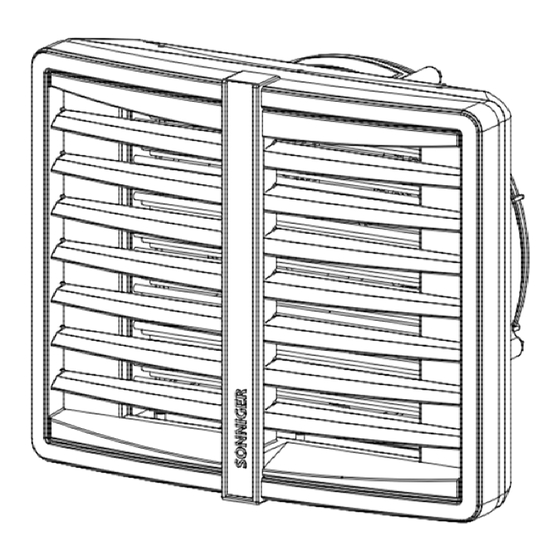

Sonniger Heater R2 Operation And Maintenance Manual
Hide thumbs
Also See for Heater R2:
- Operation and maintenance manual (17 pages) ,
- Operation and maintenance documentation (15 pages)
Advertisement
Quick Links

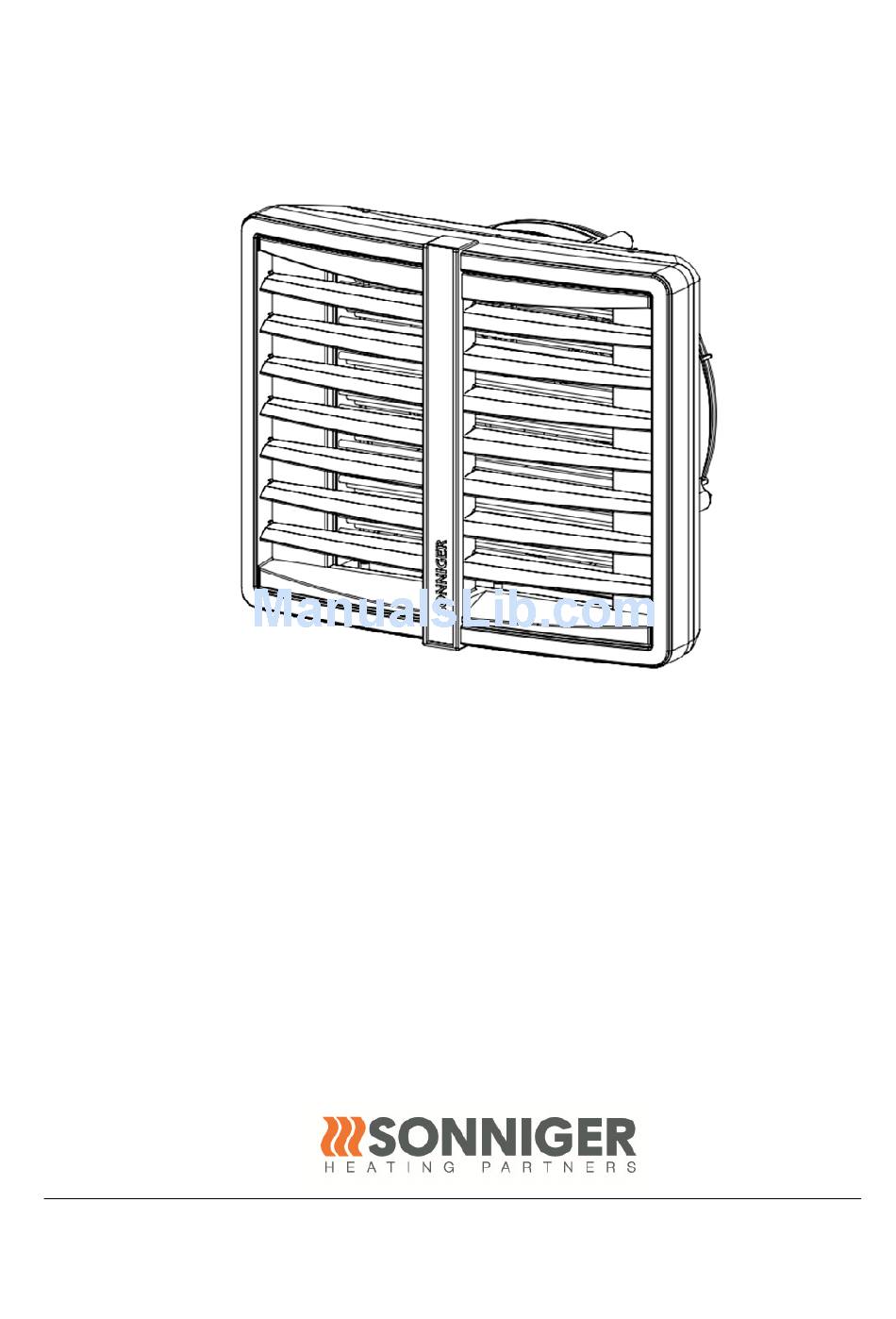

Technical Documentation waterfan HEATER
OPERATION AND MAINTENANCE DOCUMENTATION
SONNIGER Polska Sp. z o.o. Sp.K.
ul. Śląska 35/37, 81-310 Gdynia, Poland, tel. + 48 58 785 34 80, www.sonniger.com
Sąd Rejonowy Gdańsk-Północ, VIII Wydział Gospodarczy Krajowego Rejestru Sądowego, KRS 0000504509,
NIP 586 227 35 14,Regon 22154369 kapitał zakładowy: 1.655.000 PLN
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sonniger Heater R2
Summary of Contents for Sonniger Heater R2
- Page 1 OPERATION AND MAINTENANCE DOCUMENTATION SONNIGER Polska Sp. z o.o. Sp.K. ul. Śląska 35/37, 81-310 Gdynia, Poland, tel. + 48 58 785 34 80, www.sonniger.com Sąd Rejonowy Gdańsk-Północ, VIII Wydział Gospodarczy Krajowego Rejestru Sądowego, KRS 0000504509, NIP 586 227 35 14,Regon 22154369 kapitał zakładowy: 1.655.000 PLN...
- Page 2 Technical Documentation waterfan HEATER INTRODUCTION HEATER heating and ventilation devices are designed to be applied in the buildings of small and medium capacity, especially such as: production and warehouse halls, car showrooms and service stations, sports halls and stadiums, sacral buildings and churches, retail stores and wholesales outlets, agricultural facilities, exhibition surfaces.
- Page 3 Technical Documentation waterfan HEATER 3. GENERAL INFORMATION HEATER heating and ventilation devices are manufactured in compliance with standards concerning quality, ecology, utility and work comfort. HEATER devices are delivered ready-to-use in a cardboard package that is to protect from mechanical damages. The package consists of: the device, the Manual (Operation and Maintenance Documentation) and Guarantee.
- Page 4 Technical Documentation waterfan HEATER Mounting bracket to the heater The bracket set consist of: a holder, two sleeves, two M8 screws and washers. In order to mount the bracket, drill two Ø12- 13mm holes in places visibly marked on the casing. Insert sleeves into drilled holes and place the bracket in.
- Page 5 Guarantee and the user will be charged with any costs of the device exchange. The connection of the automatic control should be carried out in accordance with the electrical diagram. In case of any doubts or problems, unplug the device and contact the device’s installer or SONNIGER Authorized Service. 6. WATER INSTALLATION The installation of the unit should be done in a way enabling maintenance service;...
- Page 6 NOTICE ! In case of any metallic knocks, vibration or increase in sound level check if the fan mounting/fixing does not work loose contact the installer or SONNIGER Authorized Service 11. MAINTENANCE The heat exchanger requires systematical cleaning all dirts /impurities off. Before the start of the heating period the heat exchanger is advised to be cleaned with compressed air directed to the air outlets;...
- Page 7 Technical Documentation waterfan HEATER 12. TECHNICAL PARAMETERS HEATER...
- Page 8 Technical Documentation waterfan HEATER 13. ELECTRICAL CONNECTION DIAGRAMS Connecting HEATER with no automatic control * The unit set does not consist of: a master switch, a fuse, a feeding cable Connecting a few HEATER units with automatic control. Manual/programmable thermostat controls only valves with actuators.
- Page 9 Technical Documentation waterfan HEATER Connecting a few HEATER units with automatic control. Manual/programmable thermostat controls valves with actuators and fans. “S” connector – coil AC 230V, current of contacts is proportional to power consumption of connected fans, voltage of contacts AC 230V. Do not use “S”...
- Page 10 Technical Documentation waterfan HEATER 14. INTELLIGENT automatic control – PROGRAMMABLE LOGIC CONTROLLER MANUAL The control panel that is equipped with a weekly programmer selects speed of a device automatically depending on required/set temperature. The lower the room temperature is, the higher the air output is. Any change of fan speed is automatic, without user’s manual intervention.
- Page 11 Technical Documentation waterfan HEATER Controller programming; Controller is factory pre-programmed as follows: Hours Programme Heating (Mon. – Fri.) Cooling (Mon. – Fri) Heating (Sat. – Sun.) Cooling (Sat. – Sun.) Alarm 22° C 24° C 22° C 24° C (07:00) 16°...
- Page 12 - water condensation and frost/ice near the device, - thermal shock of the heater and heat exchanger caused by sudden changes of outside temperature. §3 SONNIGER is not liable to: Current maintenance works, inspections following from Operation and Maintenance Documentation and device programming.
- Page 13 The Claimant is obliged to give a written confirmation of the service provided. SONNIGER is entitled to refuse the warranty service if SONNIGER has not received full payment for the product complained about under the Guarantee or any previous servicing activities.
-
Page 14: Warranty Card
Technical Documentation waterfan HEATER WARRANTY CARD INVESTMENT NAME……………………………………………………………….. Unit type………………………………………………………………………………………………… Unit number…………..………………………………………………………………………………. Purchase date….…………………………………………………………………………....Startup date……… ………………………………………………………………………………….. Installation company date: :……………………………………………………….. Name of startup Installer Company name..……………………………………………………………………………………….. ……………………………………………………………………………………………………………. Address:.……………………………………………………………………………..………………….. Phone..…………………………………………………………………………………………………… Signature of startup installer……………..:…………………………………………………………… Maitanance and repair registration: Stamp and signature Maitanance and repair description date of installation...
