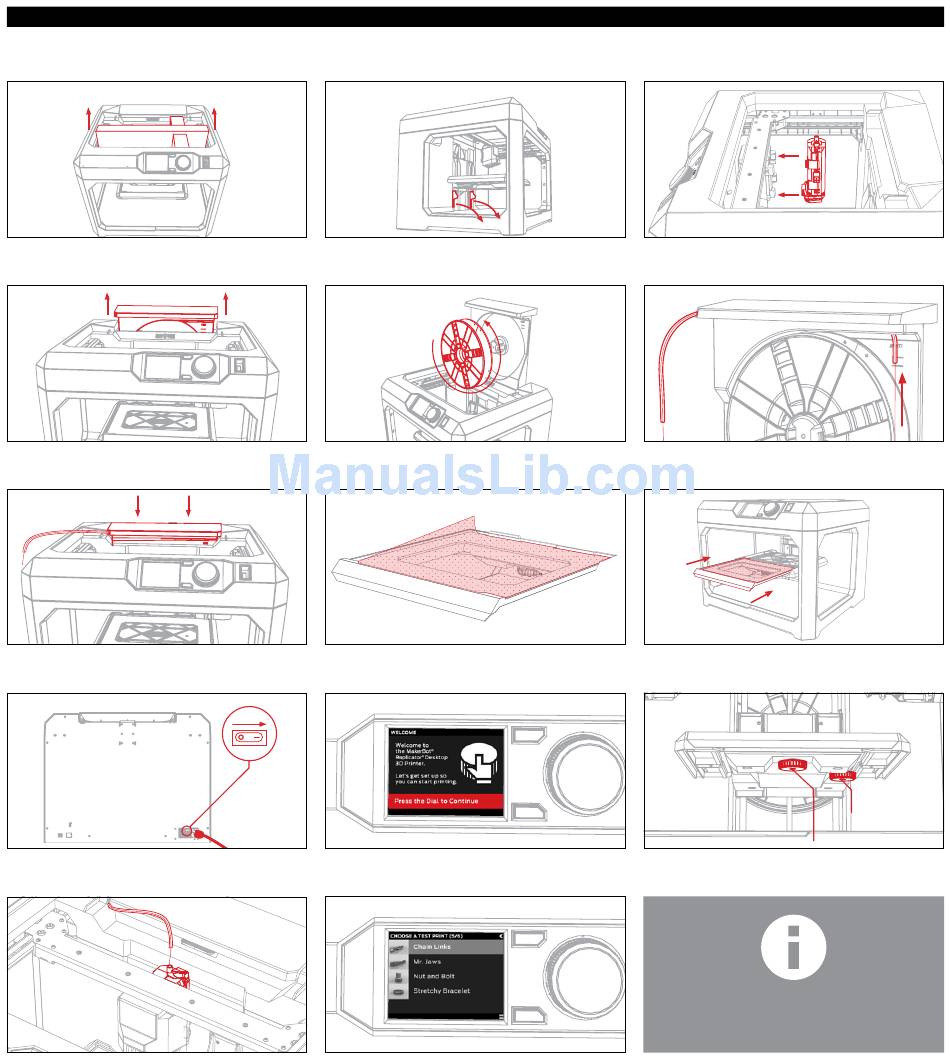

MakerBot Replicator Quick Start Manual page 2

1. REMOVE PACKAGING MATERIAL
4. LIFT FILAMENT DRAWER
7. MOVE TUBE ASIDE AND CLOSE DRAWER
10. PLUG IN AND POWER ON
13. LOAD FILAMENT
READ OTHER SIDE BEFORE STARTING
2. REMOVE CLIPS
5. LOAD FILAMENT SPOOL
8. APPLY TAPE TO BUILD PLATE
11. PRESS DIAL TO START SETUP
14. CHOOSE A TEST PRINT
3. INSTALL SMART EXTRUDER
6. ROTATE SPOOL TO ROUTE FILAMENT
9. SLIDE BUILD PLATE INTO PLATFORM
12. LEVEL THE BUILD PLATE
Front leveling knob
FOR MORE INFORMATION
Download the User Manual
makerbot.com/um_rep
Right
leveling
knob
